Toyota CAMRY Engine Mounting — Figure 1107

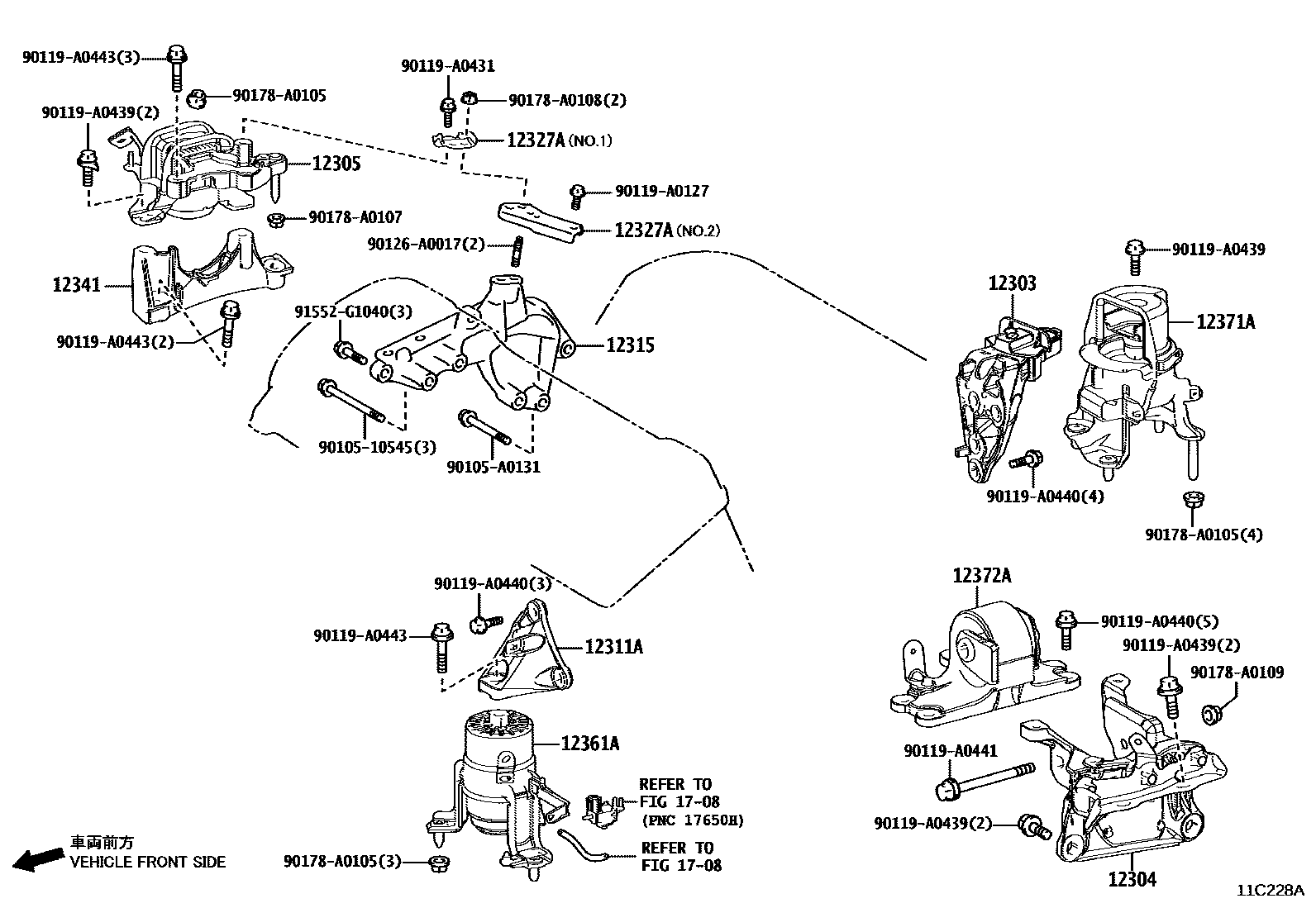

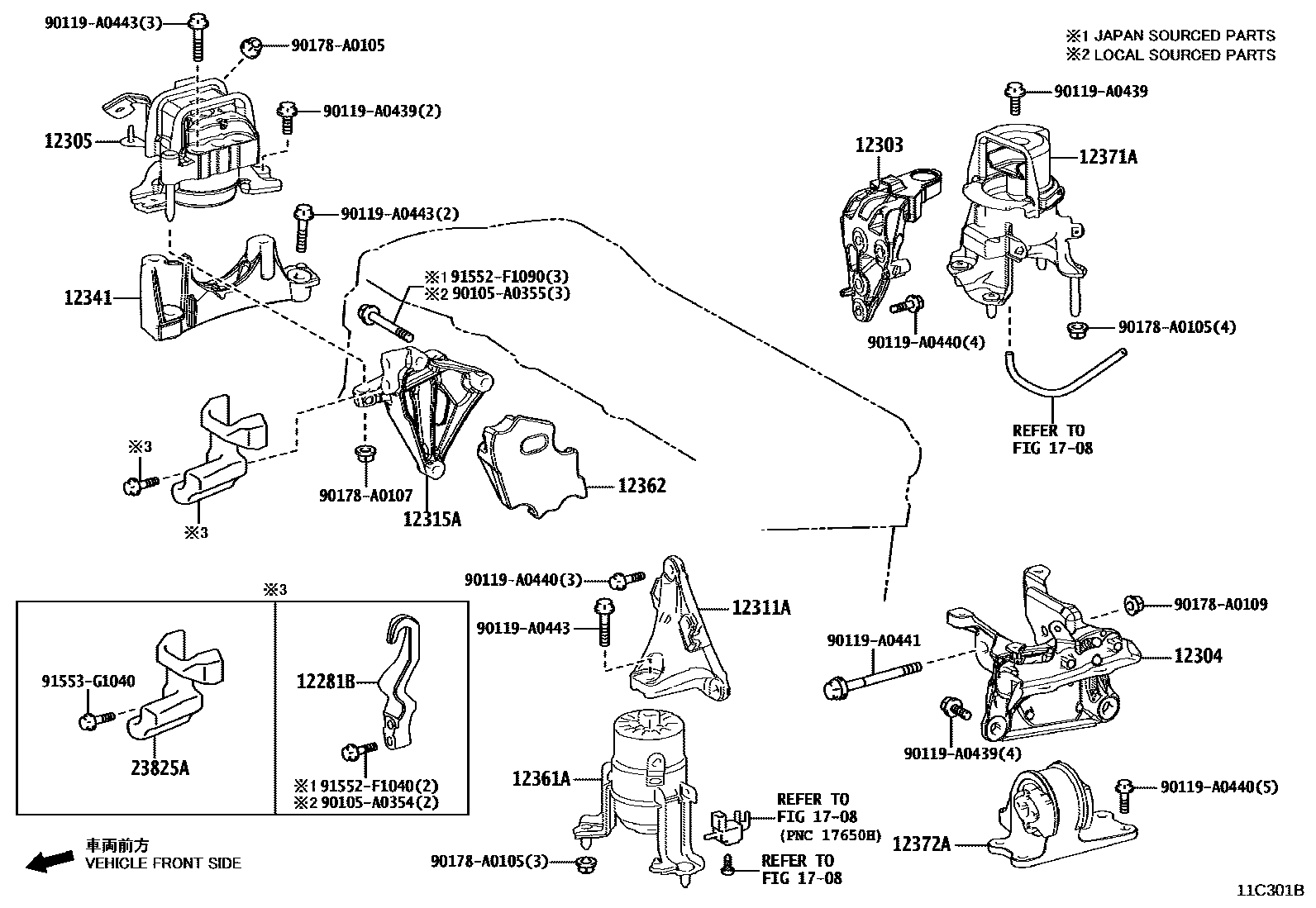

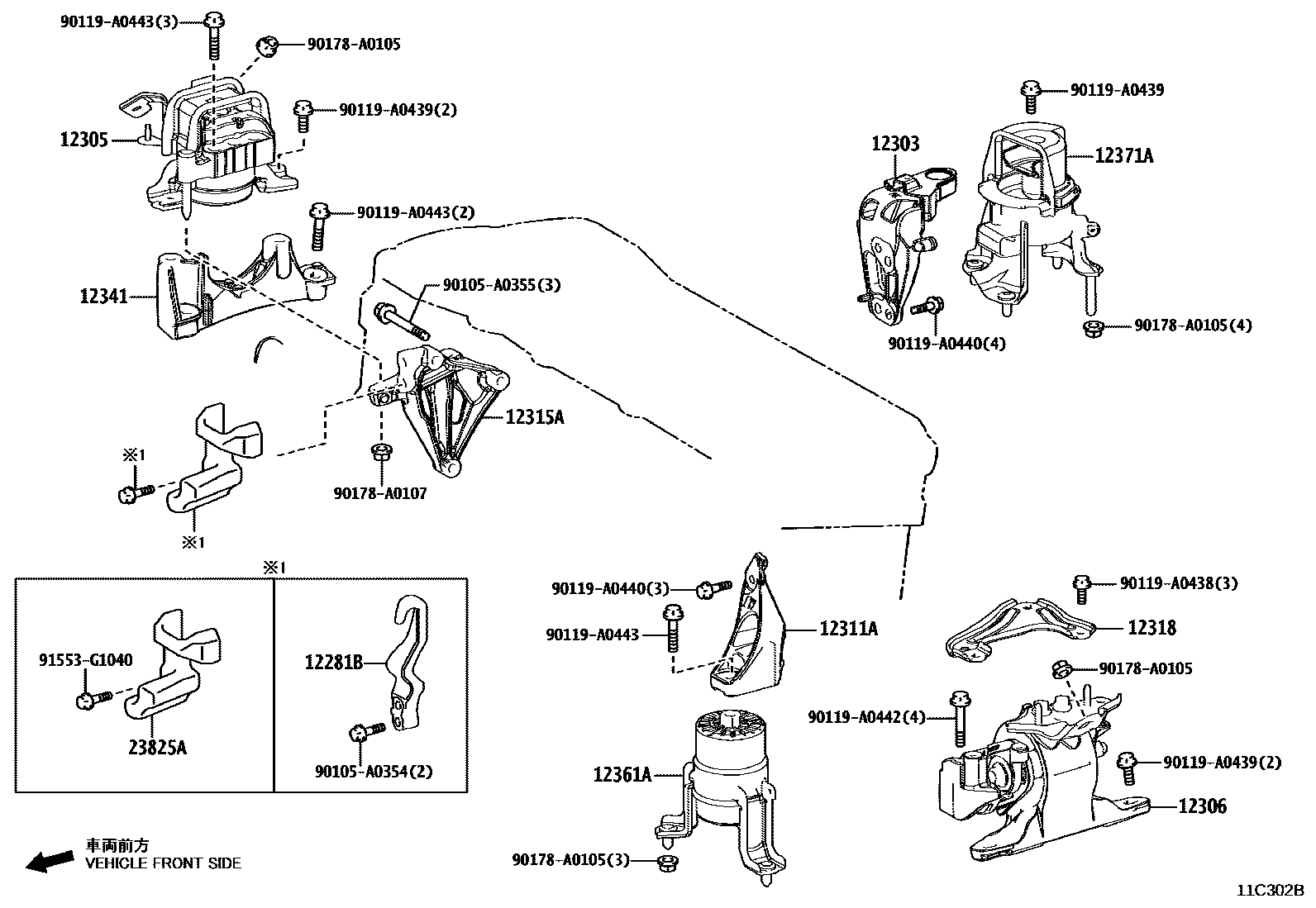

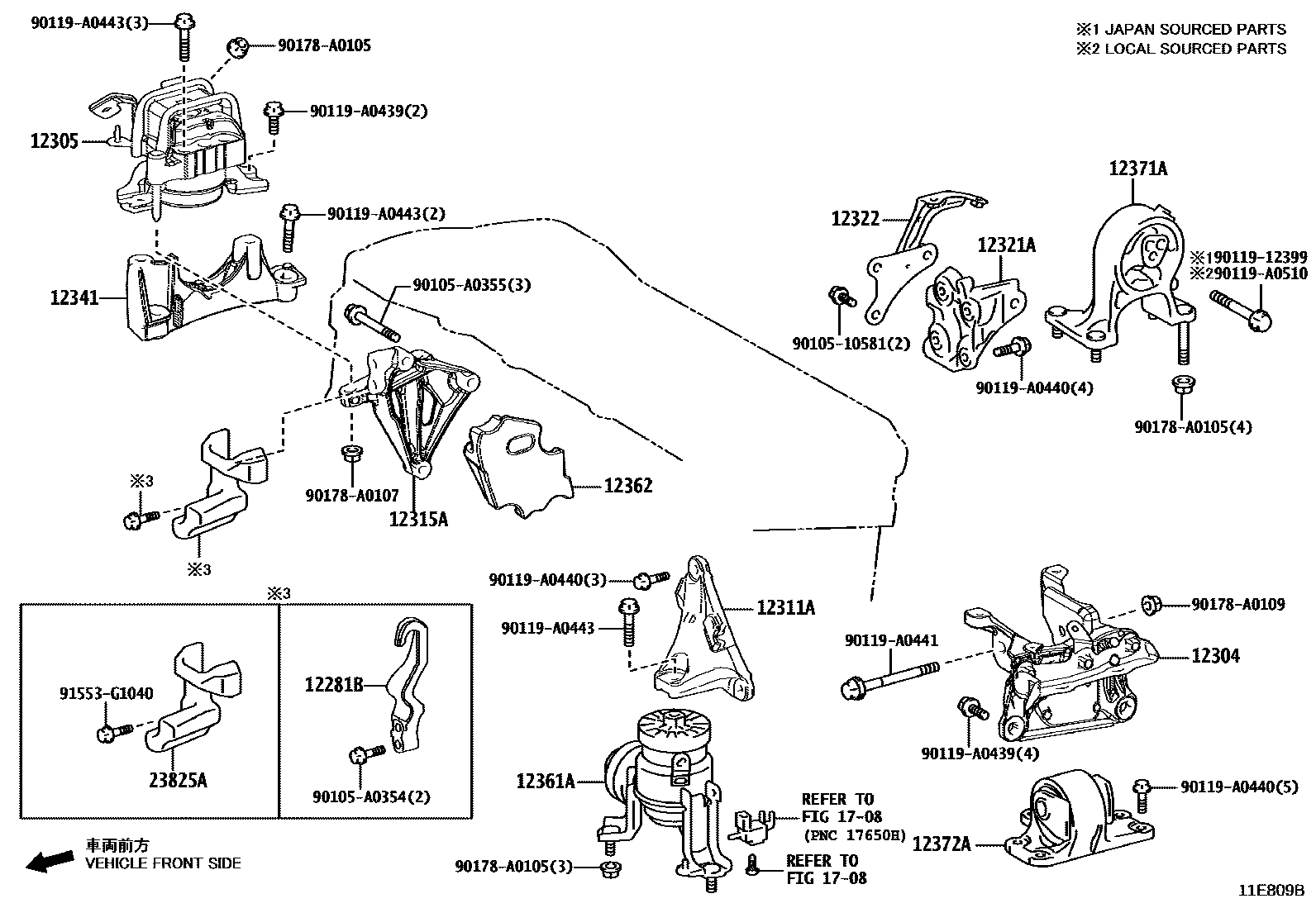

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-0P040 · 12303-F0150 · 12303-F0160 |
| 12304 | SOUS-ENS. SUPPORT, PROTECTION MOTEUR, MG | 12304-F0010 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0P030 · 12305-F0010 · 12305-F0020 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-F0010 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0P160 · 12311-F0010 · 12311-F0020 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0P080 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25030 · 12315-25031 |
| 12318 | Engine left mounting bracket | 12318-F0020 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-25030 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-25010 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0P080 · 12327-0P090 · 12327-31050 · 12327-31120 |
| 12341 | engine mounting spacer | 12341-F0010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0P210 · 12361-F0011 · 12361-F0020 · 12361-F0170 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-25010 · 12362-25011 · 12362-F0010 · 12362-F0011 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0P290 · 12371-F0011 · 12371-F0020 · 12371-F0190 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0P080 · 12372-F0010 · 12372-F0190 |
| 23825A | PROTECTION, ALIM CARBURANT | 23825-25010 · 23825-F0080 |
