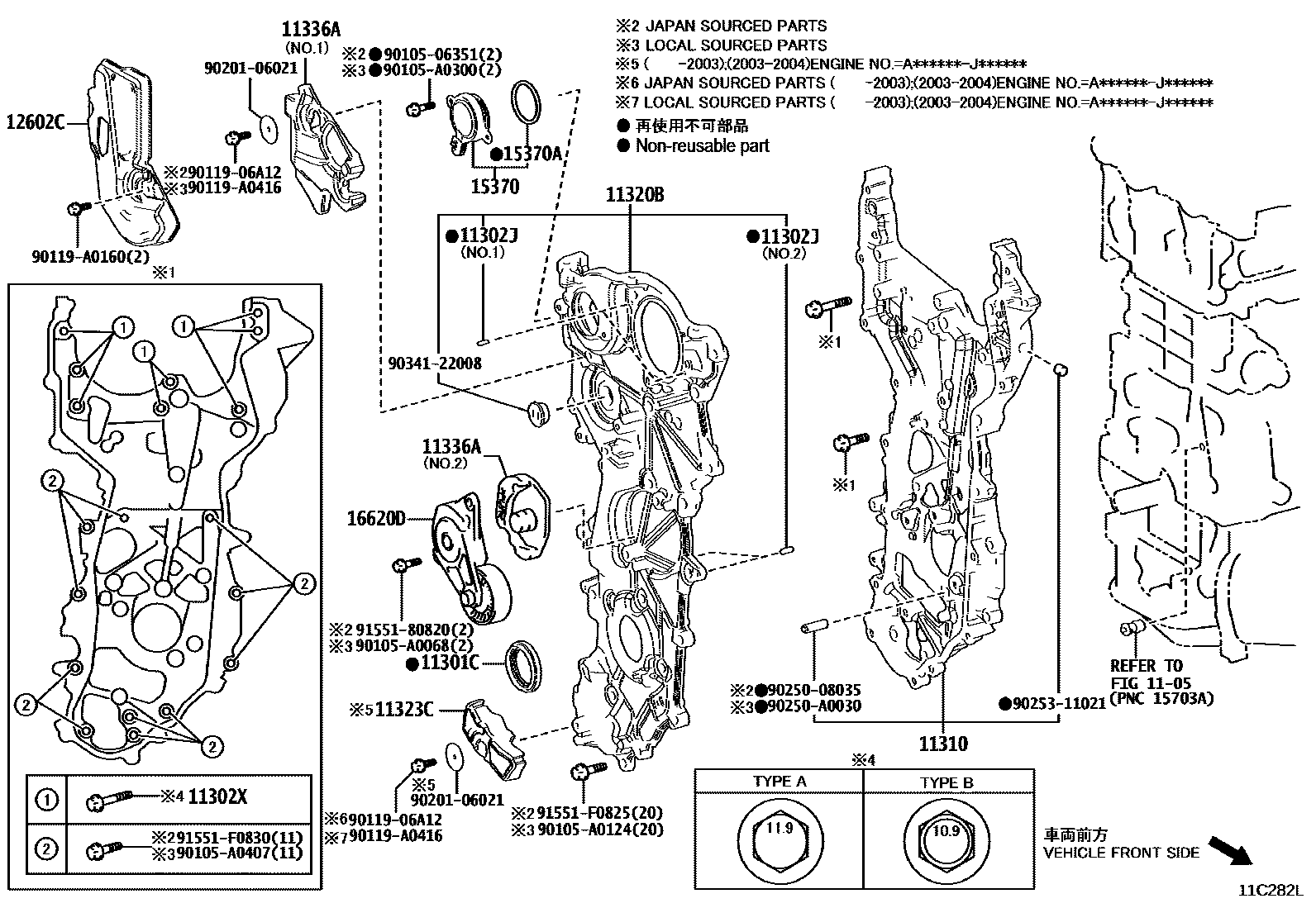

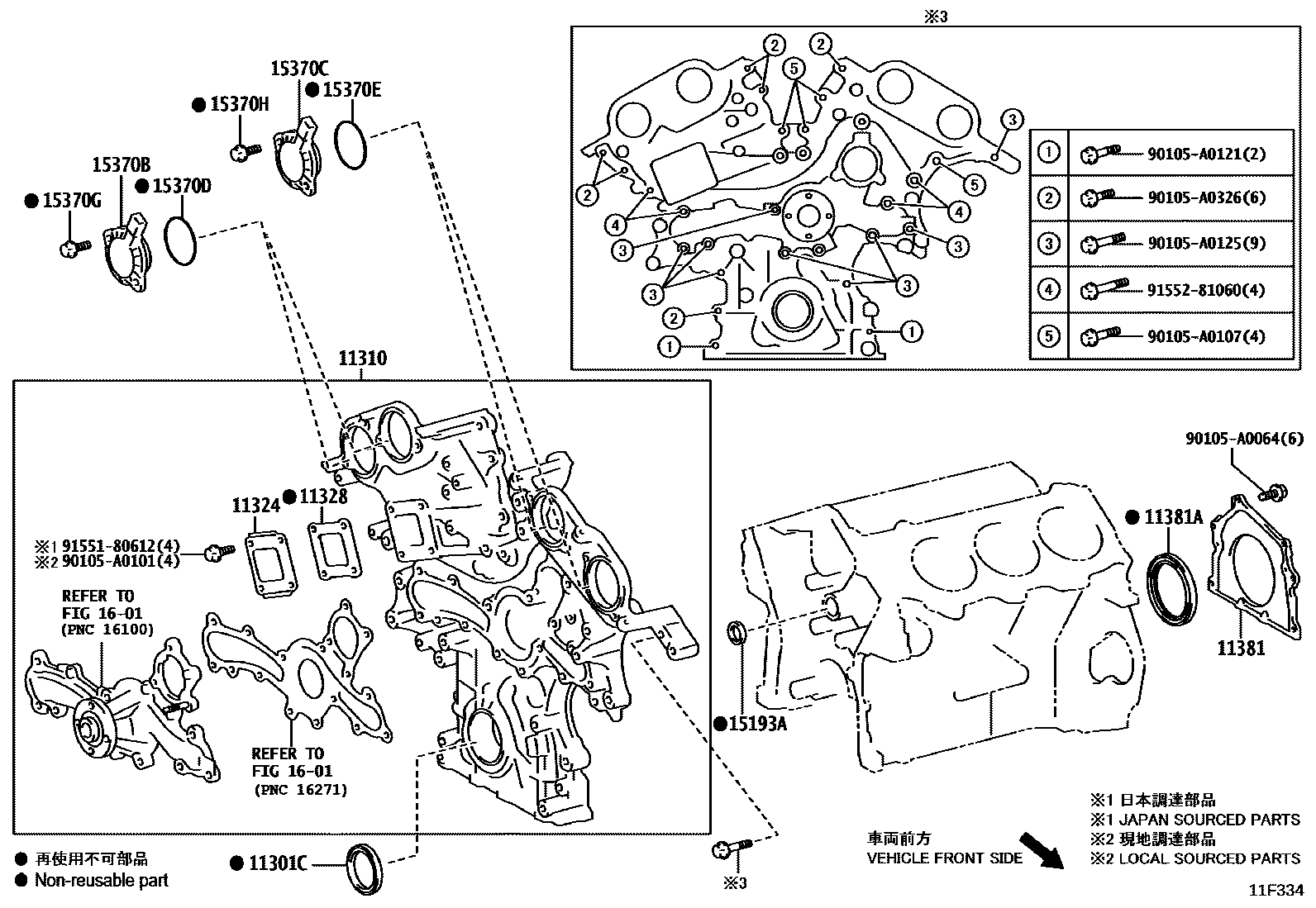

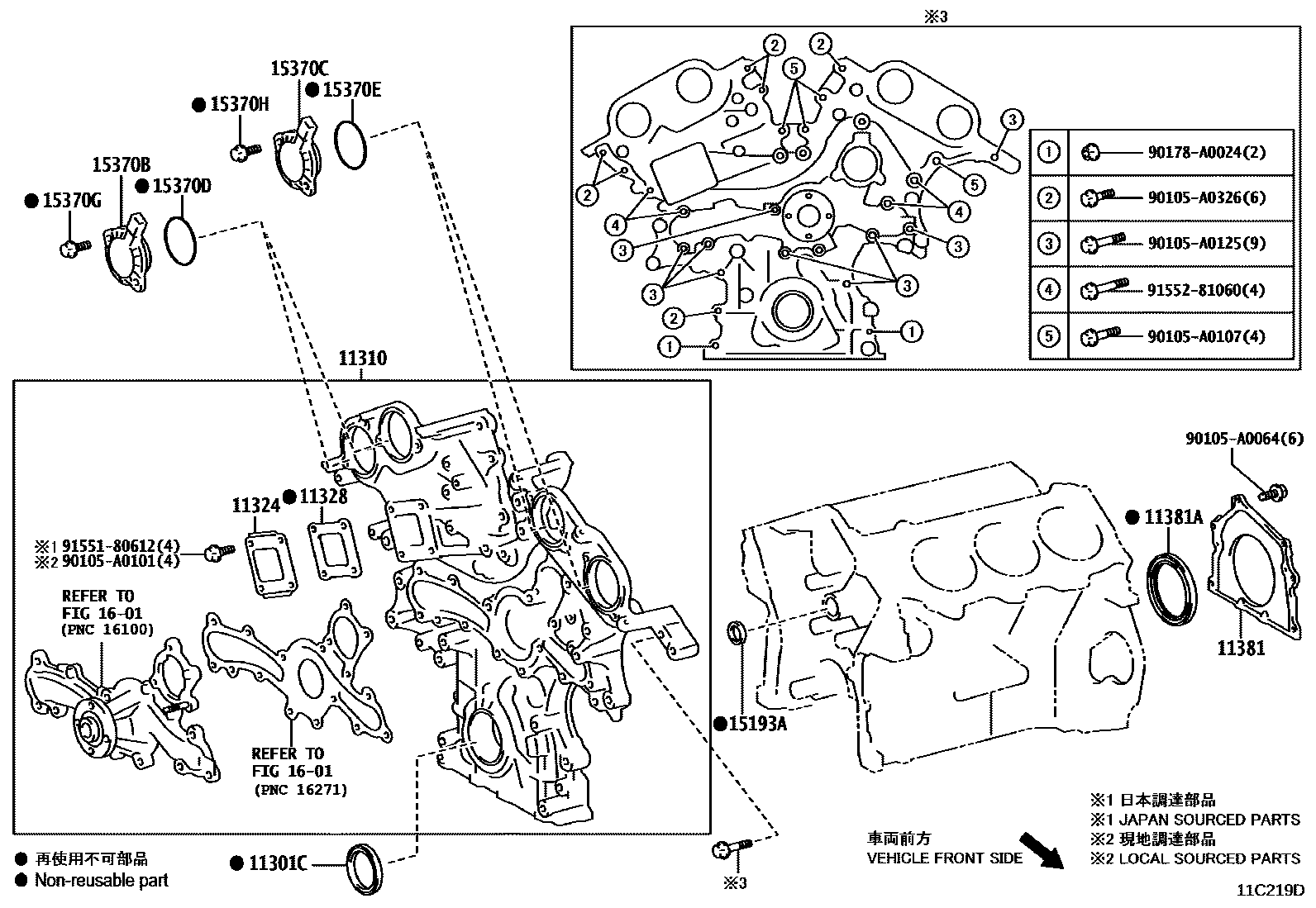

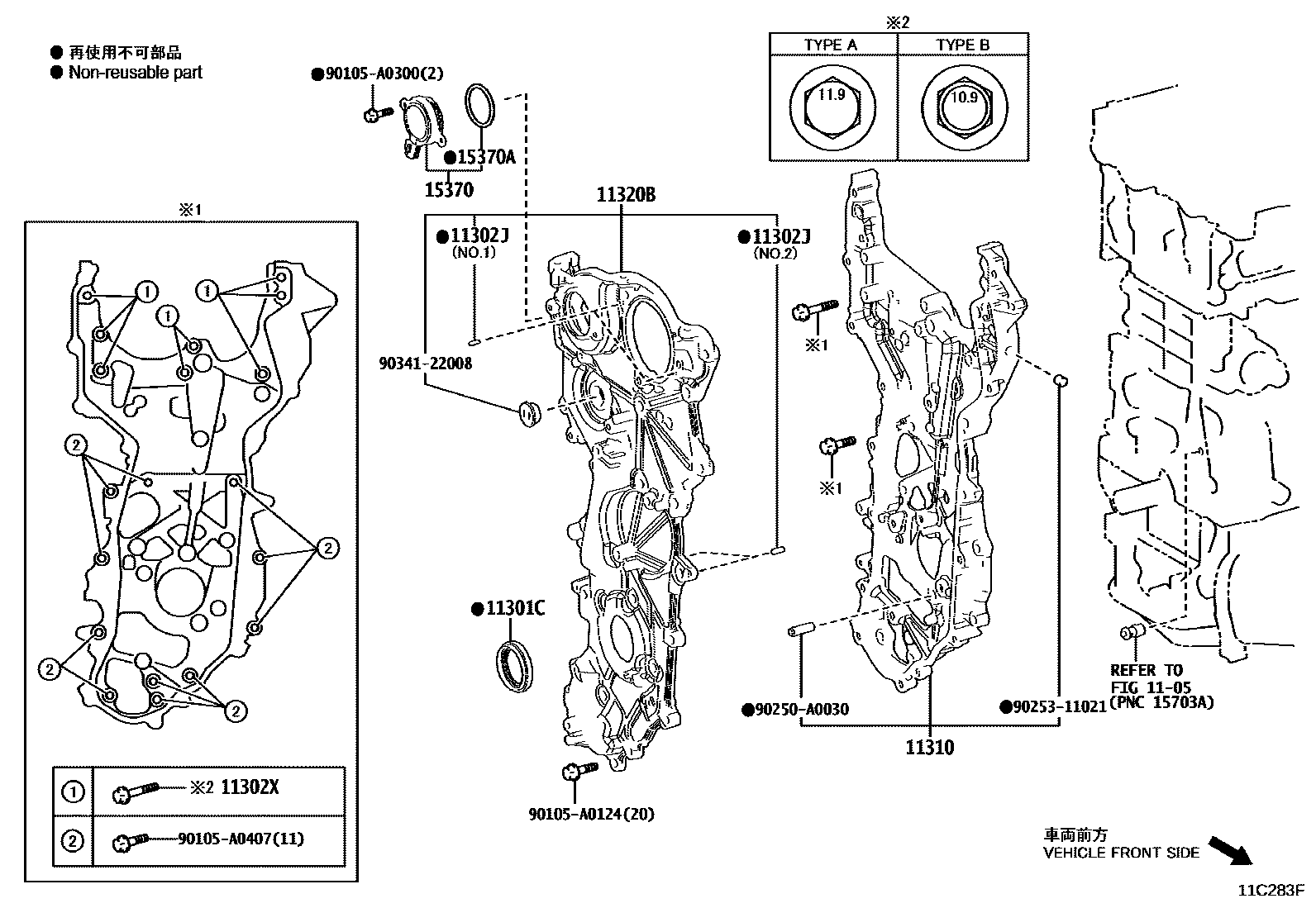

Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106
Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-40044 · 90311-A0028 · 90311-A0033 |
| 11302J | Direct sales (for timing chain cover) | 90250-04097 · 90250-06003 · 90250-A0028 · 90250-A0029 |
| 11302X | BOULON, A COLLERETTE | 90105-A0149 · 90105-A0408 · 91551-F0845 · 91551-G0845 |
| 11310 | ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION | 11310-0P050 · 11310-25030 · 11310-F0010 |
| 11320B | ENS. CACHE, CHAINE DISTRIBUTION, NO.2 | 11320-25010 · 11320-25011 · 11320-F0010 |
| 11323C | CACHE, CHAINE DISTRIBUTION, NO.3 | 11323-25010 · 11323-F0010 |
| 11324 | Timing chain cover | 11324-0P010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-0P010 |
| 11336A | Timing gear cover vibration isolation pad | 11336-25010 · 11336-F0010 · 11339-25010 · 11339-F0010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0P020 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-A0027 |
| 12602C | Engine hood No. 2 | 12612-F0010 |
| 15193A | oil pump gasket | 15193-0P010 · 15193-31020 |
| 15370 | ENS. SOLENOIDE, COMMANDE HUILE DISTRIB ARBRE CAMES | 15370-25020 · 15370-F0020 |
| 15370A | JOINT, TORIQUE(POUR SOLENOIDE COM HUILE DISTRIB ARBRE CAMES) | 90301-44006 · 90301-T0079 |
| 15370B | ENS. SOLENOIDE, COMMANDE HUILE DISTRIBUTION CAME, MD | 15370-0P020 |
| 15370C | ENS. SOLENOIDE, COMMANDE HUILE DISTRIBUTION CAME, MG | 15370-0P020 |
| 15370D | JOINT,TORIQ(PR SOLENOID COMM HUILE DISTRIB ARBRE CAMES MD) | 90301-50003 |
| 15370E | JOINT,TORIQ(PR SOLENOID COMM HUILE DISTRIB ARBRE CAMES MG) | 90301-50003 |
| 15370G | BOULON(PR SOLENOIDE COMM HUILE DISTRIB ARBRE CAMES MD) | 90105-A0064 |
| 15370H | BOULON(PR SOLENOIDE COMM HUILE DISTRIB ARBRE CAMES MG) | 90105-A0064 |
| 16620D | Poly V-belt tensioner assembly | 16620-25010 · 16620-25011 · 16620-F0011 · 16620-F0012 · 16620-F0013 |
