Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

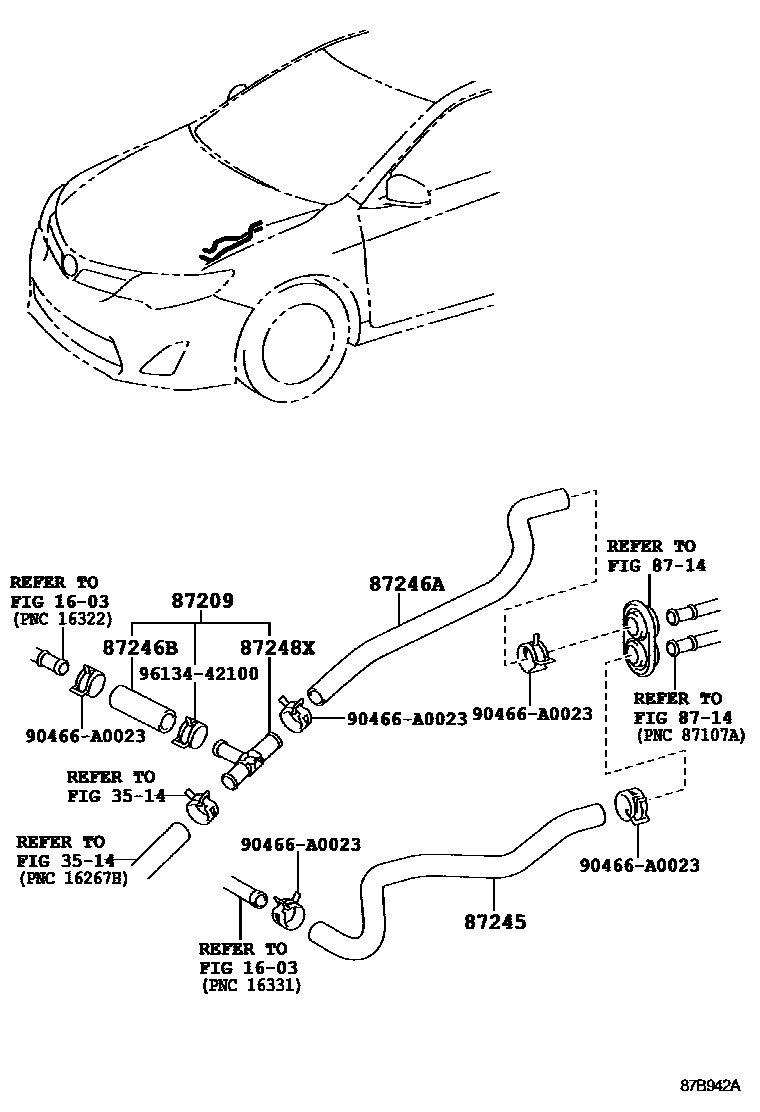

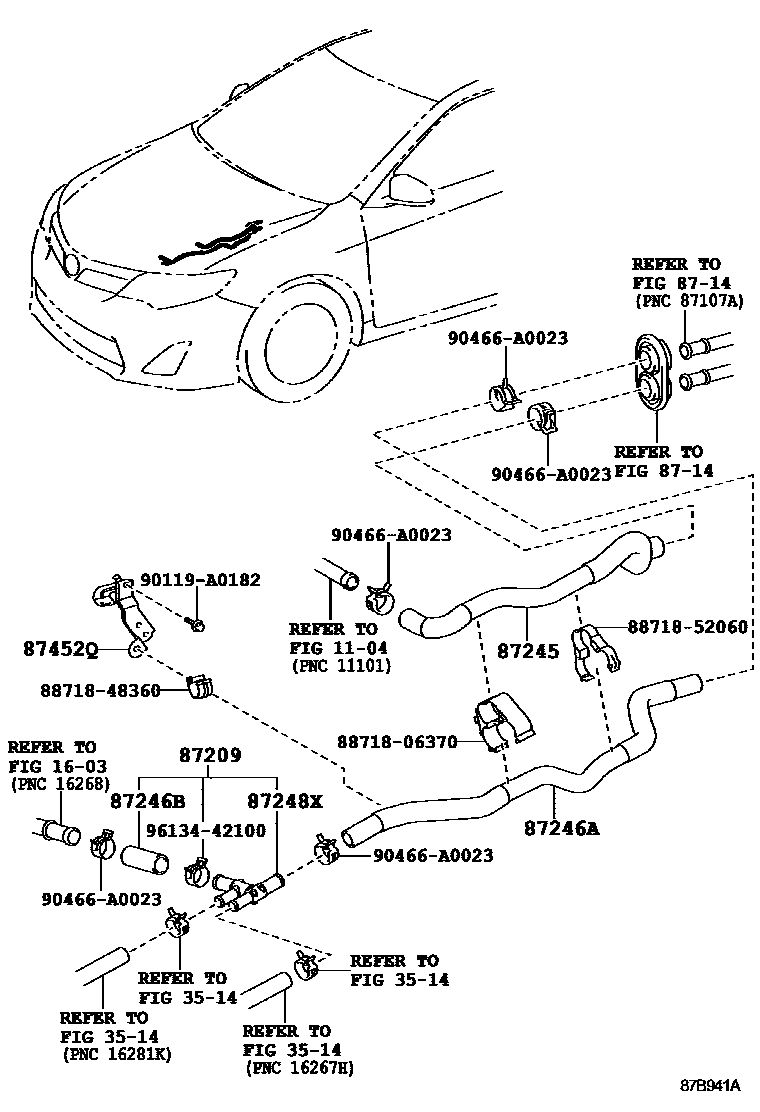

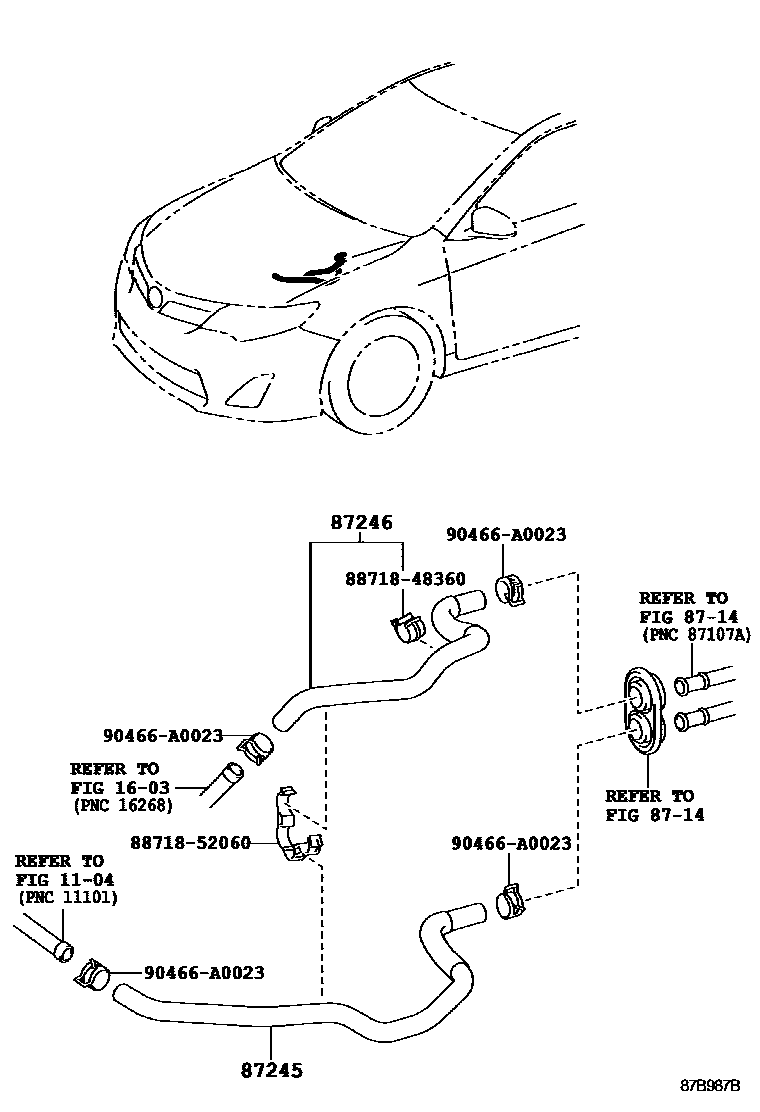

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-06020 · 87209-06030 |
| 87245 | Heater water inlet hose | 87245-06800 · 87245-06830 · 87245-06850 |
| 87246 | Heater outlet hose | 87245-06860 |
| 87246A | Heater outlet hose A | 87245-06810 · 87245-06840 |
| 87246B | Heater outlet hose B | 87245-06790 · 87245-06820 |
| 87248X | heater water pipe | 87248-06020 · 87248-06040 |
| 87452Q | Heater Bracket No. 1 | 87121-06010 · 87452-06040 |
