Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

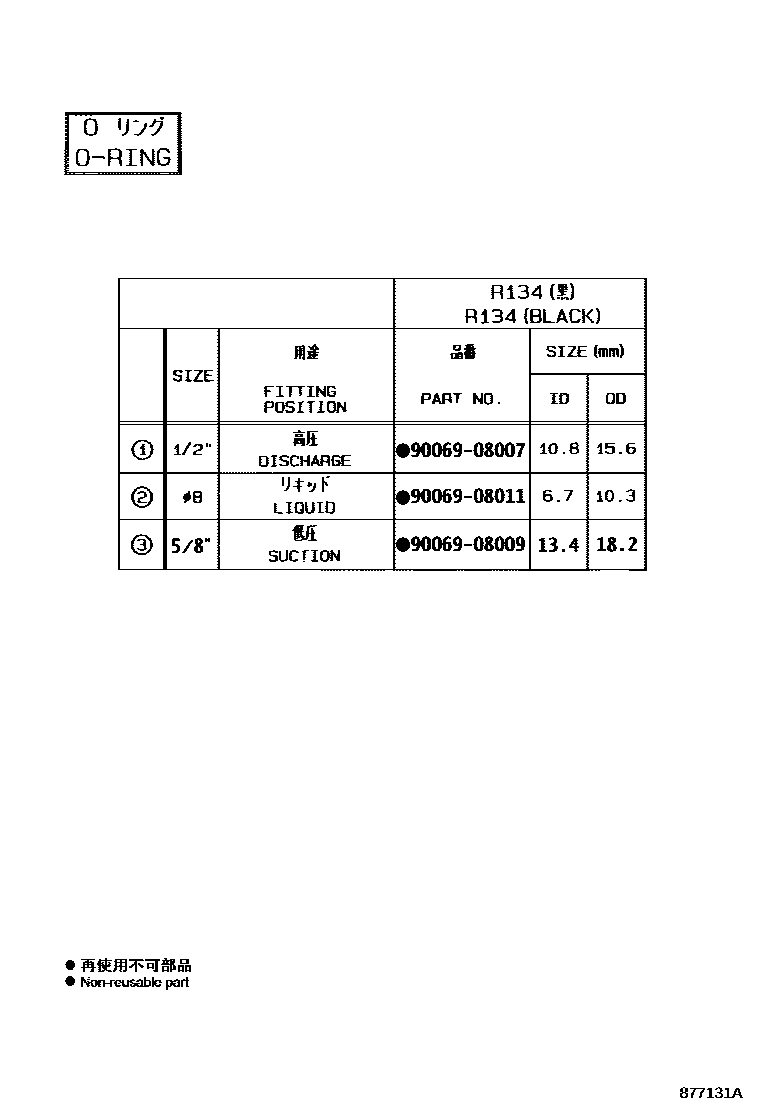

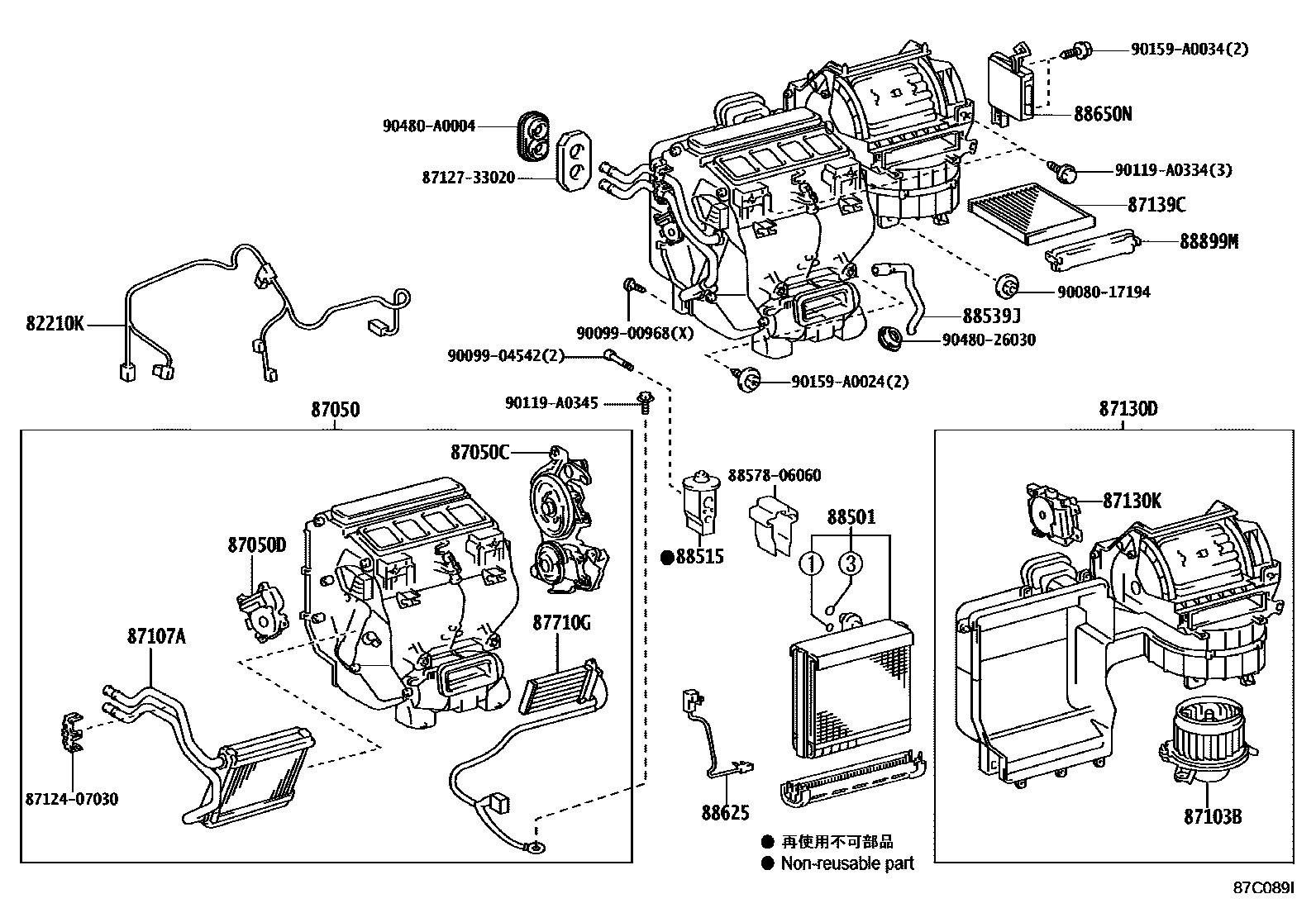

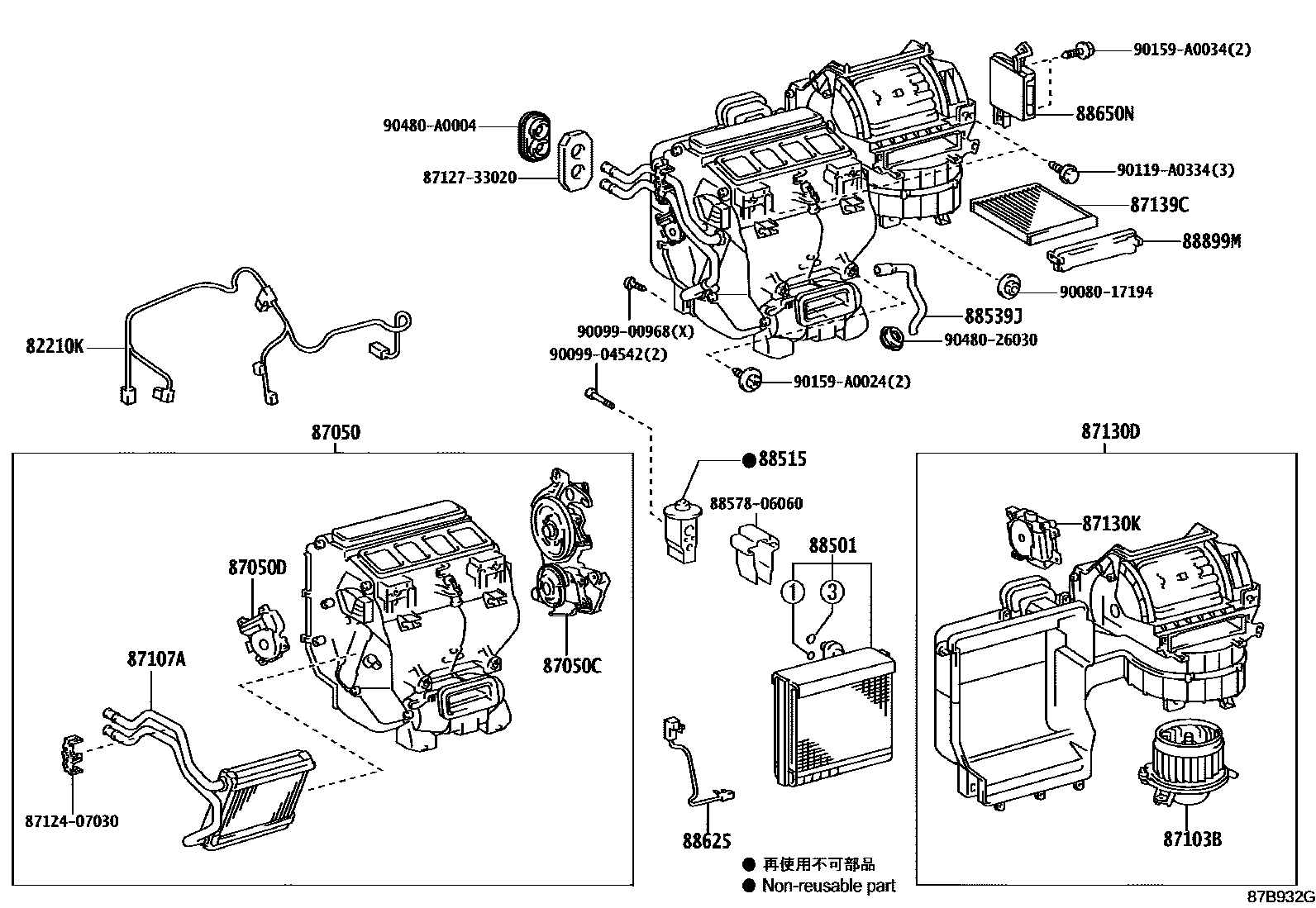

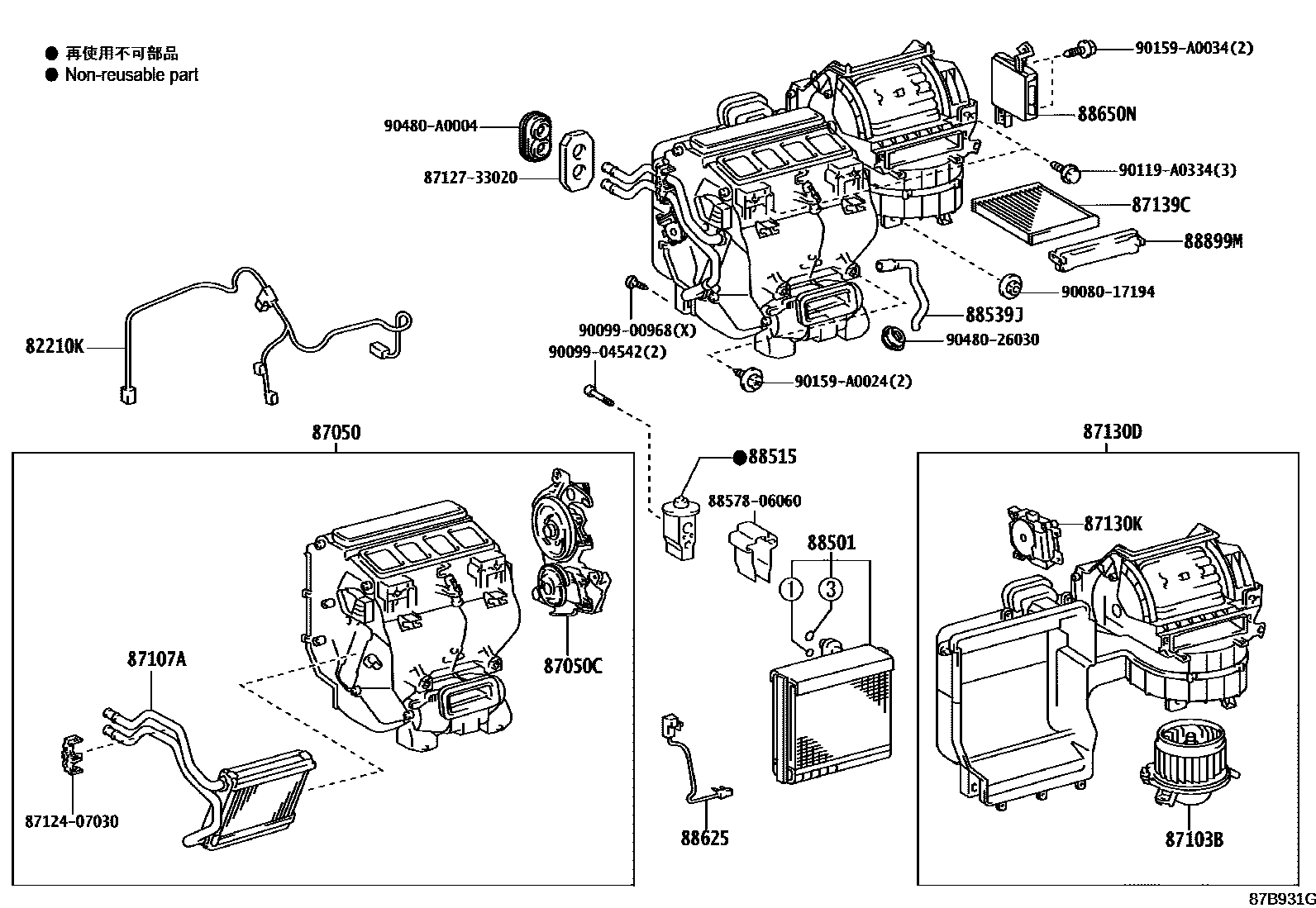

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06111 · 82212-06121 |
| 87050 | Air conditioning radiator assembly | 87050-06530 · 87050-06570 · 87050-06571 · 87050-06580 · 87050-06581 · 87050-06590 · 87050-06591 · 87050-06600 · 87050-06601 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06290 · 87106-06300 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-07120 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E040 |
| 87107A | Heater radiator device sub-assembly | 87107-07030 |
| 87130D | Blower assembly | 87130-06330 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-07140 |
| 87139C | air purification filter | 87139-02090 · 87139-07020 · 87139-50060 · 87139-50100 · 87139-60020 |
| 87710G | Rapid heater assembly | 87710-06010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06230 · 88501-06240 |
| 88515 | Cooler expansion valve | 88515-02530 · 88515-68010 |
| 88539J | Cooler drain hose | 88539-06121 |
| 88625 | Cooler No. 1 Thermistor | 88620-06020 |
| 88650N | Air conditioning amplifier assembly | 88650-06490 · 88650-06491 · 88650-06500 · 88650-06501 · 88650-06510 · 88650-06511 · 88650-06520 · 88650-06521 · 88650-06530 · 88650-06670 · 88650-06671 · 88650-06680 · 88650-06681 · 88650-06690 · 88650-06691 · 88650-06700 · 88650-06701 · 88650-06710 · 88650-06711 · 88650-06880 · 88650-06890 · 88650-06A00 |
| 88899M | cover (for air cleaner) | 88899-07010 |
