Toyota CAMRY 后视镜 — Figure 8701

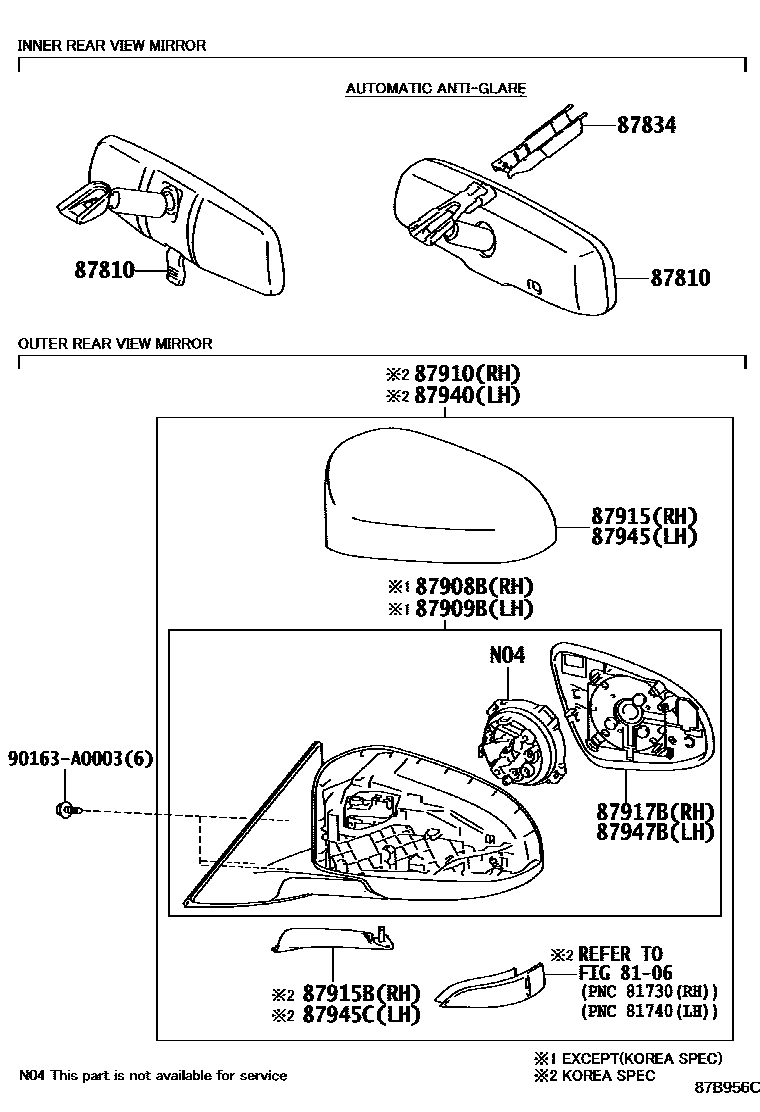

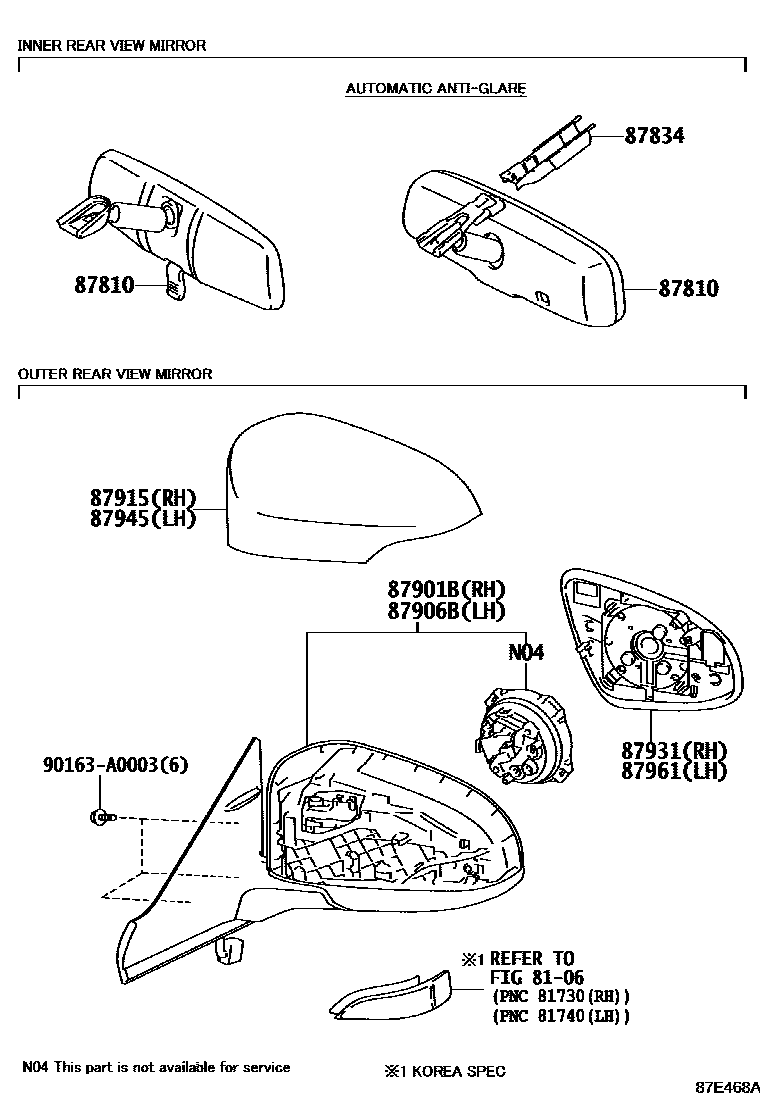

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06051 · 87810-06080 · 87810-06140 · 87810-06150 · 87810-06160 · 87810-06180 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-06020 · 87818-AC010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87901-06040 · 87901-06041 · 87901-06050 · 87901-06051 · 87901-06060 |
| 87906B | Left exterior rearview mirror sub-assembly | 87906-06040 · 87906-06041 · 87906-06050 · 87906-06051 · 87906-06060 |
| 87908B | Right rearview mirror sub-assembly | 87908-06400 · 87908-06401 · 87908-06410 · 87908-06411 · 87908-06430 · 87908-06431 · 87908-06434 |
| 87909B | Left rearview mirror sub-assembly | 87909-06400 · 87909-06401 · 87909-06410 · 87909-06411 · 87909-06430 · 87909-06431 · 87909-06434 |
| 87915B | Right exterior rearview mirror lower cover | 87915-33040 |
| 87917B | Right exterior rearview mirror | 87902-06010 · 87902-06011 · 87917-06400 · 87917-06410 · 87917-06430 · 87931-33A30 |
| 87931 | Right exterior rearview mirror | 87902-06011 · 87902-06020 · 87902-06050 |
| 87945C | Left exterior rearview mirror lower cover | 87945-33040 |
| 87947B | Left exterior rearview mirror | 87907-06010 · 87907-06011 · 87947-06400 · 87947-06410 · 87947-06430 · 87961-33A20 · 87961-33B60 |
| 87961 | Left exterior rearview mirror | 87907-06011 · 87907-06020 · 87907-06060 |
