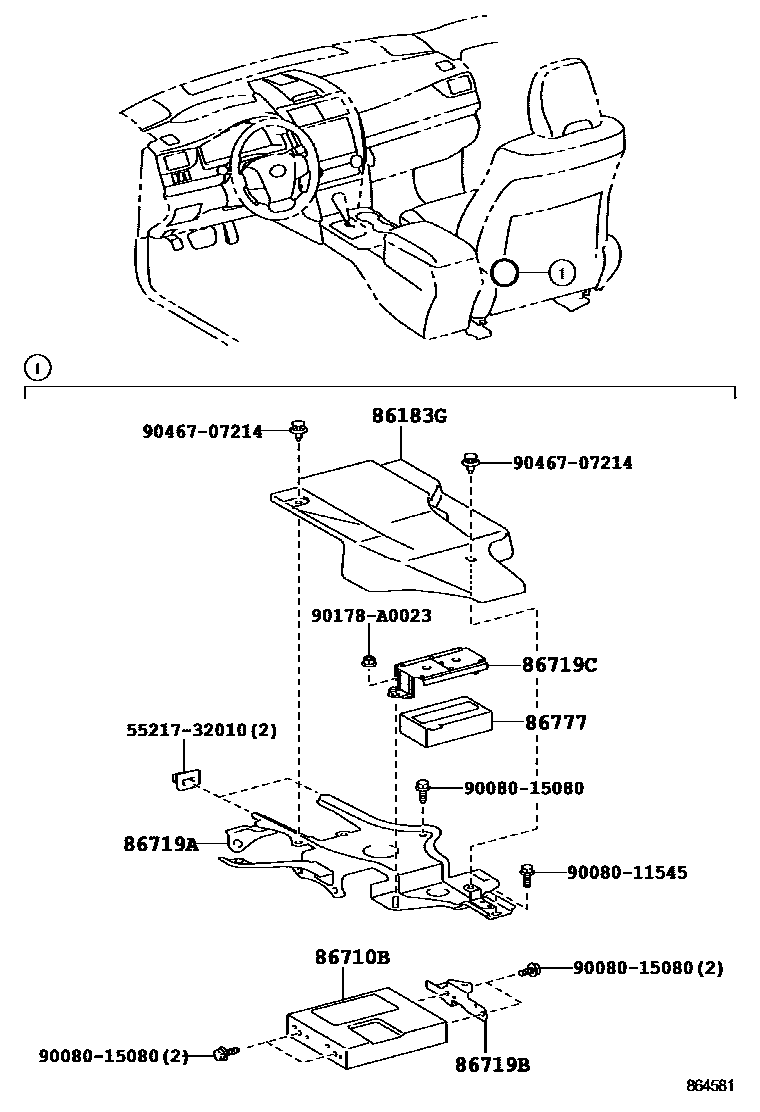

Toyota CAMRY 车载电话和呼救装置 — Figure 8615
Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86183G | audio amplifier cover | 86183-06030 |
| 86710B | Distress signal ECU assembly | 86710-07011 · 86710-08020 |
| 86719A | Phone holder No. 1 | 86719-33150 |
| 86719B | Phone holder No. 2 | 86719-33160 |
| 86719C | No. 3 phone holder | 86719-33170 |
| 86777 | Distress signal battery | 86777-0W060 · 86777-76020 · 86777-76040 |
