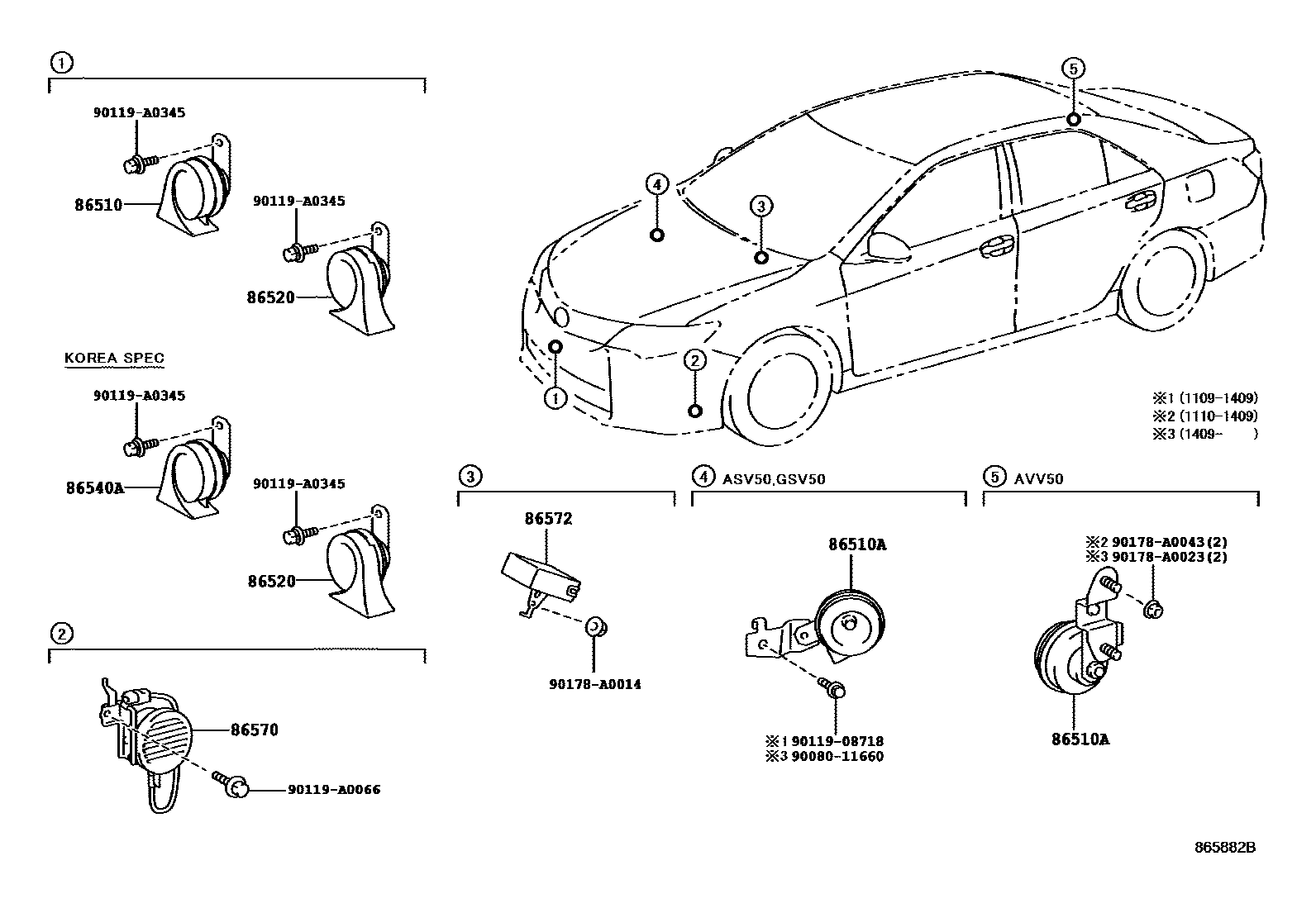

Toyota CAMRY 喇叭 — Figure 8611
Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-AA010 |
| 86510A | Alarm horn assembly | 86560-06050 · 86560-06100 |
| 86520 | Subwoofer assembly | 86520-48040 · 86520-AA010 |
| 86540A | Subwoofer assembly | 86540-48010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-33010 · 86570-33050 |
| 86572 | vehicle hacking speaker controller | 86572-33030 · 86572-33060 |
