Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.

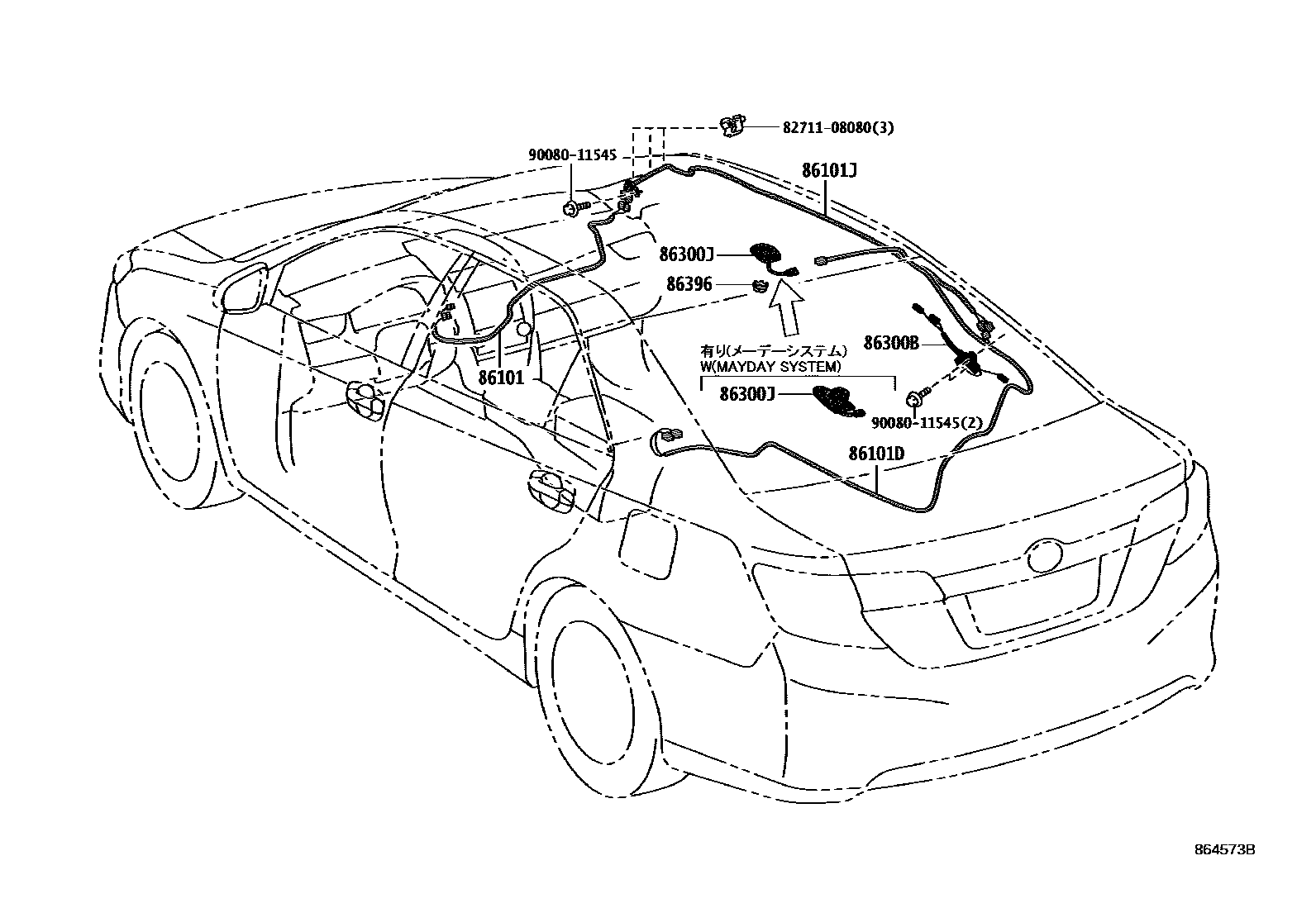

Toyota CAMRY antenna EPC diagram — 864573B
antenna — 864573B (201109 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-06550 · 86101-06560 · 86101-06690 · 86101-06730
86101DNo. 3 antenna wire sub-assembly86101-06450 · 86101-06460
86101JNo. 2 antenna wire sub-assembly86101-06480 · 86101-06500 · 86101-06630
86300BAmplifier antenna assembly86300-06160
86396Antenna nut86396-47010
