Toyota CAMRY 逆变器冷却系统 — Figure 8432

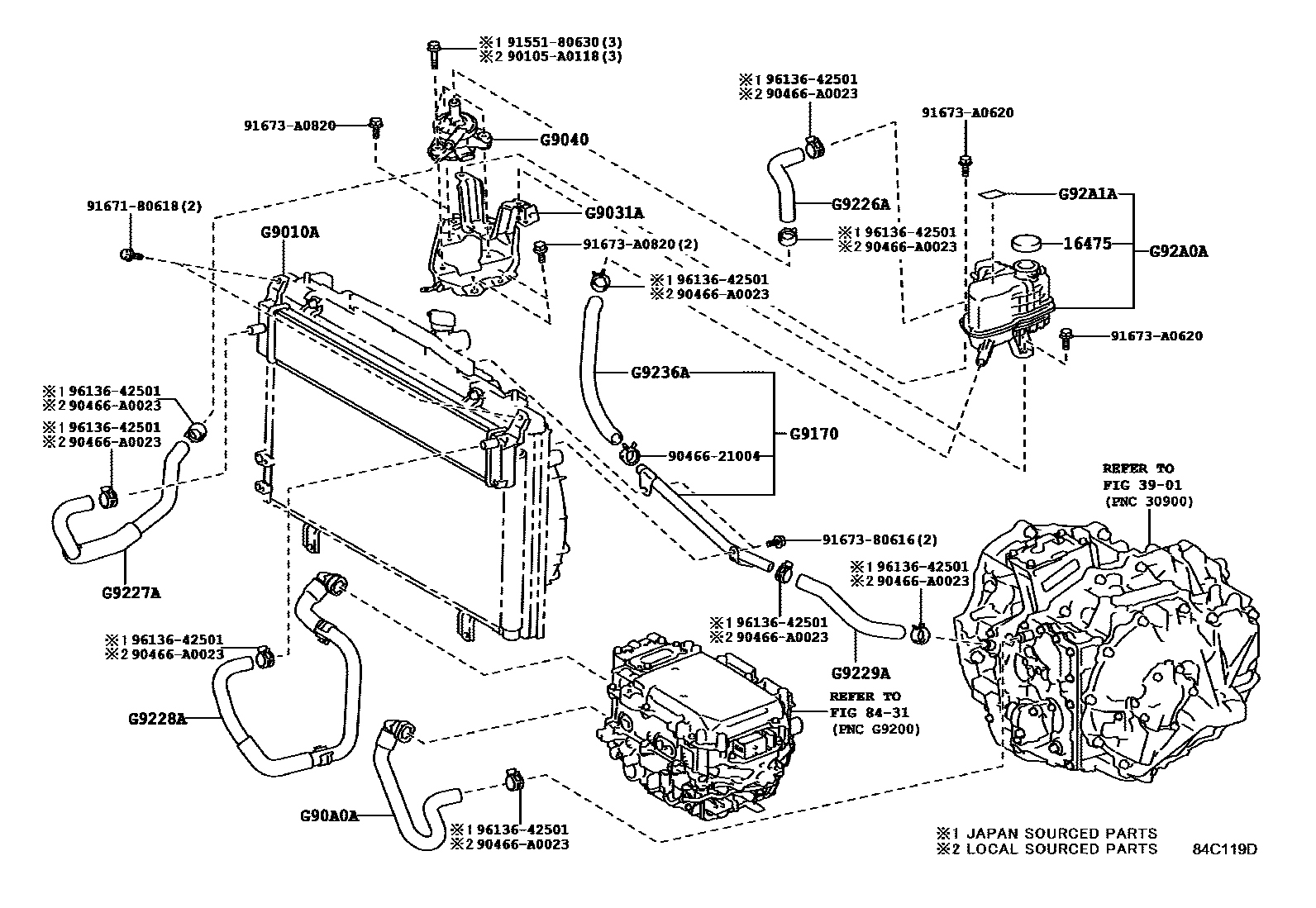

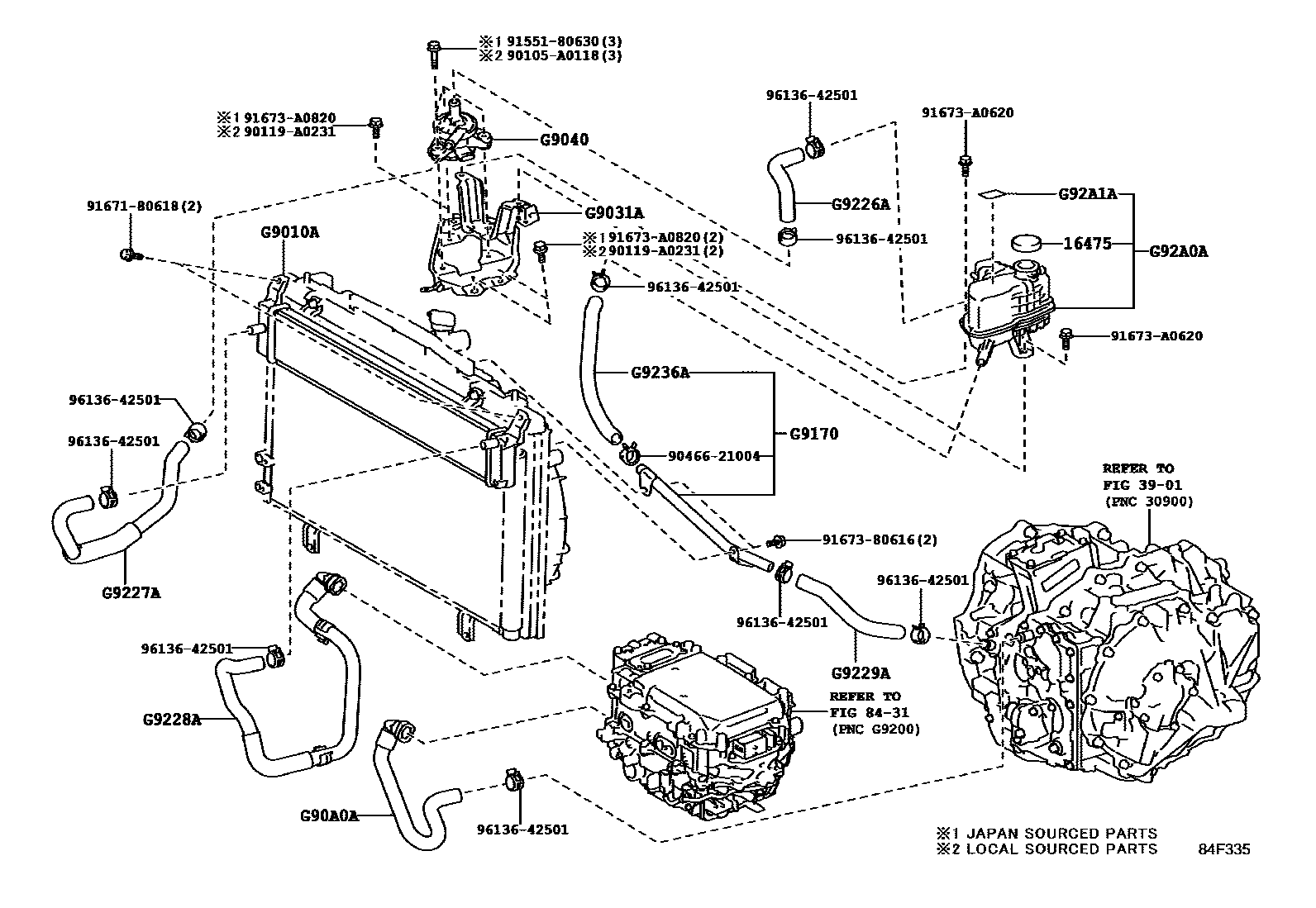

Toyota CAMRY EPC diagram 8432, 逆变器冷却系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 · 16475-51010 |
| G9010A | Radiator assembly | G9010-33030 · G9010-33031 |
| G9031A | Hybrid water pump bracket sub-assembly | G9031-33030 |
| G9040 | Inverter water pump assembly (with motor) | G9040-33030 · G9040-33040 |
| G90A0A | No. 1 inverter cooling hose assembly | G90A0-06010 |
| G9170 | No. 1 inverter cooling pipe assembly | G9170-06010 |
| G9226A | No. 2 inverter cooling hose | G9226-06010 |
| G9227A | No. 3 inverter cooling hose | G9227-06010 |
| G9228A | No. 4 inverter cooling hose | G90D0-06010 · G90D0-06040 |
| G9229A | No. 5 inverter cooling hose | G9229-06010 |
| G9236A | No. 6 inverter cooling hose | G9236-06010 |
| G92A0A | Inverter liquid tank assembly | G92A0-06010 |
| G92A1A | HV coolant system information label | G92A1-48010 |
