Toyota CAMRY HV逆变器 — Figure 8431

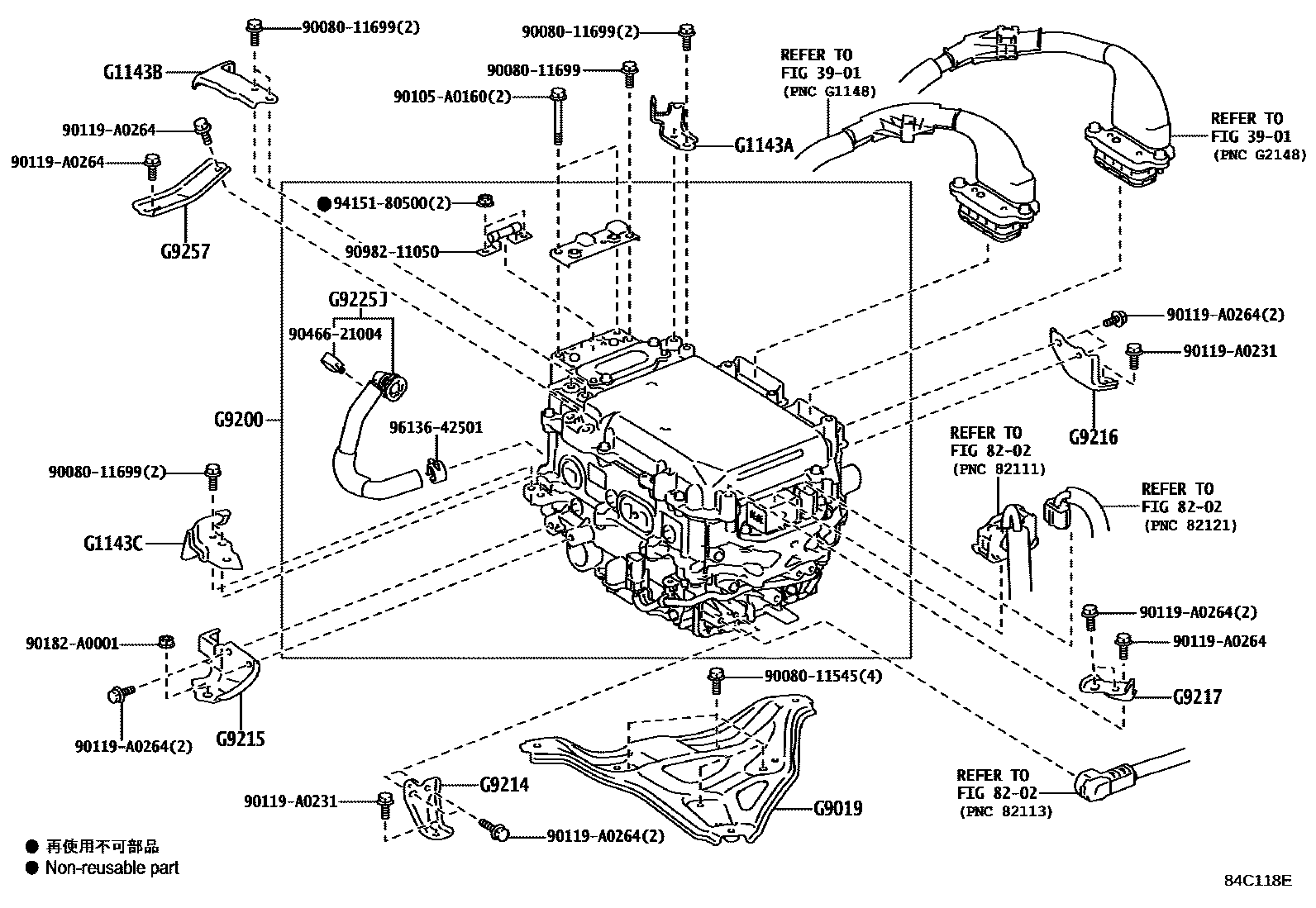

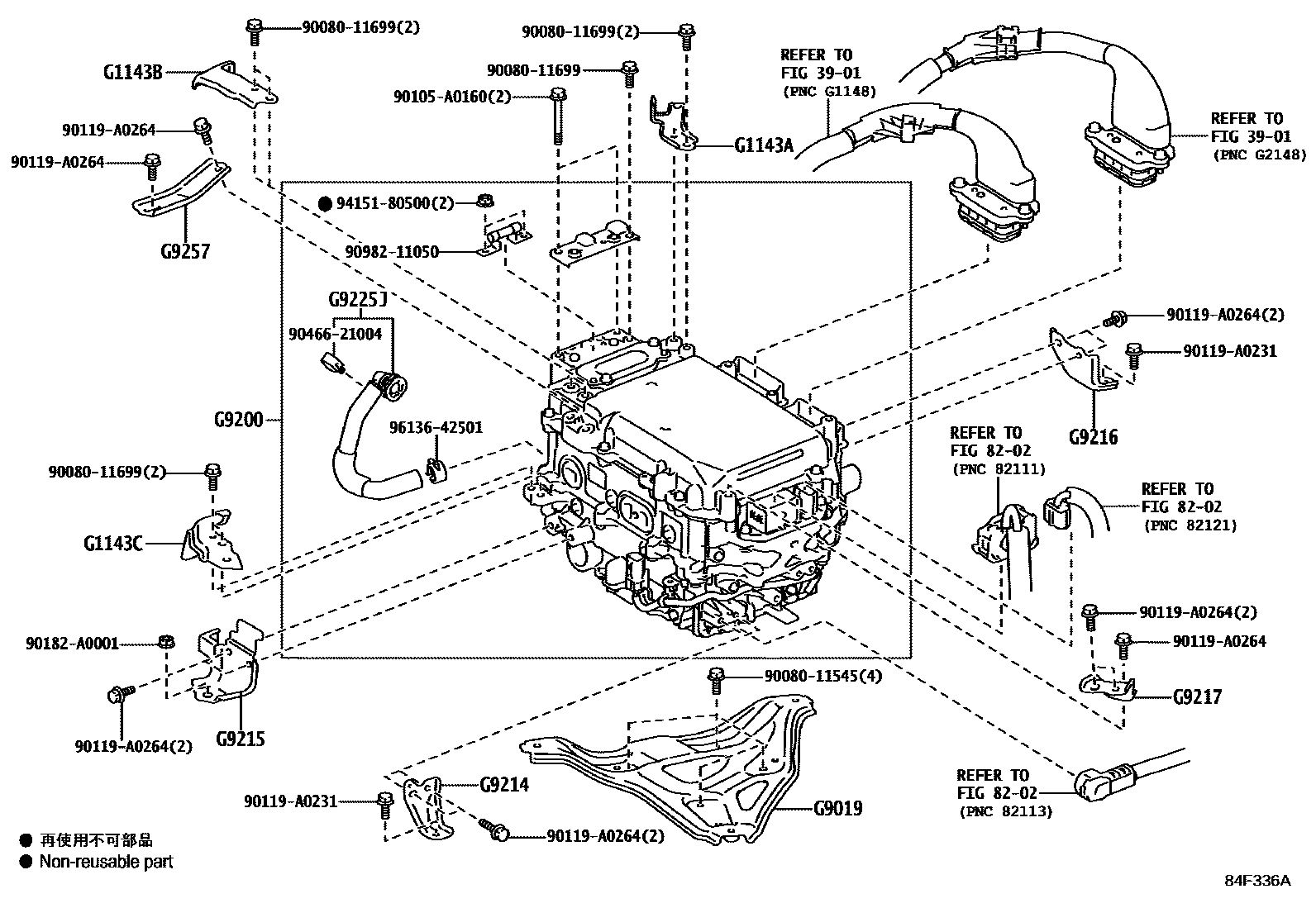

Toyota CAMRY EPC diagram 8431, HV逆变器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G1143A | No. 1 motor cable bracket | G1143-06010 |
| G1143B | No. 2 motor cable bracket | G1143-06020 |
| G1143C | No. 3 motor cable bracket | G1143-06030 |
| G9019 | Inverter tray bracket sub-assembly | G9019-06010 |
| G9200 | Inverter assembly with converter | G92A0-33020 · G92A0-33021 |
| G9214 | No. 1 inverter bracket | G9214-06010 |
| G9215 | No. 2 inverter bracket | G9015-06010 · G9015-06040 |
| G9216 | No. 3 inverter bracket | G9216-06010 |
| G9217 | No. 4 inverter bracket | G9017-06010 |
| G9225J | No. 1 inverter cooling hose | G9225-33060 |
| G9257 | No. 5 inverter bracket | G9257-06010 |
