Toyota CAMRY 空气囊 — Figure 8421

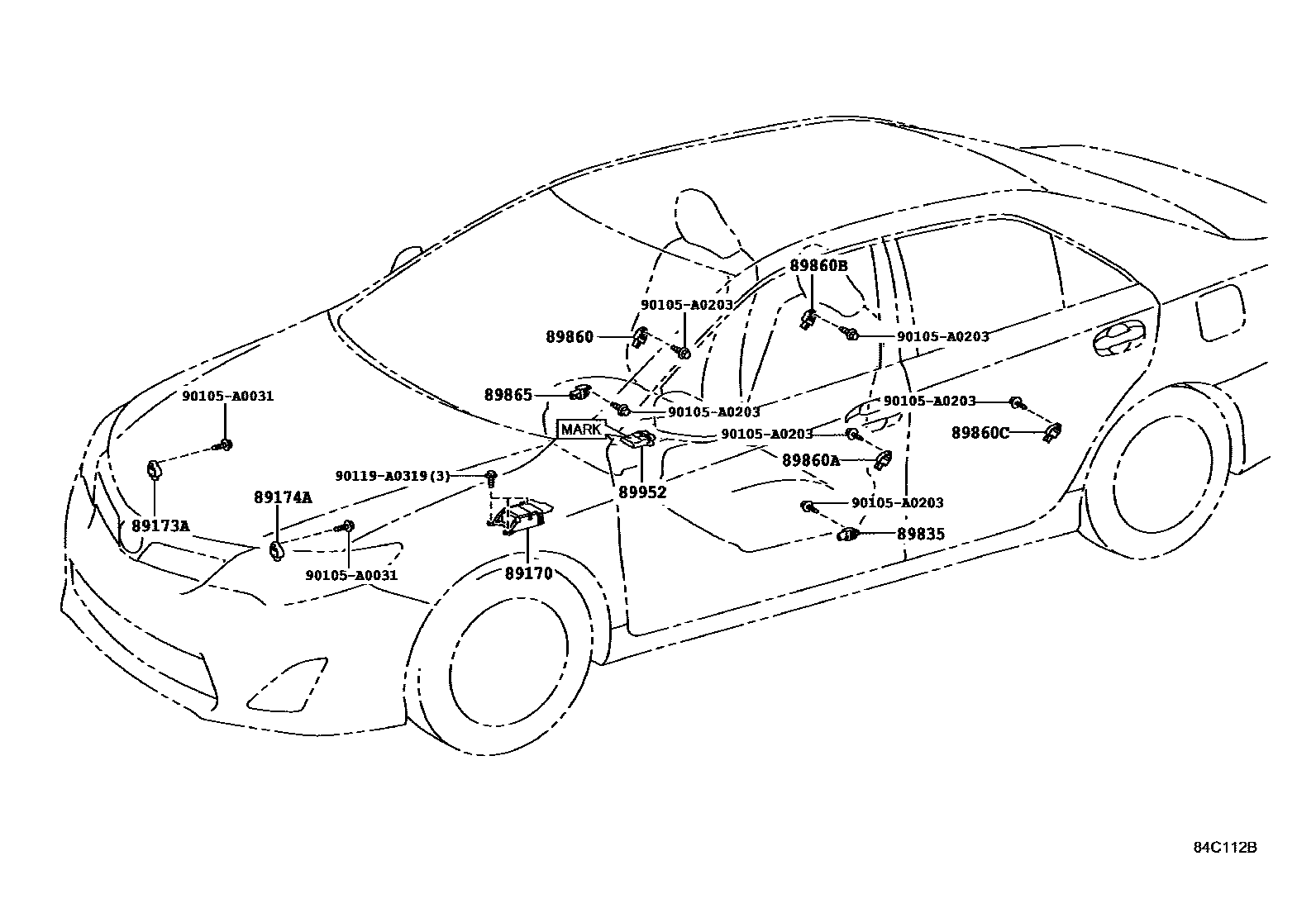

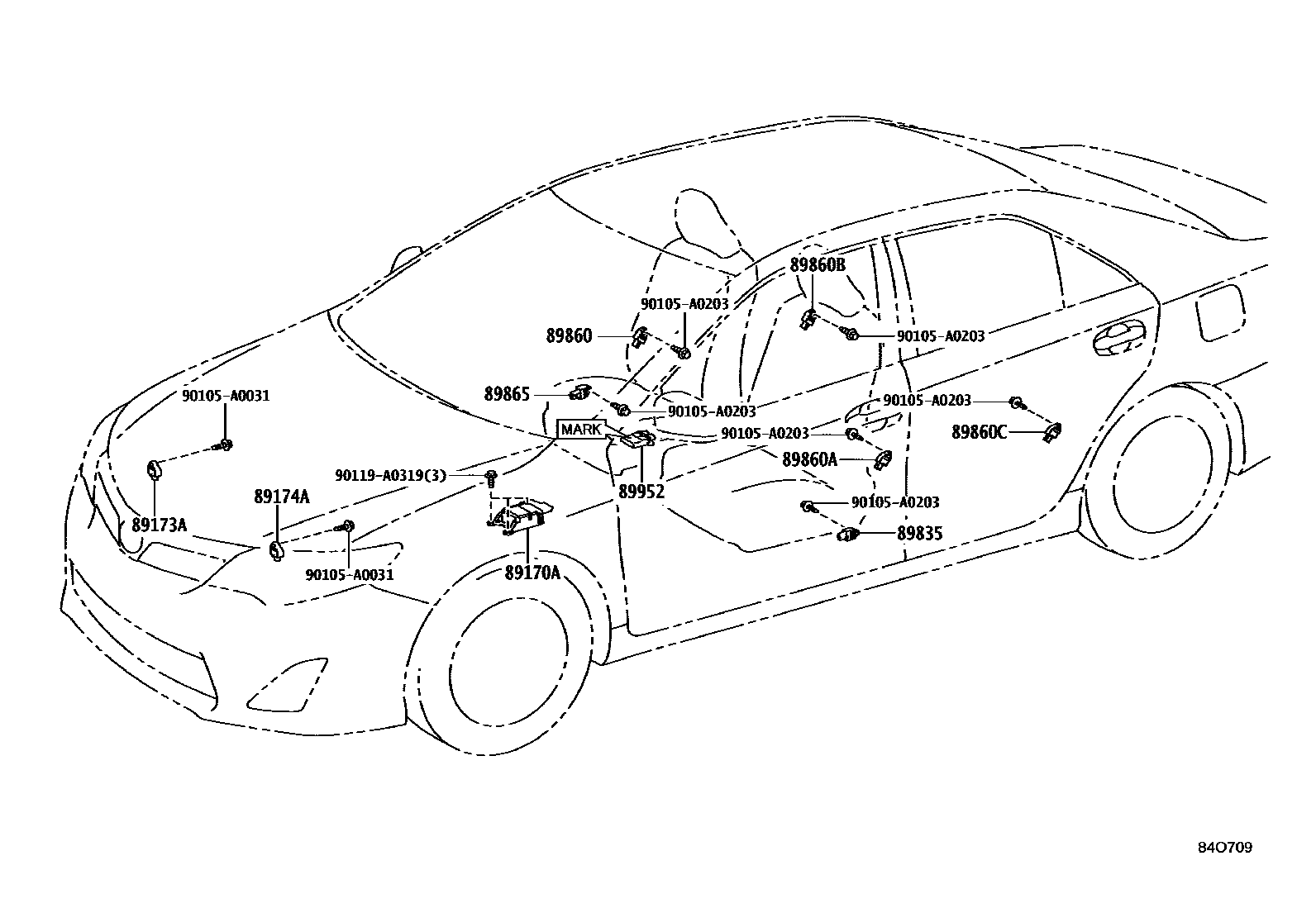

Toyota CAMRY EPC diagram 8421, 空气囊, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-06650 · 89170-06660 |
| 89170A | Air bag ECU assembly | 89170-06390 · 89170-06400 · 89170-06411 · 89170-06561 · 89170-06720 · 89170-06730 · 89170-06770 · 89170-06780 |
| 89173A | Right front air bag sensor | 89173-09820 · 89173-09A00 |
| 89174A | Left front air bag sensor | 89173-09820 · 89173-09A00 |
| 89835 | Left door side air bag sensor | 89831-06070 · 89831-0E020 |
| 89860 | Right side airbag sensor assembly | 89831-06060 · 89831-0R010 |
| 89860A | Left side air bag sensor assembly | 89831-06060 · 89831-0R010 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-06060 · 89831-0R010 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-06060 · 89831-0R010 |
| 89865 | Right door side air bag sensor | 89831-06070 · 89831-0E020 |
| 89952 | Occupant detection ECU | 89952-06010 · 89952-06011 · 89952-0E011 |
