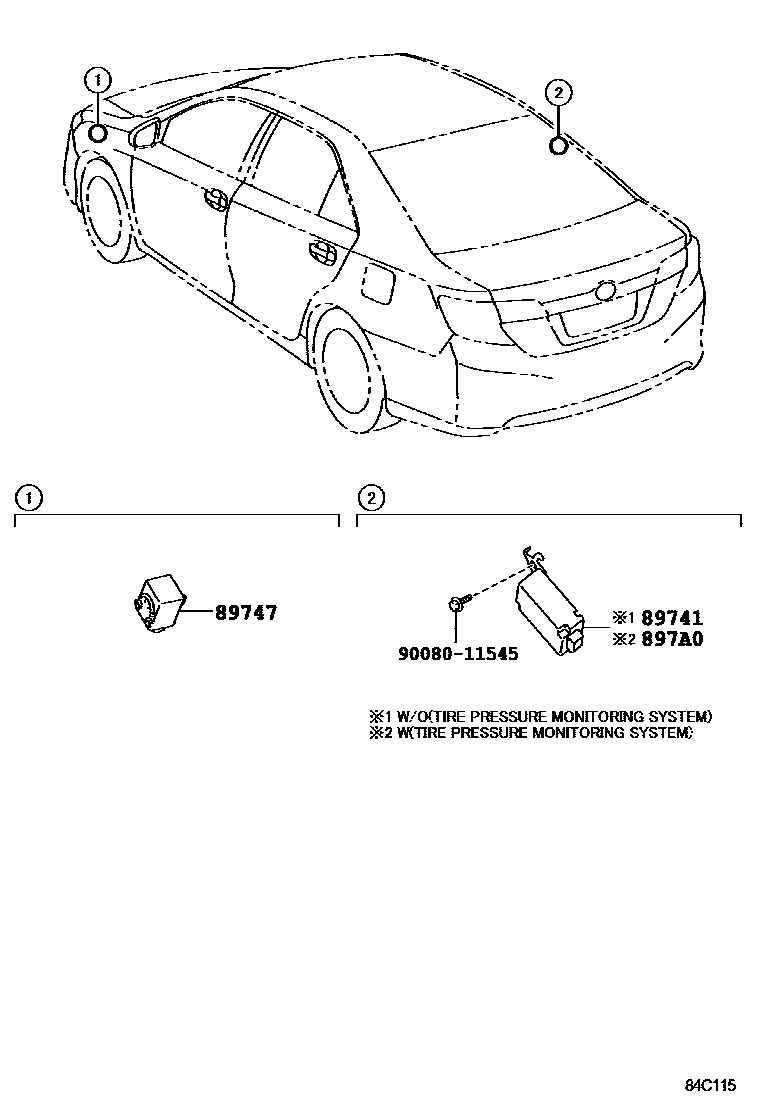

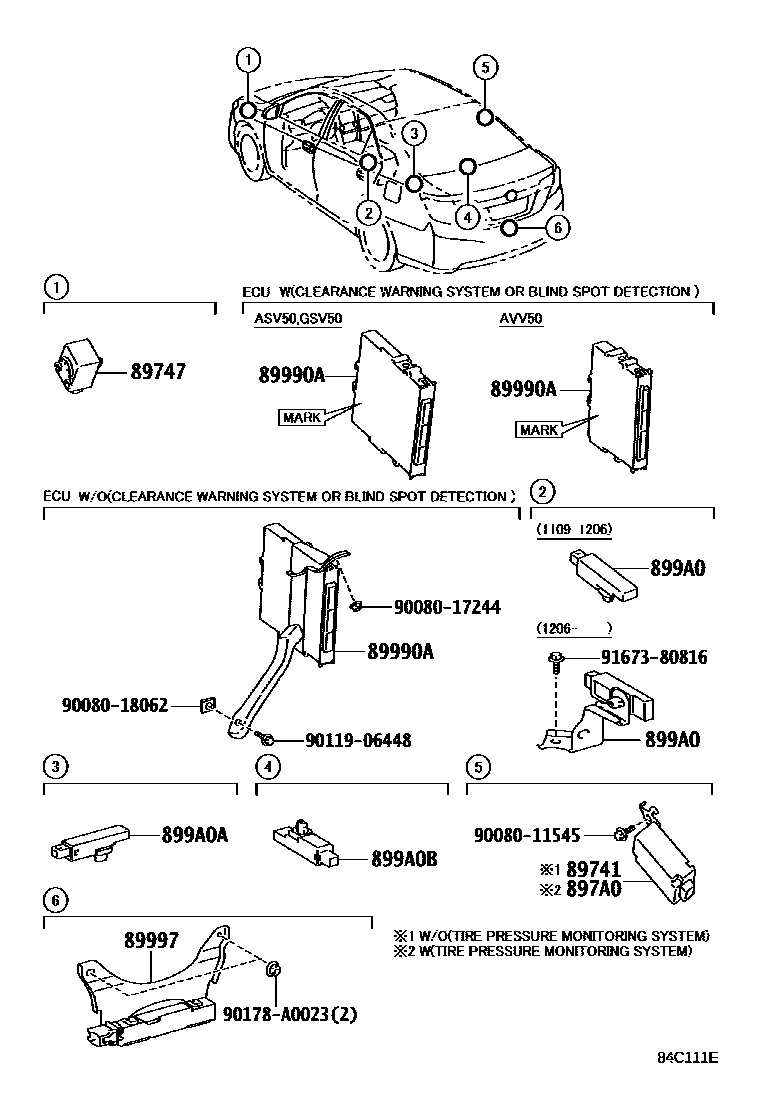

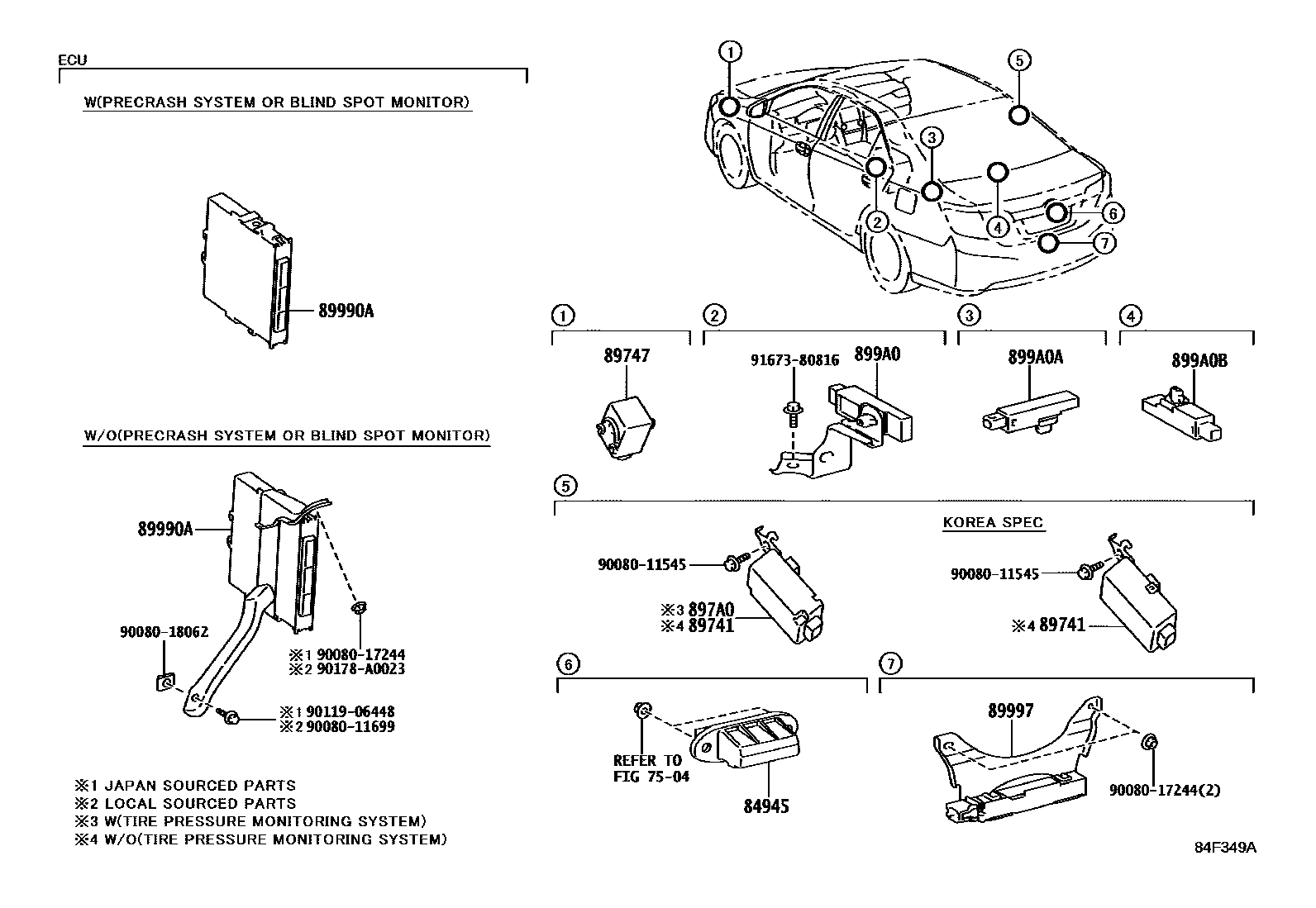

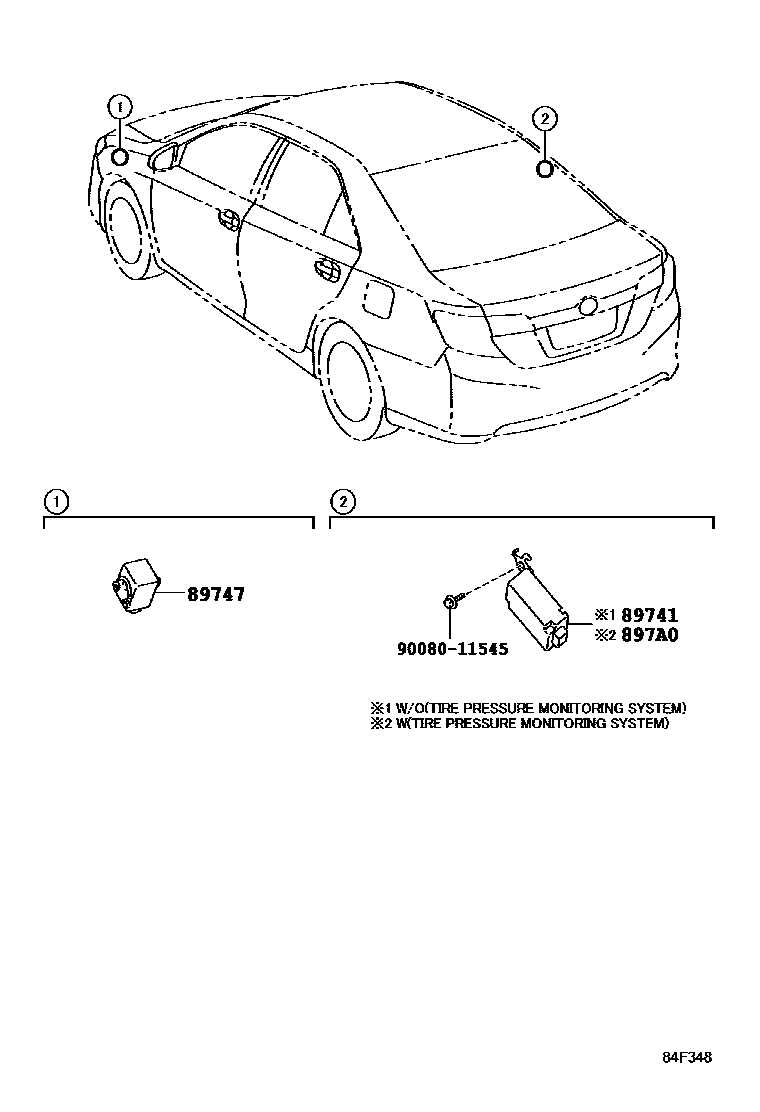

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-06010 |
| 89741 | door control receiver | 89740-06090 · 89740-06100 · 89740-33360 · 89741-06060 |
| 89747 | Remote door lock buzzer | 89747-0R020 · 89747-30040 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897A0-06010 · 897A0-06020 · 897A0-06030 · 897A0-06050 · 897B0-06010 · 897B0-06030 · 897B0-06040 · 897B0-06050 |
| 89990A | Smart key ECU assembly | 89990-06080 · 89990-06081 · 89990-06082 · 89990-06090 · 89990-06091 · 89990-06092 · 89990-06100 · 89990-06101 · 89990-06102 · 89990-06110 · 89990-06111 · 89990-06112 |
| 89997 | electronic key antenna | 89997-06050 · 89997-33020 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-06010 · 899A0-06030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-06030 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-06030 |
