Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 9 PNC and OE references.

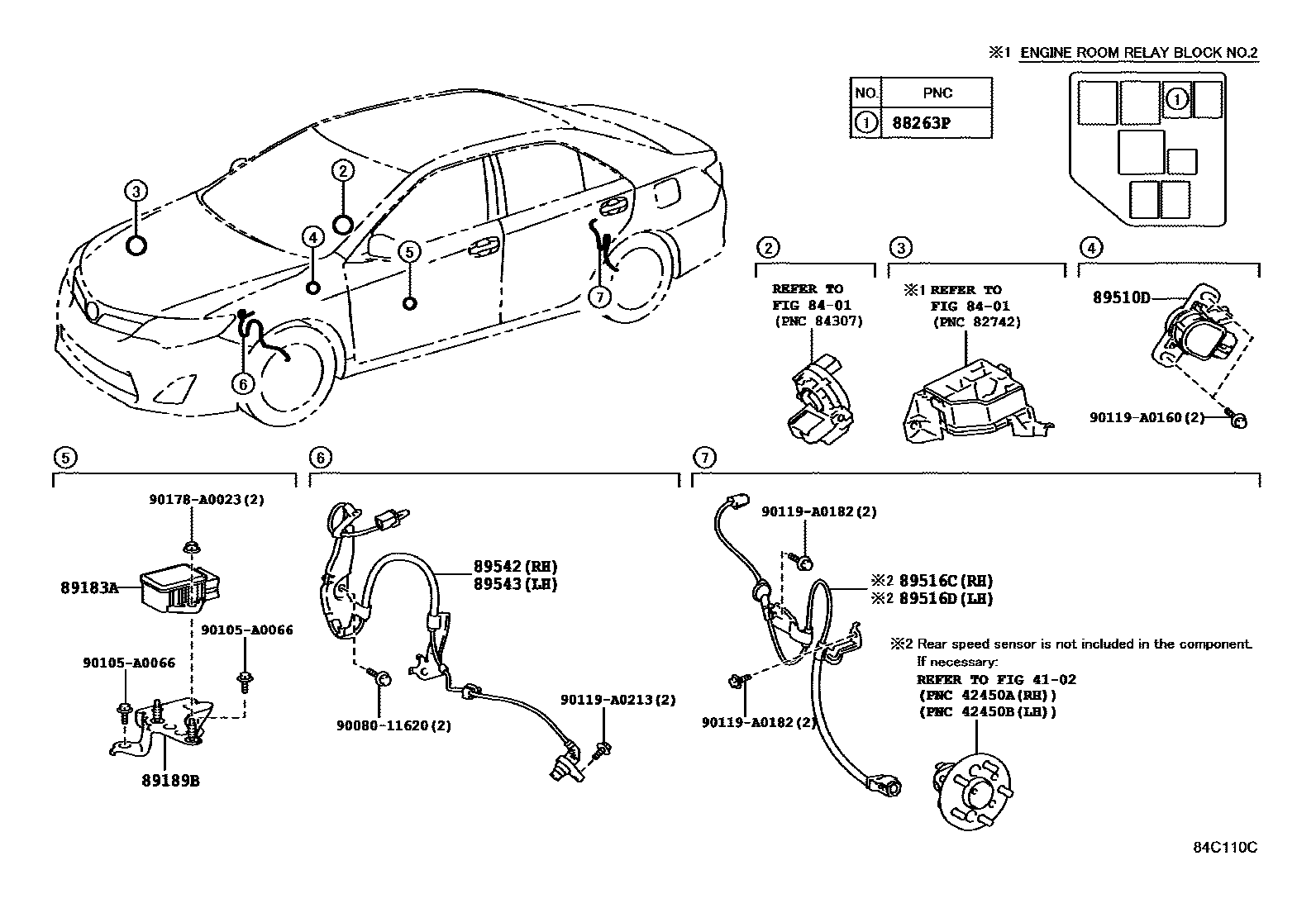

Toyota CAMRY ABS 和 VSC EPC diagram — 84C110C
ABS 和 VSC — 84C110C (201109 – 201409)

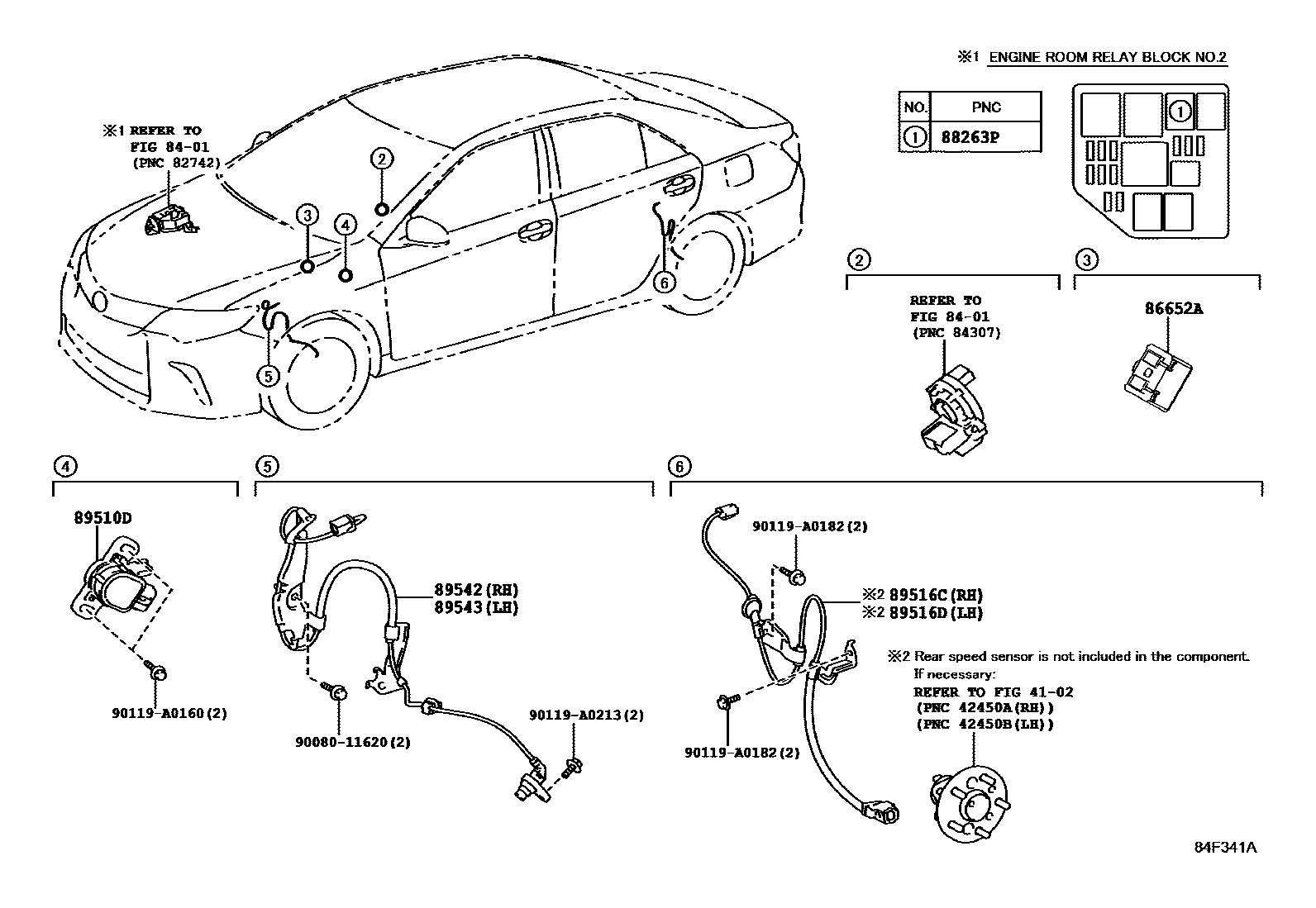

Toyota CAMRY ABS 和 VSC EPC diagram — 84F341A
ABS 和 VSC — 84F341A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
86652AAnti-skid control buzzer assembly86652-50010
88263Pbrake light control relay90084-98032
89183AYaw rate sensor89183-0T010 · 89183-48030
89189BYaw rate sensor bracket89189-33010
89510DBrake pedal stroke sensor assembly89510-33030
89516CRight anti-skid control sensor harness89516-06150
89516DLeft anti-skid control sensor wiring harness89516-06160
89542Right front wheel speed sensor89542-06040 · 89542-06120 · 89542-33110
89543Left front wheel speed sensor89543-06040 · 89543-06120 · 89543-33100
