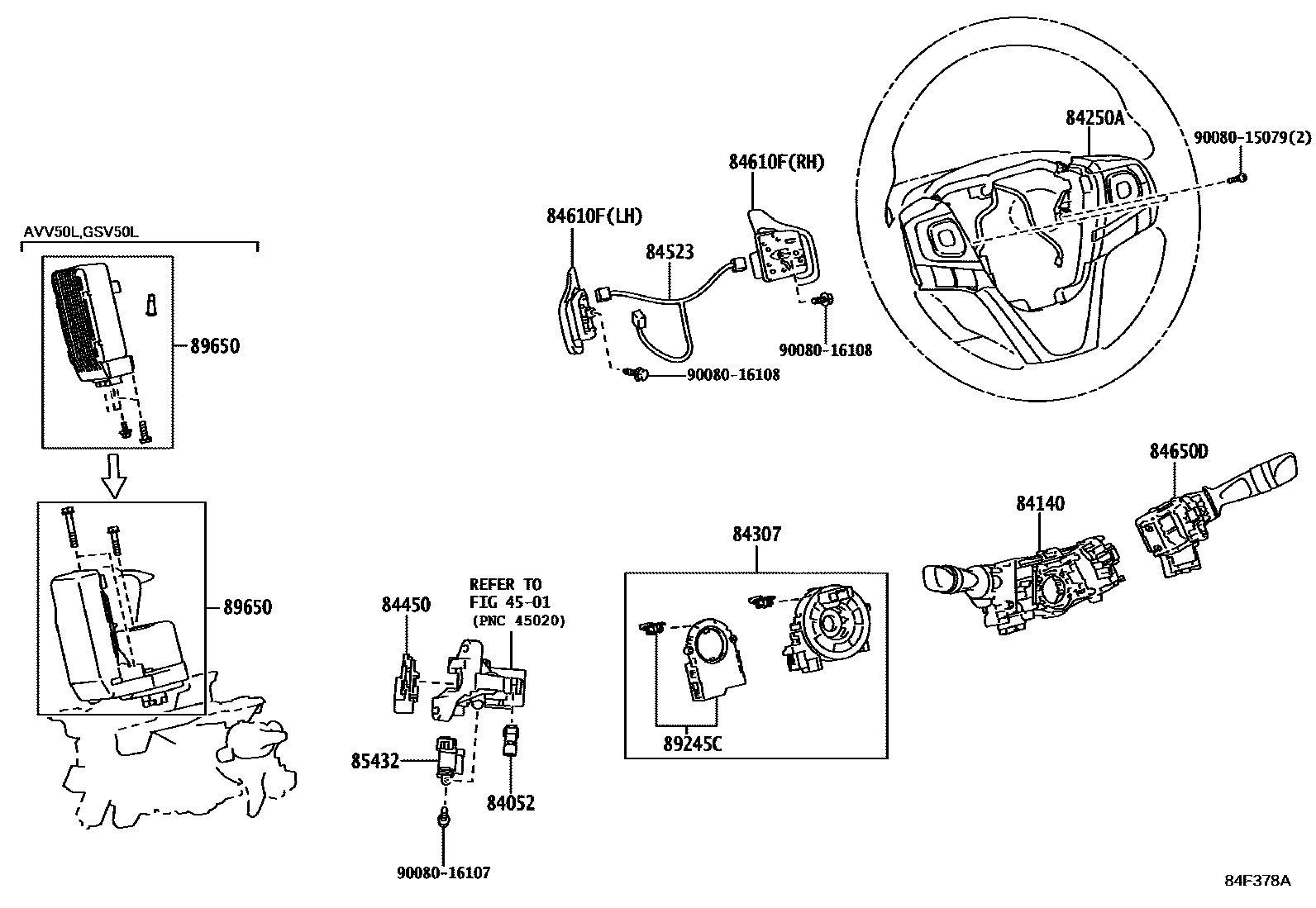

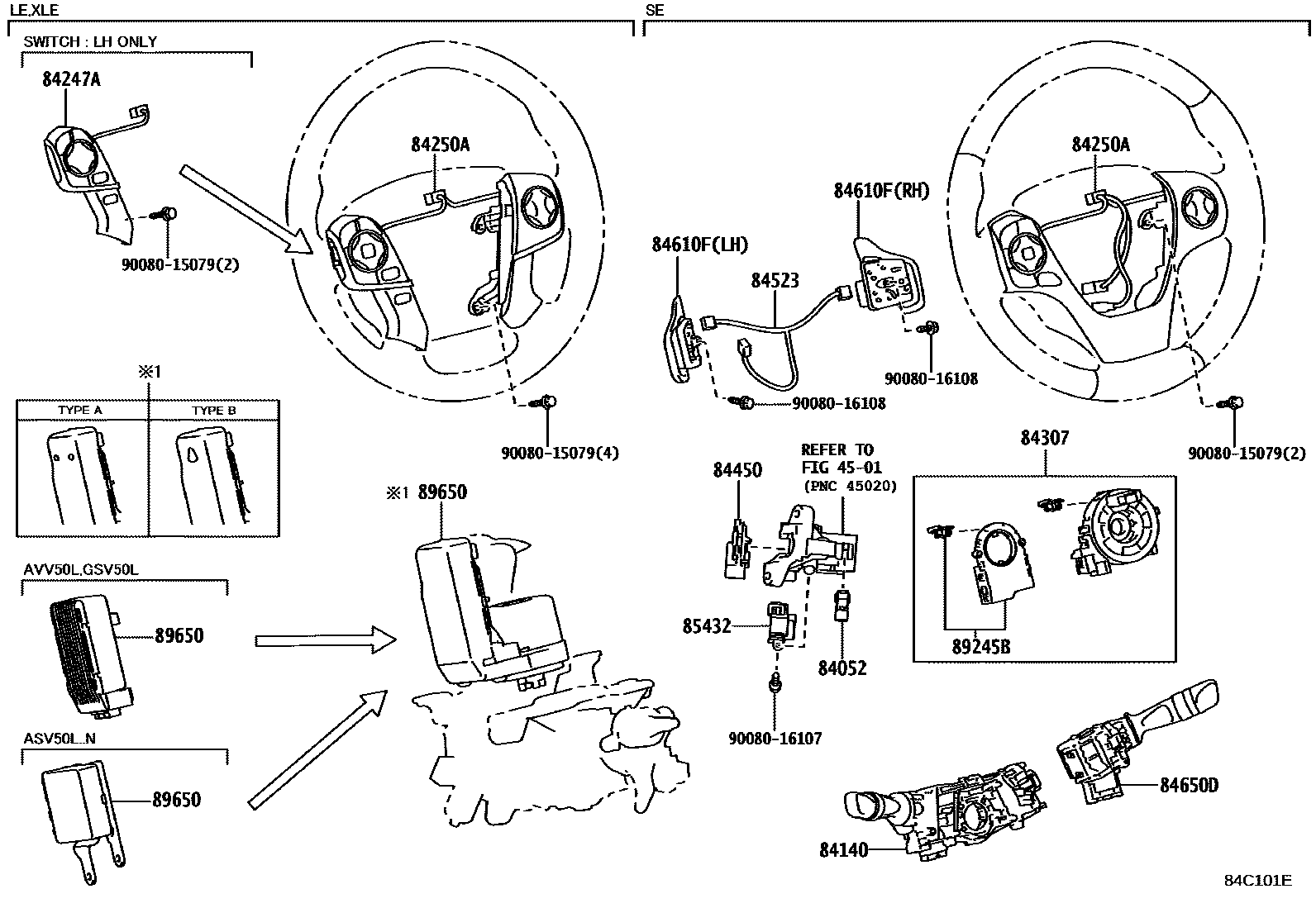

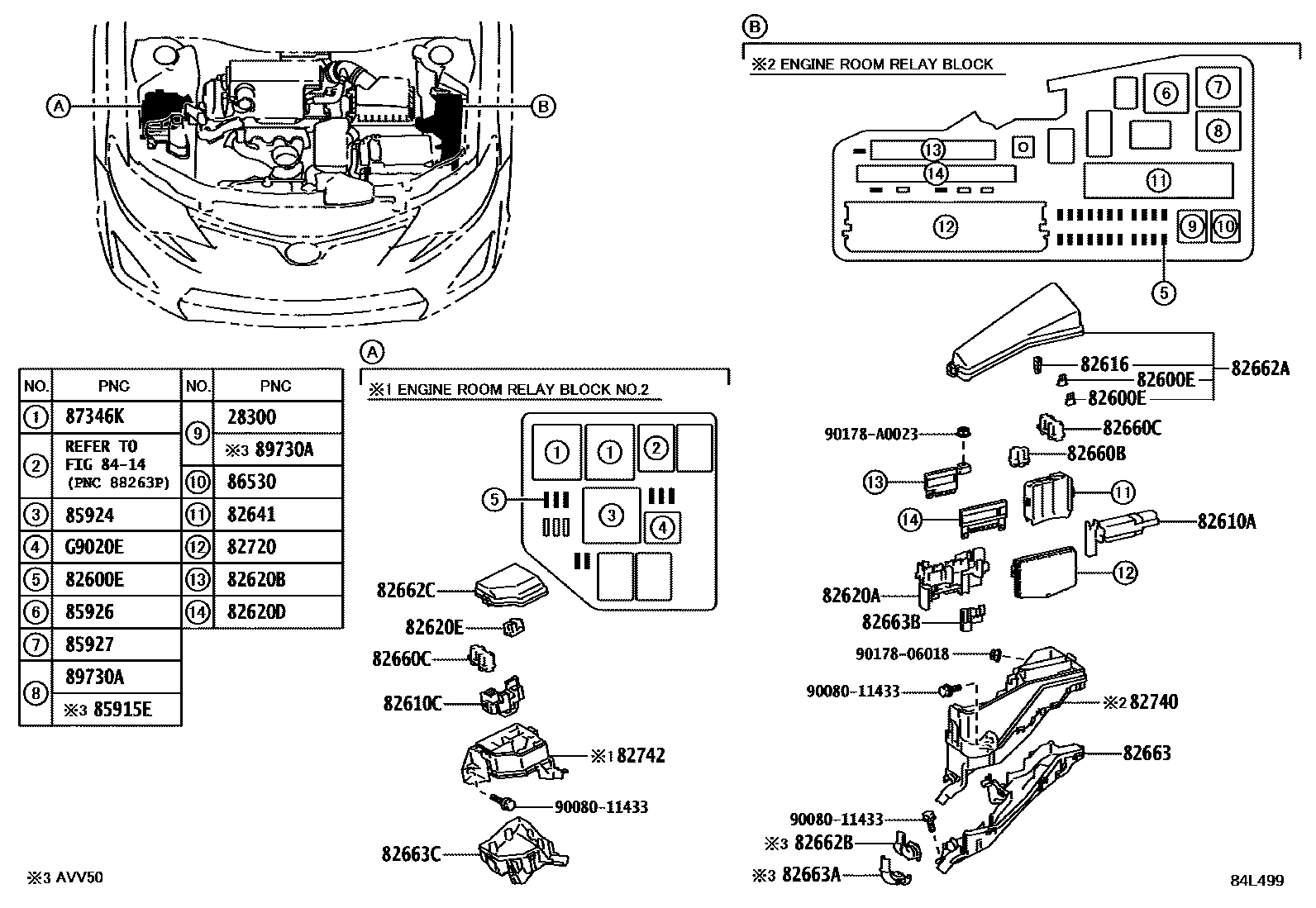

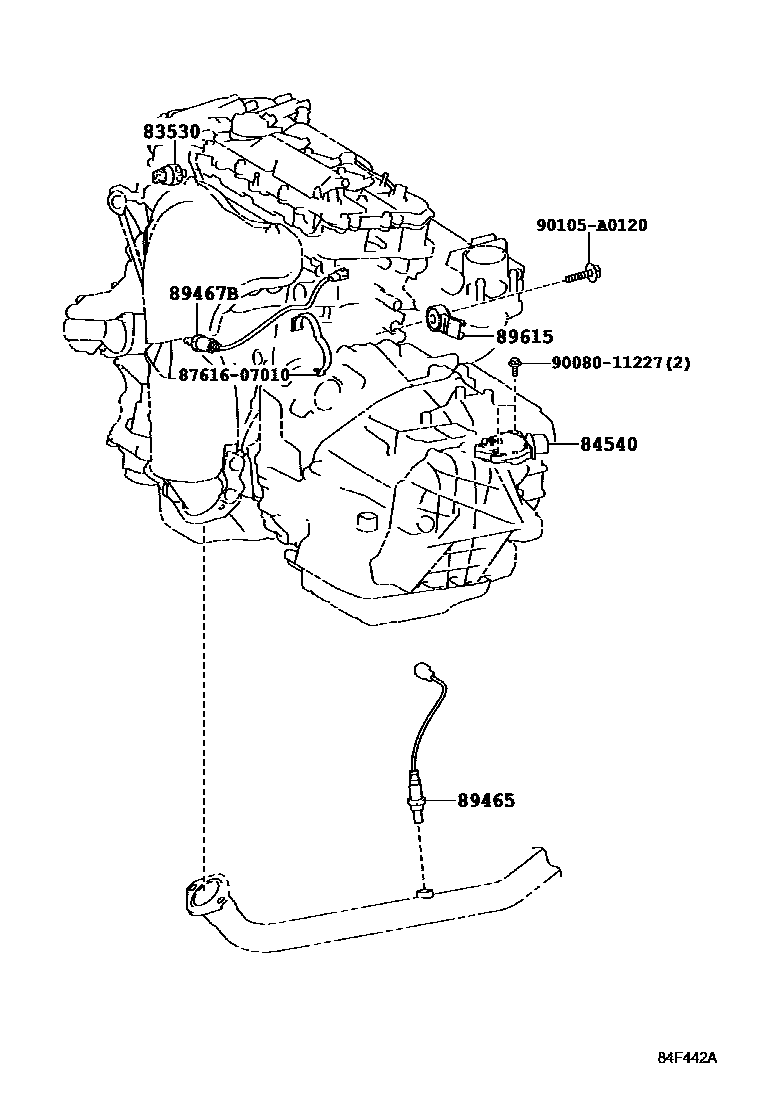

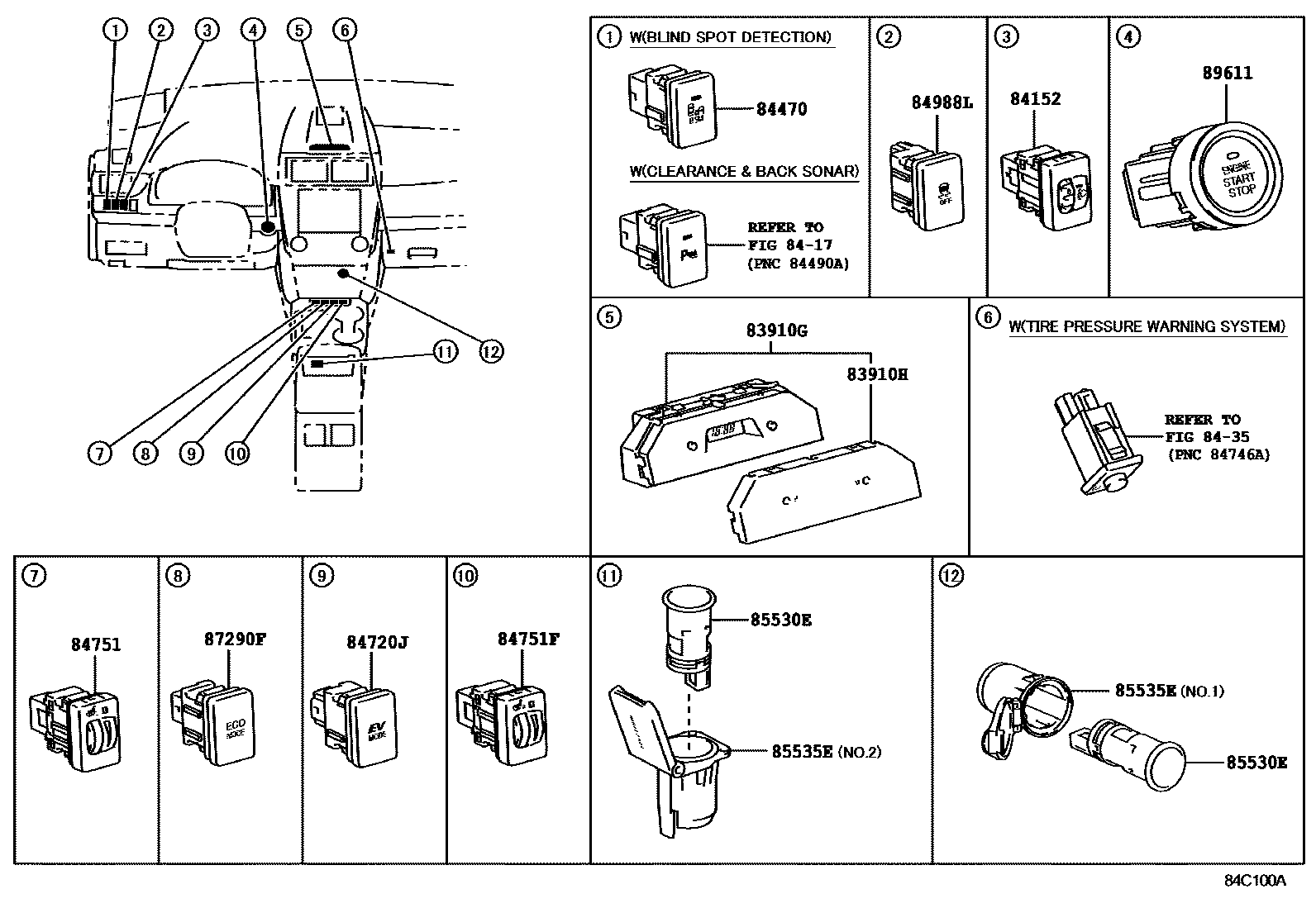

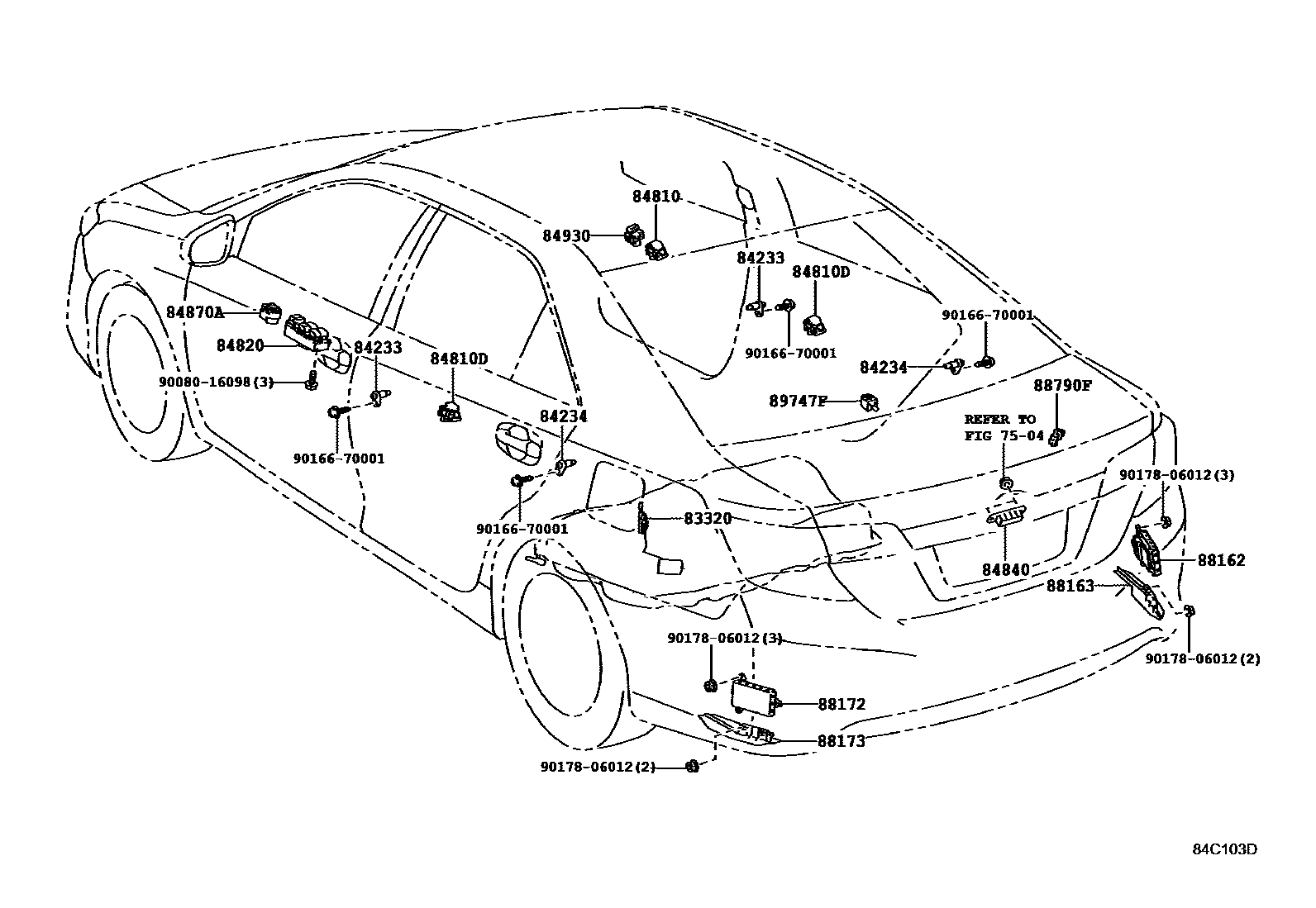

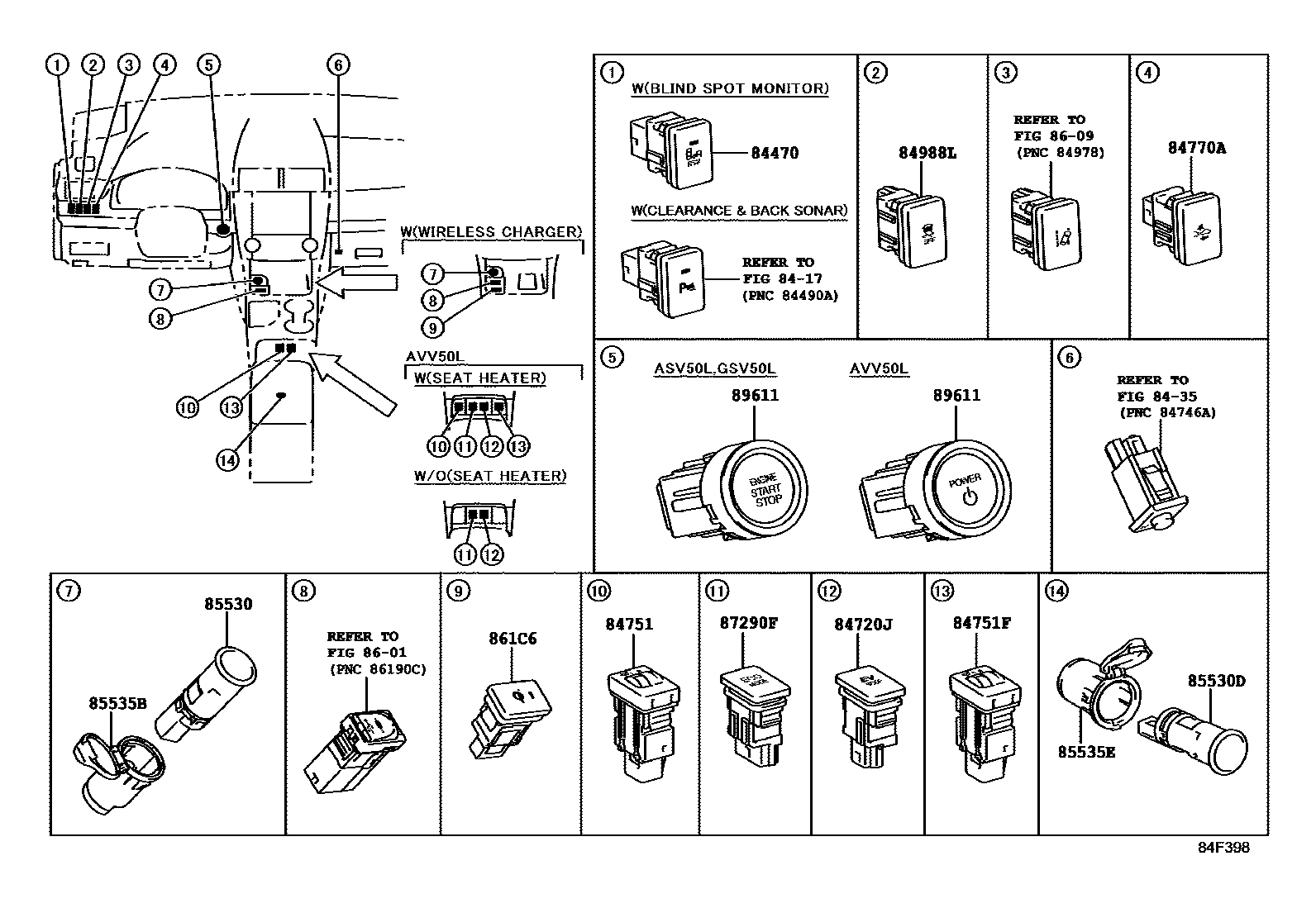

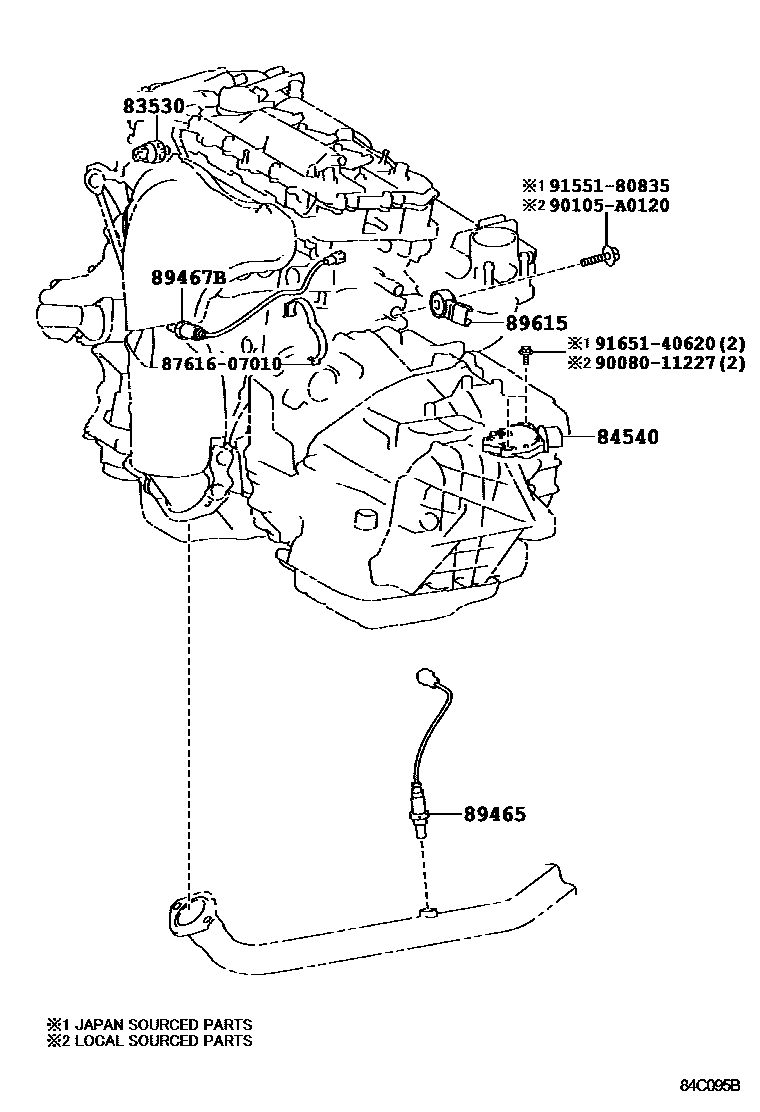

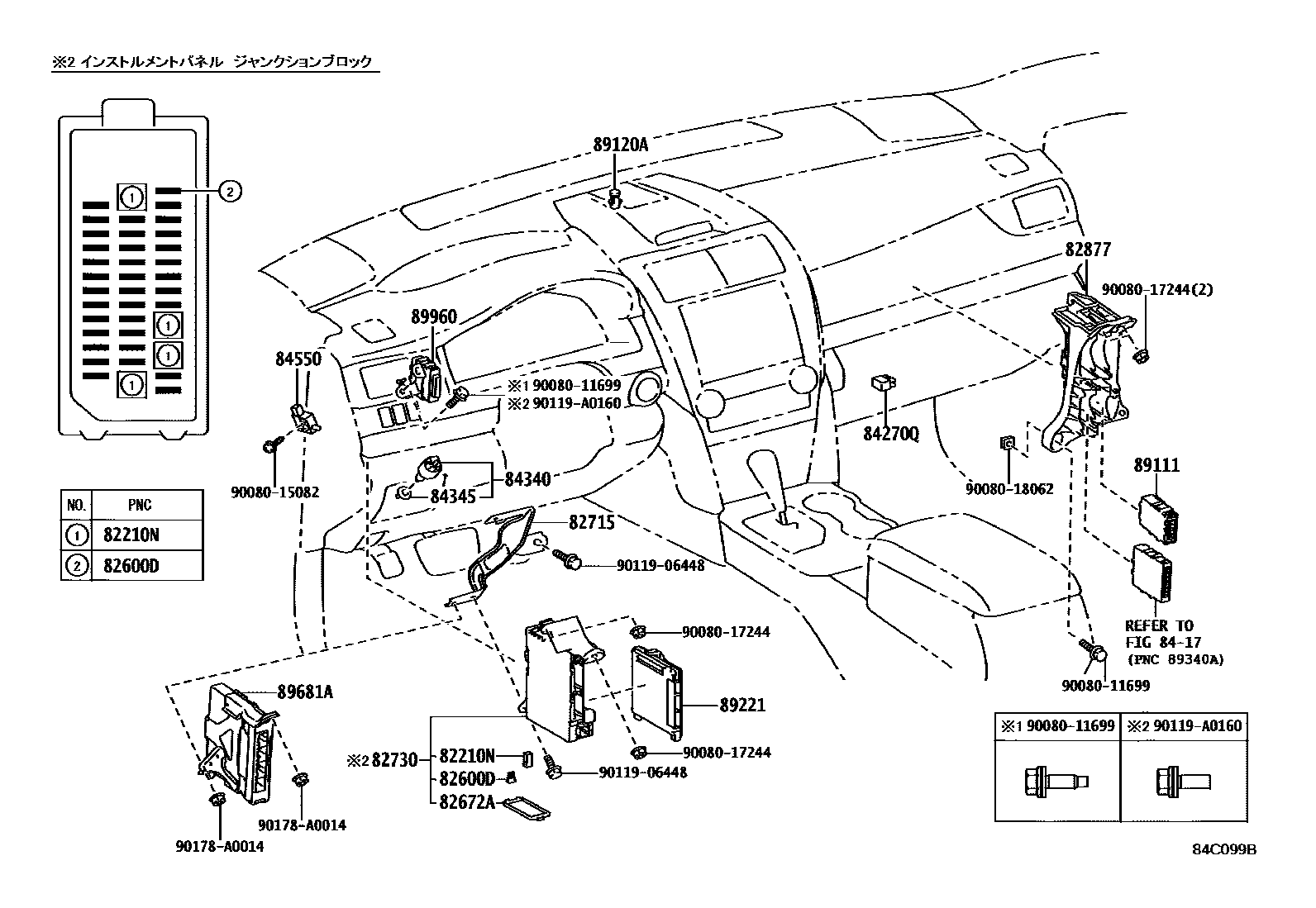

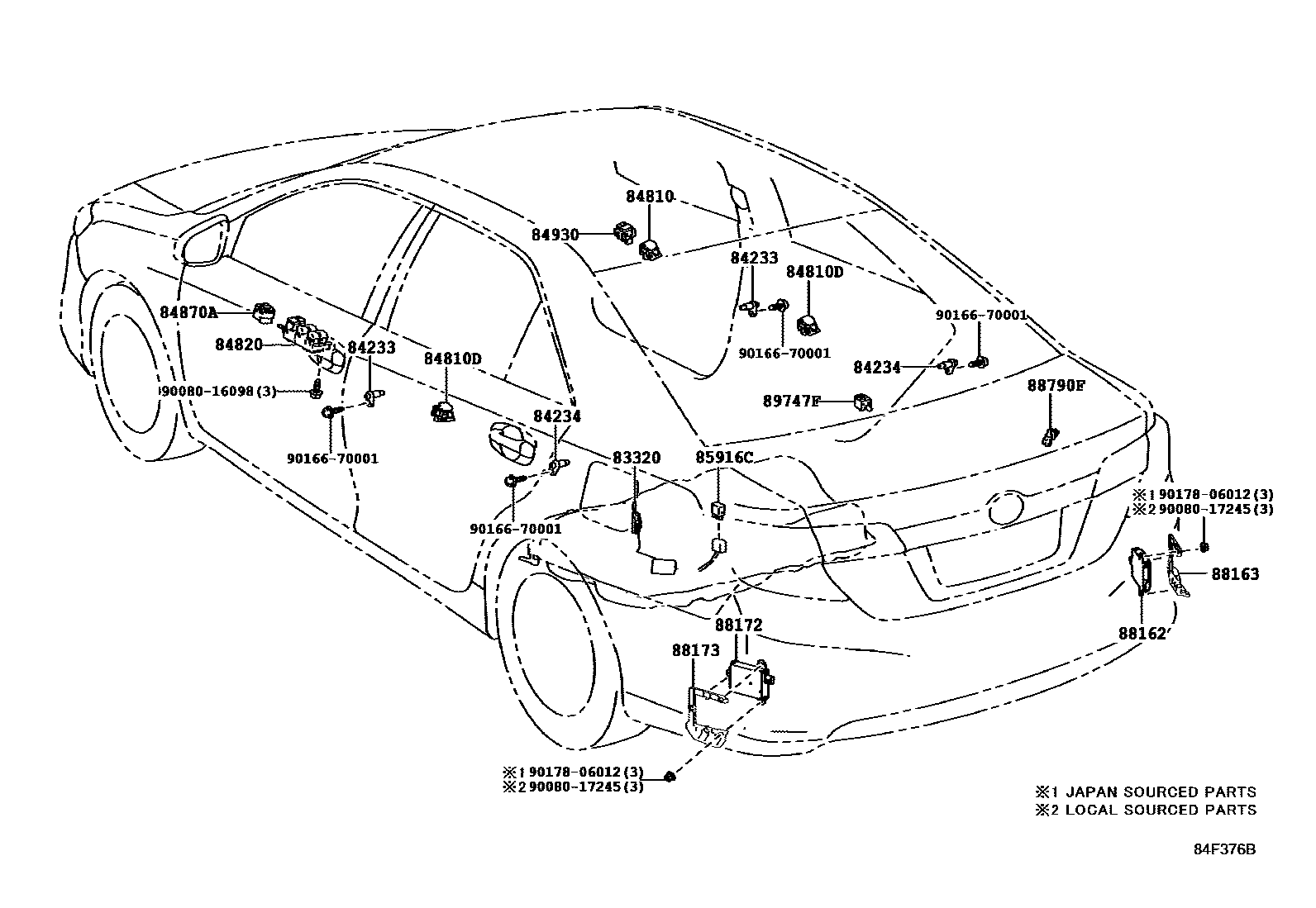

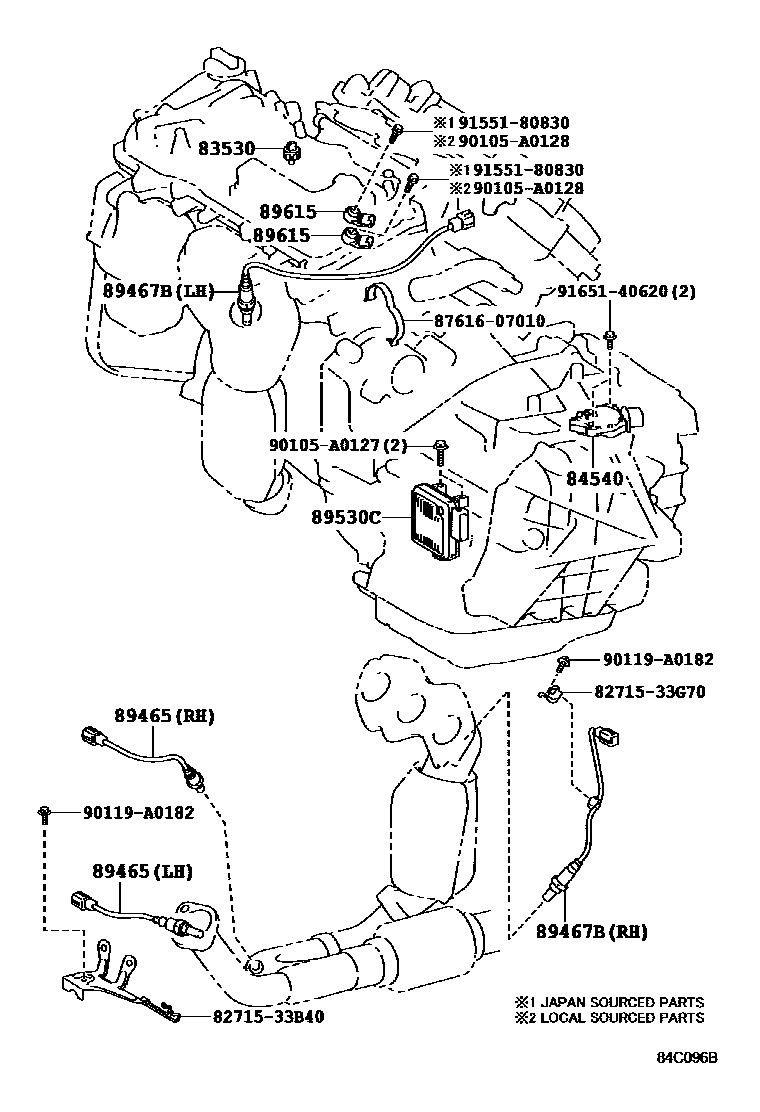

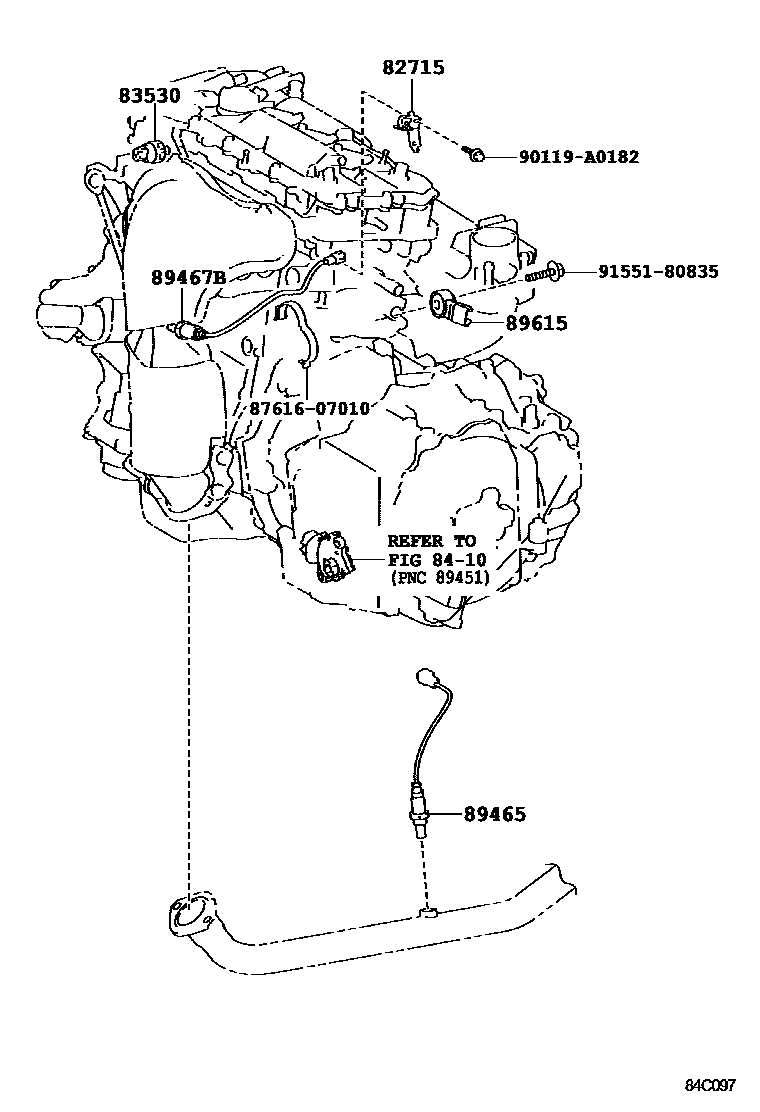

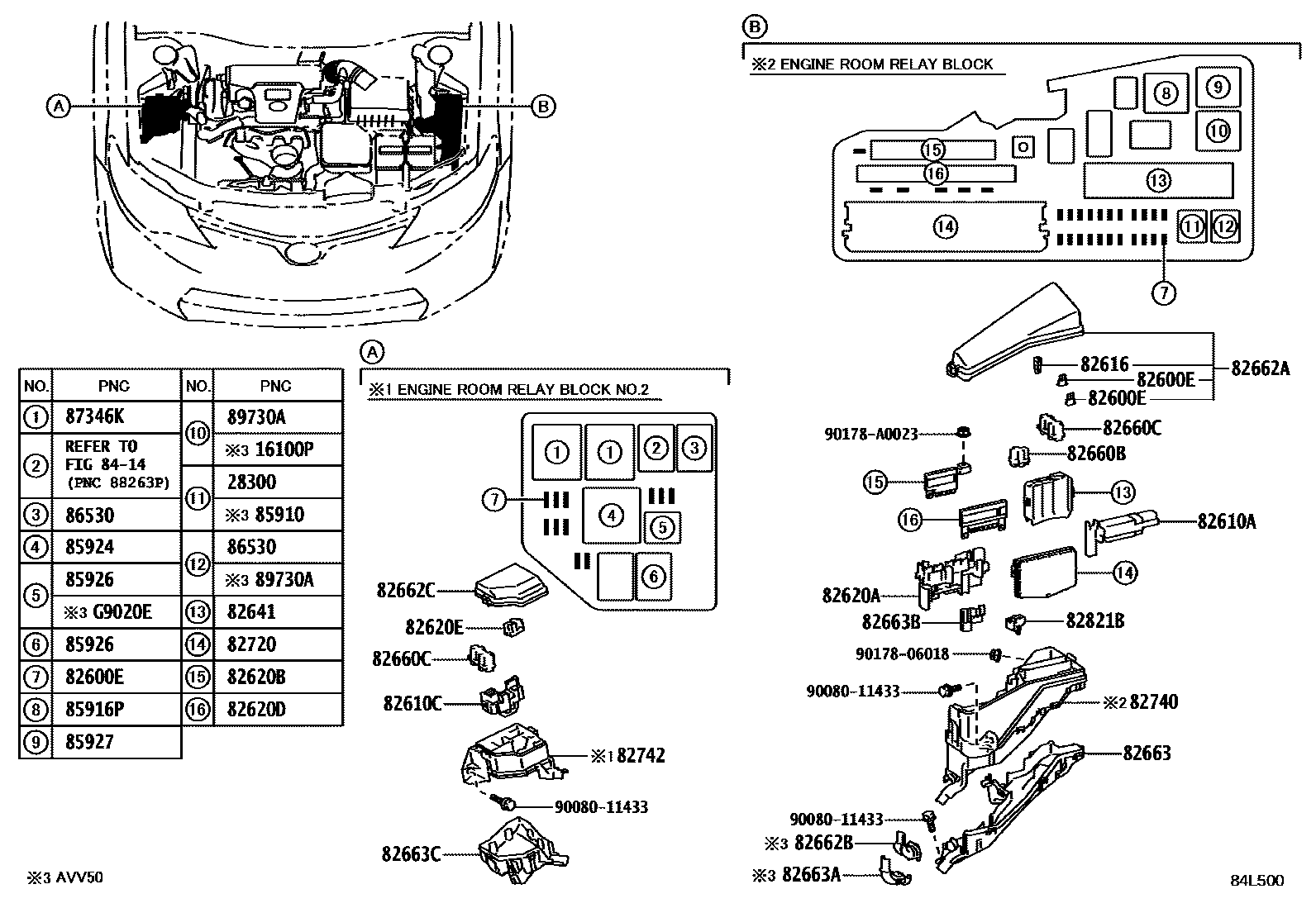

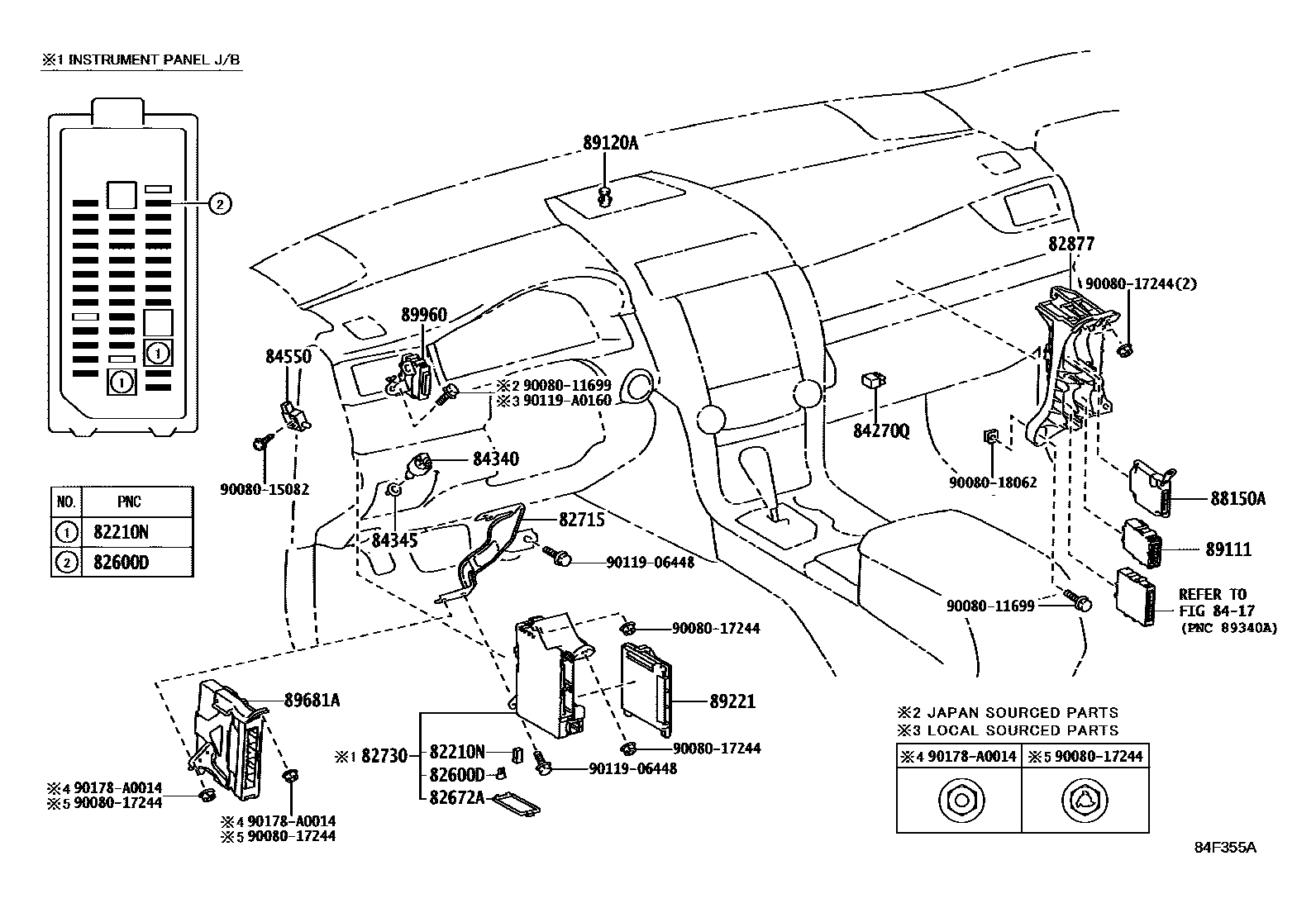

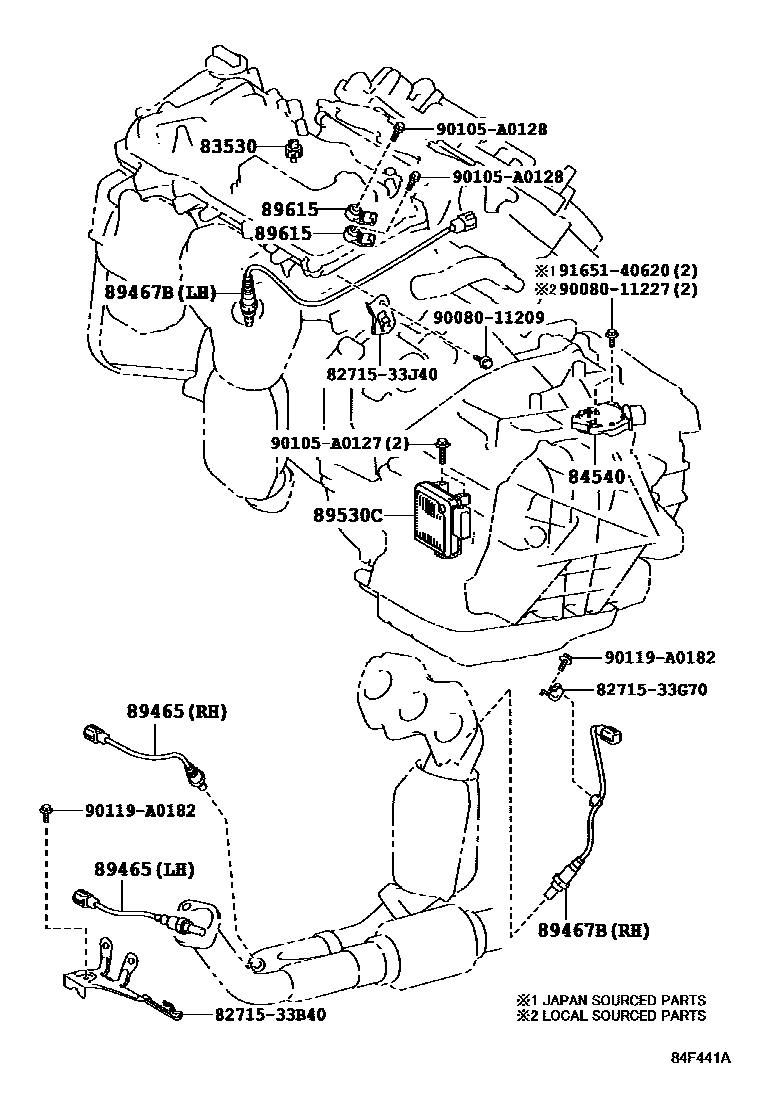

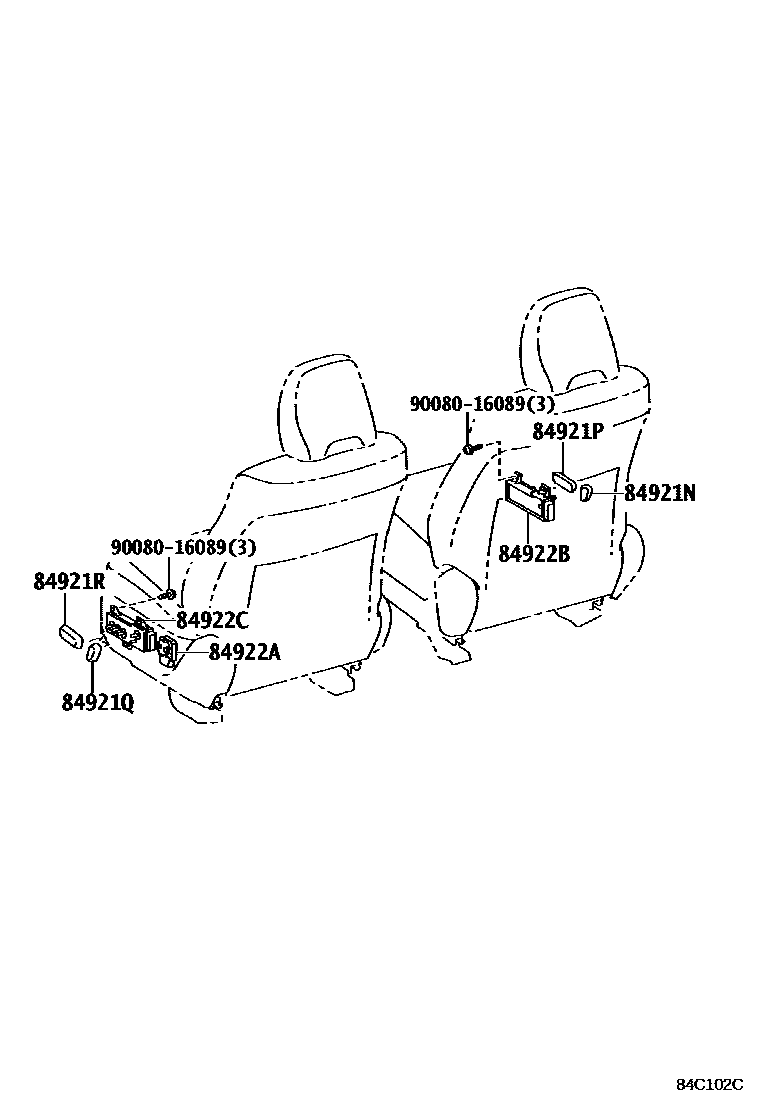

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 18 images and 104 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90080-87024 |
| 28300 | Starter relay assembly | 28300-0A010 · 28300-0A011 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82620E | Fuse box assembly | 82620-44040 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33160 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 · 82660-33040 · 82660-33050 |
| 82662A | No. 1 relay box upper cover | 82662-06170 · 82662-06180 · 82662-06190 · 82662-06200 · 82662-06210 · 82662-06230 · 82662-06390 · 82662-06400 · 82662-06410 |
| 82662B | No. 2 relay box upper cover | 82662-33420 |
| 82662C | No. 3 relay box upper cover | 82662-06220 · 82662-06440 · 82662-06450 |
| 82663 | Relay box lower cover | 82663-33110 · 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33100 · 82663-33200 |
| 82672A | Junction box cover | 82672-06241 · 82672-06242 · 82672-06243 |
| 82715 | Wire harness clamp bracket | 82715-06220 · 82715-06F90 |
| 82720 | Engine room junction box assembly | 82720-06131 · 82720-06141 · 82720-06151 · 82720-33201 · 82720-33220 · 82720-33250 · 82720-33280 · 82720-33290 · 82720-33300 · 82720-33301 |
| 82730 | Instrument panel junction box assembly | 82730-06751 · 82730-06752 · 82730-06753 |
| 82740 | Engine room relay box assembly | 82740-33030 · 82740-33050 |
| 82742 | Engine room No. 2 relay box | 82742-33030 |
| 82821B | Connector cover | 82821-33400 |
| 82877 | Right ECU integrated box | 82877-06010 |
| 83320 | Fuel gauge sensor assembly | 83320-06120 · 83320-06121 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-06230 |
| 83910H | clock cover | 8391B-06020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-06490 · 84140-06500 · 84140-06510 · 84140-06530 · 84140-06540 |
| 84152 | Headlight beam height adjustment switch | 84152-08010 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84247A | Steering wheel decorative cover left switch | 84247-06130 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06270 · 84250-06280 · 84250-06290 · 84250-06300 · 84250-06340 · 84250-06350 · 84250-06550 · 84250-06560 · 84250-06570 · 84250-06580 |
| 84270Q | headlight relay | 90080-87026 · 90987-02027 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02220 · 84307-06090 · 84307-06130 |
| 84340 | brake light switch assembly | 84340-09070 · 84340-09310 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84450 | Ignition or starter switch assembly | 84450-06020 |
| 84470 | Warning release switch assembly | 84470-06030 · 84470-0R010 · 84470-0R011 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-07010 · 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-0E010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 · 84610-22010 · 84610-22020 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-06240 · 84652-06340 · 84652-06350 |
| 84720J | Mode selection switch assembly | 84720-06040 · 84720-0E050 · 84720-0E051 |
| 84751 | Seat heater switch | 84751-06050 · 84751-06090 · 84751-06120 · 84751-06121 |
| 84751F | Seat heater switch | 84751-06100 · 84751-06110 · 84751-06111 · 84751-0T020 |
| 84770A | Collision prediction system cancel switch assembly | 84770-06020 · 84770-06021 |
| 84810 | Electric window lift switch assembly | 84810-06030 · 84810-0E040 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 · 84810-0E050 |
| 84820 | Electric window lift main switch assembly | 84820-06061 · 84820-06120 |
| 84840 | Trunk door opening switch assembly | 84840-0T010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-01010 · 84872-02060 · 84872-02190 · 84872-02200 · 84872-06050 · 84872-06070 |
| 84922B | Front right electric seat switch | 84922-08010 |
| 84922C | Front left electric seat switch | 84922-08020 |
| 84930 | Door control switch assembly | 84930-0C010 · 84930-0E160 |
| 84988L | VSC off switch | 84988-0R070 · 84988-0R071 · 84988-0T010 |
| 85432 | Key interlock solenoid valve | 85432-06030 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530D | No. 2 power socket assembly | 85530-06030 |
| 85530E | No. 3 power socket assembly | 85530-06030 |
| 85535E | No. 2 power outlet cover | 85535-06070 |
| 85910 | Circuit breaking relay assembly | 90080-87026 · 90987-02027 |
| 85915E | relay | 90080-87024 |
| 85916C | Reversing light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85924 | Ignition control relay | 90080-87024 |
| 85926 | Headlight dimmer relay | 90080-87024 · 90080-87026 |
| 85927 | cooling fan relay | 90080-87024 · 90084-98032 |
| 861C6 | INTERRUPTEUR, CHARGEUR SANS FIL PORTABLE | 861C6-06020 · 861C6-06021 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 87290F | ECO switch assembly | 87290-06040 · 87290-0E010 · 87290-0E011 |
| 87346K | PTC heater relay | 90080-87024 |
| 88150A | Driving assistance ECU assembly | 88150-33070 · 88150-33080 |
| 88162 | Blind spot monitor right sensor | 88162-06010 · 88162-06030 · 88162-06040 · 88162-06041 · 88162-06042 |
| 88163 | Blind spot monitor right side cover | 88163-06030 · 88163-06040 · 88163-33010 |
| 88172 | Blind spot monitor left sensor | 88162-06030 · 88162-06040 · 88162-06041 · 88162-06042 · 88172-06010 |
| 88173 | Blind spot monitor left cover | 88173-06030 · 88173-06040 · 88173-33010 |
| 88790F | Thermistor assembly | 88790-06010 · 88790-22131 |
| 89111 | Network gateway ECU | 89111-06010 · 89111-06050 · 89111-06060 |
| 89120A | Automatic light control sensor | 89121-06020 · 89121-50020 · 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-06010 · 89220-06011 · 89220-06020 · 89220-06021 · 89220-06030 · 89220-06031 · 89220-06040 · 89220-06050 · 89220-06060 · 89220-06061 · 89220-06070 · 89220-06071 · 89220-06080 · 89220-06081 · 89220-06090 · 89220-06091 · 89220-06100 · 89220-06101 · 89220-06110 · 89220-06120 · 89220-06140 · 89220-06150 · 89220-06160 · 89220-06170 · 89220-06180 · 89220-06190 · 89220-06200 · 89220-06210 · 89220-06220 · 89220-06230 · 89220-06240 · 89220-06250 · 89220-06260 · 89220-06270 · 89220-06280 · 89220-06290 · 89220-06300 · 89220-06310 · 89220-06320 · 89220-06330 · 89220-06340 · 89220-06350 · 89220-06360 · 89220-06370 · 89220-06380 · 89220-06390 · 89220-06400 · 89220-06410 · 89220-06440 |
| 89245B | steering sensor | 89245-09030 · 8924B-06010 |
| 89245C | steering sensor | 8924B-0E020 |

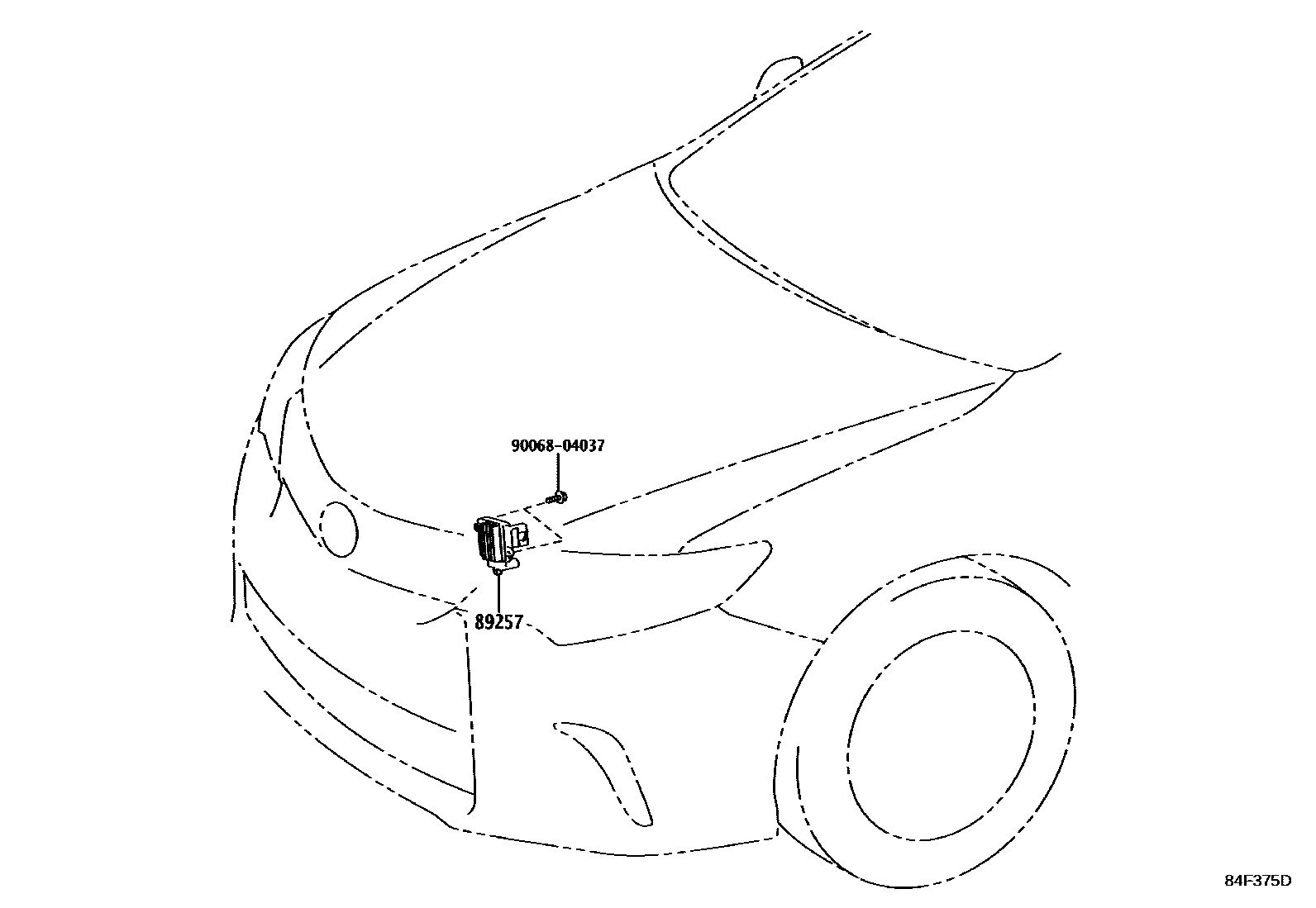

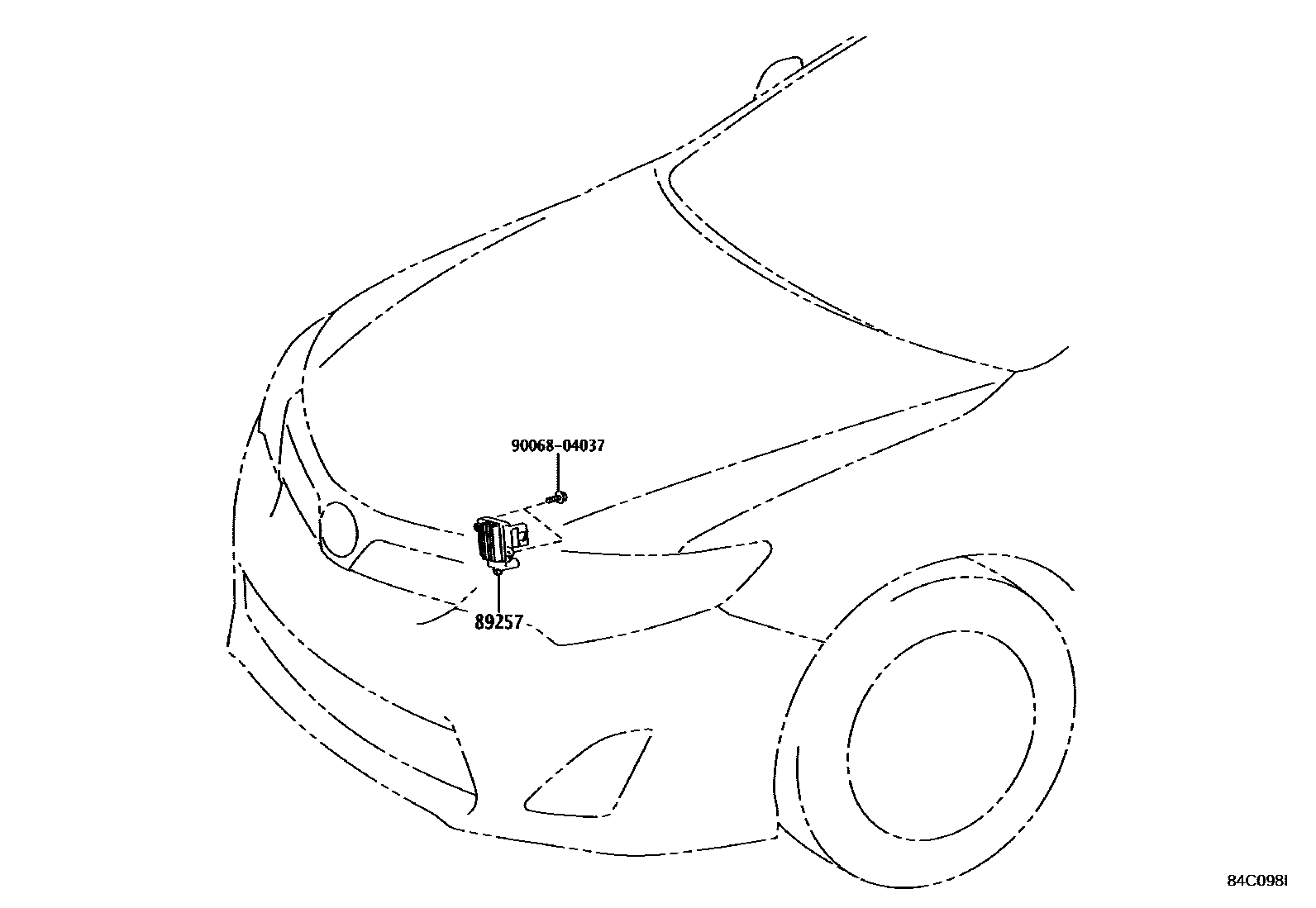

| 89257 | Cooling fan ECU | 89257-30060 · 89257-30080 |
| 89465 | oxygen sensor | 89465-06250 · 89465-06260 · 89465-06290 · 89465-06320 · 89465-06330 · 89465-07080 |
| 89467B | air fuel ratio sensor | 89467-06120 · 89467-06130 · 89467-06140 · 89467-06160 · 89467-06190 · 89467-0E190 |
| 89530C | Transmission control ECU assembly | 89530-33200 · 89530-33201 · 89530-33210 · 89530-33211 · 89530-33380 · 89530-33390 |
| 89611 | push button start switch | 89611-06040 · 89611-06041 · 89611-06050 · 89611-06051 · 89611-0E020 · 89611-0E021 · 89611-0E022 · 89611-0R020 · 89611-0R021 · 89611-0R022 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-06030 · 89650-06031 · 89650-06040 · 89650-06041 · 89650-06060 · 89650-06090 · 89650-06150 · 89650-06170 · 89650-06171 · 89650-06200 · 89650-06201 · 89650-06250 · 89650-06251 · 89650-06252 · 89650-06260 · 89650-06261 · 89650-06370 · 89650-06371 · 89650-06372 · 89650-06380 · 89650-06381 · 89650-06382 · 89650-06390 · 89650-06391 · 89650-06392 · 89650-06520 · 89650-06521 · 89650-33220 · 89650-33221 · 89650-33222 · 89650-33230 · 89650-33231 · 89650-33232 · 89650-33320 · 89650-33321 |
| 89681A | Power management control ECU | 89690-06010 · 89690-06011 · 89690-06020 · 89690-06030 · 89690-06031 · 89690-06032 · 89690-06040 · 89690-06050 · 89690-06060 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| 89747F | Blind spot monitor buzzer | 89747-02010 · 89747-52010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33450 · 89960-33451 |
| G9020E | Hybrid water pump relay | 90080-87026 · 90987-02027 |
