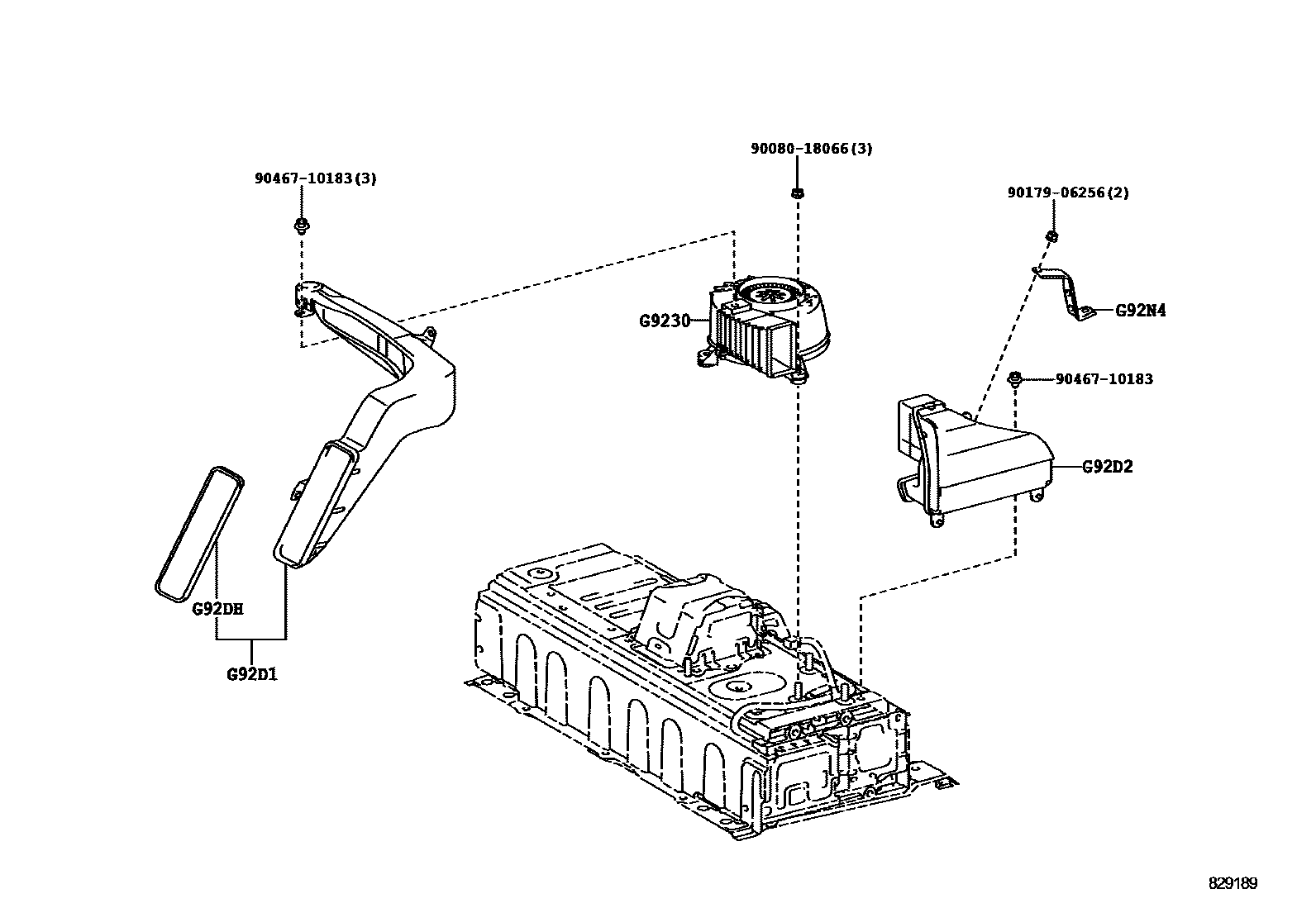

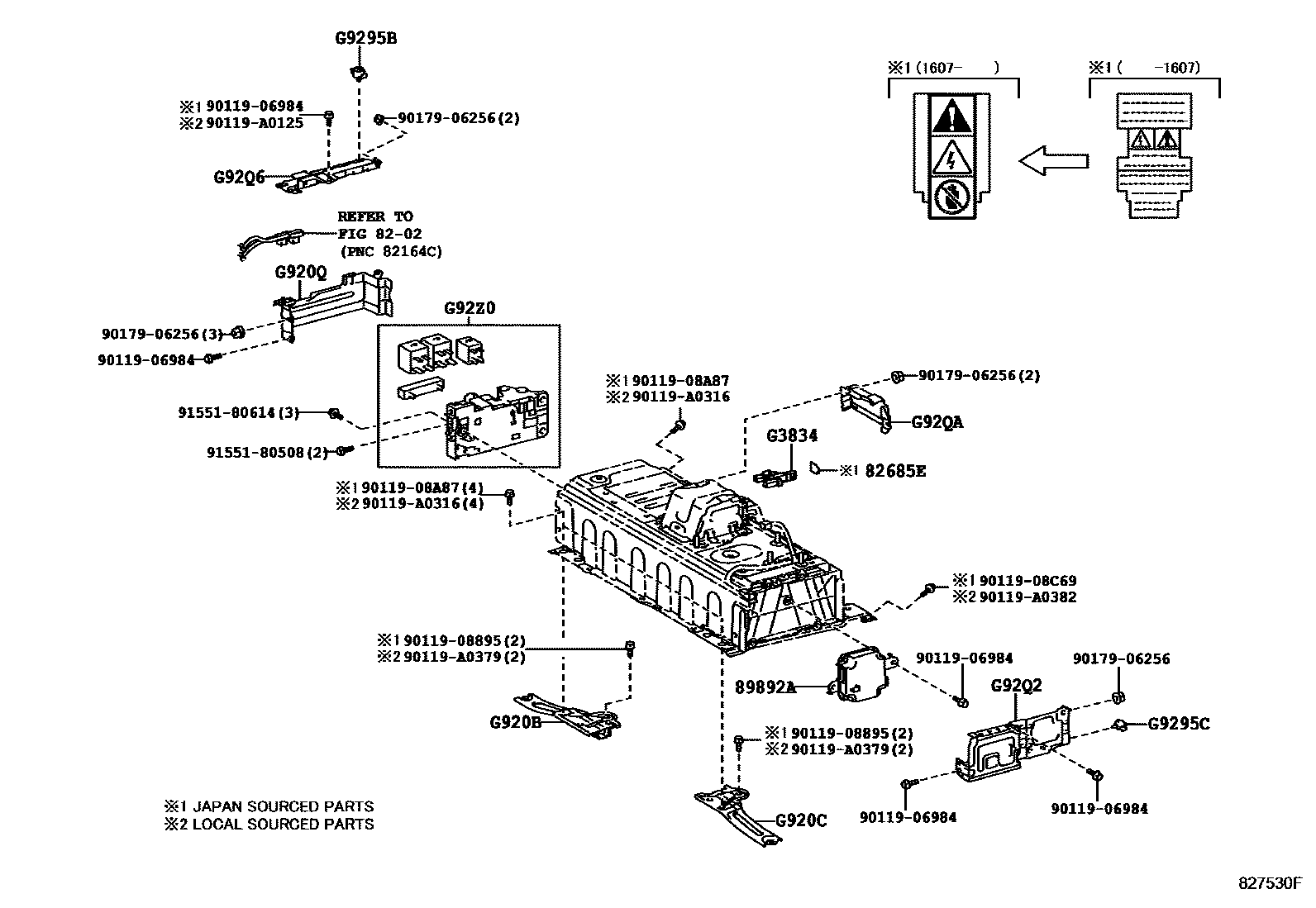

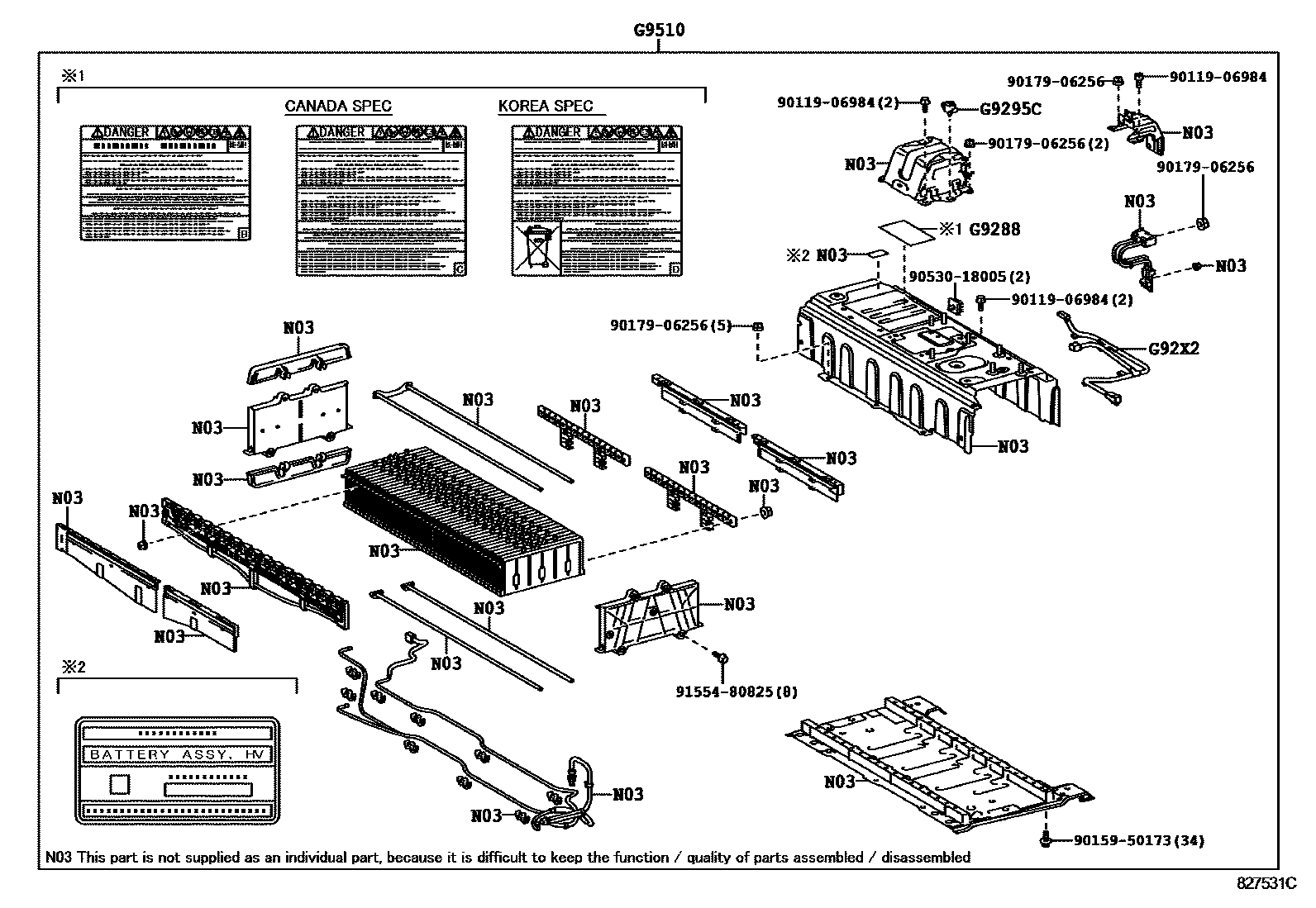

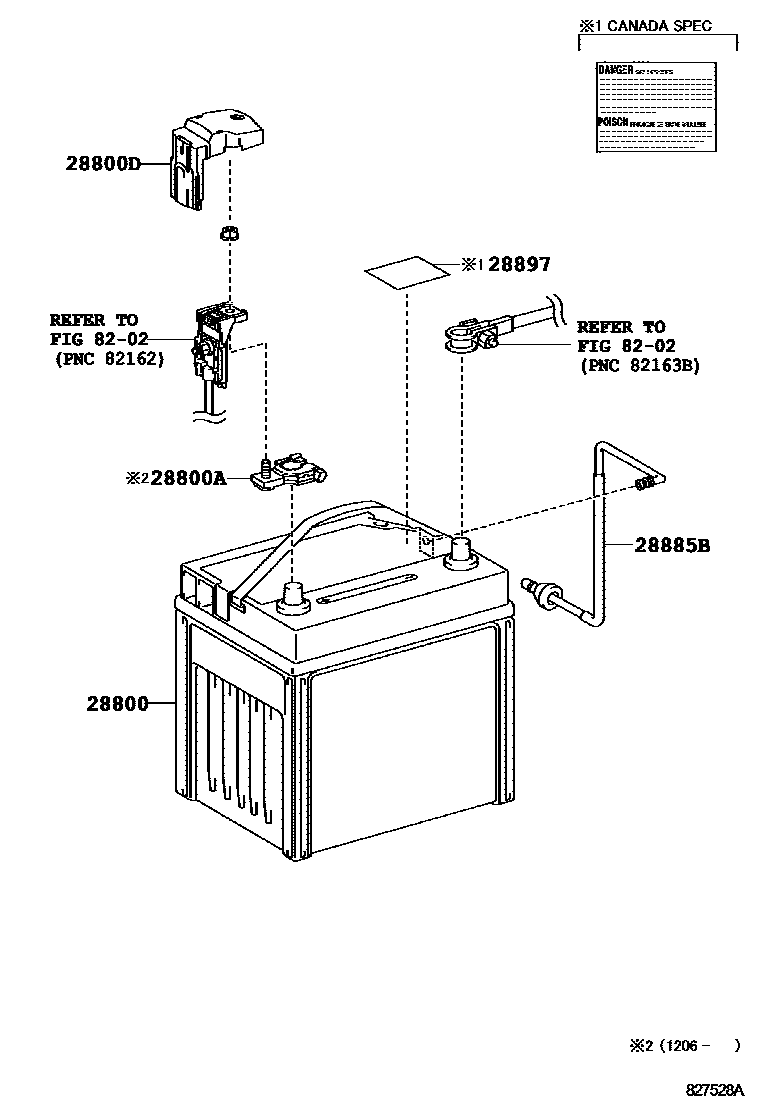

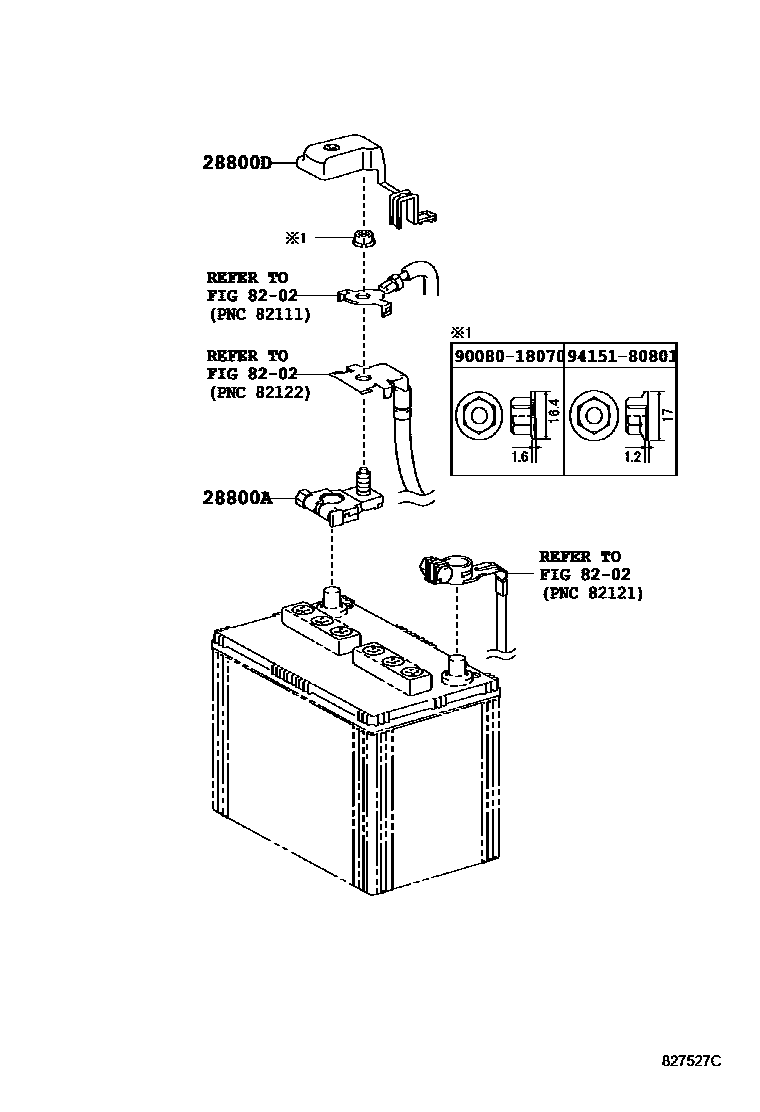

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-28100 · 28800-36050 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 · 82821-47110 |
| 28885B | battery hose | 28885-0V010 · 28885-0V011 |
| 28897 | Battery warning nameplate | 28897-38010 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 89892A | battery voltage sensor | 89892-33020 |
| G3834 | Service plug handle | G3834-48010 |
| G920B | No. 1 hybrid vehicle battery bracket bracket sub-assembly | G920B-06010 |
| G920C | No. 2 hybrid vehicle battery bracket bracket sub-assembly | G920C-06010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-33010 |
| G9230 | Battery cooling blower assembly | G9230-33030 |
| G9288 | Battery charging precautions label | G9288-47060 · G9288-47080 · G9288-47100 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06060 · G92D1-06061 · G92D1-06062 · G92D1-06063 · G92D1-06064 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06060 |
| G92DH | FILTRE, ENTREE BATTERIE HAUTE TENSION, NO.1 | G92DH-33040 · G92DH-33060 |
| G92N4 | No. 2 hybrid vehicle battery upper cover bracket | G92N4-06010 |
| G92Q2 | No. 2 HV battery shielding plate | G92Q2-33010 |
| G92Q6 | HV battery No. 4 shielding plate | G92Q6-33010 |
| G92QA | No. 8 HV battery shielding plate | G92QA-06010 |
| G92X2 | No. 2 HV battery pack wiring harness | G92X2-33010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33020 · G92Z0-33030 |
| G9510 | HV power supply battery assembly | G9510-33050 |
