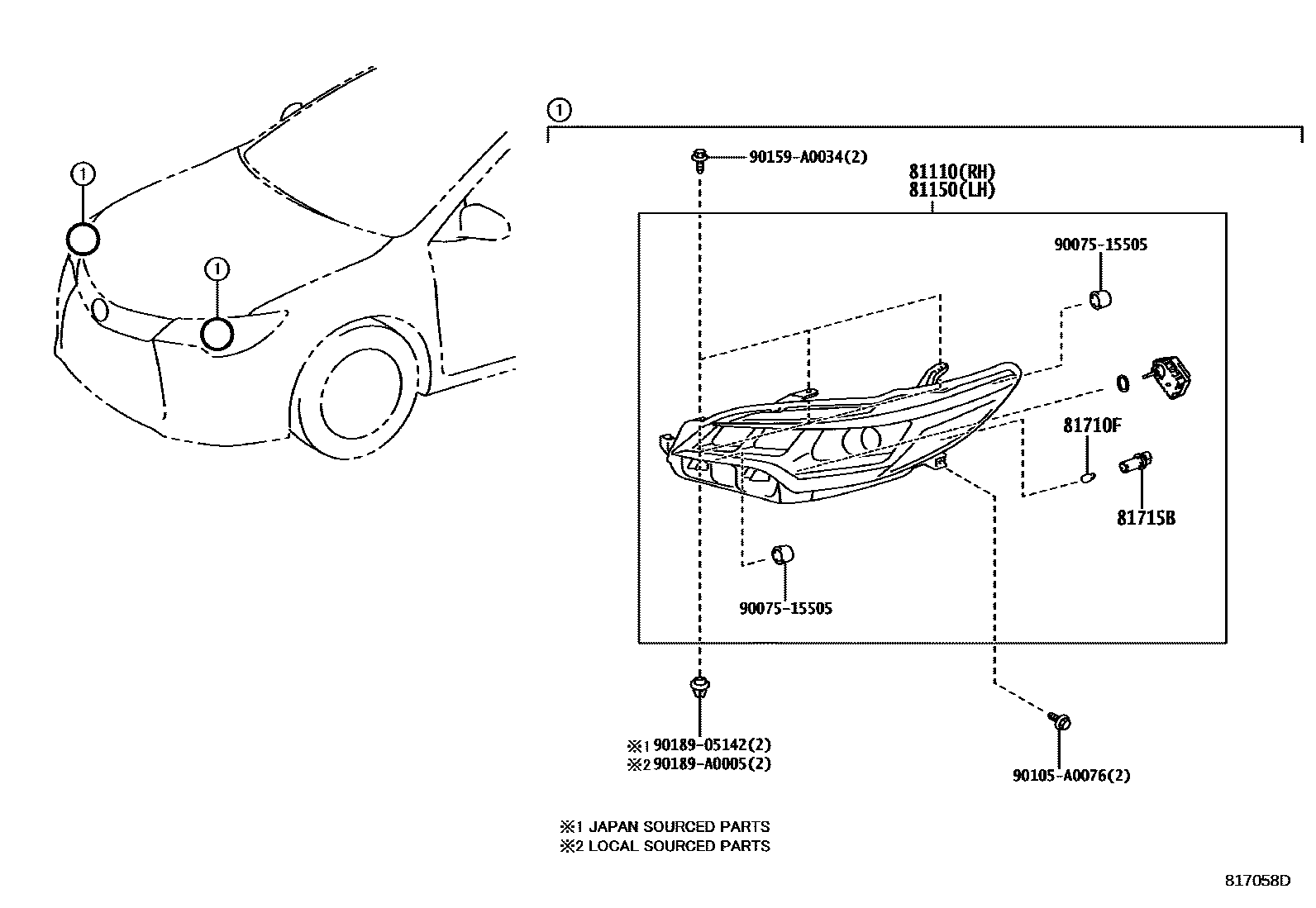

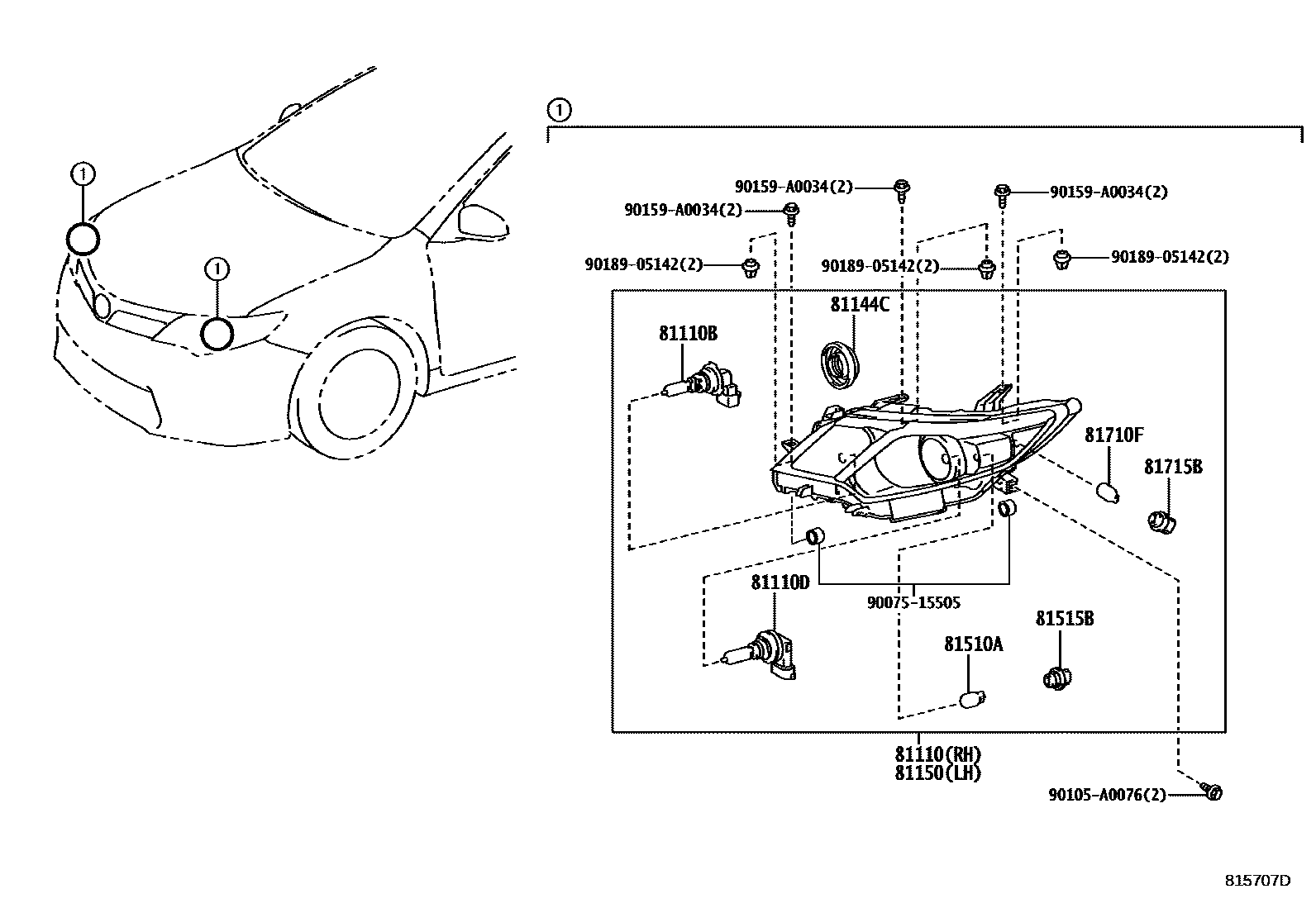

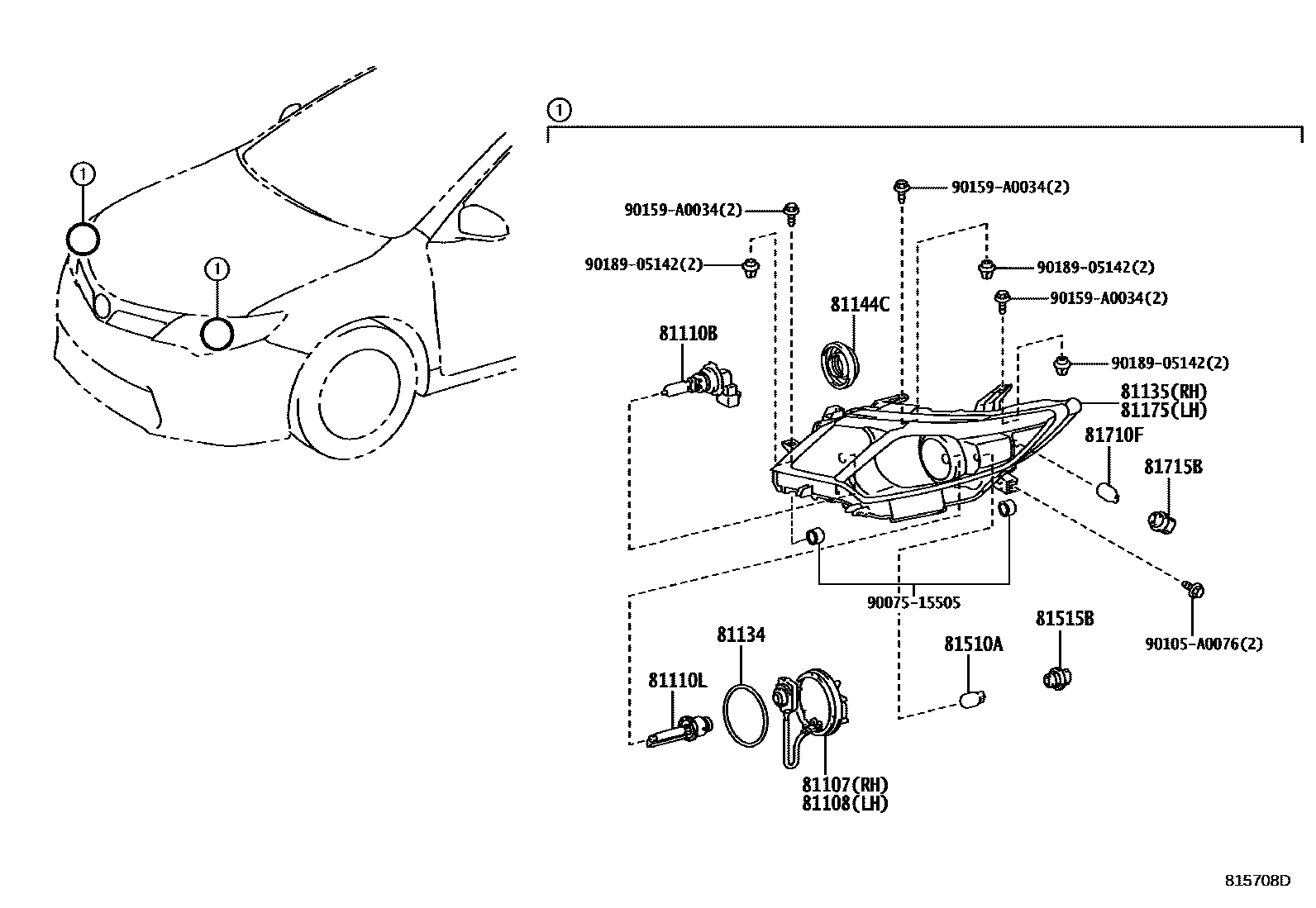

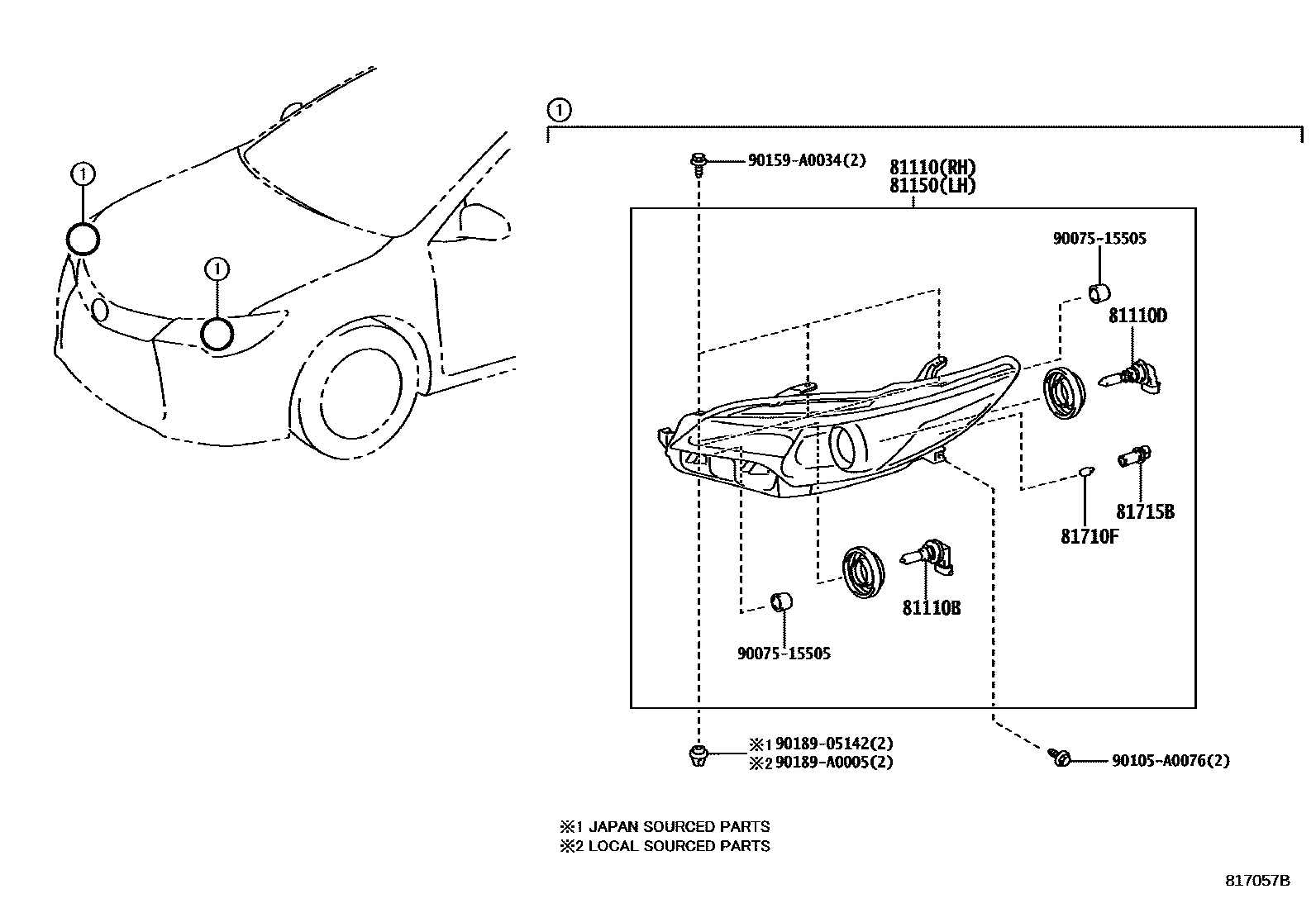

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 85967-08020 |
| 81108 | Left headlight control ECU sub-assembly | 85967-08020 |
| 81110 | Right headlight assembly | 81110-06470 · 81110-06800 · 81110-06860 · 81110-06870 · 81110-06C70 · 81110-06C80 · 81110-06D90 · 81110-06E10 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 · 90981-13085 |
| 81110L | Discharge headlight bulb | 90981-20024 |
| 81134 | headlight gasket | 90075-23002 |
| 81135 | Right headlight assembly | 81130-06780 · 81130-06890 |
| 81144C | Headlight lamp holder cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-06470 · 81150-06800 · 81150-06860 · 81150-06870 · 81150-06C70 · 81150-06C80 · 81150-06D90 · 81150-06E10 |
| 81175 | Left headlight assembly | 81170-06780 · 81170-06890 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-15024 |
| 81515B | Front turn signal lamp holder | 81128-06470 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715B | Front width light lamp holder and wiring harness | 90075-60001 · 90075-60077 |
