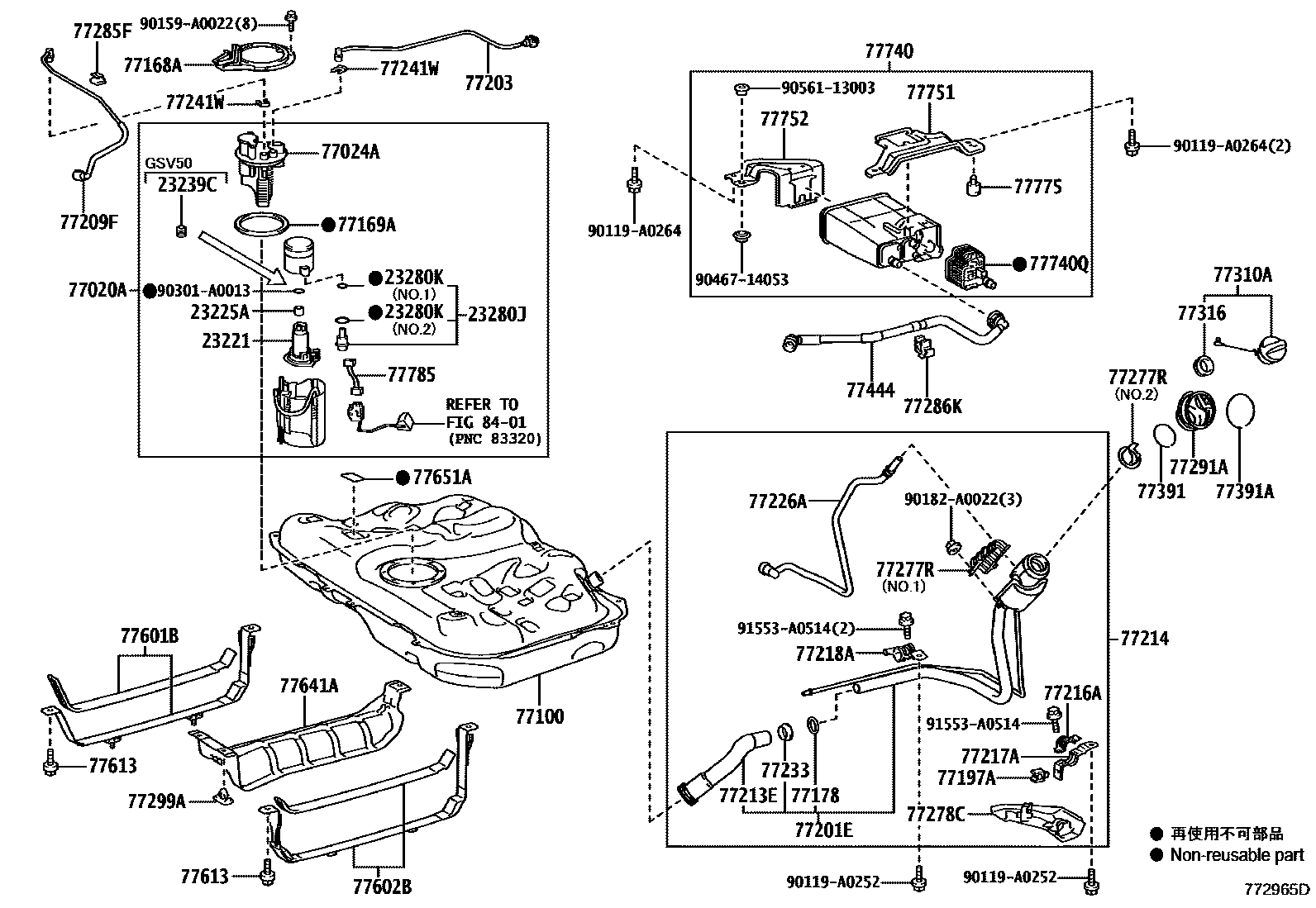

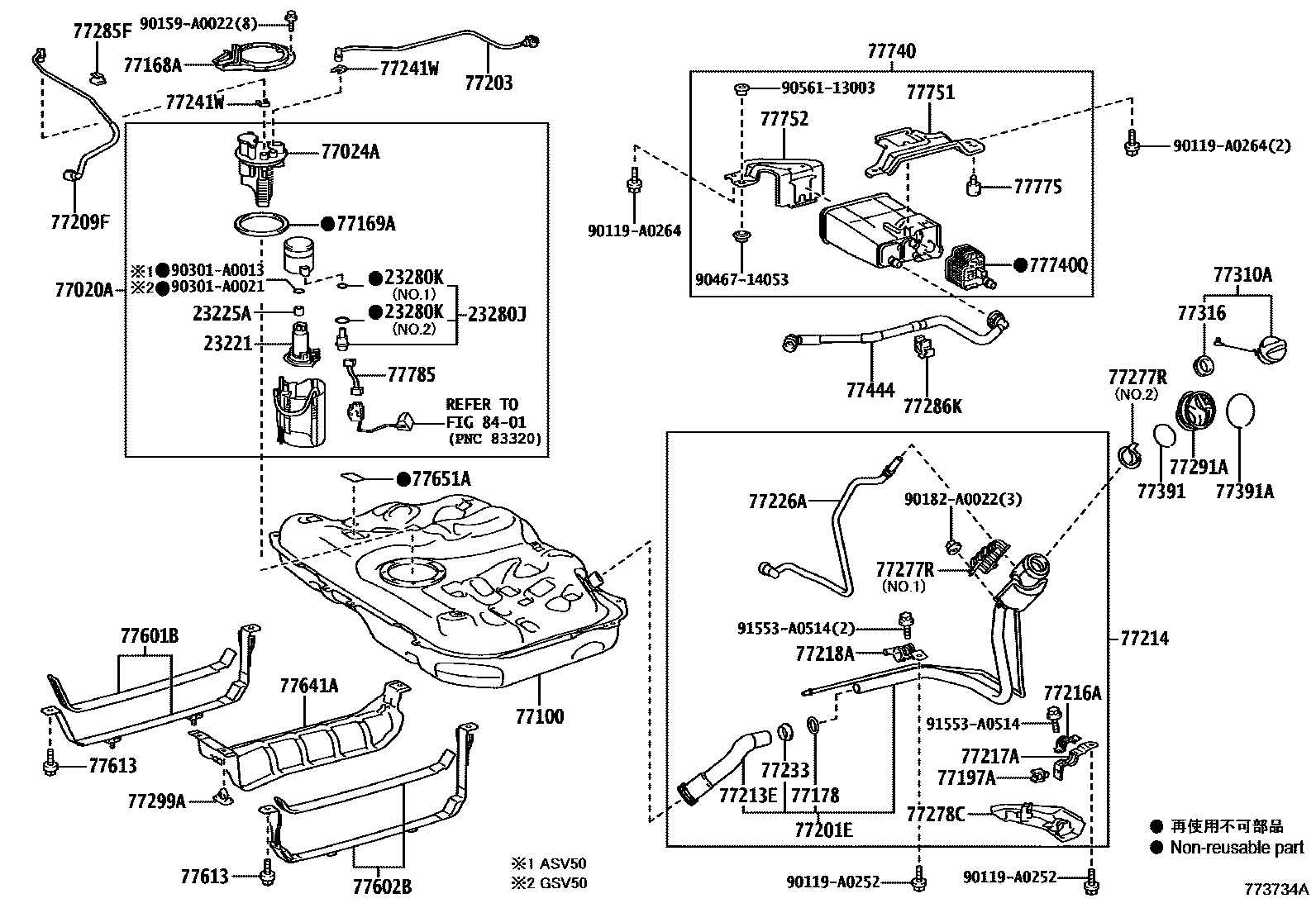

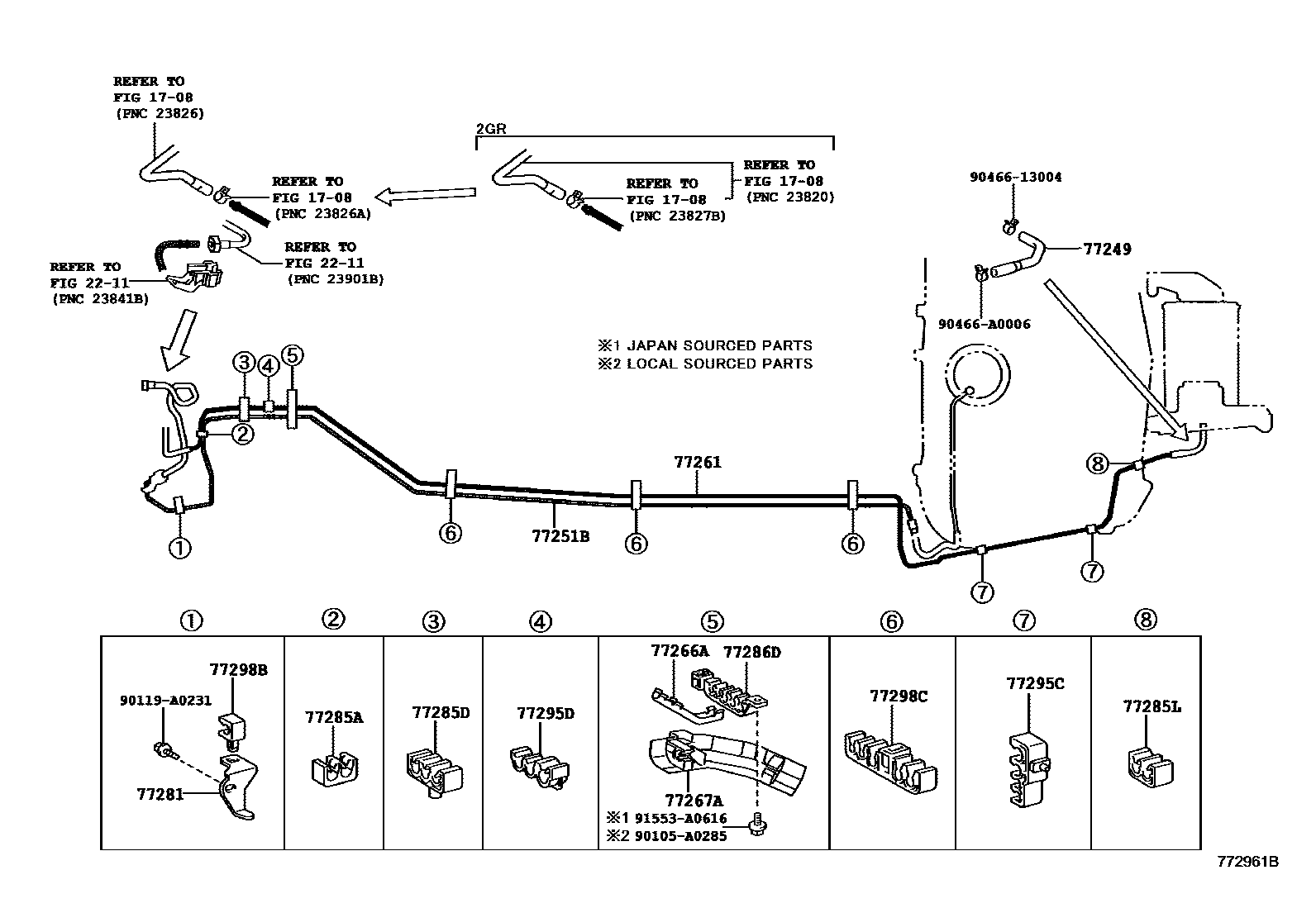

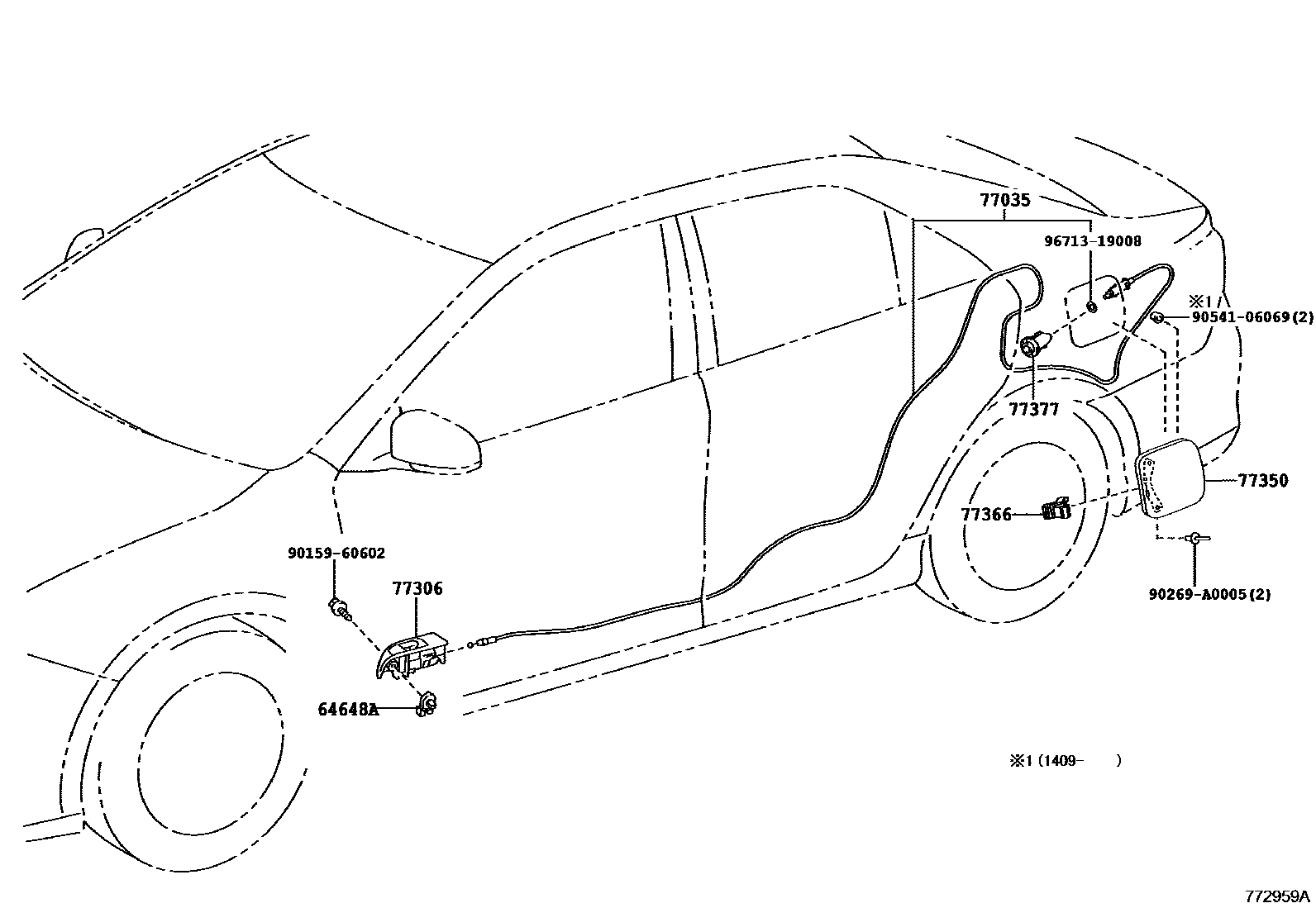

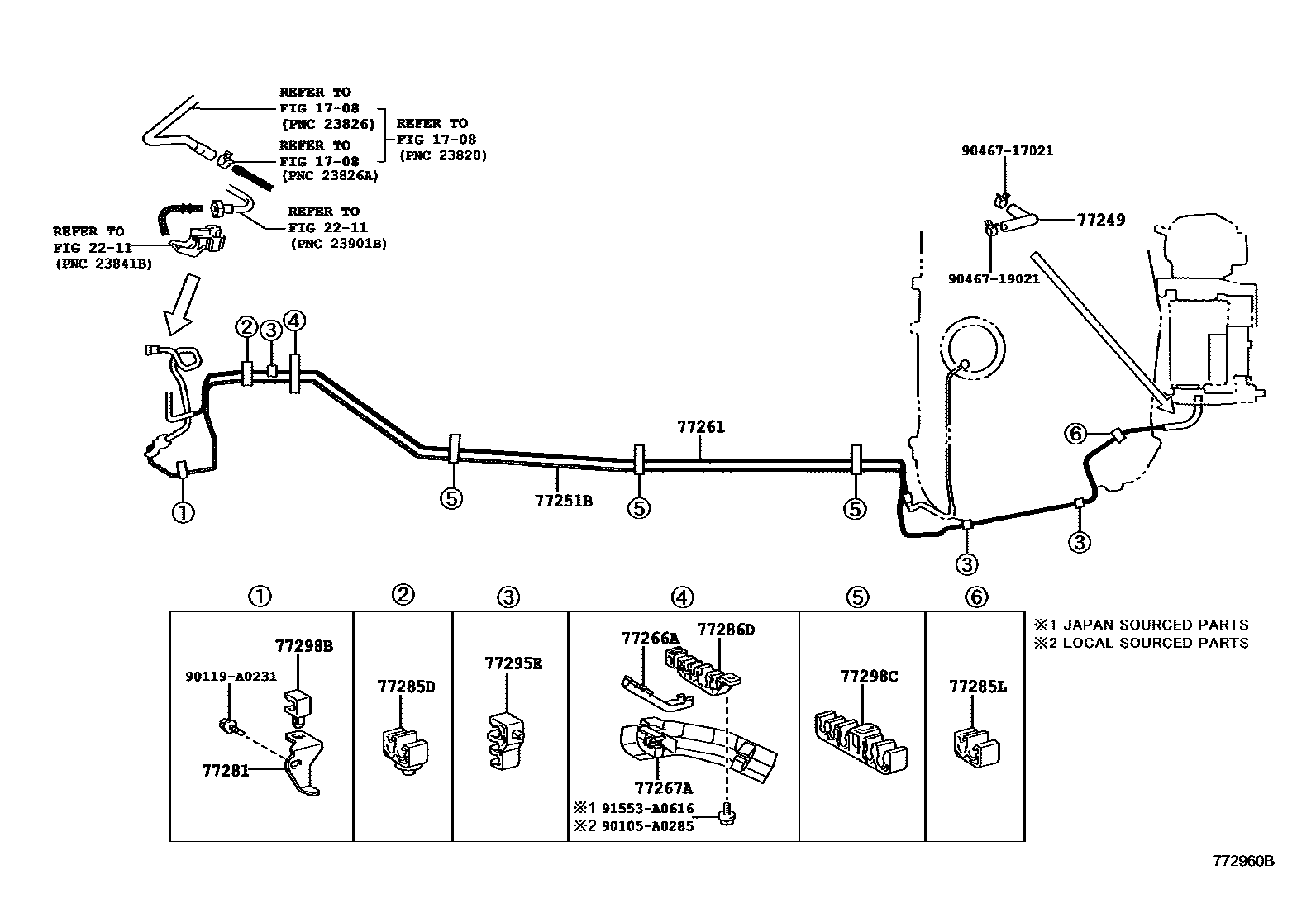

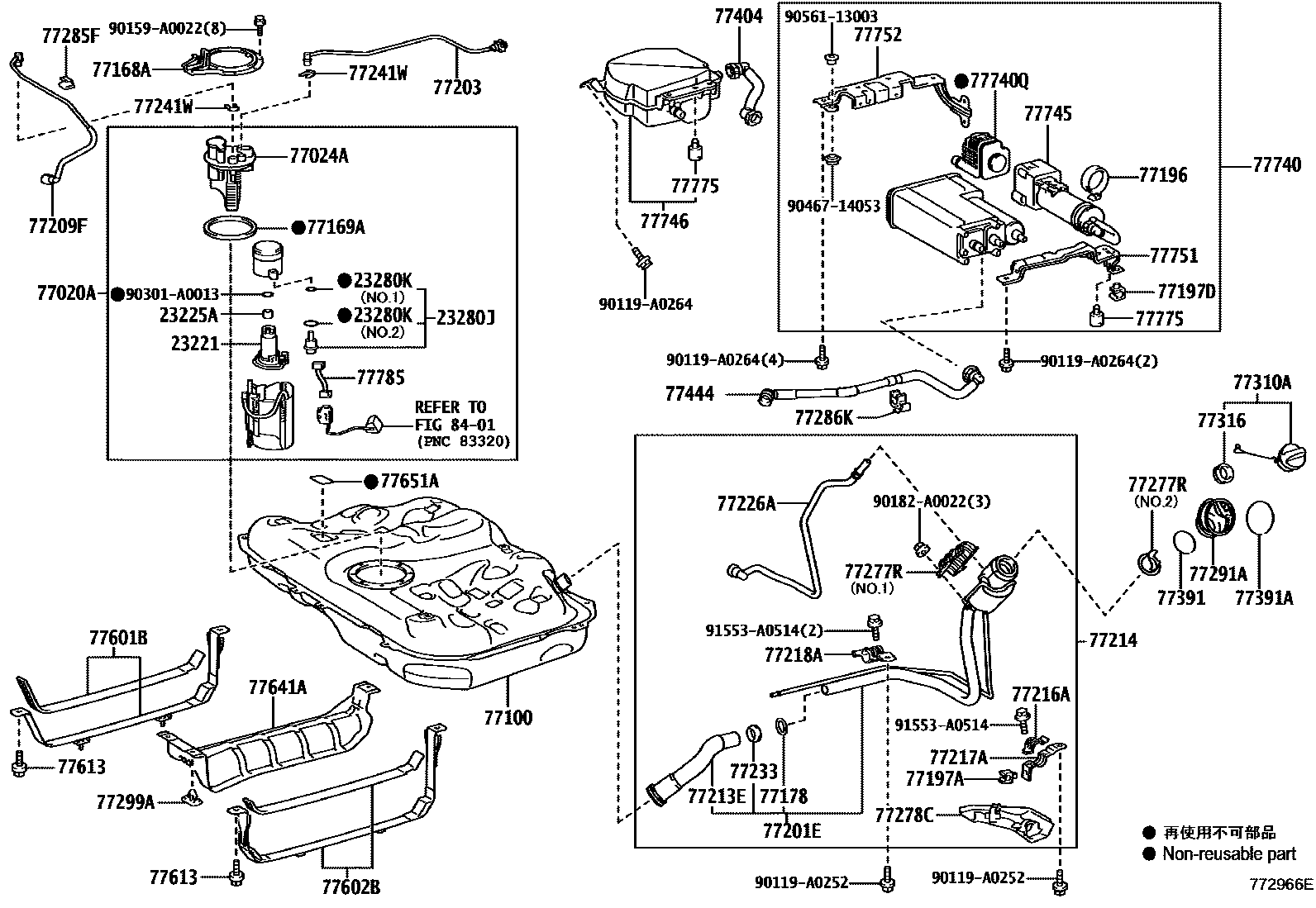

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0P180 · 23220-0V040 · 23220-0V150 · 23220-31370 |
| 23225A | fuel pump septum | 23225-0V010 · 23225-21010 · 23225-23010 |
| 23239C | fuel pump filter seal | 23239-21010 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-38020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06282 · 77020-06285 · 77020-06286 · 77020-06292 · 77020-06295 · 77020-06296 · 77020-06297 · 77020-06302 · 77020-06305 · 77020-06306 |
| 77024A | Fuel absorber sub-assembly | 77024-06151 · 77024-06152 · 77024-06153 · 77024-06211 · 77024-06212 · 77024-06213 · 77024-06220 · 77024-06221 · 77024-06271 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-06180 · 77035-06181 |
| 77100 | fuel tank assembly | 77001-06190 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33070 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 · 77169-53010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-06010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-33030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-0R010 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06160 · 77201-06161 · 77201-06170 · 77201-06171 |
| 77203 | Fuel tank vent elbow sub-assembly | 77203-06070 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06050 · 77209-06051 · 77209-06052 |
| 77213E | Fuel tank to filler pipe hose | 77213-06060 |
| 77214 | Fuel tank filler pipe | 77210-06160 · 77210-06161 · 77210-06162 · 77210-06170 · 77210-06171 · 77210-06172 · 77210-06180 · 77210-06181 · 77210-06182 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06100 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06090 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-06090 · 77218-06091 · 77218-33031 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06120 · 77226-06130 |
| 77233 | fuel hose connector | 77233-06020 · 77233-06030 |
| 77241W | Pipe joint clip | 77241-06020 |
| 77249 | fuel drain hose | 77249-06050 · 77249-06080 |
| 77251B | main fuel pipe | 77251-06130 · 77251-06140 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06220 · 77261-06230 |
| 77266A | No. 1 fuel line protection device | 77266-07010 |
| 77267A | No. 2 fuel pipe protection device | 77267-33030 · 77267-33040 |
| 77277R | Fuel tank filler pipe protection device | 77277-06050 · 77277-33090 · 77277-33100 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-06050 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06020 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-06040 · 77286-75010 |
| 77285F | No. 1 fuel pipe clamp | 77285-33110 |
| 77285L | No. 1 fuel pipe clamp | 77285-06090 · 77285-06100 |
| 77286D | No. 2 fuel pipe clamp | 77286-06030 · 77286-06060 |
| 77286K | No. 2 fuel pipe clamp | 77286-06050 |
| 77291A | Fuel tank filler pipe cover | 77291-06110 · 77291-06160 |
| 77295C | Fuel pipe retaining ring | 77295-06030 |
| 77295D | Fuel pipe retaining ring | 77295-0E010 |
| 77295E | Fuel pipe retaining ring | 77295-06050 |
| 77298B | No. 4 fuel pipe clamp | 77298-30170 |
| 77298C | No. 4 fuel pipe clamp | 77298-06070 · 77298-06080 |
| 77299A | No. 5 fuel pipe clamp | 77299-06070 · 77299-52010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06020 |
| 77310A | Fuel tank cap assembly | 77300-06040 · 77300-07010 · 77300-07020 · 77300-07030 · 77300-07040 · 77300-75010 |
| 77316 | fuel tank cap gasket | 77316-06070 · 77316-06090 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-06080 · 77350-06130 |
| 77366 | Fuel filler cap hinge spring | 77360-02020 · 77360-02030 |
| 77377 | Fuel filler cap lock retainer | 77377-06050 · 77377-75010 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-06070 · 77391-06130 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-06180 |
| 77444 | fuel tank vent hose | 77404-06100 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06080 · 77601-06150 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06080 · 77602-06090 · 77602-06150 · 77602-06160 |
| 77613 | Fuel tank strap fixing bolts | 90119-10971 · 90119-A0267 |
| 77641A | No. 1 fuel tank protective shell | 77641-06010 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77740 | Carbon canister assembly | 77740-06180 · 77740-06220 · 77740-33200 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-14005 · 90910-14008 · 90910-AF004 · 90910-AF006 |
| 77745 | No. 1 carbon canister filter | 77745-33030 |
| 77746 | No.2 carbon canister filter | 77746-06020 |
| 77751 | Carbon canister base bracket | 77751-06110 · 77751-33130 |
| 77752 | Carbon canister base bracket | 77752-06050 · 77752-33060 |
| 77775 | Carbon canister outlet duct | 77775-47010 |
| 77785 | fuel pump wiring harness | 77785-06080 · 77785-06100 · 77785-06110 · 77785-06120 |
