Toyota CAMRY 后防护条 — Figure 7504

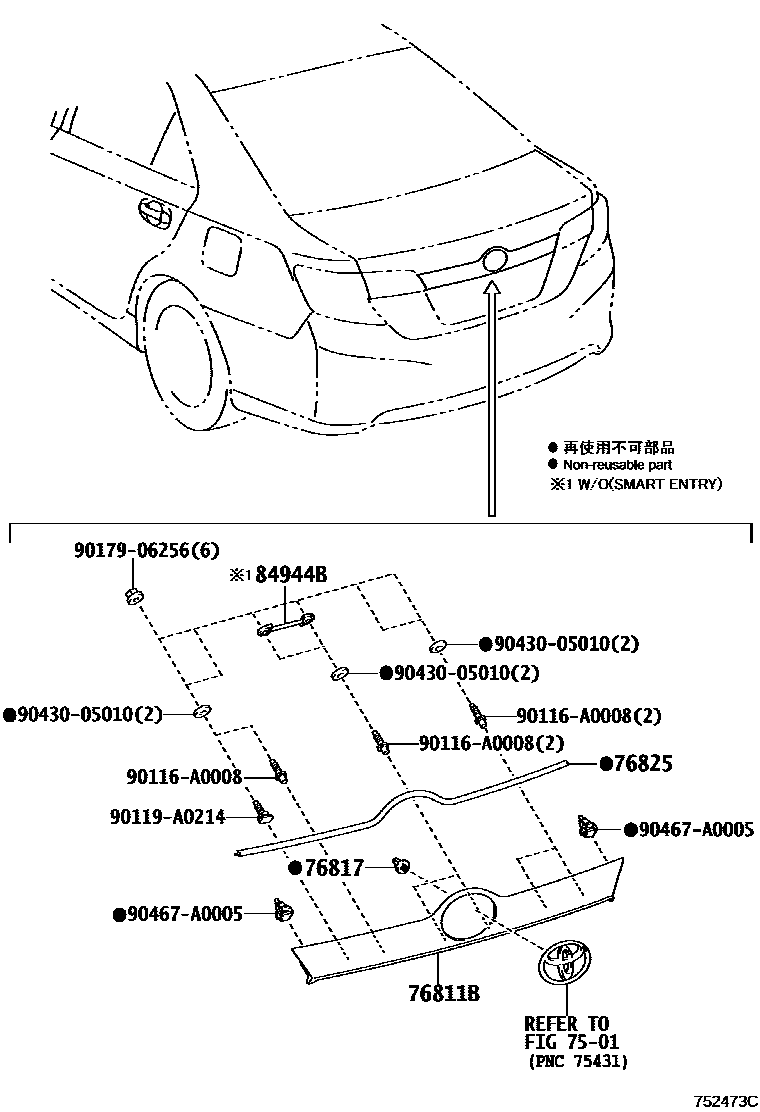

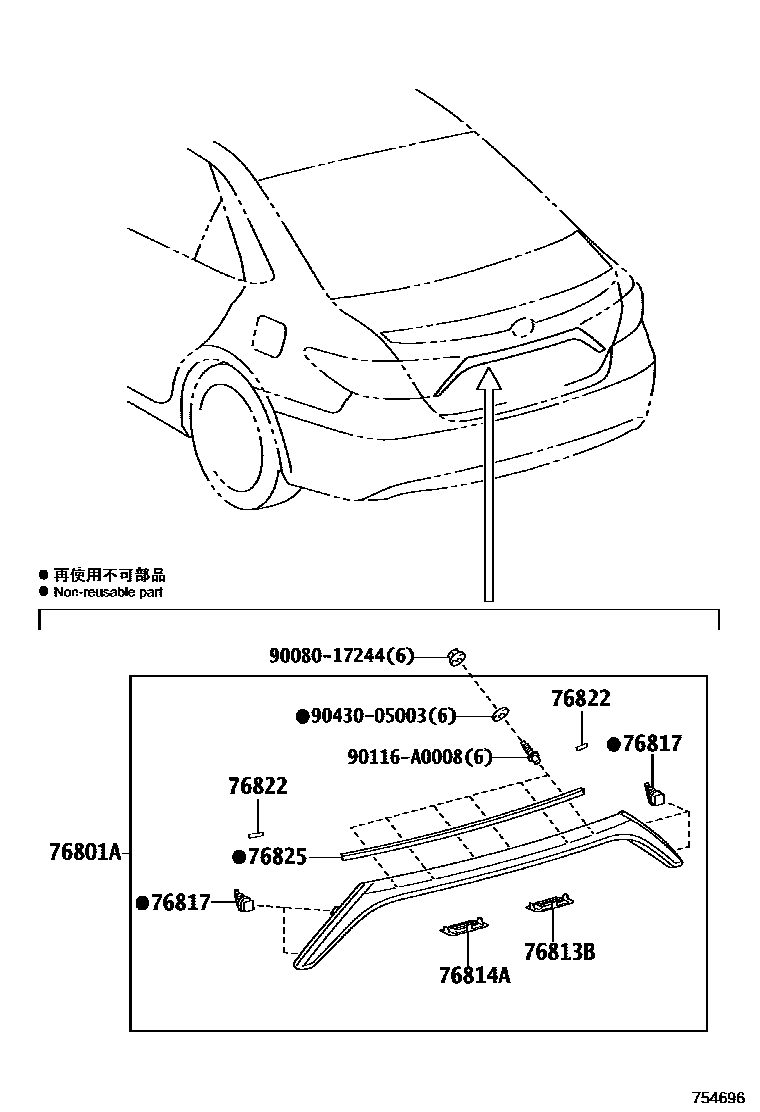

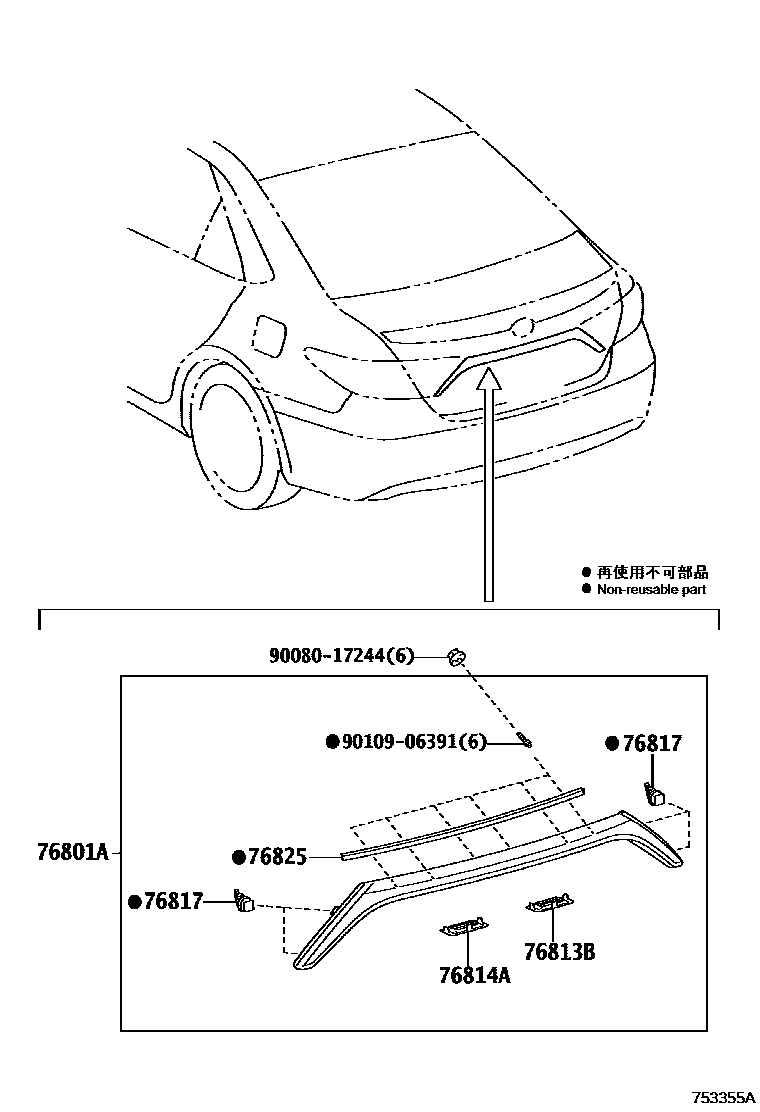

Toyota CAMRY EPC diagram 7504, 后防护条, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-06610 · 76801-06611 · 76801-06A60 · 76801-06A61 · 76801-06A70 · 76801-06A71 · 76801-06A80 · 76801-06A81 |
| 76811B | Trunk door exterior trim strip | 76811-06510 · 76811-06520 · 76811-06530 · 76811-06540 · 76811-06917 · 76811-06918 · 76811-06919 · 76811-06920 · 76811-06921 · 76811-06922 |
| 76813B | GARNITURE, EXT. PORTE DU COMPARTIMENT A BAGAGES, SUP. MD | 76813-06010 |
| 76814A | GARNITURE, EXT. PORTE DU COMPARTIMENT A BAGAGES, SUP. MG | 76814-06010 |
| 76817 | Rear door exterior decorative strip clip | 76817-07010 · 76817-12060 |
| 76822 | Protective cover under rear door trim strip | 76822-07020 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-06190 · 76825-06290 |
| 84944B | Trunk electronic key switch cover | 84944-06020 |
