Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 6 PNC and OE references.

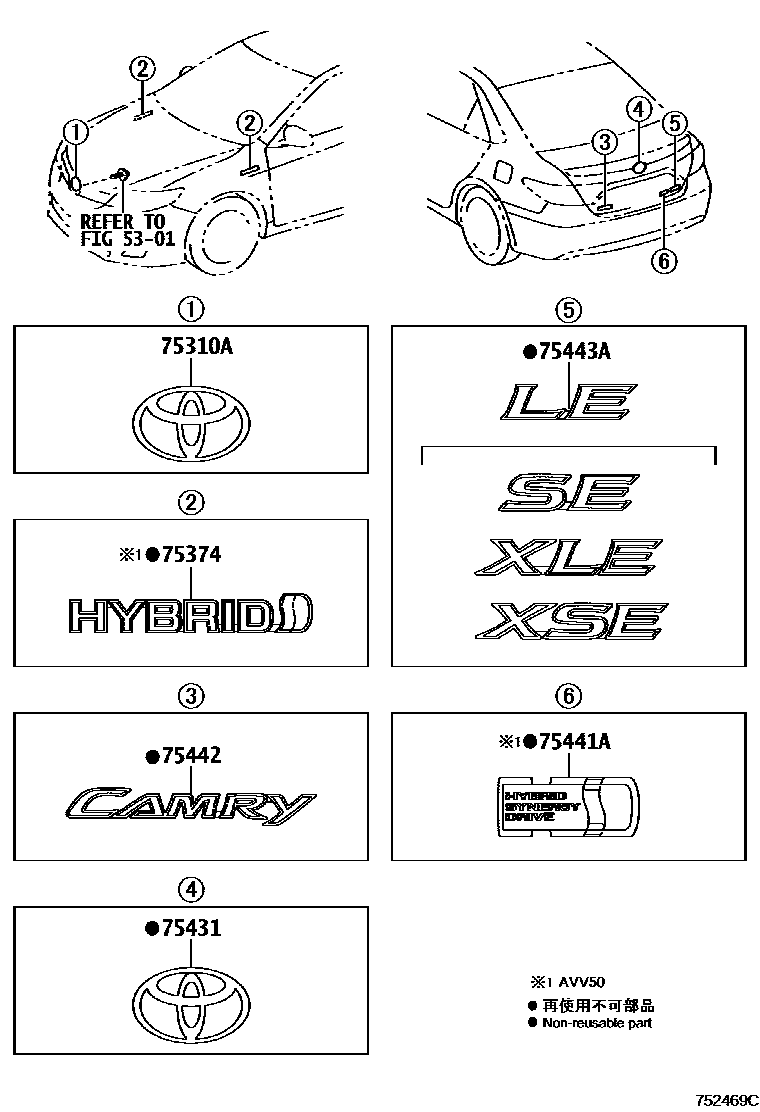

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752469C
丰田徽标和铭牌(车外和车内) — 752469C (201409 – 999999)

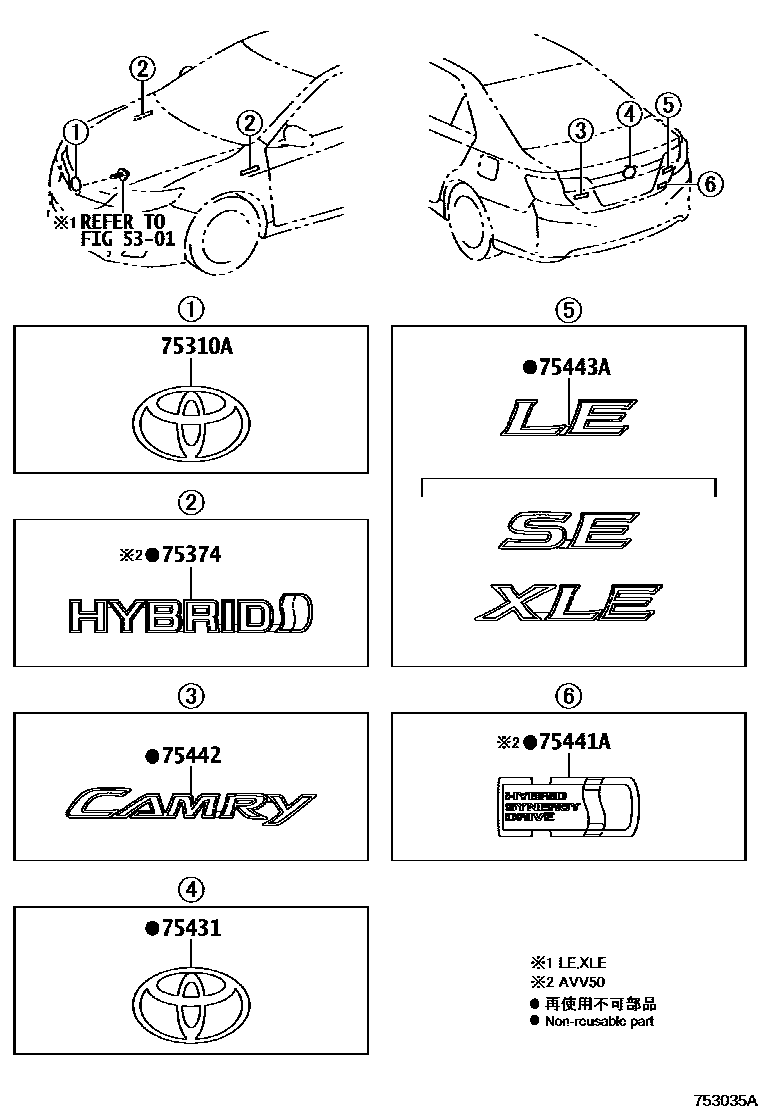

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 753035A
丰田徽标和铭牌(车外和车内) — 753035A (201109 – 201409)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53141-07010 · 53141-0W010 · 53141-47011 · 53141-47012 · 75310-06010 · 75310-06060 · 75310-47010 · 90975-A2002
75374side panel sign75374-12050 · 75374-12060 · 75374-33090 · 75374-33100
75431luggage compartment door sign75403-06090 · 75403-48010 · 75431-02080 · 90975-A2003
75441ATrunk door No. 1 name plate75441-33170
75442Trunk door number plate No. 275442-06190
75443ATrunk door No. 3 nameplate75443-06180 · 75443-06200 · 75443-06660 · 75443-06B60
