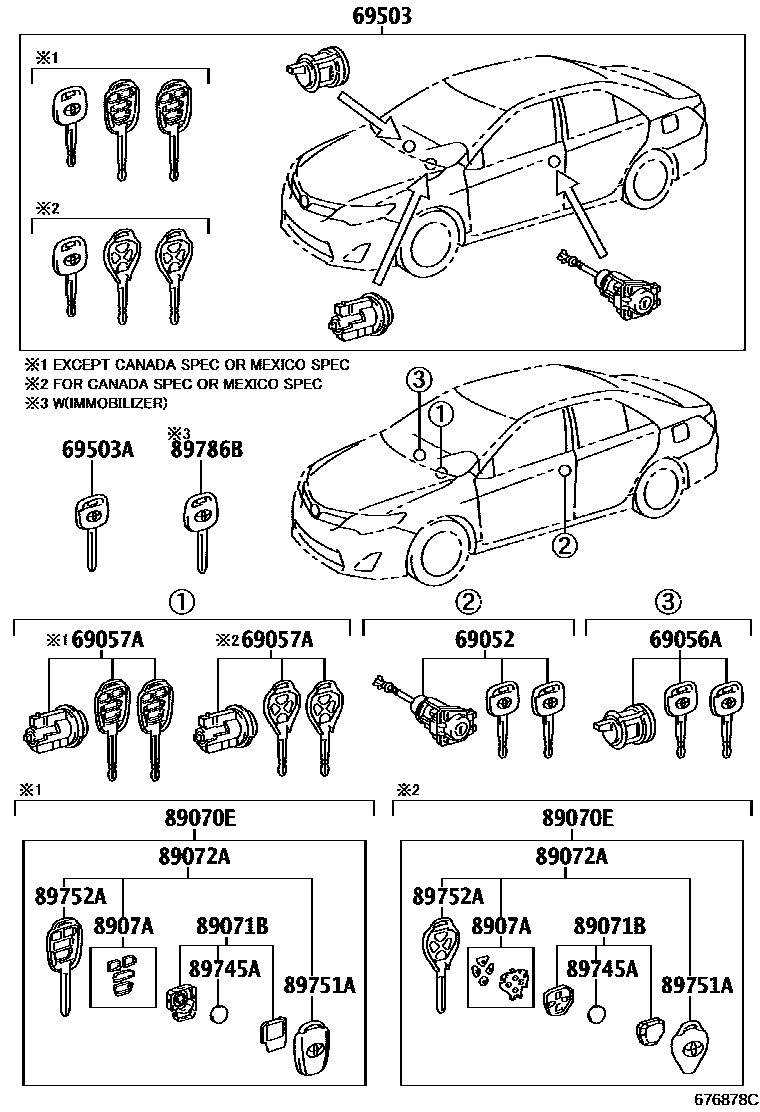

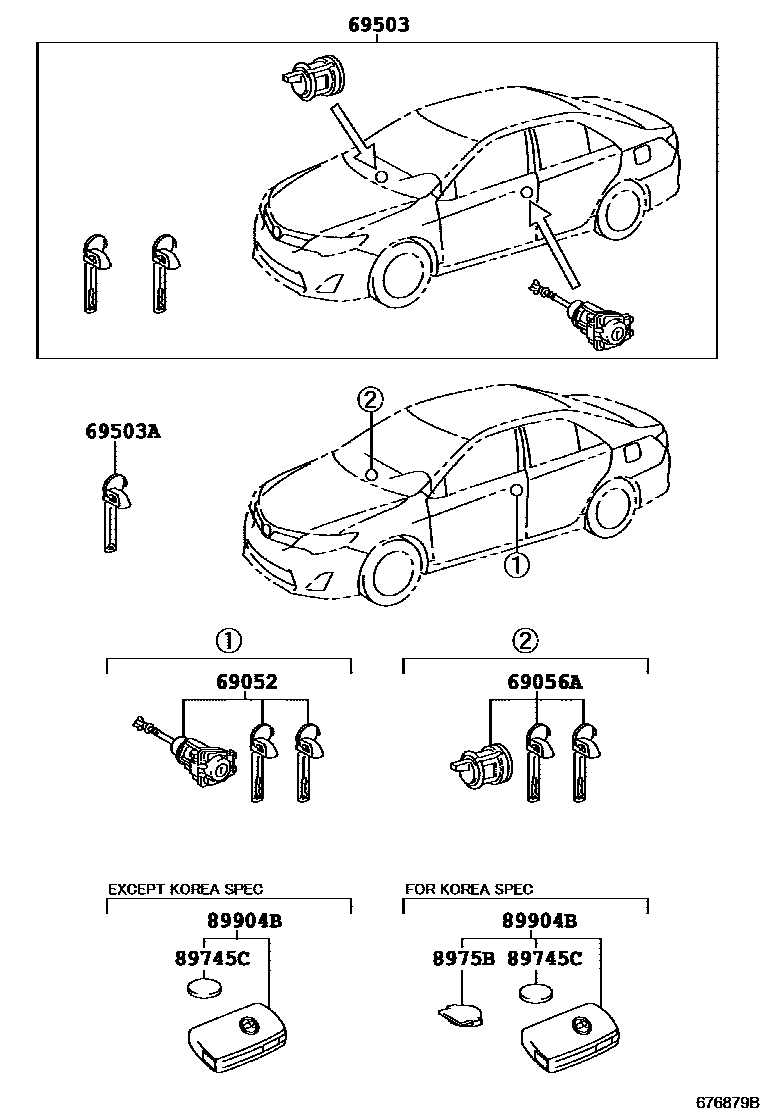

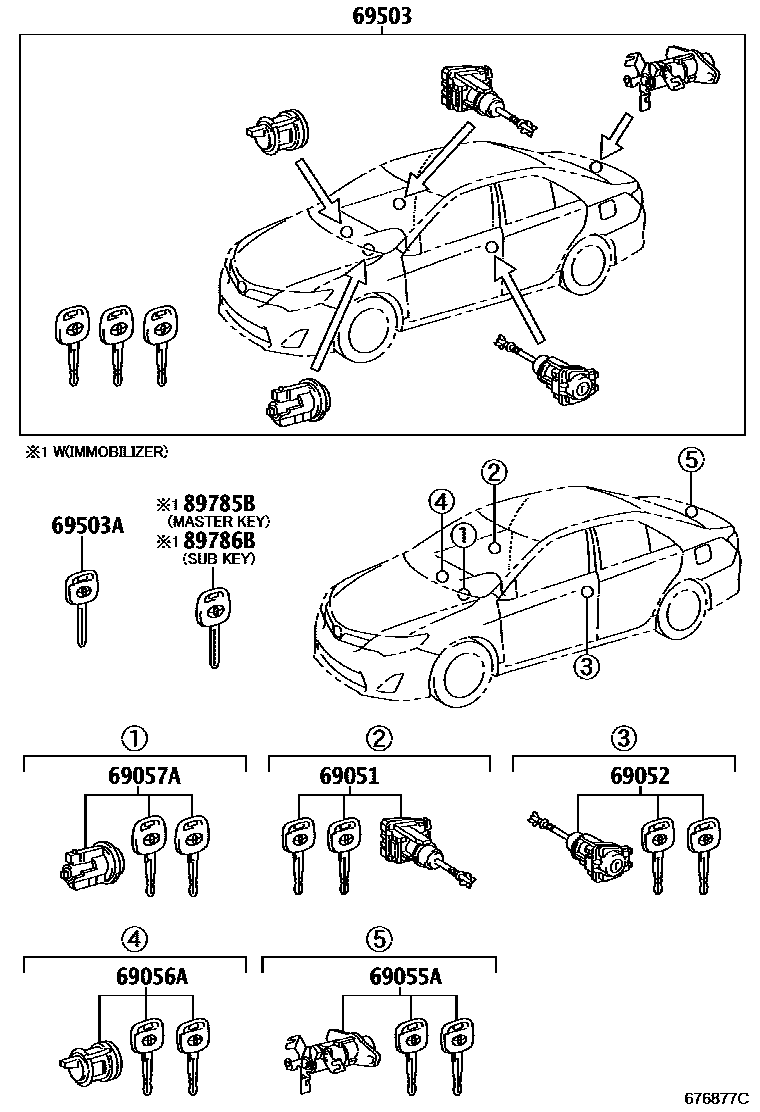

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06051 |
| 69052 | Left door lock cylinder and key assembly | 69052-06061 · 69052-06111 · 69052-06121 · 69052-06130 · 69052-06140 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06150 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06040 · 69056-06100 · 69056-06160 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02361 · 69057-02580 · 69057-06250 · 69057-06310 · 69057-0R050 |
| 69503 | Door lock cylinder components | 69005-06471 · 69005-06481 · 69005-06491 · 69005-06500 · 69005-06510 · 69005-06601 · 69005-06690 |
| 69503A | external tooth key | 69515-06030 · 69515-33100 · 90999-00251 |
| 89070E | Remote key assembly | 89070-06420 · 89070-06421 · 89070-06440 · 89070-06441 |
| 89071B | Remote key sub-assembly module assembly | 89071-06060 · 89071-06170 |
| 89072A | Remote key shell assembly | 89072-06080 · 89072-06081 · 89072-06130 · 89072-06131 |
| 8907A | Transmitter switch assembly | 8907A-33010 · 8907A-33030 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-06060 · 89751-0R030 |
| 89752A | transmitter housing | 89752-02310 · 89752-02311 · 89752-06020 · 89752-0R040 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08040 · 89786-0R020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06140 · 89904-33400 |
