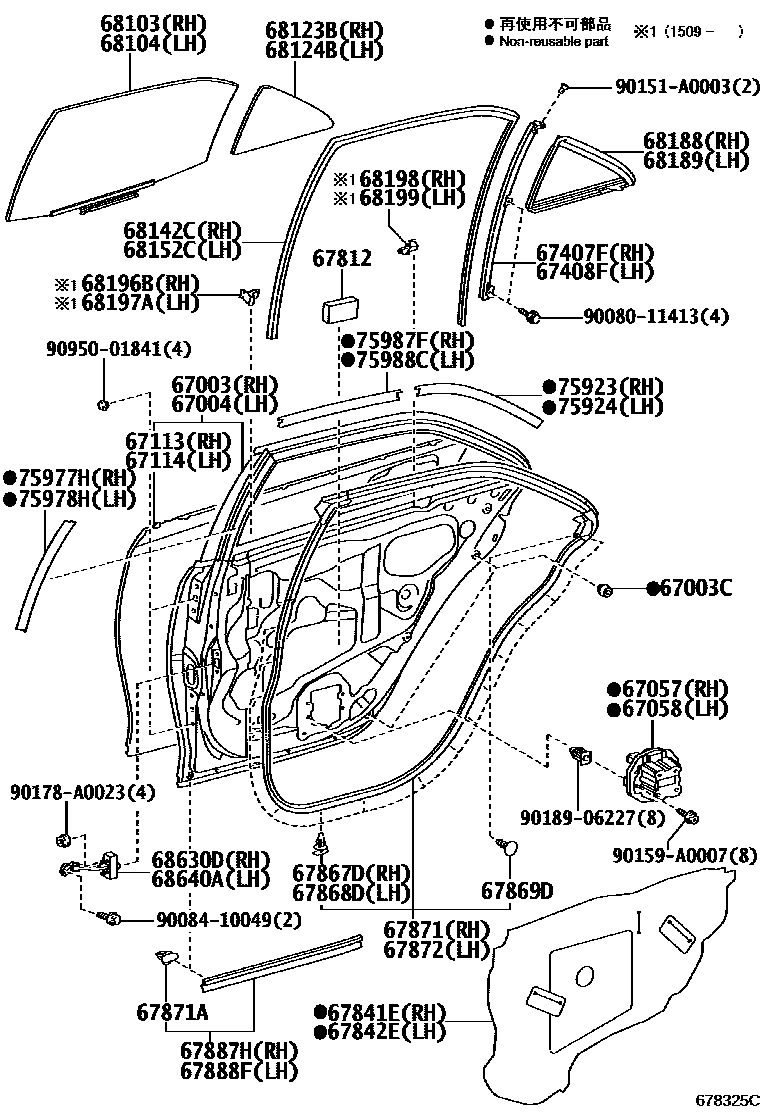

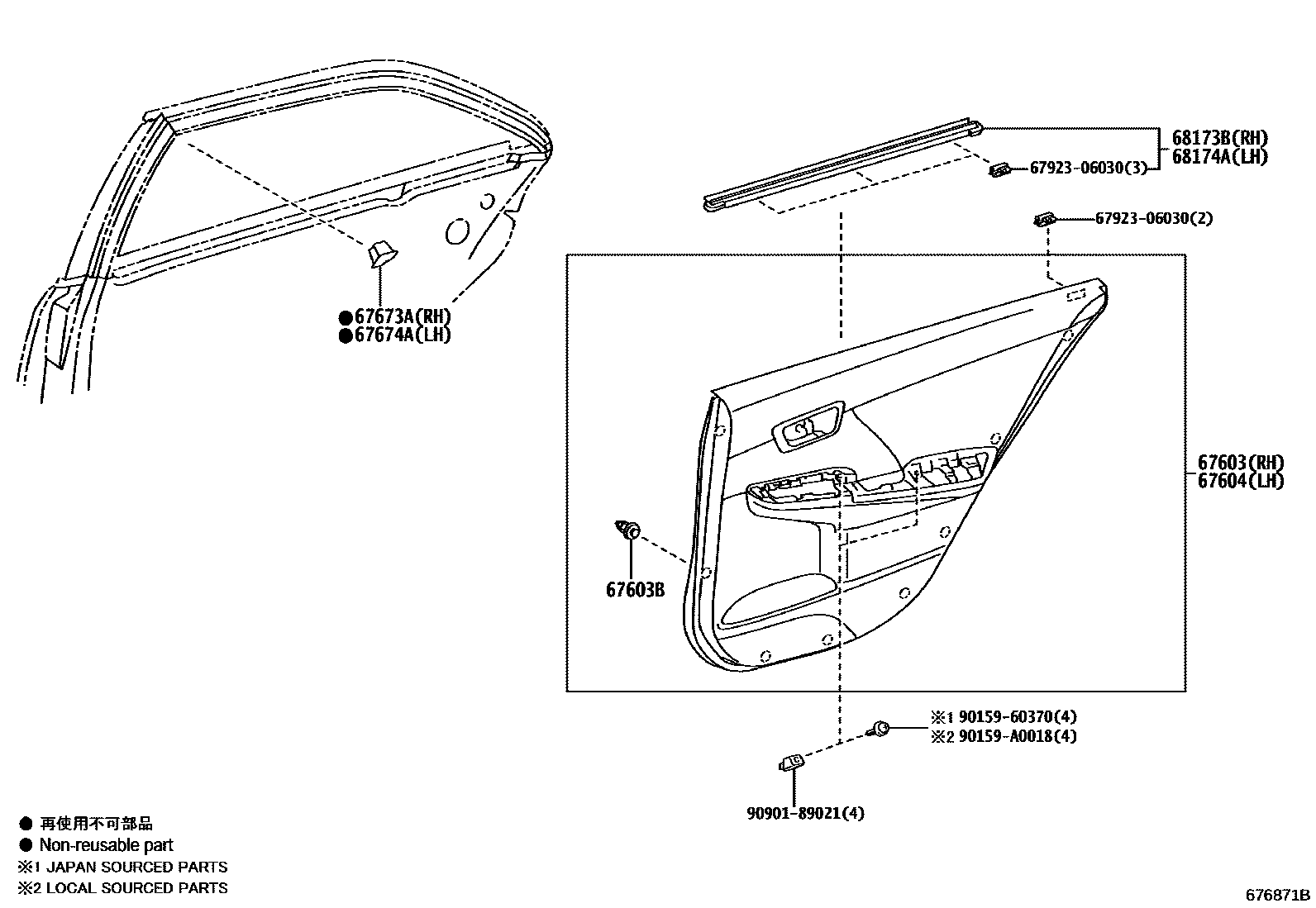

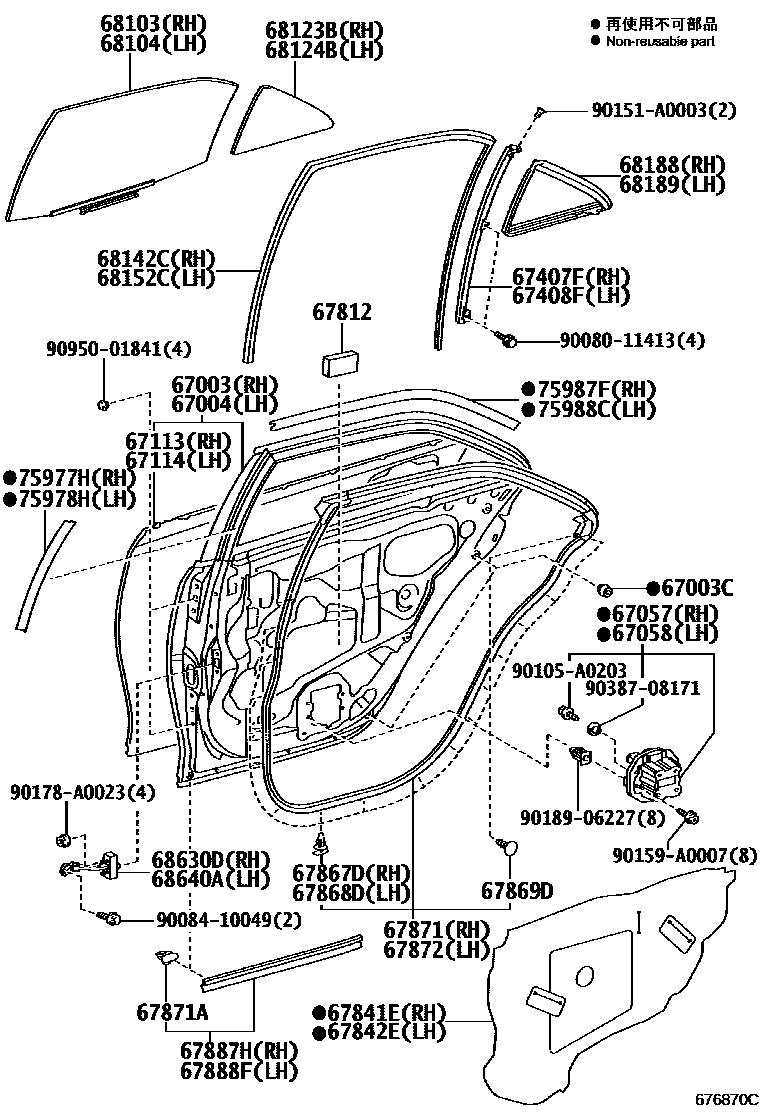

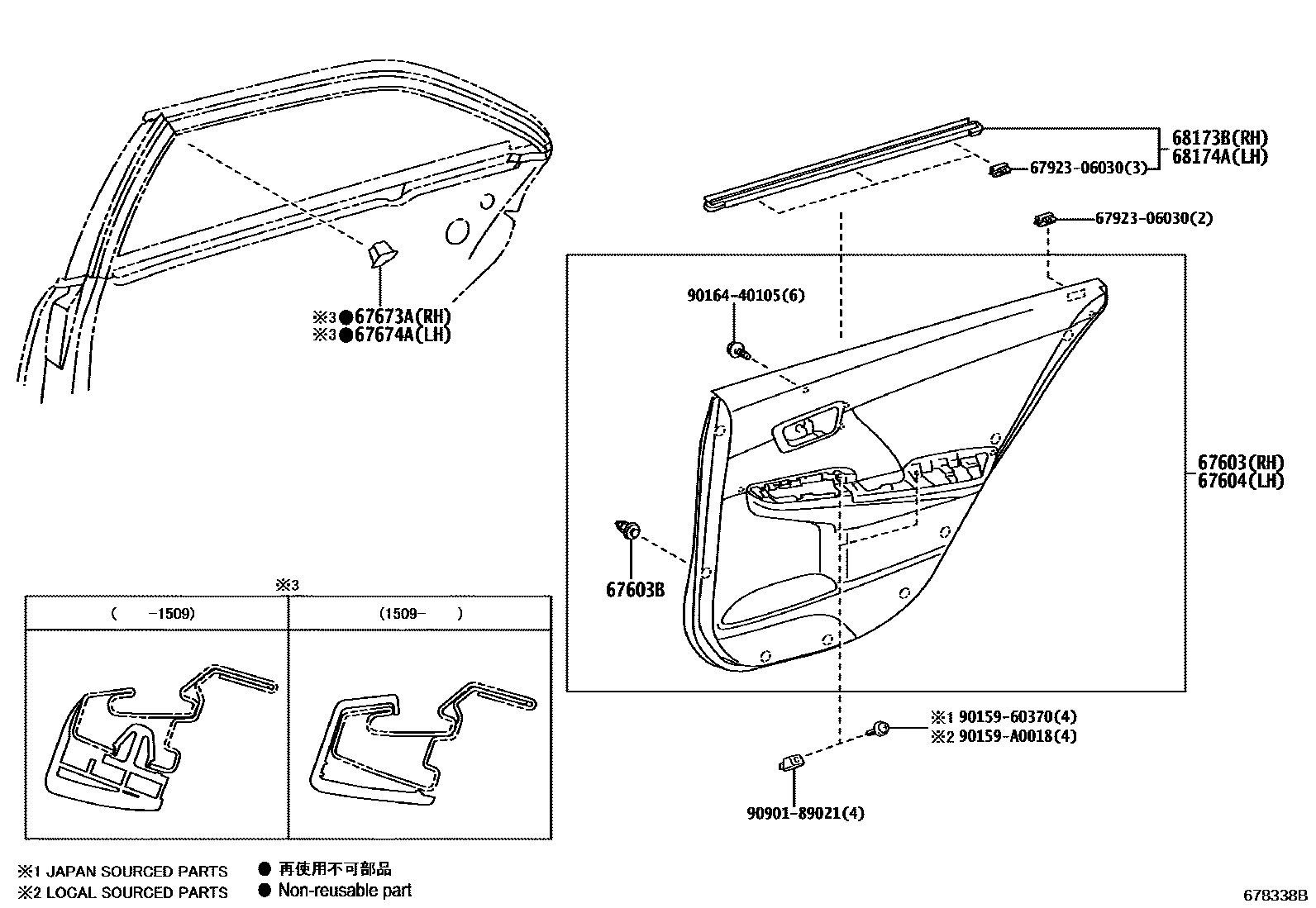

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-06150 · 67003-06240 · 67003-06241 |
| 67003C | Rear door panel cushion | 90084-54012 · 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-06150 · 67004-06240 · 67004-06241 |
| 67057 | Right rear door inner panel reinforcement sub-assembly | 67057-06020 · 67057-06040 |
| 67058 | Left rear door inner panel reinforcement sub-assembly | 67057-06020 · 67057-06040 |
| 67113 | Right rear door outer panel | 67113-06100 · 67113-06150 |
| 67114 | Left rear door outer panel | 67114-06100 · 67114-06150 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-06020 · 67407-06110 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-06020 · 67408-06110 |
| 67603B | Catch (for rear door trim panel) | 67773-0E020 |
| 67673A | Right rear door frame decorative strip | 67673-06070 · 67673-06220 |
| 67674A | Left rear door frame decorative strip | 67673-06220 · 67674-06070 |
| 67812 | Rear door silencer pad | 67811-AA040 |
| 67841E | Right rear door access hole cover | 67841-06190 |
| 67842E | Left rear door access hole cover | 67842-06190 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67868-30030 |
| 67871 | Right rear door sealing strip | 67871-06090 · 67871-06150 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-06090 · 67872-06150 |
| 67887H | Right rear door seal No. 2 | 67887-06020 · 67887-06080 |
| 67888F | Left rear door seal No. 2 | 67888-06010 · 67888-06070 |
| 68103 | Right rear door glass sub-assembly | 68103-06170 · 68103-06171 · 68103-06260 |
| 68104 | Left rear door glass sub-assembly | 68104-06170 · 68104-06171 · 68104-06260 |
| 68123B | Right rear door corner window glass | 68123-06130 · 68123-06220 |
| 68124B | Left rear door corner window glass | 68124-06130 · 68124-06220 |
| 68142C | Right rear door glass lift slot | 68142-06080 · 68142-06140 |
| 68152C | Left rear door glass lift slot | 68152-06080 · 68152-06140 |
| 68173B | Right rear door glass inner sealing strip | 68173-06080 · 68173-06082 · 68173-06140 · 68173-06141 |
| 68174A | Left rear door glass inner sealing strip | 68174-06080 · 68174-06082 · 68174-06140 · 68174-06141 |
| 68188 | Right rear door corner window seal | 68188-06070 · 68188-06130 |
| 68189 | Left rear door corner window seal | 68189-06070 · 68189-06130 |
| 68196B | Right rear door beltline front seal | 68196-06010 |
| 68197A | Left rear door beltline front seal | 68197-06010 |
| 68198 | Right rear door beltline rear seal | 68198-06010 |
| 68199 | Left rear door waistline rear seal | 68199-06010 |
| 68630D | Right rear door opening limiter assembly | 68630-06082 · 68630-06083 |
| 68640A | Left rear door opening limiter assembly | 68630-06082 · 68630-06083 |
| 75923 | No. 2 right side light-shielding film | 75923-06010 |
| 75924 | No. 2 left shading film | 75924-06010 |
| 75977H | Right rear door outer lower trim strip | 75977-06050 |
| 75978H | Left rear door outer lower trim strip | 75978-06050 |
| 75987F | Right rear door outer trim | 75987-06060 · 75987-06140 |
| 75988C | Left rear door outer trim | 75988-06060 · 75988-06140 |
