Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 6 images and 54 PNC and OE references.

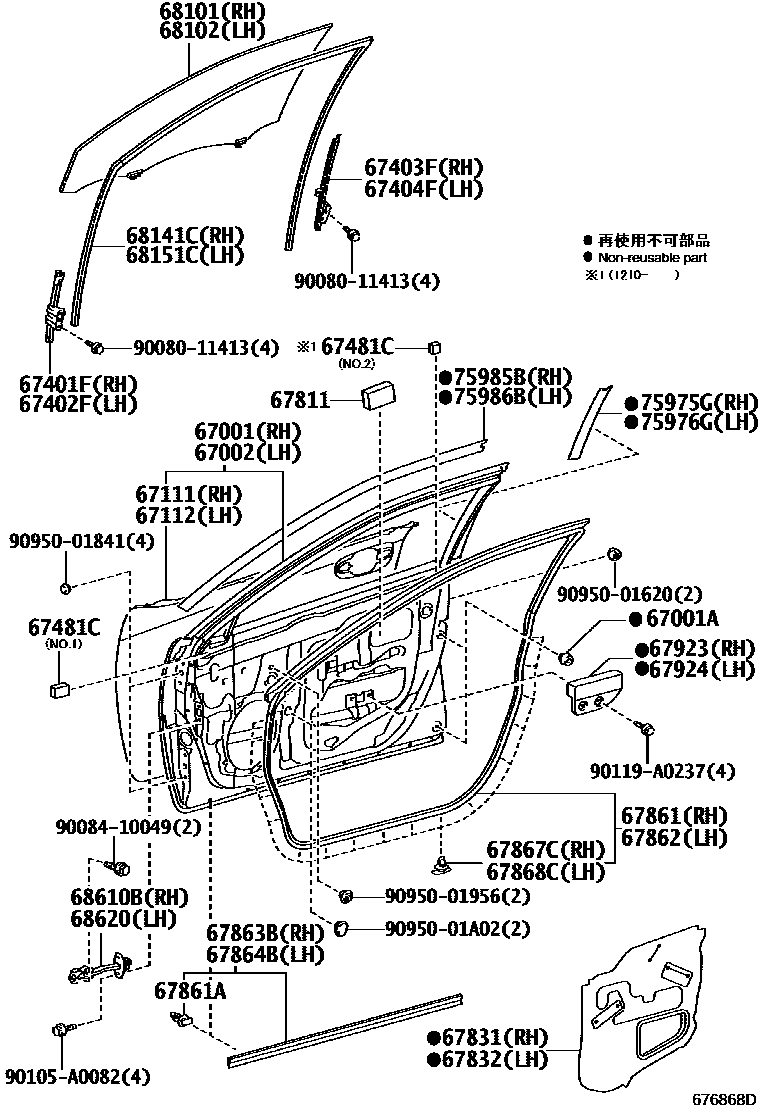

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676868D
前门板和前门玻璃 — 676868D (201109 – 201409)

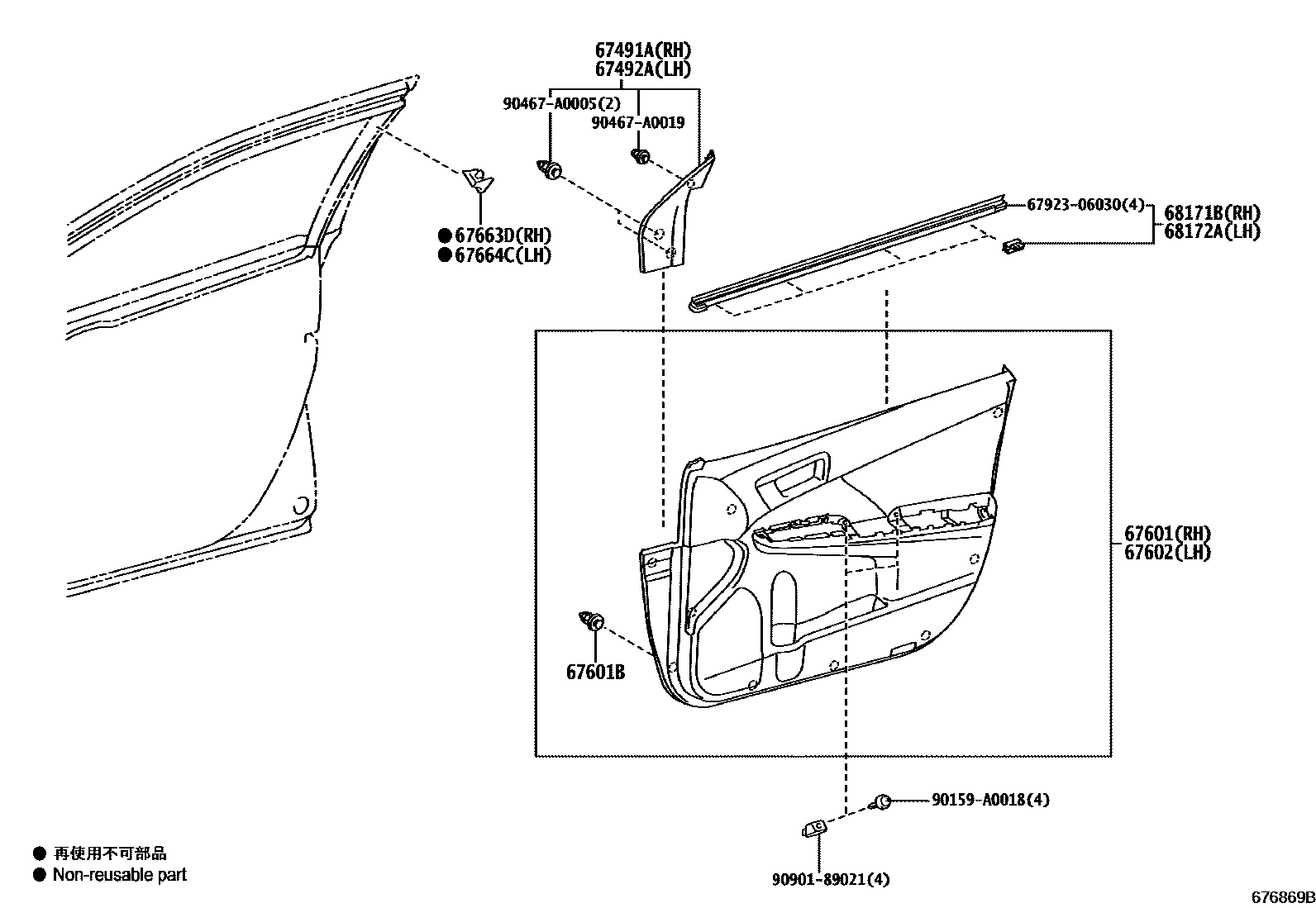

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676869B
前门板和前门玻璃 — 676869B (201109 – 201409)

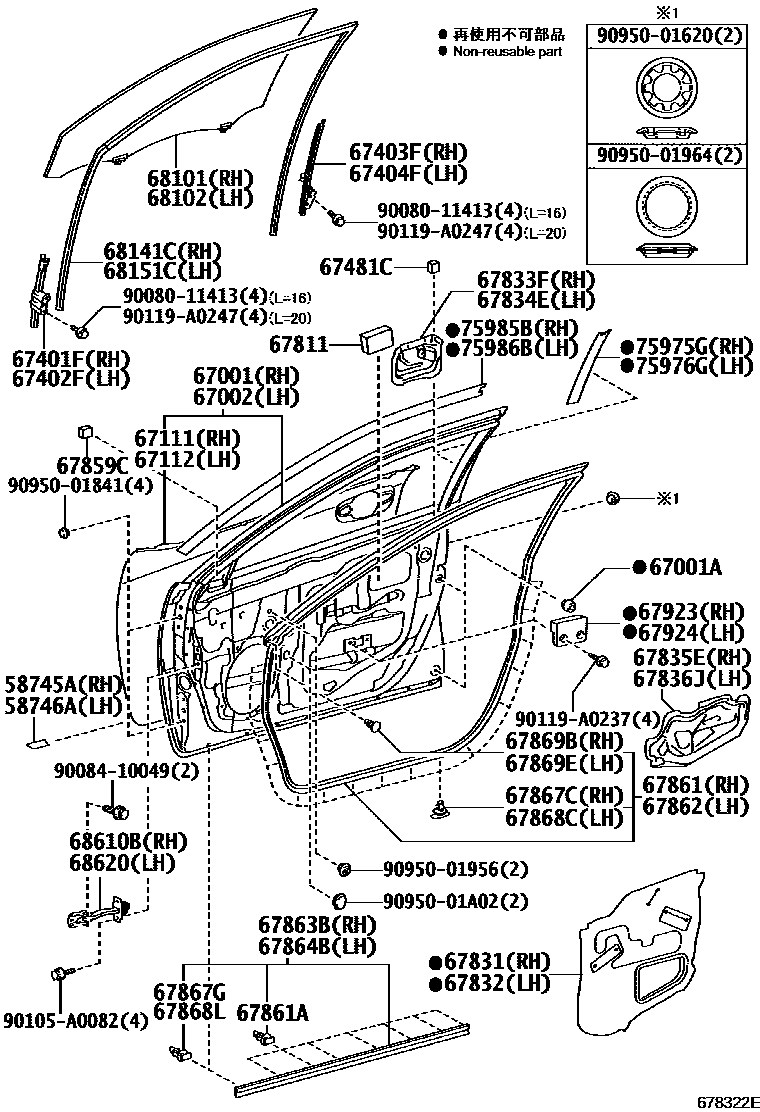

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 678322E
前门板和前门玻璃 — 678322E (201409 – 201509)

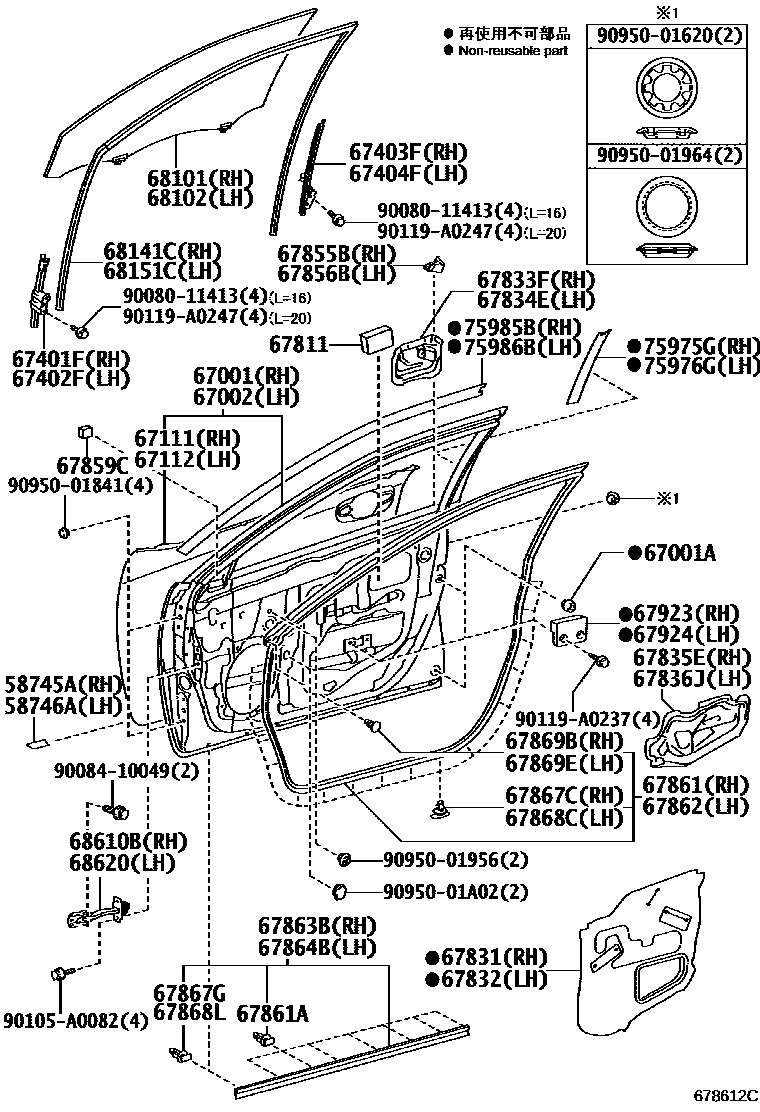

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 678612C
前门板和前门玻璃 — 678612C (201509 – 201601)

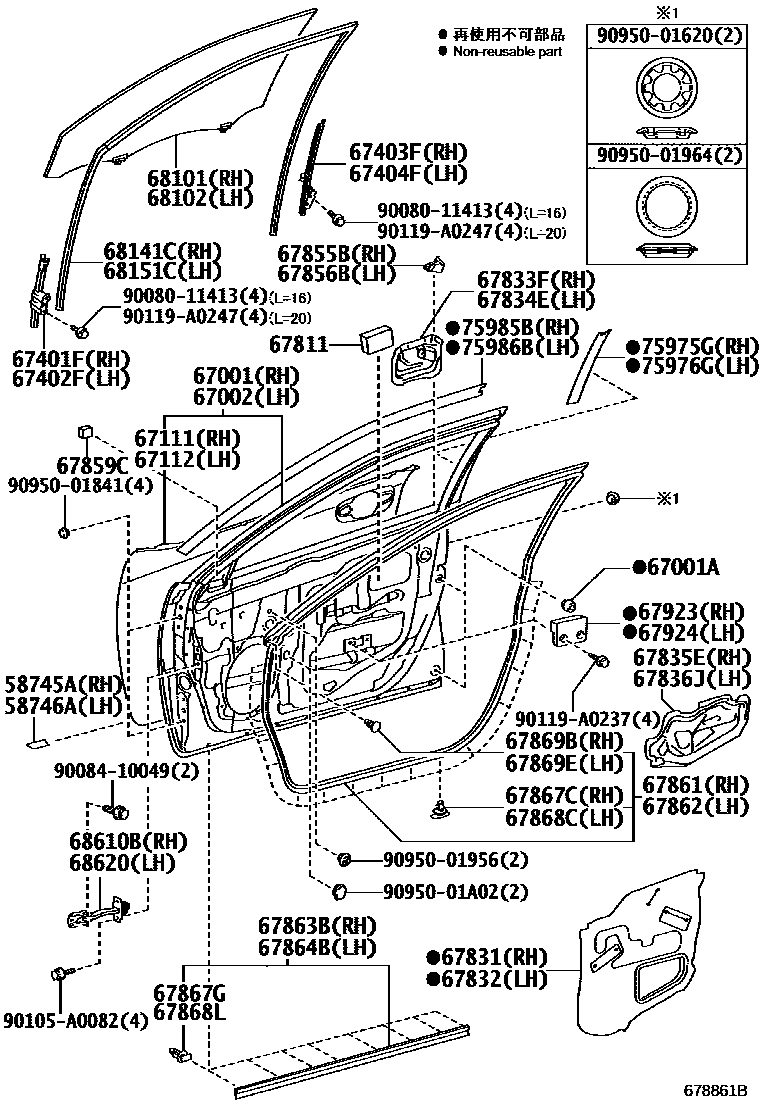

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 678861B
前门板和前门玻璃 — 678861B (201601 – 999999)

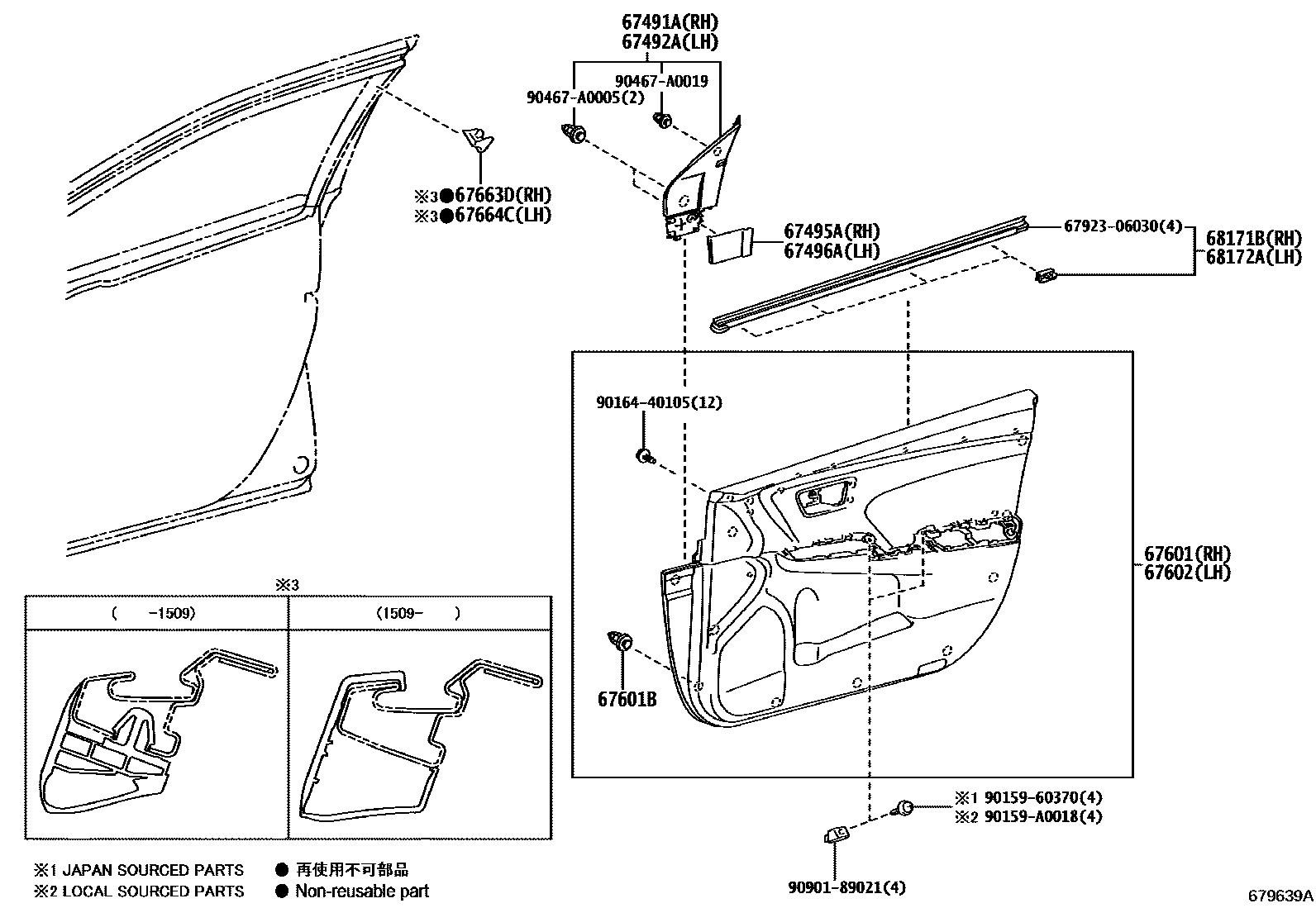

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 679639A
前门板和前门玻璃 — 679639A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
58745ARight front side panel protector58745-06020
58746ALeft front side panel protector58746-06020
67001Right front door panel sub-assembly67001-06170 · 67001-06220 · 67001-06221
67001AFront door panel cushion90084-54012 · 90541-09124
67002Left front door panel sub-assembly67002-06170 · 67002-06220 · 67002-06221
67111Outer right front door panel67111-06110 · 67111-06160
67112Outer left front door panel67112-06110 · 67112-06160
67401FRight front door front lower door frame sub-assembly67401-06100 · 67401-06101
67402FLeft front door front lower door frame sub-assembly67402-06100 · 67402-06101
67403FRight front door rear lower door frame sub-assembly67403-06080 · 67403-06081
67404FLeft front door rear lower door frame sub-assembly67404-06080 · 67404-06081
67481CFront door lower door frame seal67481-06010 · 67481-06080
67491ARight front door lower door frame bracket decorative strip67491-06090 · 67491-06150
67492ALeft front door lower door frame bracket decorative strip67492-06090 · 67492-06150
67495ARight front door front lower door frame upper cover67495-06010
67496ALeft front door front lower door frame upper cover67496-06010
67601BCatch (for front door trim panel)67773-0E020
67663DRight door frame decorative strip67663-06060 · 67663-06240
67664CLeft door frame decorative strip67663-06240 · 67664-06060
67811Front door silencer pad67811-AA040
67831Right front door access hole cover67831-06130 · 67831-06131
67832Left front door access hole cover67832-06130 · 67832-06131
67833FJOINT D'ETANCHEITE, ORIFICE ENTRETIEN PORTE AV, NO.1 MD67833-06120
67834EJOINT D'ETANCHEITE, ORIFICE ENTRETIEN PORTE AV, NO.1 MG67834-06060
67835EJOINT D'ETANCHEITE, ORIFICE ENTRETIEN PORTE AV, NO.2 MD67835-06020
67836JJOINT D'ETANCHEITE, ORIFICE ENTRETIEN PORTE AV, NO.2 MG67836-06040
67855BRight front door panel protector67855-06050
67856BLeft front door panel protector67856-06050
67859CFront door panel No. 1 lower protective part67859-0E010
67861Right front door seal67861-06090 · 67861-06150
67861AFixing piece (for front door sealing strip)67867-12150
67862Left front door seal67862-06090 · 67862-06150
67863BRight front door seal No. 267863-06010 · 67863-06080 · 67863-06081 · 67863-06082
67864BLeft front door seal No. 267864-06010 · 67864-06070 · 67864-06071 · 67864-06072
67867CRight front door seal strip fixing67867-12150
67867GRight door sealing strip fixing67867-06100 · 67867-12150 · 67867-50050
67868CLeft front door seal strip fixing67867-12150
67868LLeft door seal strip fixing67867-06110 · 67867-12150 · 67867-50050
67869BFront door seal strip clip67869-22010
67869EFront door seal strip clip67869-22010
67923Front door No. 1 reinforcement cushion pad67923-06110 · 67923-06230
67924Front door No. 2 reinforcement cushion pad67923-06230 · 67924-06040
68101Right front door glass sub-assembly68101-06190 · 68101-06300
68102Left front door glass sub-assembly68102-06190 · 68102-06300
68141CRight front door glass lift channel68141-06100 · 68141-06160
68151CLeft front door glass lift channel68151-06090 · 68151-06150
68171BRight front door glass inner sealing strip68171-06090 · 68171-06092 · 68171-06150 · 68171-06151
68172ALeft front door glass inner sealing strip68172-06090 · 68172-06092 · 68172-06150 · 68172-06151
68610BRight front door opening limiter assembly68610-06091 · 68610-06092
68620Left front door opening limiter assembly68610-06091 · 68610-06092
75975GRight front door outer lower trim strip75975-06050
75976GLeft front door outer lower trim strip75976-06050
75985BRight front door trim75985-06050
75986BLeft front door trim75986-06050
