Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

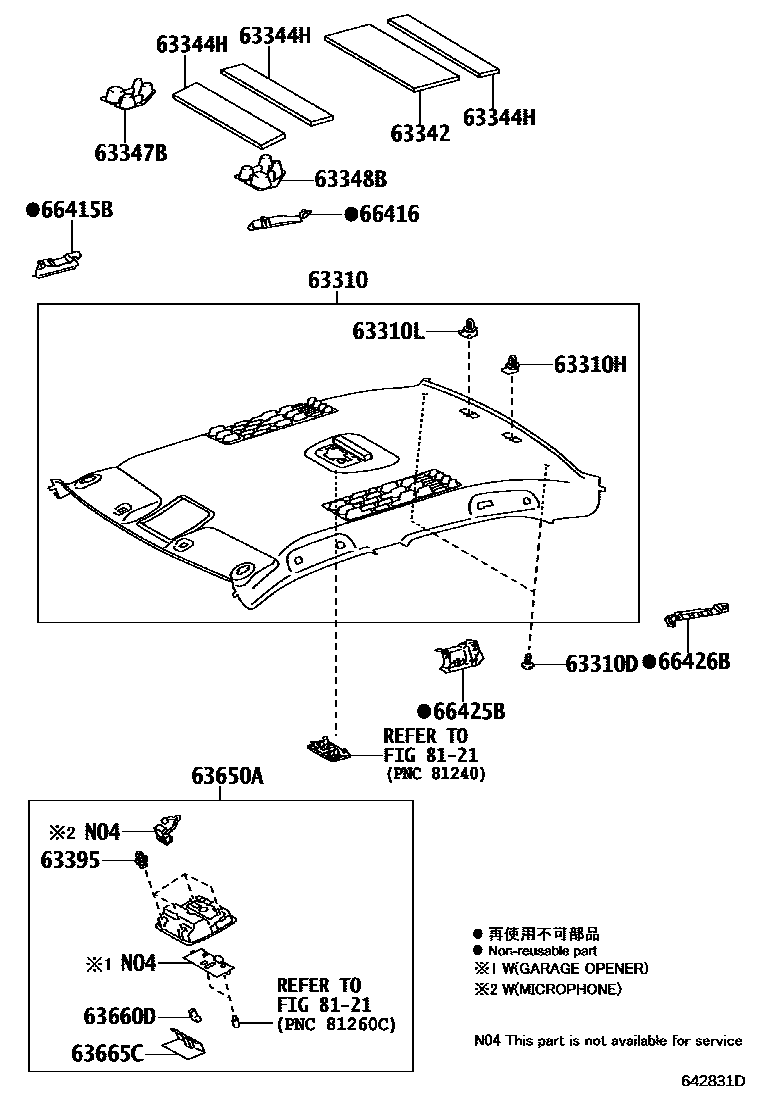

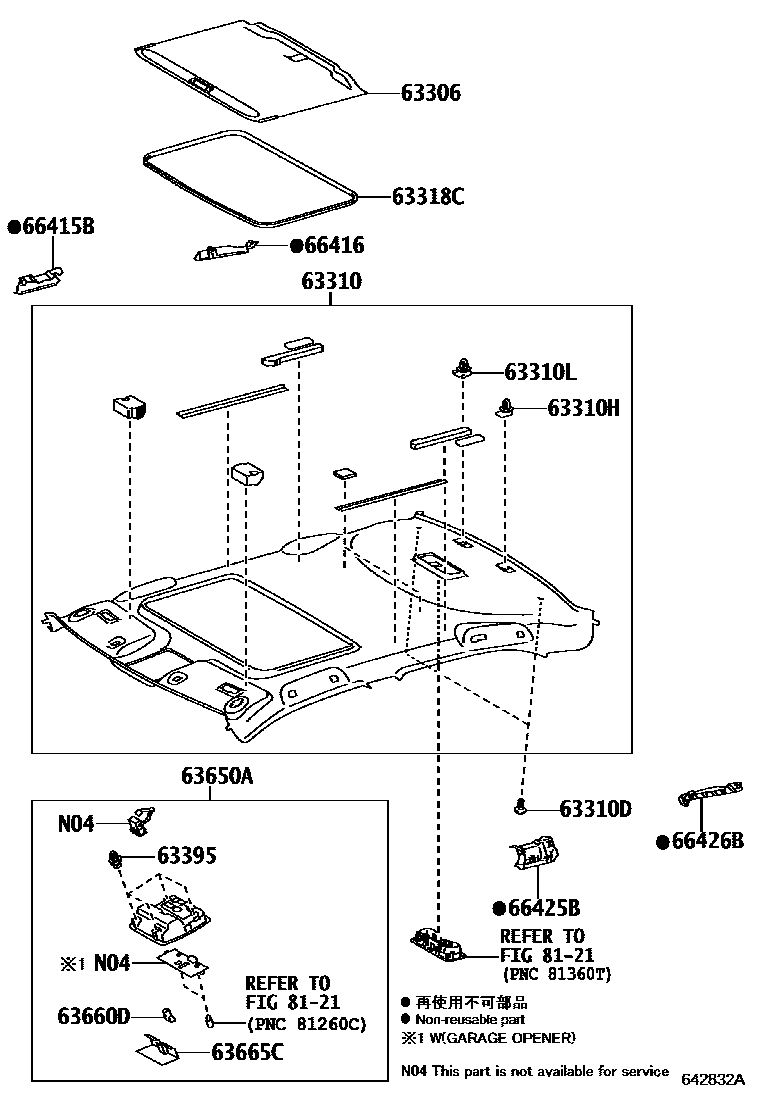

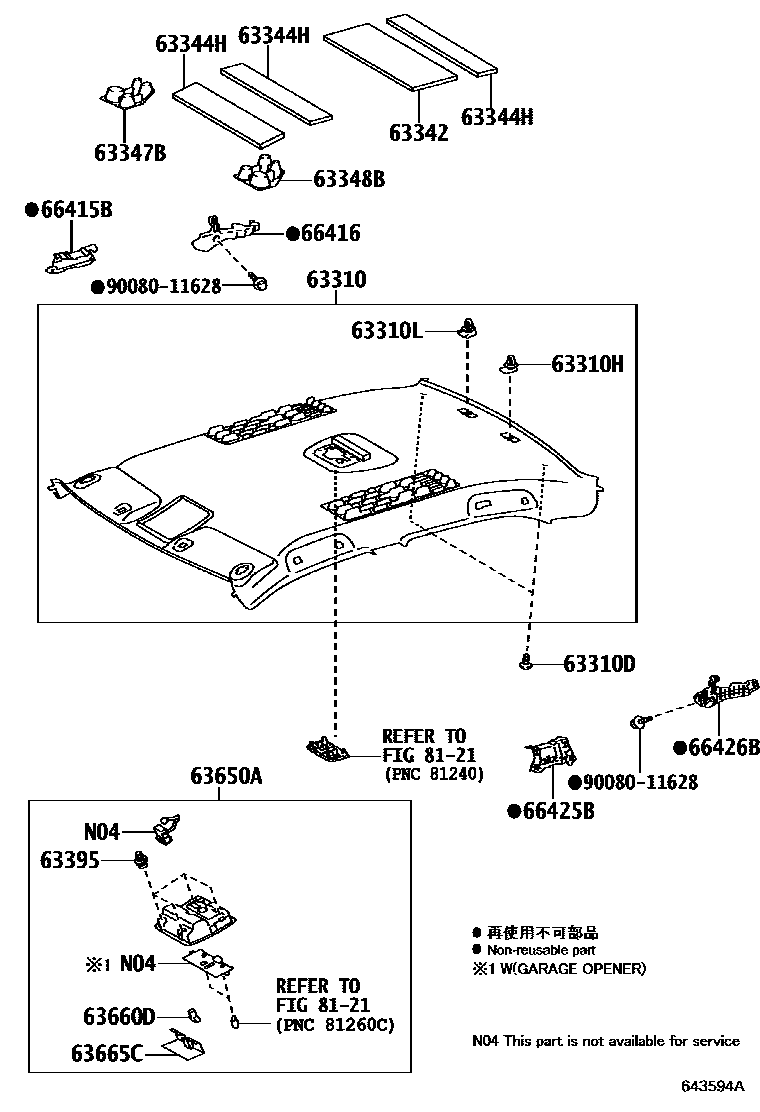

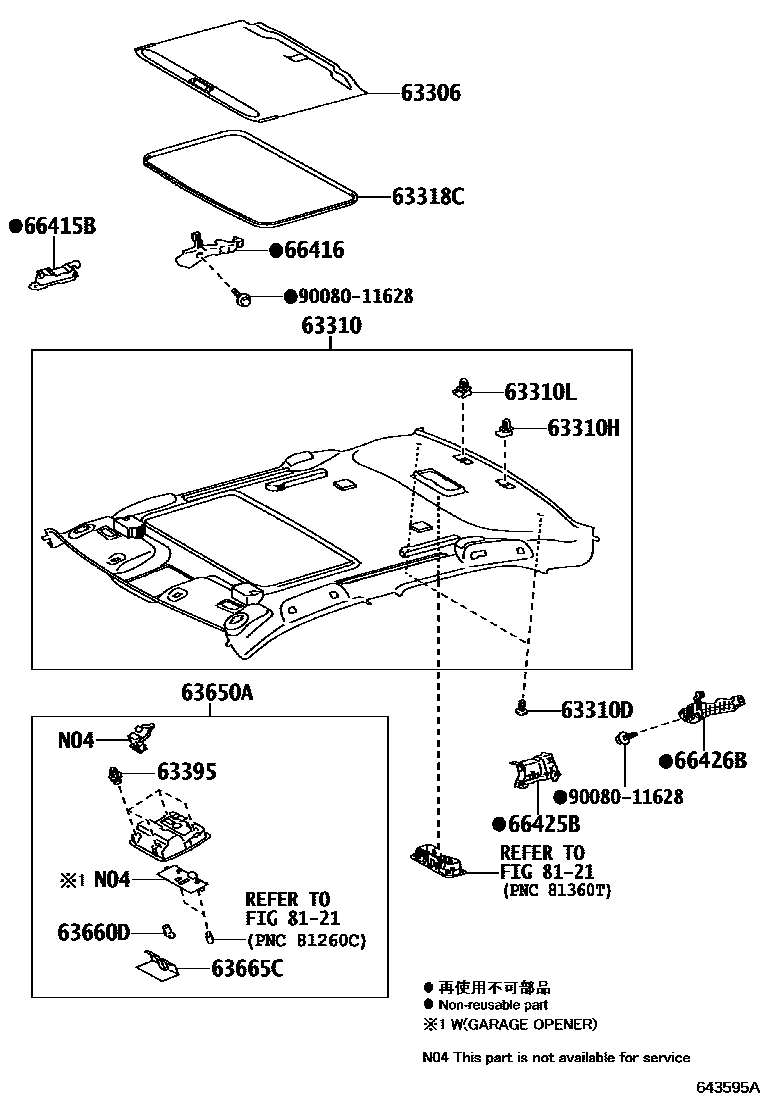

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63021D | SOUS-ENSEMBLE SILENCIEUX, TOIT COULISSANT | 63021-06030 |
| 63310H | Clip (for headliner) | 90467-A0004 |
| 63310L | Cover (for headliner) | 90467-10181 |
| 63342 | No. 2 roof muffler pad | 63342-06110 |
| 63344H | No. 4 roof silencer mat | 63344-06180 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-06050 |
| 63348B | Roof left side rail silencer pad | 63348-06050 |
| 63395 | Headlining trim panel clip | 90467-A0033 |
| 63660D | Roof console lock assembly | 63660-06020 |
| 63665C | roof console mat | 63665-06010 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-06050 · 66415-06110 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-06050 · 66416-06060 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-06050 · 66425-06070 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-06050 · 66426-06060 |
