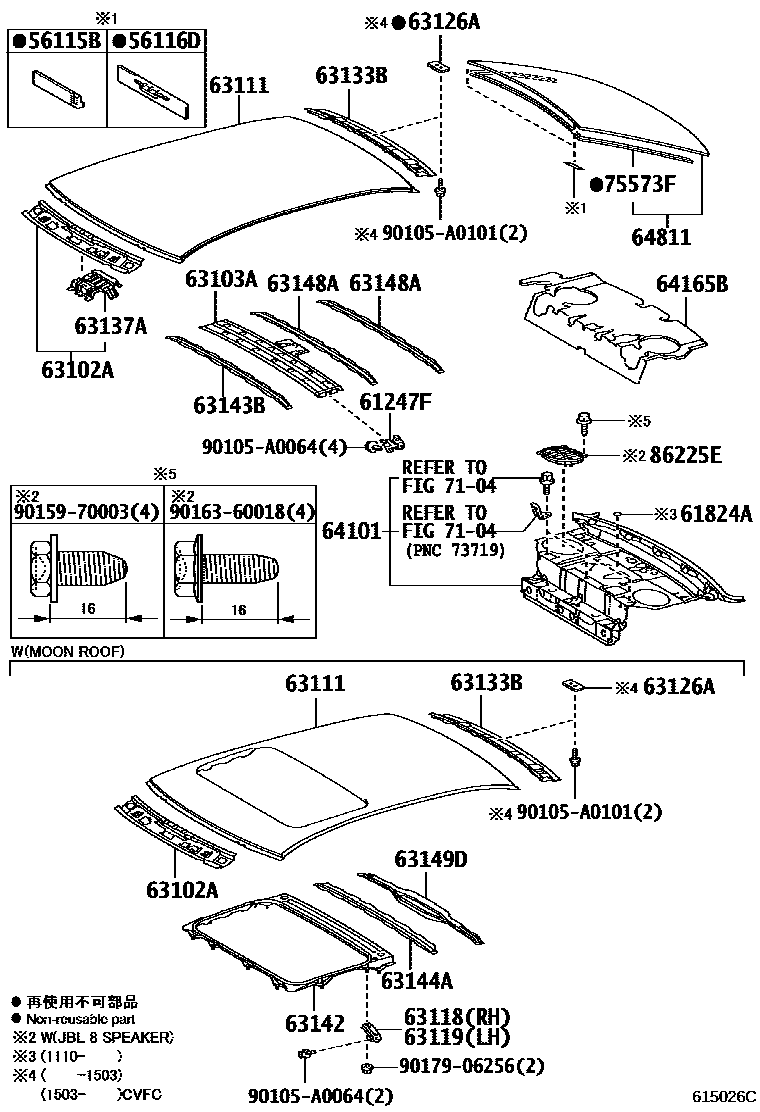

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-06070 |
| 61824A | Noise Control Panel No. 1 | 61824-12050 |
| 63102A | Windshield roof sub-assembly | 63102-06250 · 63102-06260 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-06080 |
| 63111 | roof panel | 63111-06440 · 63111-06450 · 63111-06530 · 63111-06540 |
| 63118 | Right roof panel bracket | 63118-06070 |
| 63119 | Left roof panel bracket | 63118-06070 |
| 63126A | Windshield roof shock absorber | 63126-33020 |
| 63133B | back window frame | 63133-06100 |
| 63137A | No. 1 ceiling light bracket | 63137-06080 |
| 63142 | No. 2 roof panel reinforcement | 63142-06090 · 63142-06091 |
| 63143B | No. 3 roof panel reinforcement | 63143-06080 |
| 63144A | No. 4 roof panel reinforcement | 63144-06170 |
| 63148A | No. 7 roof panel reinforcement | 63148-06080 |
| 63149D | No. 8 roof panel reinforcement | 63149-06030 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06060 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06060 · 63203-06090 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06020 |
| 63209 | Roof deflector sub-assembly | 63209-06050 |
| 63214H | Rear sliding sunroof panel | 63214-06030 |
| 63217G | Right sliding sunroof trim | 63217-06040 · 63217-06180 |
| 63218G | Sliding sunroof trim, left | 63217-06040 · 63217-06180 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-30010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06060 |
| 63248E | Left rear sliding sunroof drain hose | 63248-06040 |
| 63249E | Sliding skylight drain hose | 63249-06090 |
| 63251H | Sliding skylight seal | 63251-0E010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-06060 |
| 63295B | roof deflector lining | 63295-06010 |
| 63669B | Sliding skylight drain seal | 63669-06030 |
| 64101 | Upper back panel sub-assembly | 64101-06280 · 64101-06281 · 64101-06360 |
| 64165B | No. 1 upper back panel hole cover | 64165-06230 |
| 64811 | back window glass | 64801-06120 |
| 75573F | Protective strip for rear window | 75573-06080 |
| 86225E | Right speaker cover | 86225-06010 |
