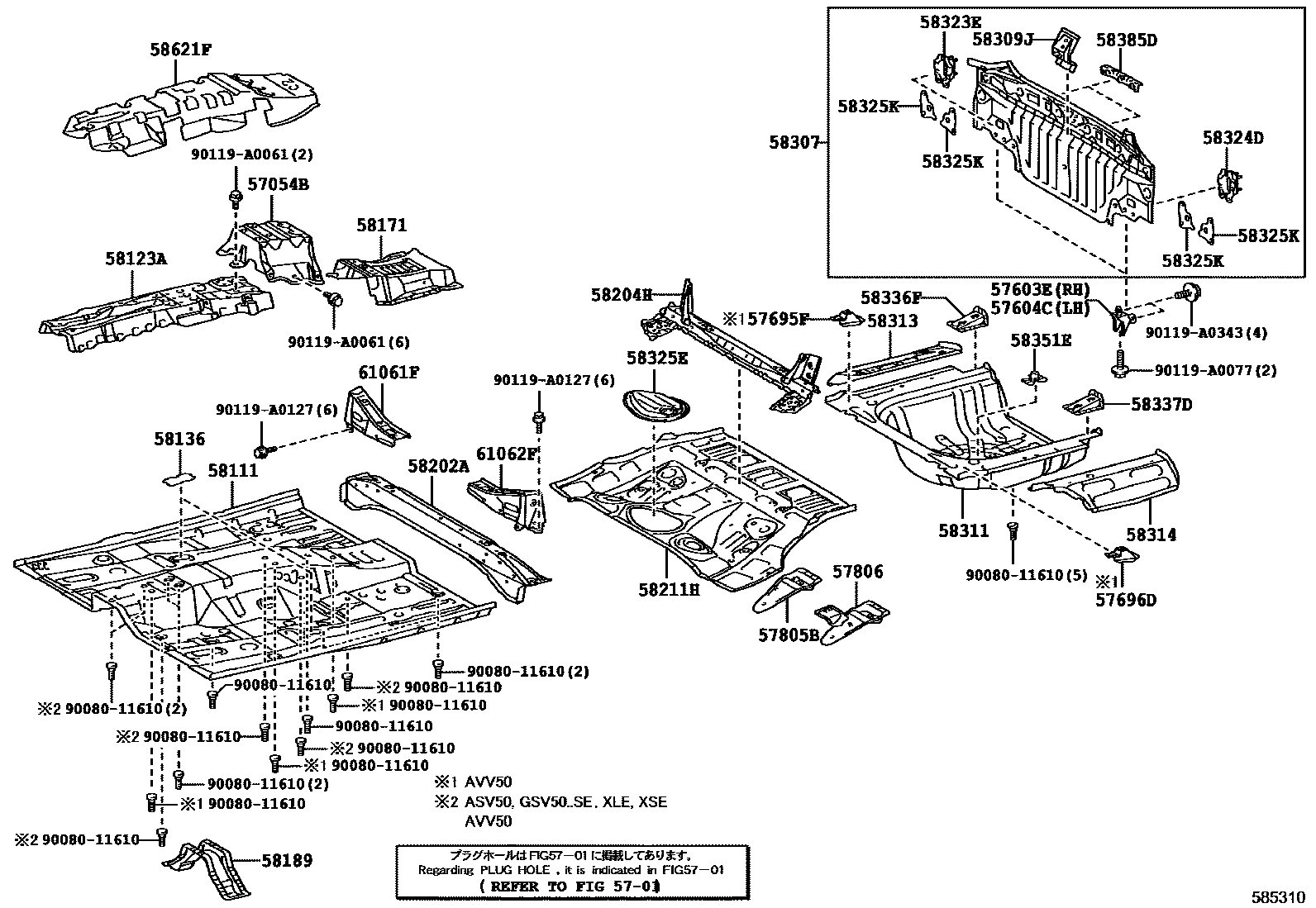

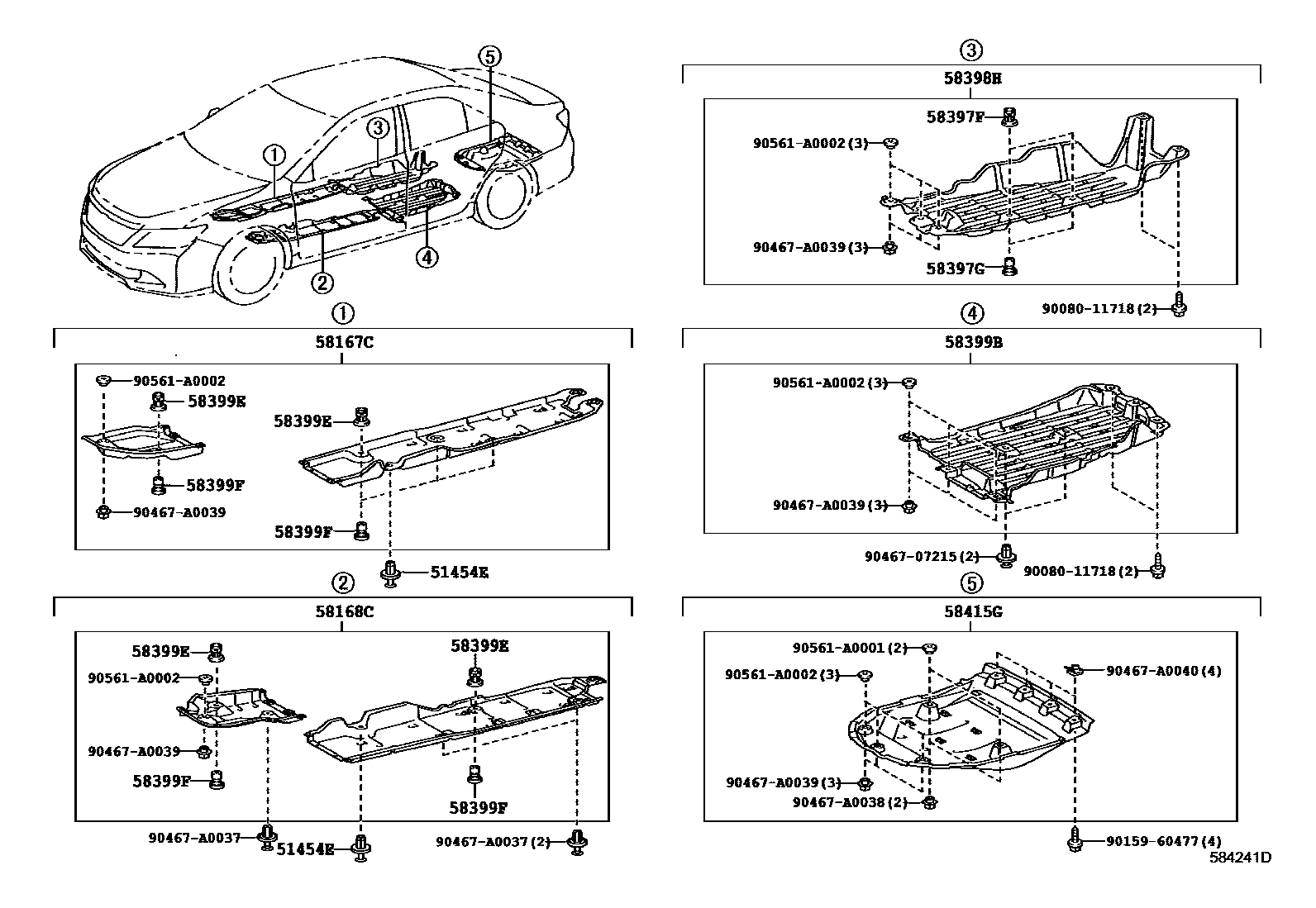

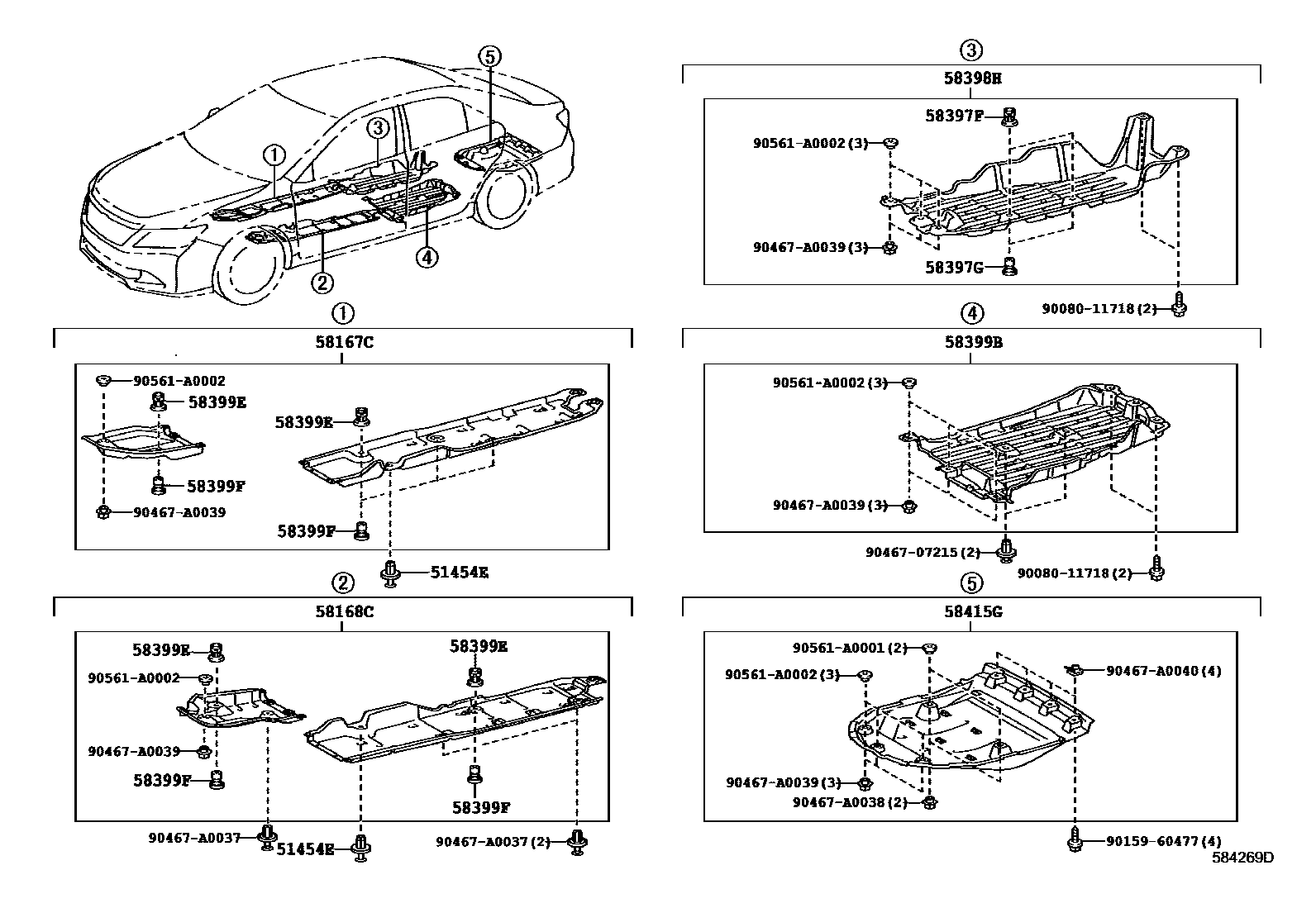

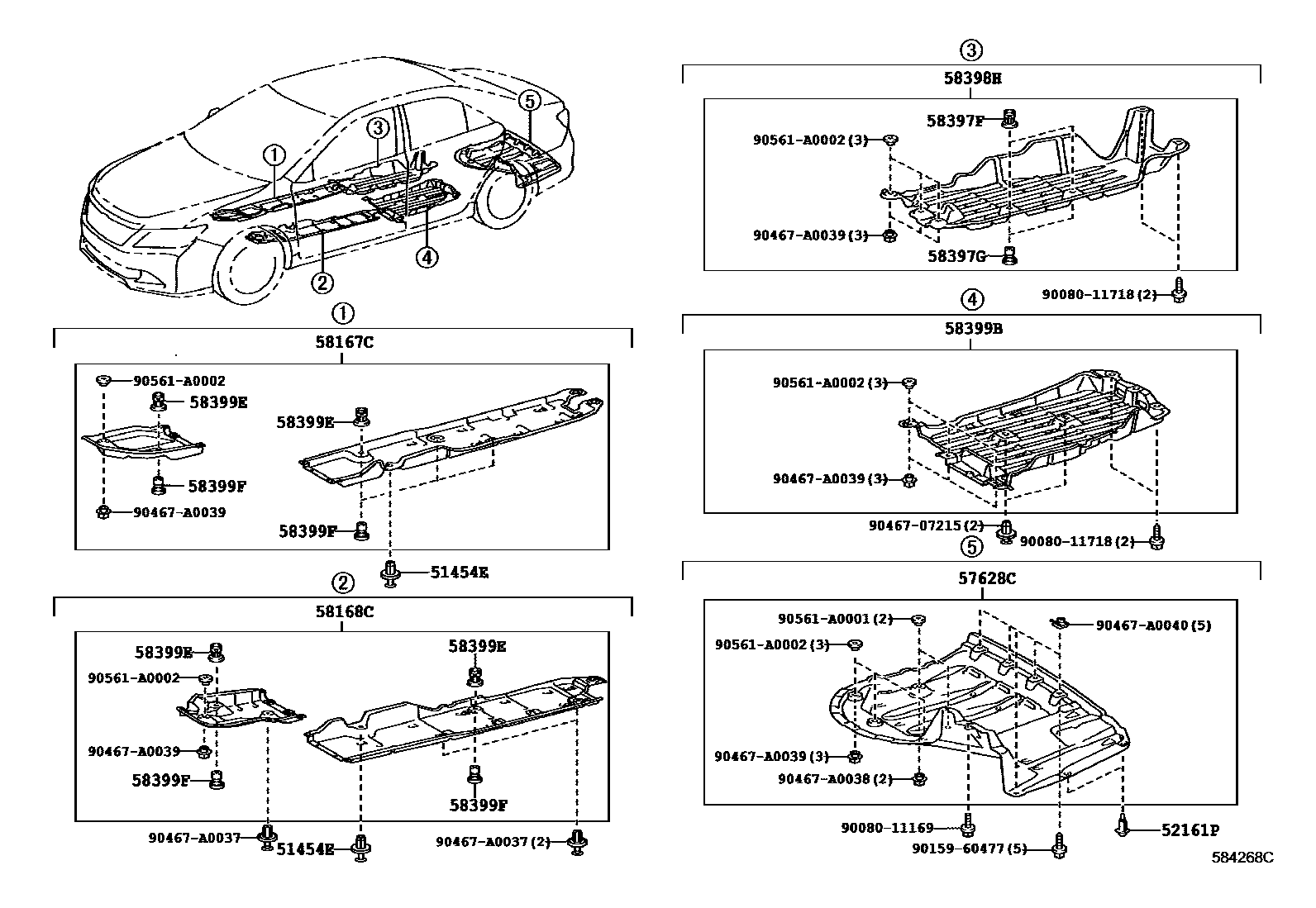

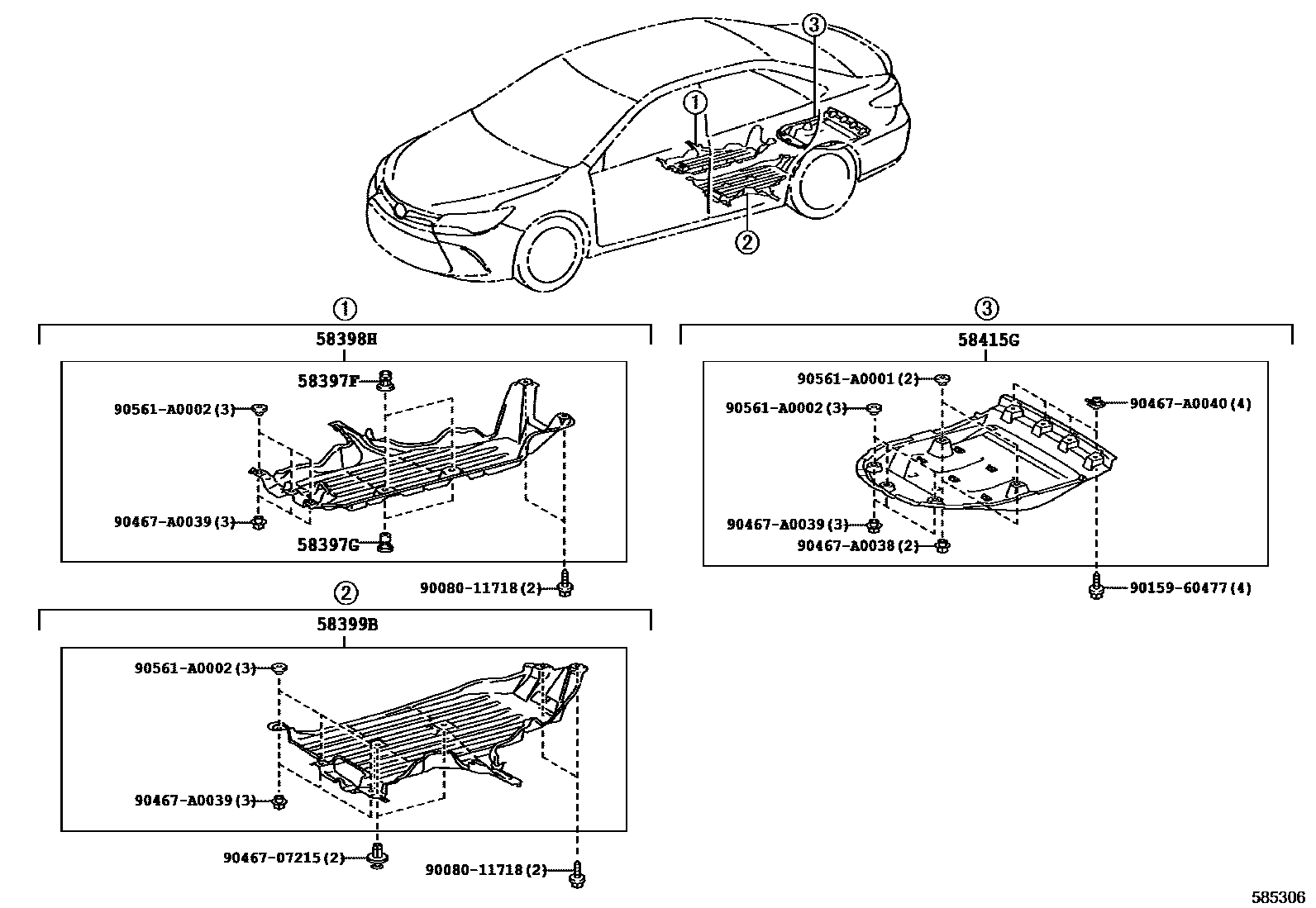

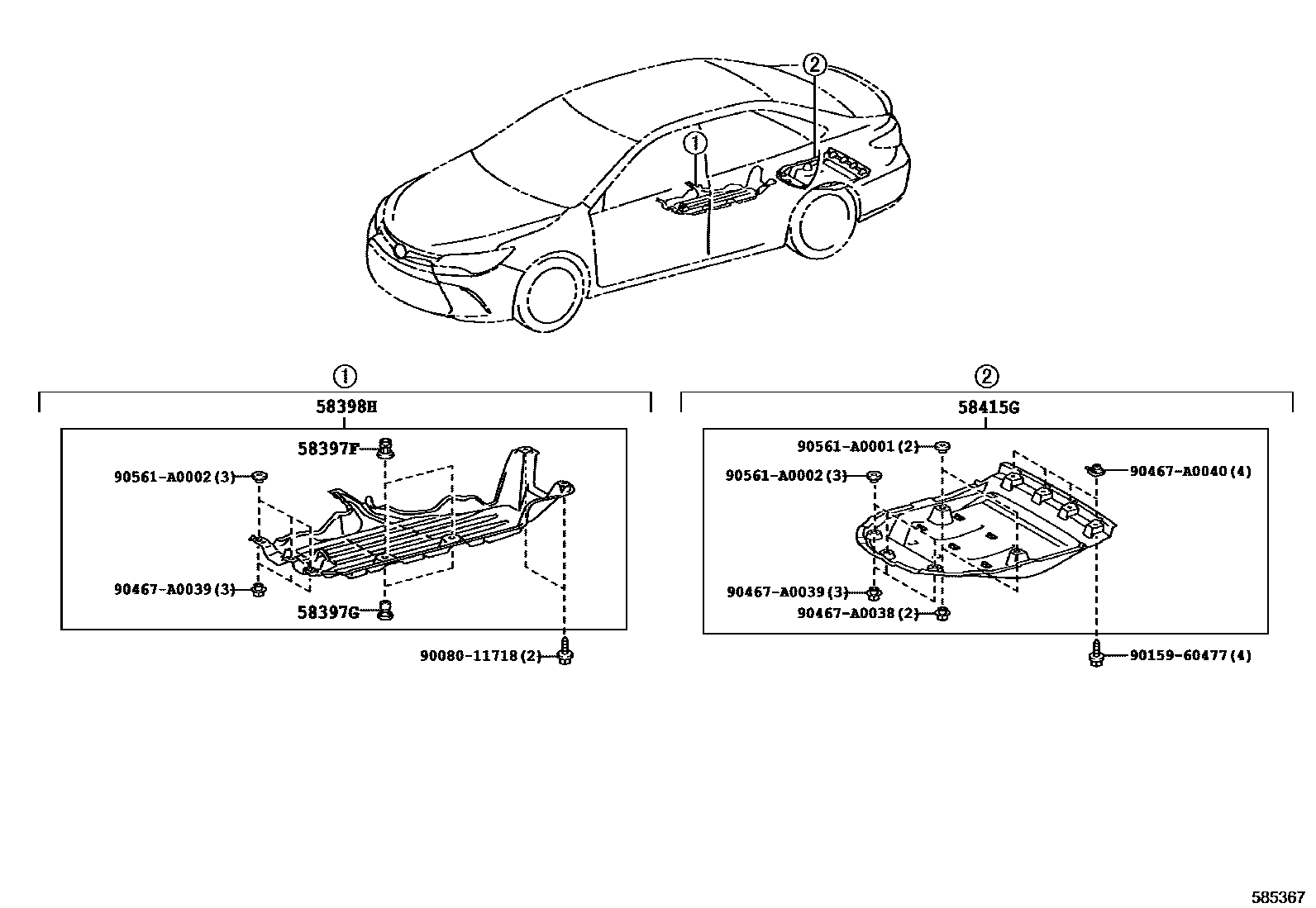

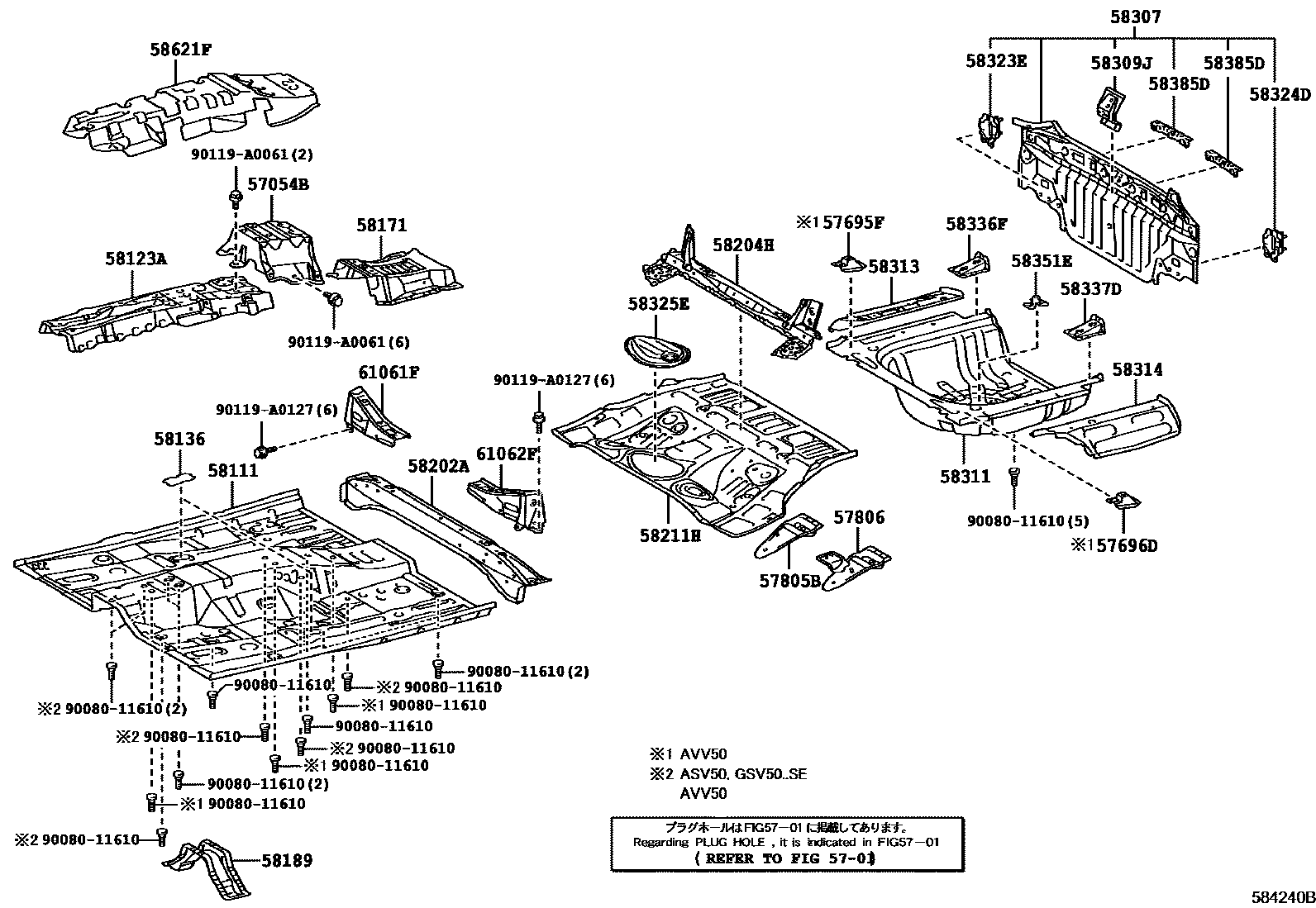

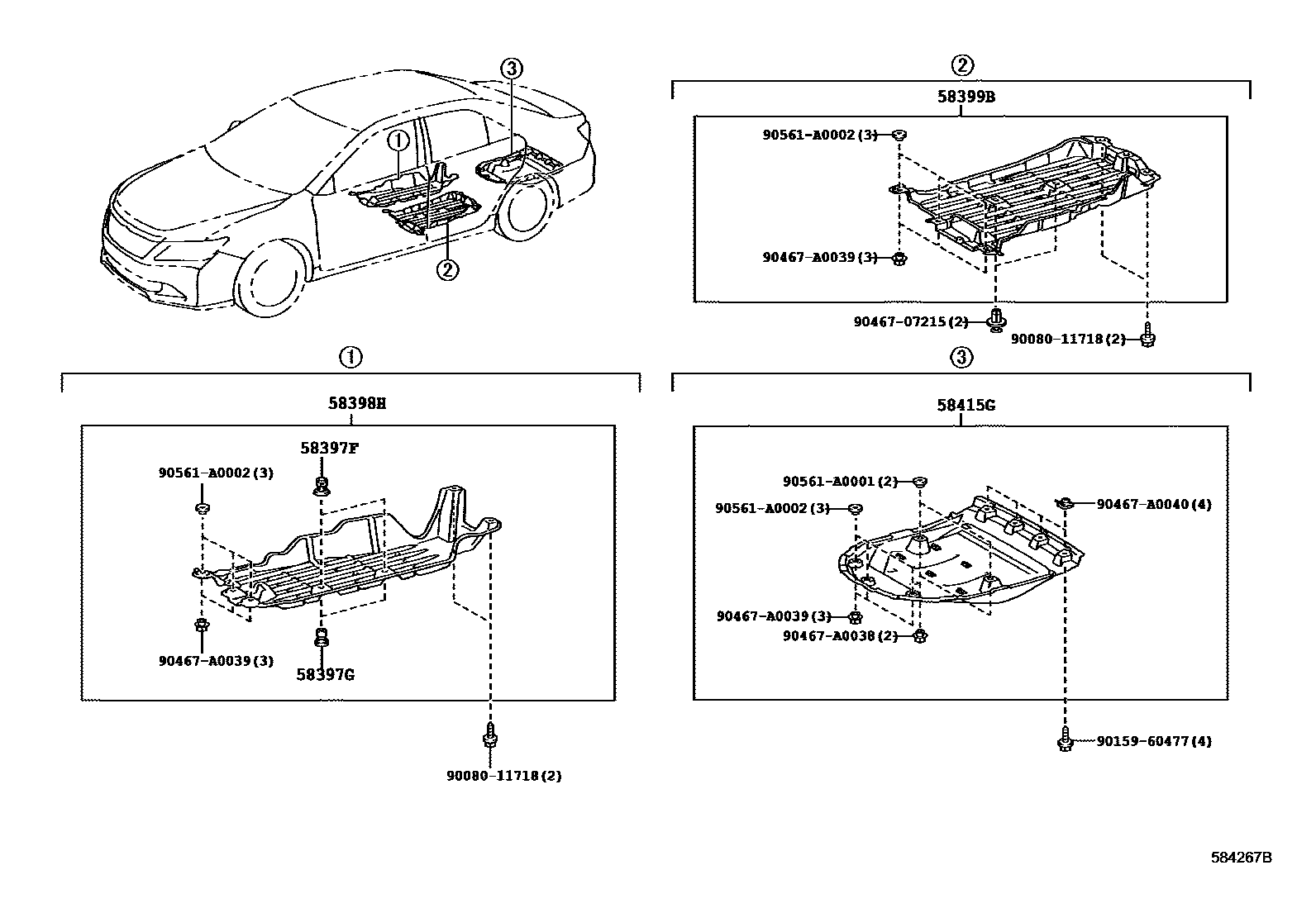

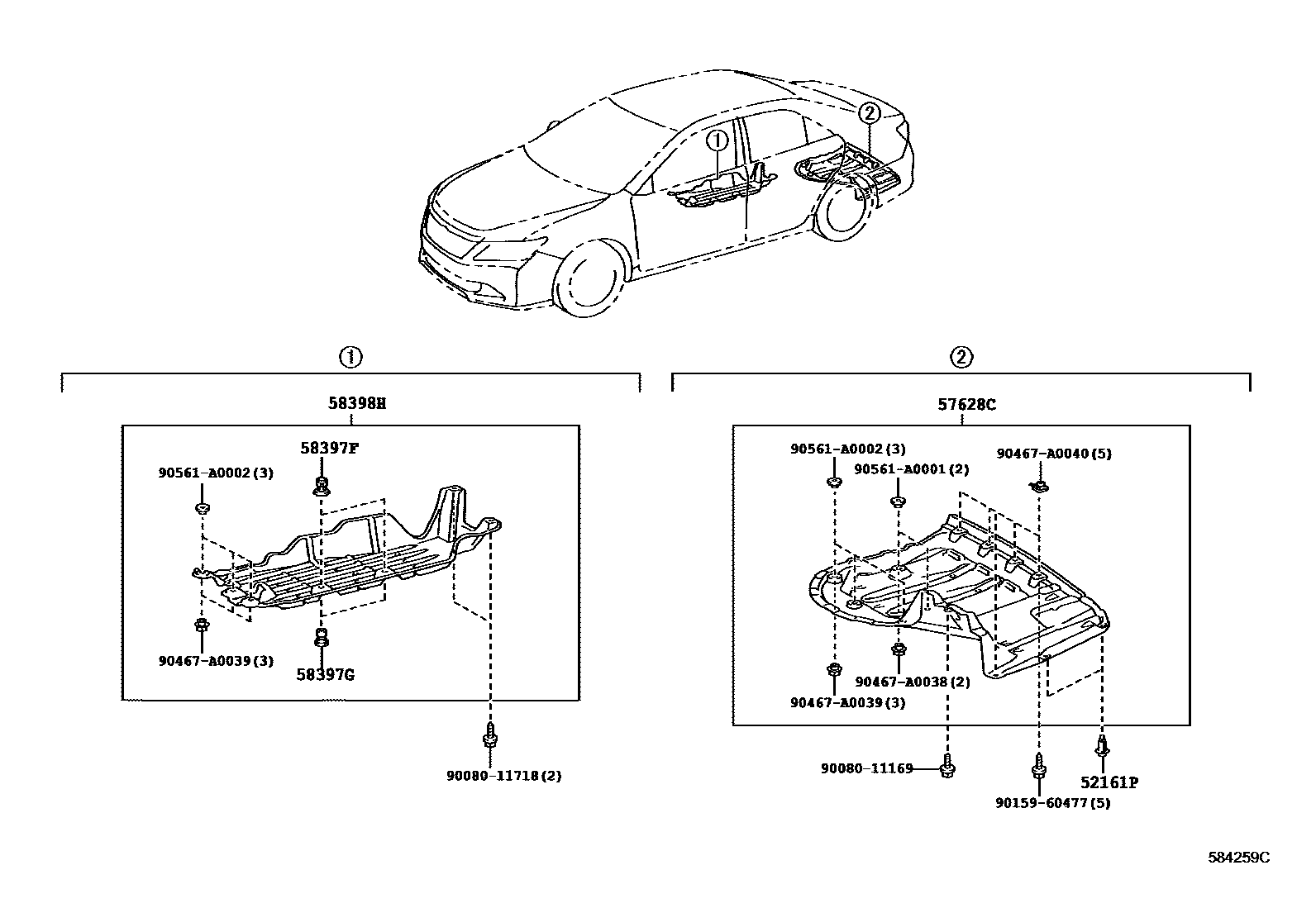

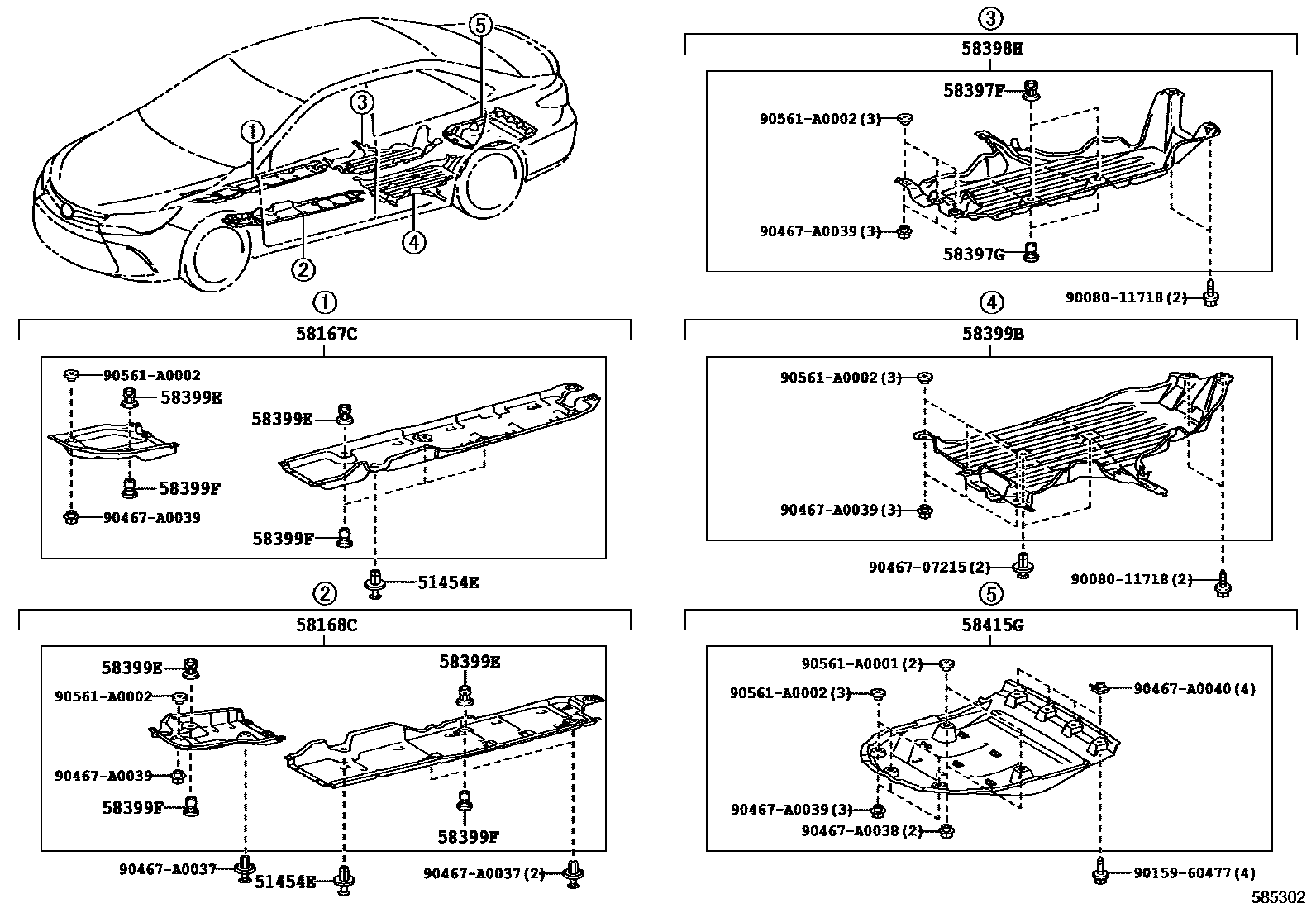

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 10 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51454E | Front floor cover silencer | 51454-08010 |
| 52161P | Rear bumper insert | 52161-02020 |
| 57054B | Floor No. 4 beam reinforcement sub-assembly | 57054-06040 |
| 57603E | Right rear longitudinal beam extension sub-assembly | 57603-07010 |
| 57604C | Left rear longitudinal beam extension sub-assembly | 57604-07010 · 57604-07020 |
| 57628C | Rear floor left longitudinal member cover | 57628-06070 |
| 57695F | Rear floor cross member rear right extension | 57695-06020 |
| 57696D | Rear floor cross member rear left extension | 57696-06010 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-06020 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57806-06020 |
| 58111 | front floor pan | 58111-06060 · 58111-06061 |
| 58123A | shift lever bracket | 58013-06050 |
| 58136 | Front floor hole cover | 58136-06050 |
| 58167C | Front floor center right cover | 58167-06010 · 58167-06020 |
| 58168C | Front floor center left cover | 58168-06010 |
| 58171 | Parking brake base reinforcement | 58171-06040 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-07030 · 58189-33050 |
| 58202A | Center floor front floor sub-assembly | 58202-06050 |
| 58204H | Center floor rear floor sub-assembly | 58204-07010 |
| 58211H | central floor base | 58211-06201 · 58211-06211 |
| 58307 | Body lower back panel sub-assembly | 58307-06150 · 58307-06200 |
| 58309J | Trunk door latch fastener sub-assembly | 58309-06090 |
| 58311 | rear floor pan | 58311-06151 · 58311-06171 |
| 58313 | Rear floor right panel | 58313-06120 · 58313-06130 |
| 58314 | rear floor left panel | 58314-06120 |
| 58323E | Rear bumper arm right bracket reinforcement | 58303-06010 · 58303-06020 |
| 58324D | Rear bumper arm left bracket reinforcement | 58304-06020 · 58304-06030 |
| 58325E | Rear floor access hole cover | 58325-06060 · 58325-06061 |
| 58325K | SUPPORT, PANNEAU DE PLANCHER ARRIERE | 58325-06070 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06070 |
| 58337D | Rear floor bottom left reinforcement | 58336-06070 |
| 58351E | Spare tire clip bracket | 58351-06030 |
| 58385D | Rear bumper cover bracket | 58385-06080 · 58385-06130 |
| 58398H | No. 1 floor under cover | 58398-06030 · 58398-06120 |
| 58399B | Floor No. 2 lower cover | 58399-06030 · 58399-06110 |
| 58415G | Rear floor panel No. 1 | 58415-06040 |
| 58621F | Center console silencer No. 1 | 58621-06160 · 58621-06161 · 58621-07020 |
| 61061F | No. 1 side wheel cover corner plate sub-assembly | 61061-06031 · 61061-06032 |
| 61062F | No. 2 side wheel housing corner plate sub-assembly | 61062-06031 · 61062-06032 |
