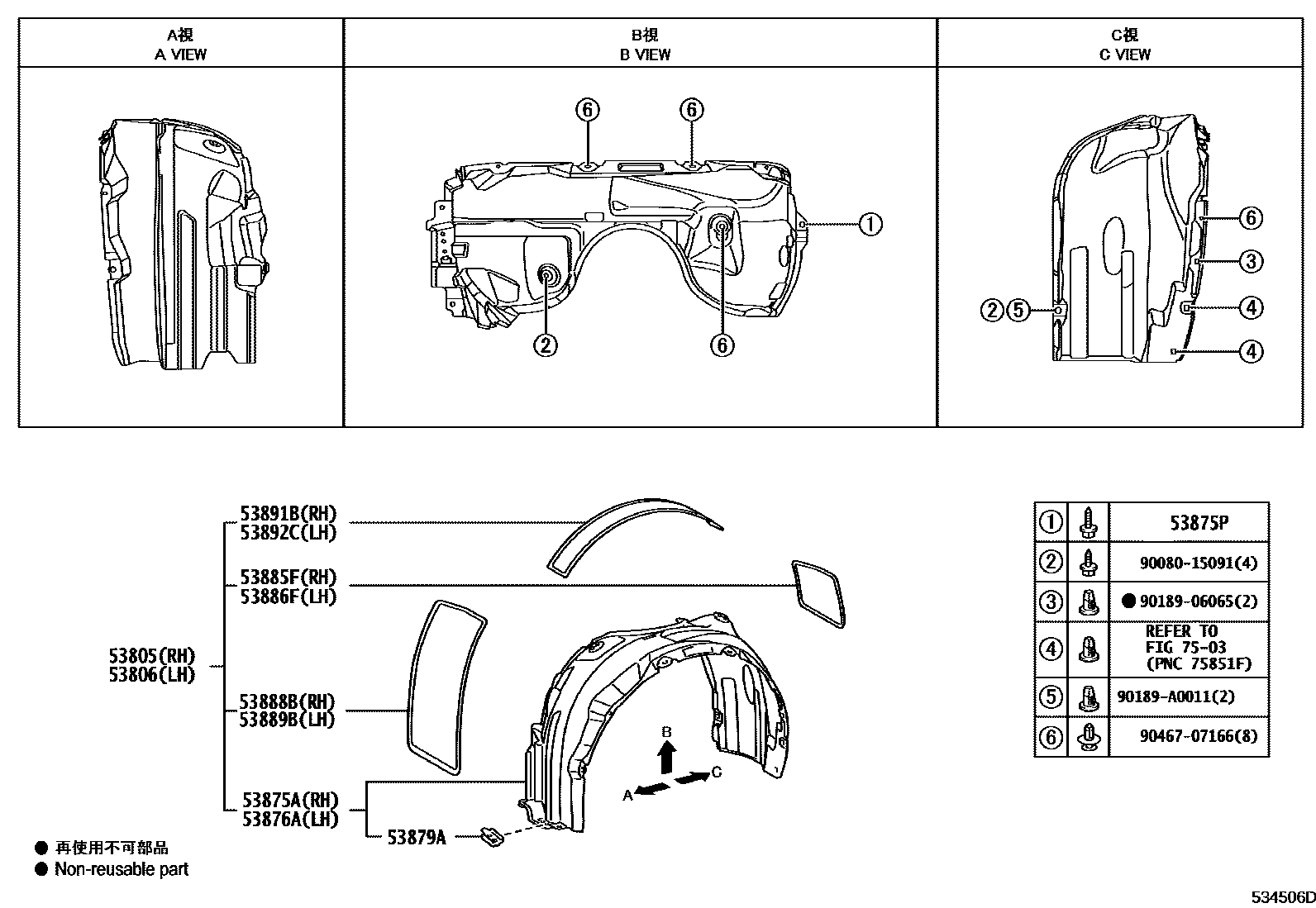

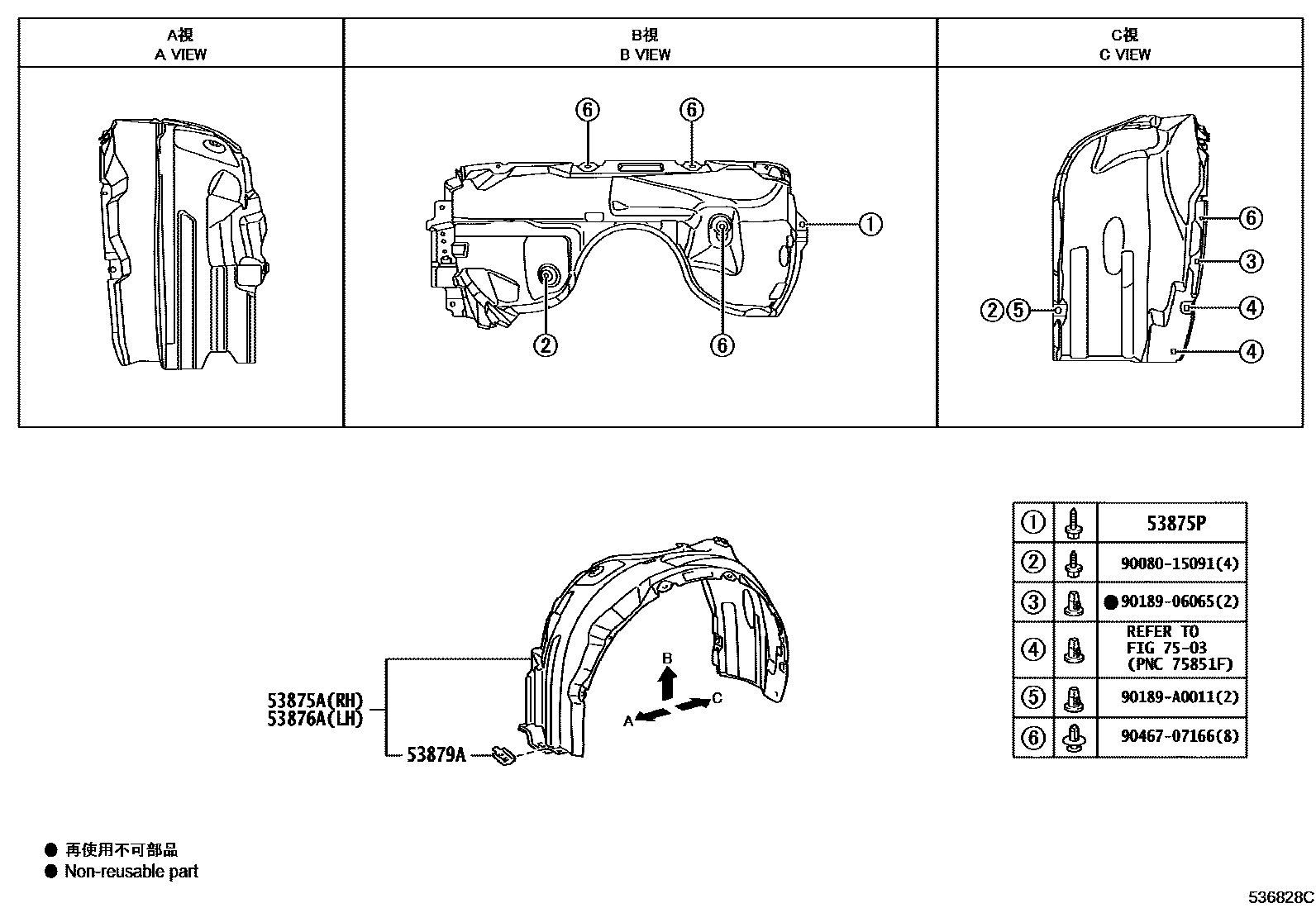

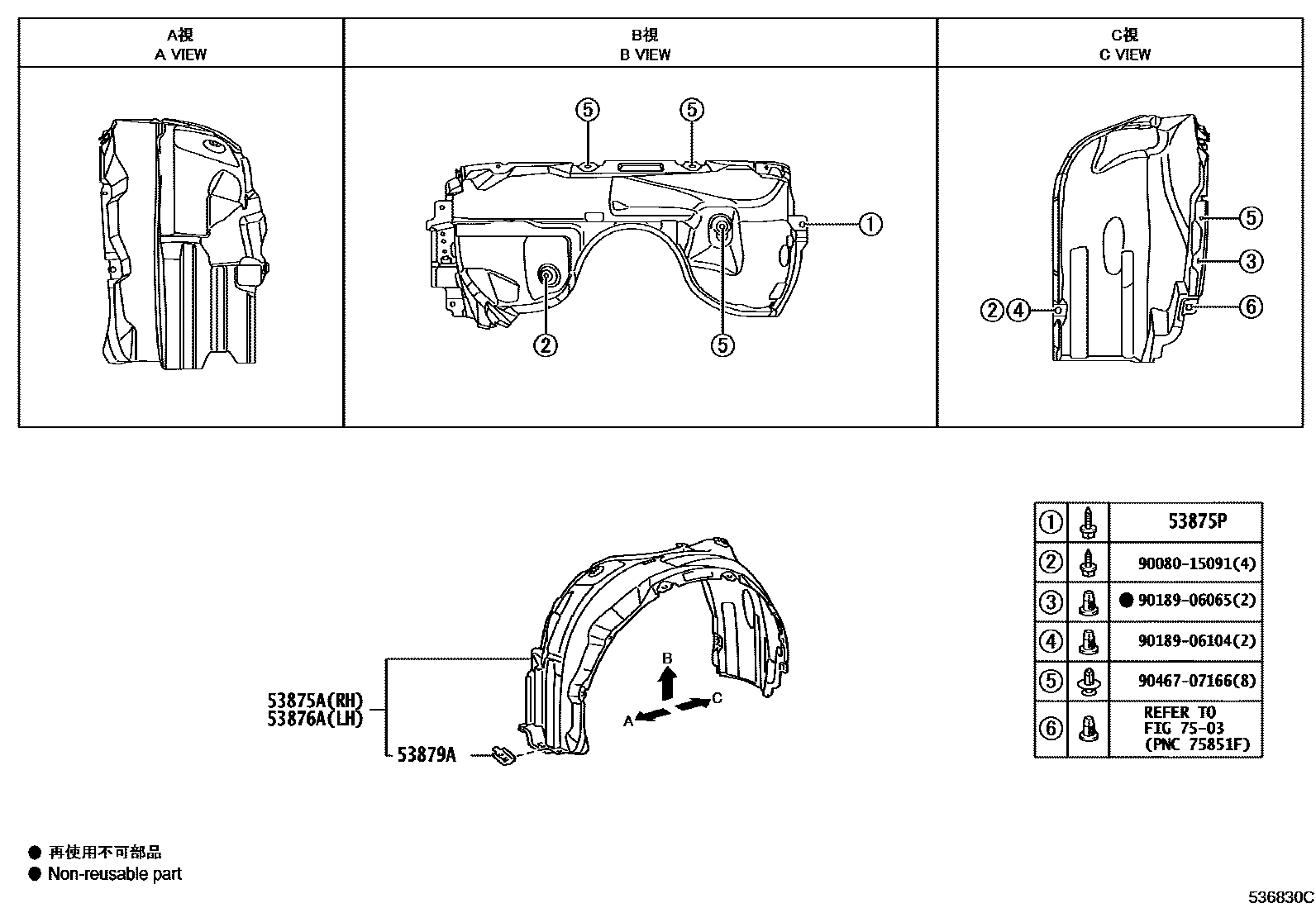

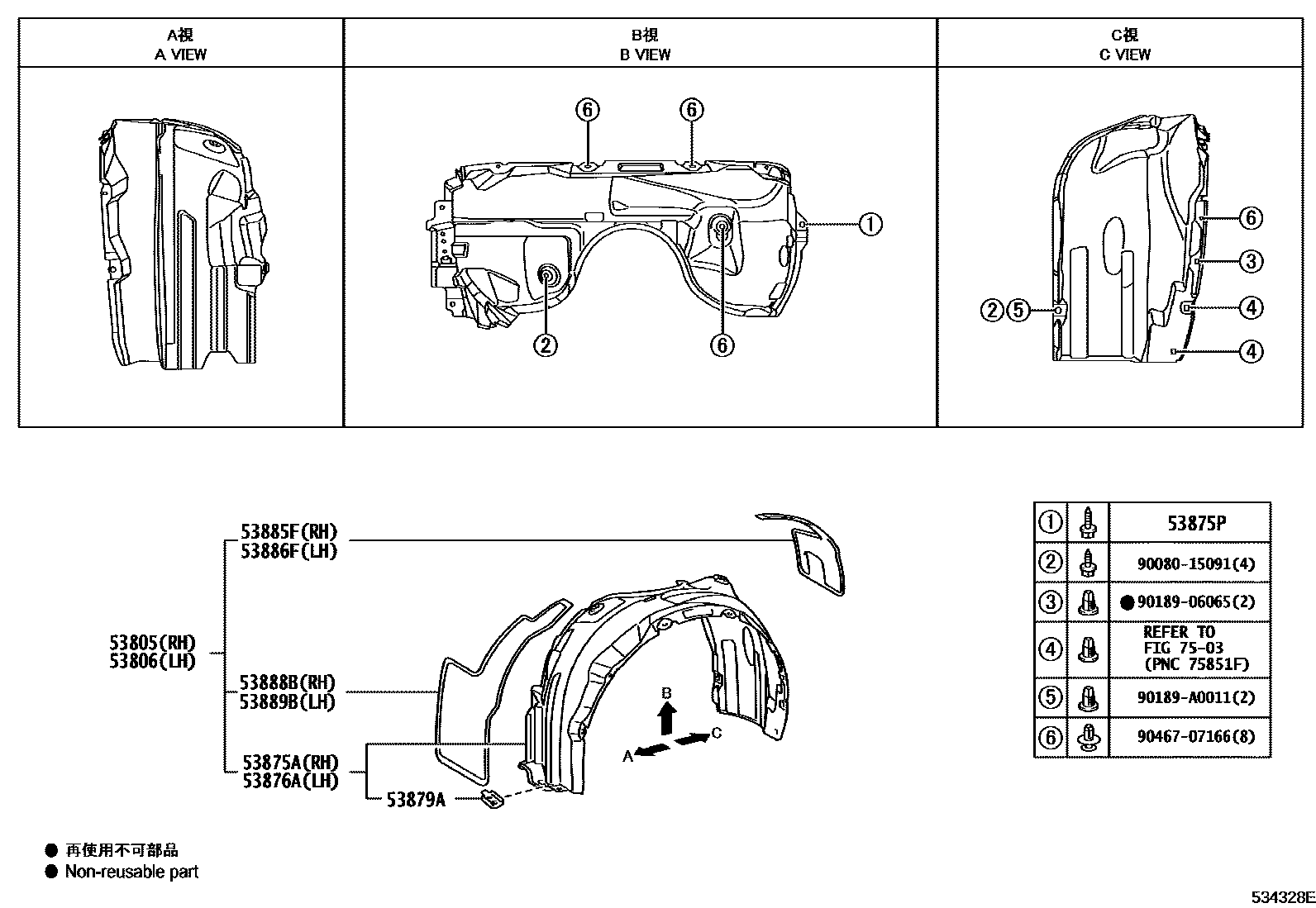

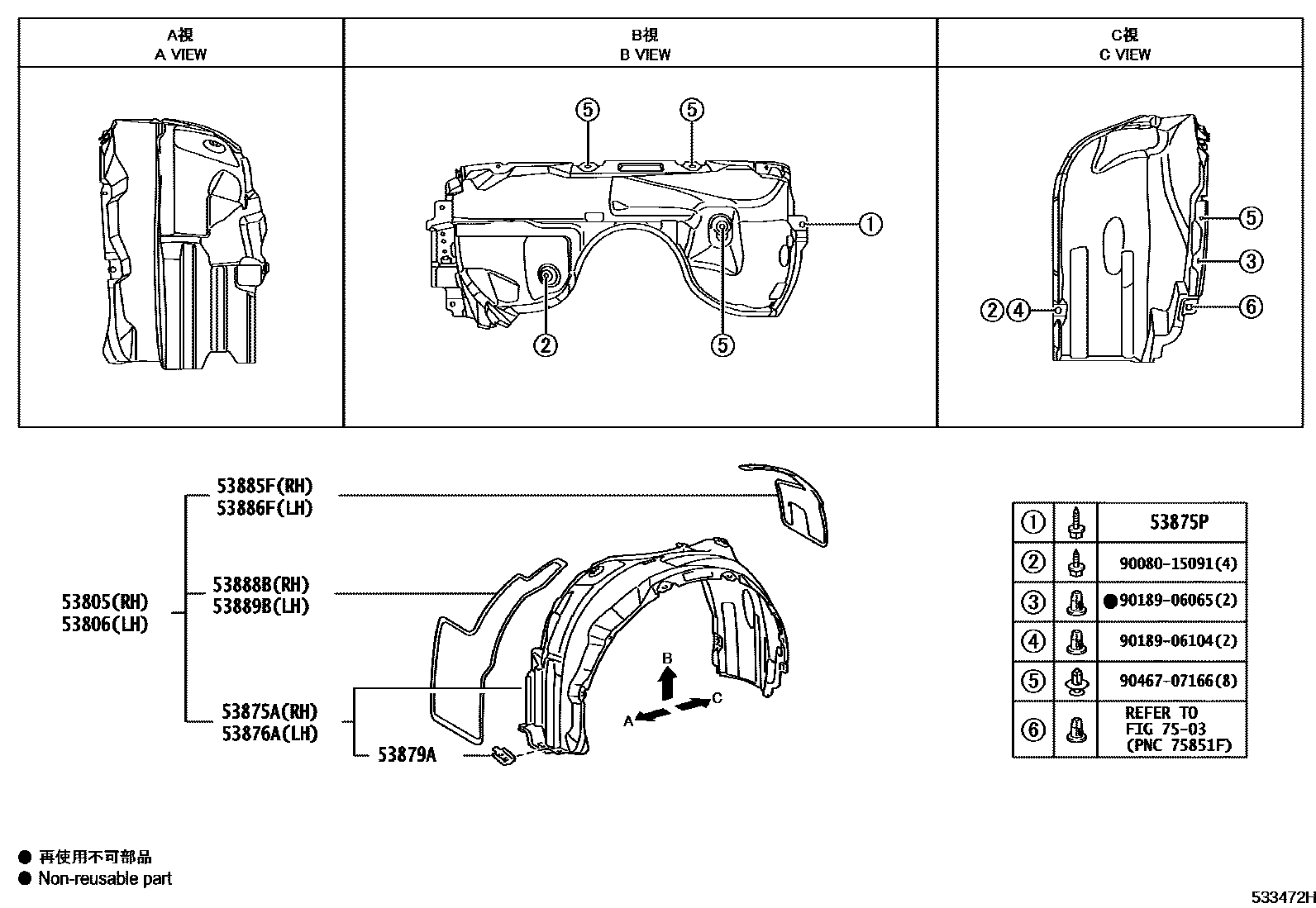

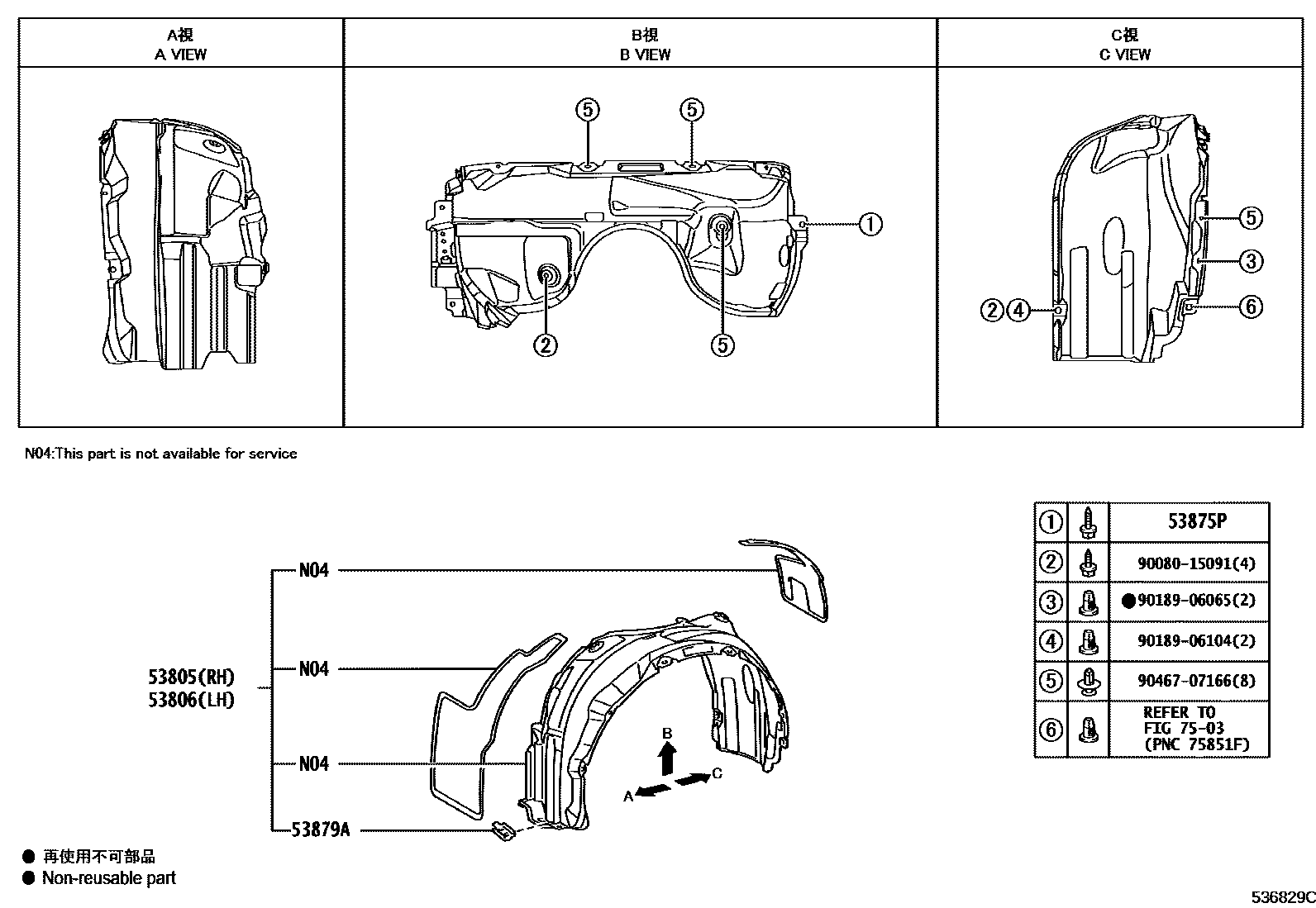

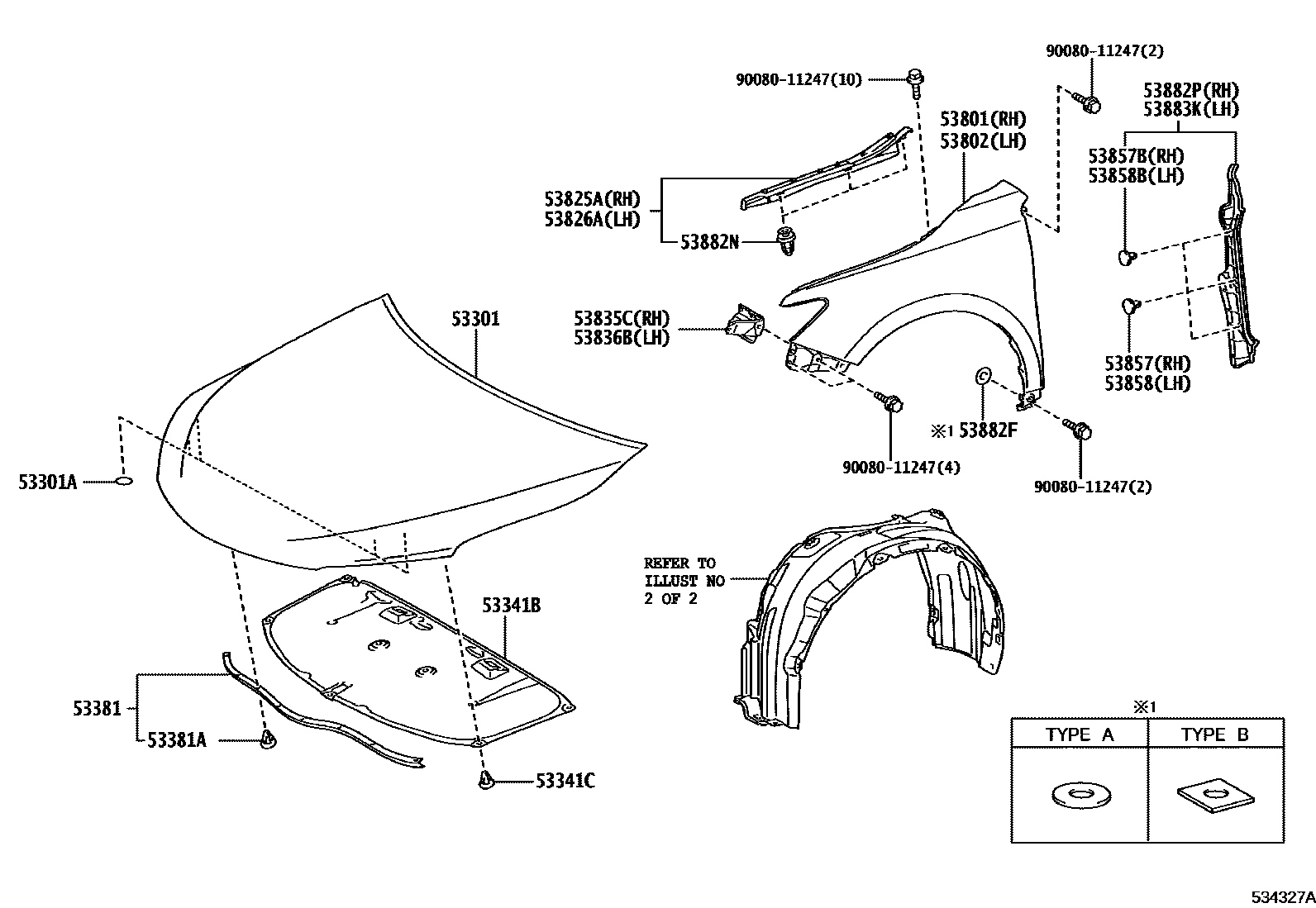

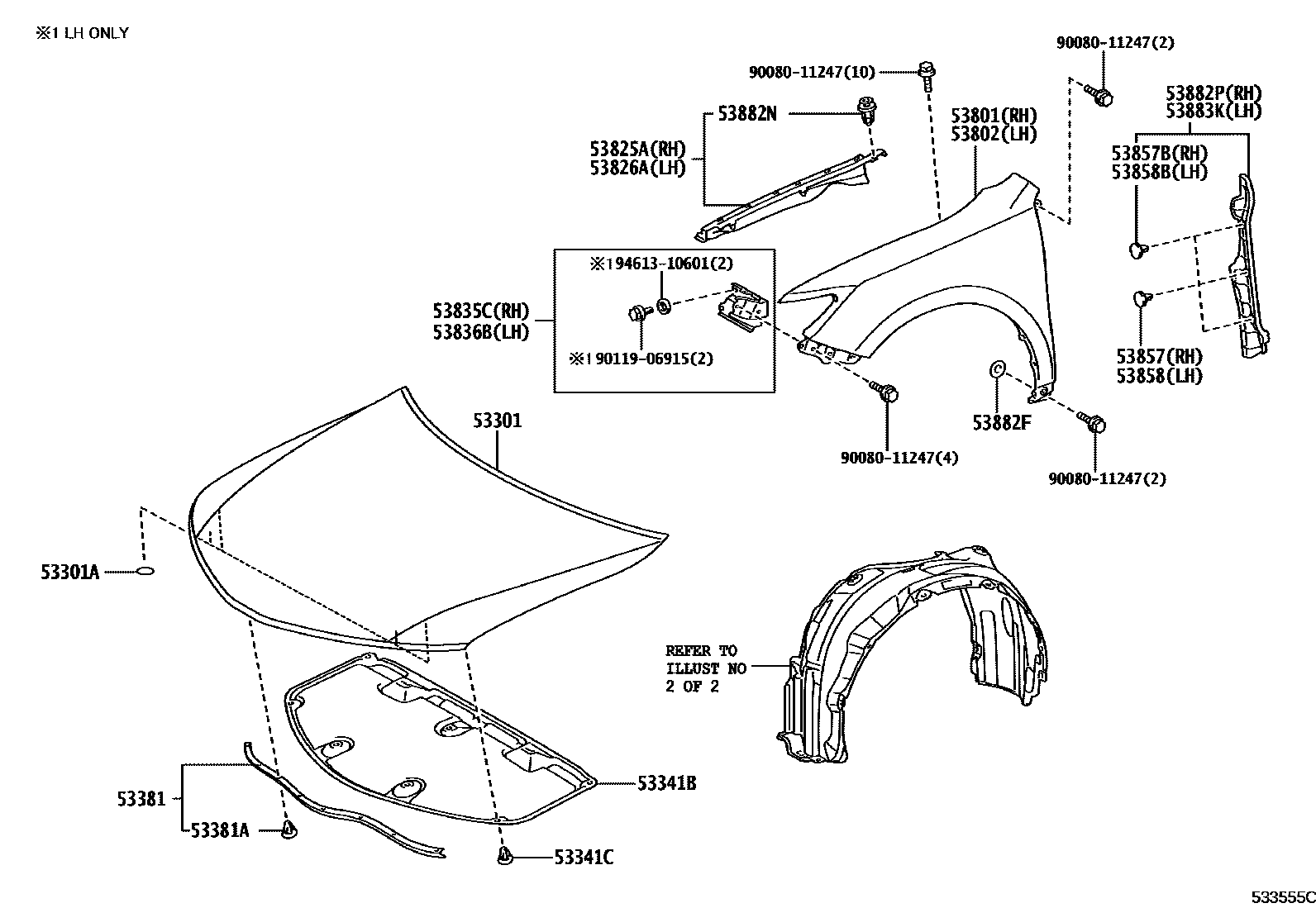

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 8 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06150 · 53301-06160 |
| 53301A | Hole plug (for engine cover) | 90950-06124 |
| 53341B | engine cover gasket | 53341-06250 · 53341-06260 · 53341-06270 · 53341-06400 · 53341-06410 · 53341-06420 |
| 53341C | Clip (for engine cover gasket) | 90467-A0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-06100 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53801 | Right front fender sub-assembly | 53811-06140 · 53811-06200 |
| 53802 | Left front fender sub-assembly | 53812-06150 · 53812-06210 |
| 53805 | Right front fender splash guard sub-assembly | 53805-06040 · 53805-06100 · 53805-06101 · 53805-06110 |
| 53806 | Left front fender splash guard sub-assembly | 53806-06050 · 53806-06051 · 53806-06110 · 53806-06111 · 53806-06121 |
| 53825A | Right front fender protection piece | 53825-06070 · 53825-06130 |
| 53826A | Protection piece on left front fender | 53826-06070 · 53826-06130 |
| 53835C | Right front side panel bracket | 53835-06070 · 53835-06080 |
| 53836B | Left front side panel bracket | 53804-33030 · 53836-06080 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-06120 · 53875-06170 · 53875-06210 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-06120 · 53876-06121 · 53876-06170 · 53876-06171 · 53876-06200 |
| 53879A | Front fender lining fixing parts | 53879-06030 |
| 53882F | front fender seal | 53882-30030 · 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-A0006 |
| 53882P | Right front fender seal | 53882-06100 · 53882-06150 |
| 53883K | Left front fender seal | 53883-06090 · 53883-06140 |
| 53885F | Right front fender rear splash guard | 53885-06030 · 53885-06110 |
| 53886F | Left front fender rear splash guard | 53885-06110 · 53886-06030 |
| 53888B | No. 2 right front fender splash guard seal | 53888-06030 · 53888-06110 |
| 53889B | No. 2 left front fender splash guard seal | 53888-06110 · 53889-06030 |
| 53891B | JOINT D'ETANCHEITE AVANT DROIT GARDE-BOUE AILE AVANT | 53891-06050 |
| 53892C | Left front fender splash guard front seal | 53891-06050 |
