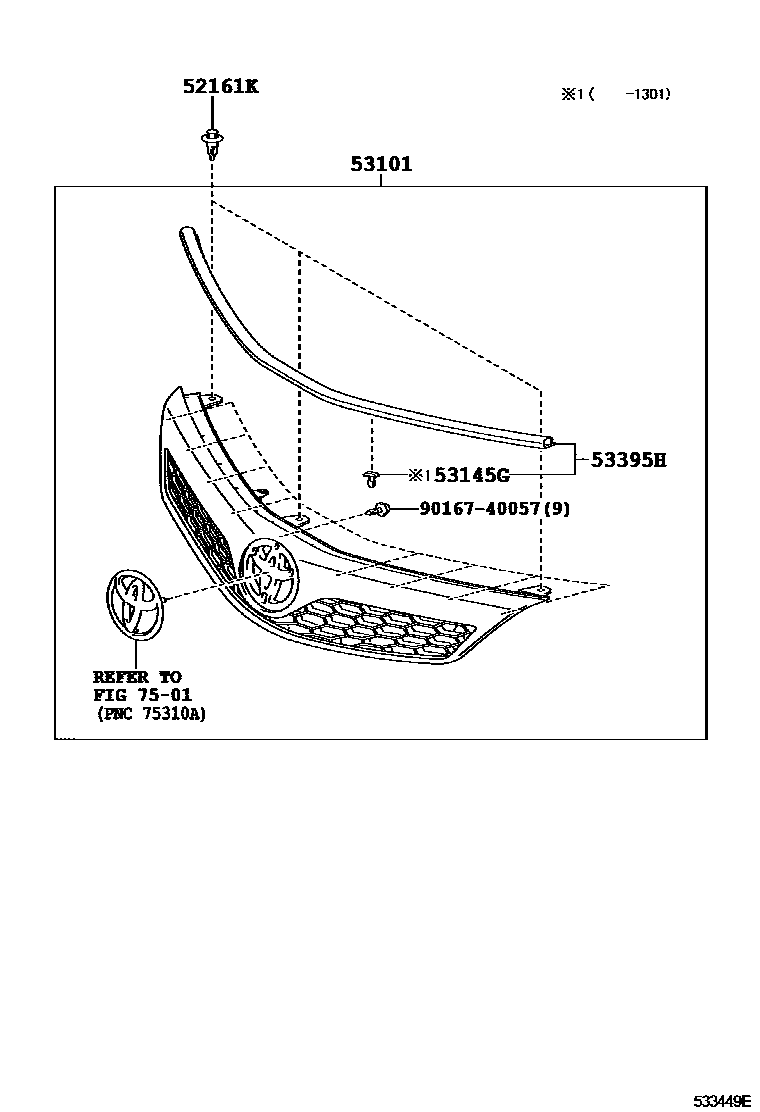

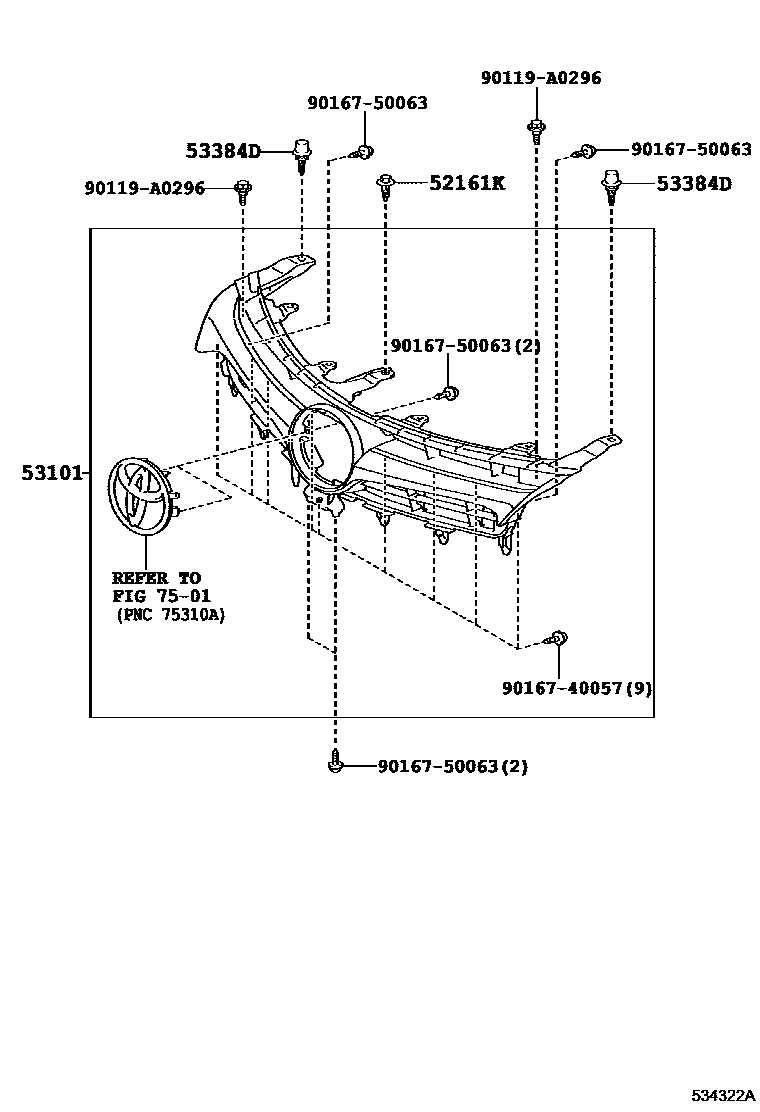

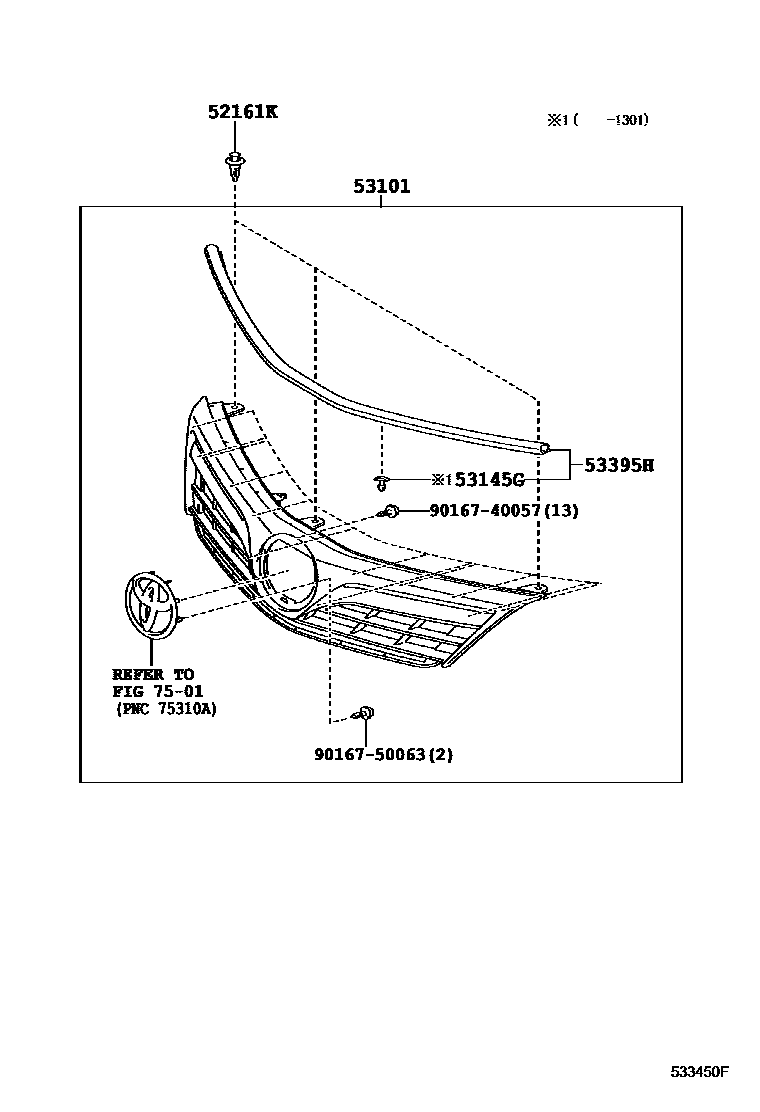

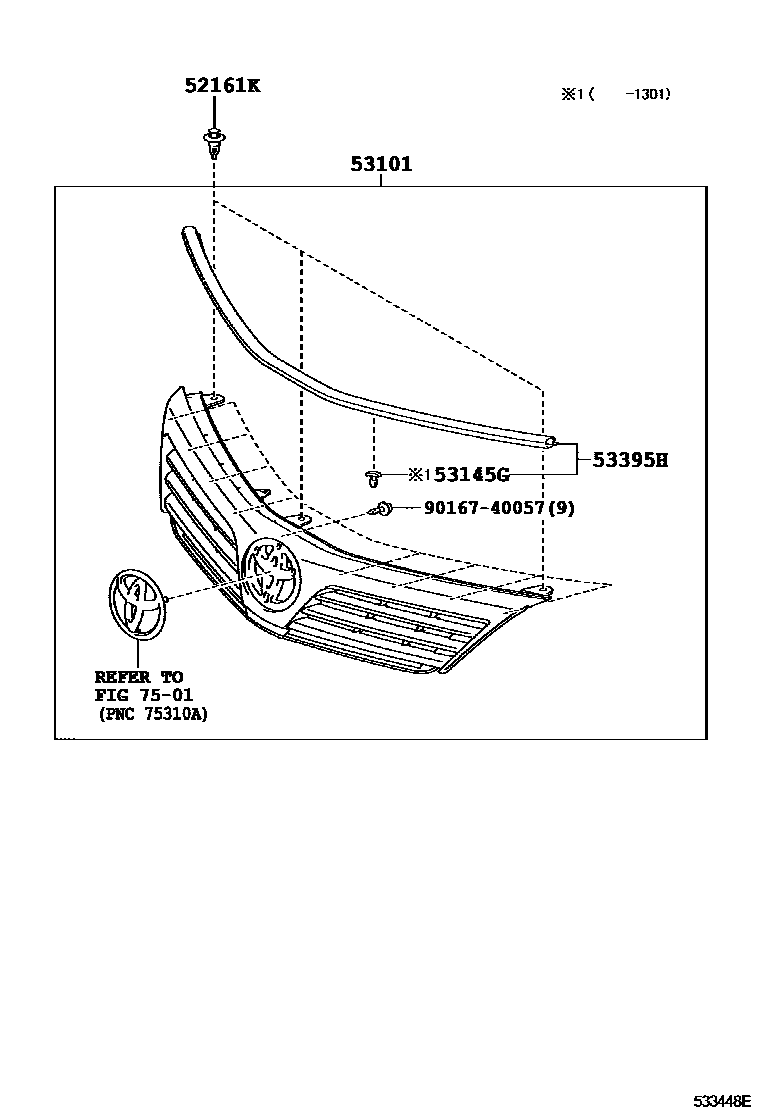

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-02020 |
| 53101 | Radiator grille sub-assembly | 53101-06320 · 53101-06350 · 53101-06411 · 53101-06421 · 53101-06431 · 53101-06441 · 53101-06560 · 53101-06611 · 53101-06621 · 53101-06631 |
| 53145G | Radiator grille clip | 53121-04020 · 53145-60030 |
| 53384D | Engine cover center cushion | 53384-75010 |
| 53395H | Engine cover to radiator grille seal | 53395-06030 |
