Toyota CAMRY 后保险杠及附件 — Figure 5202

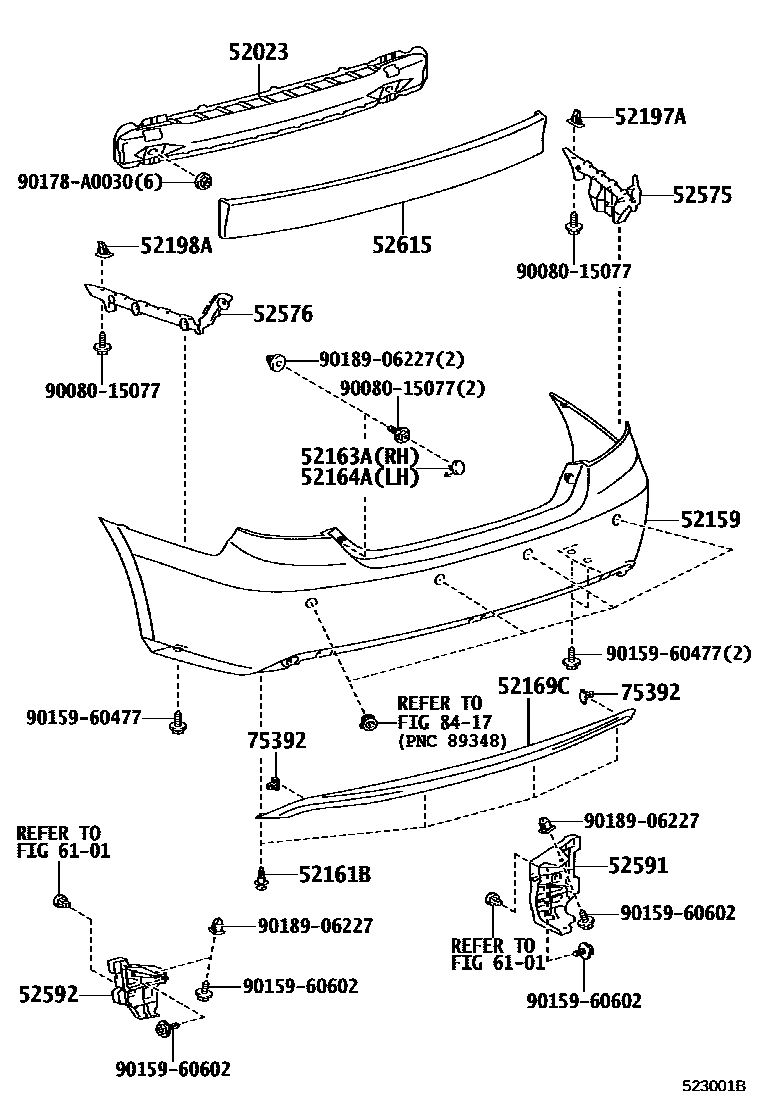

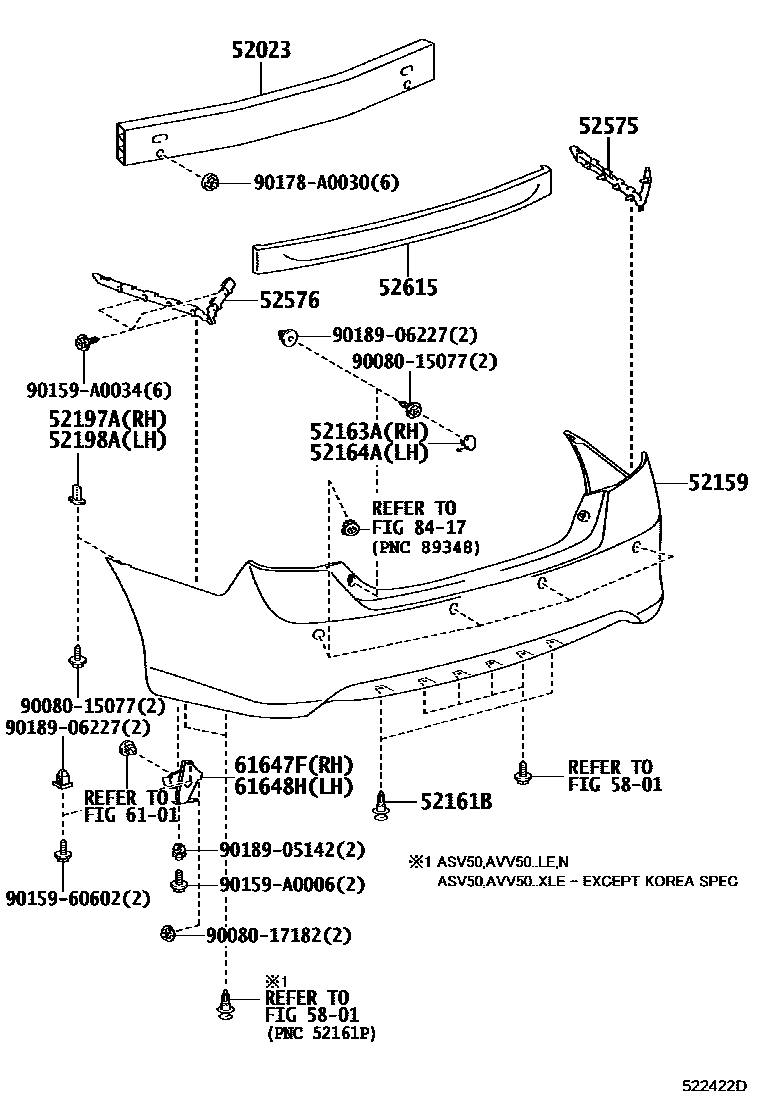

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52171-06130 |
| 52159 | rear bumper cover | 52159-06961 · 52159-06962 · 52159-06963 · 52159-06989 · 52159-06990 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52163A | Rear bumper right side fender | 52163-06911 · 52163-06916 |
| 52164A | Rear bumper left fender | 52164-06911 · 52164-06916 |
| 52169C | Rear bumper lower cover | 52169-06010 · 52169-06020 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52575 | Rear bumper right side fixing bracket | 52575-06090 · 52575-06140 |
| 52576 | Rear bumper left side fixing bracket | 52576-06090 · 52576-06140 |
| 52591 | Rear bumper right seal | 52591-06020 |
| 52592 | Rear bumper left seal | 52592-06020 |
| 52615 | Rear bumper energy absorber | 52615-06060 · 52615-06070 |
| 61647F | Right wheel arch reinforcement | 61647-06060 |
| 61648H | Left wheel arch reinforcement | 61648-06060 |
| 75392 | External protective strip fixings | 75392-35200 |
