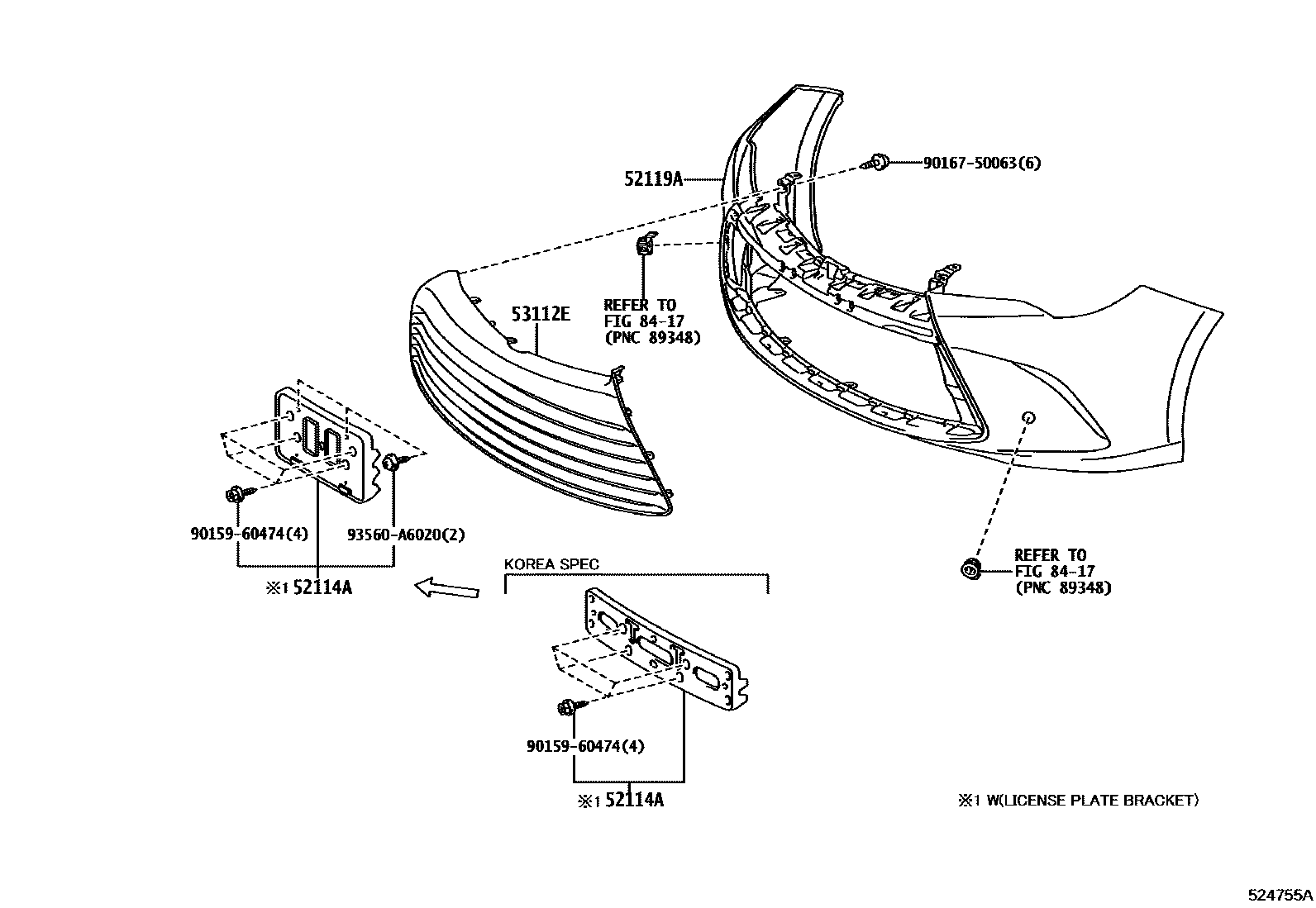

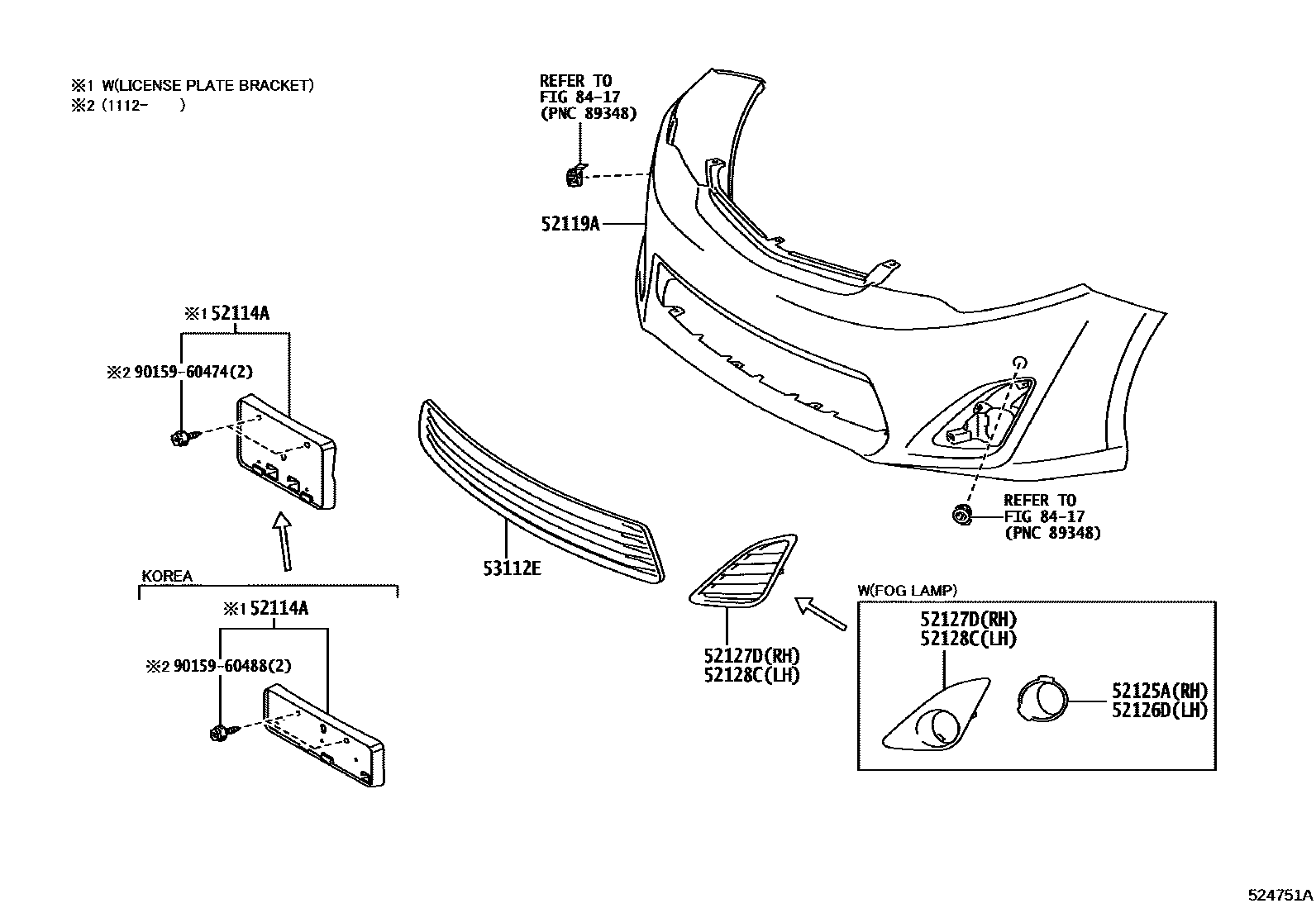

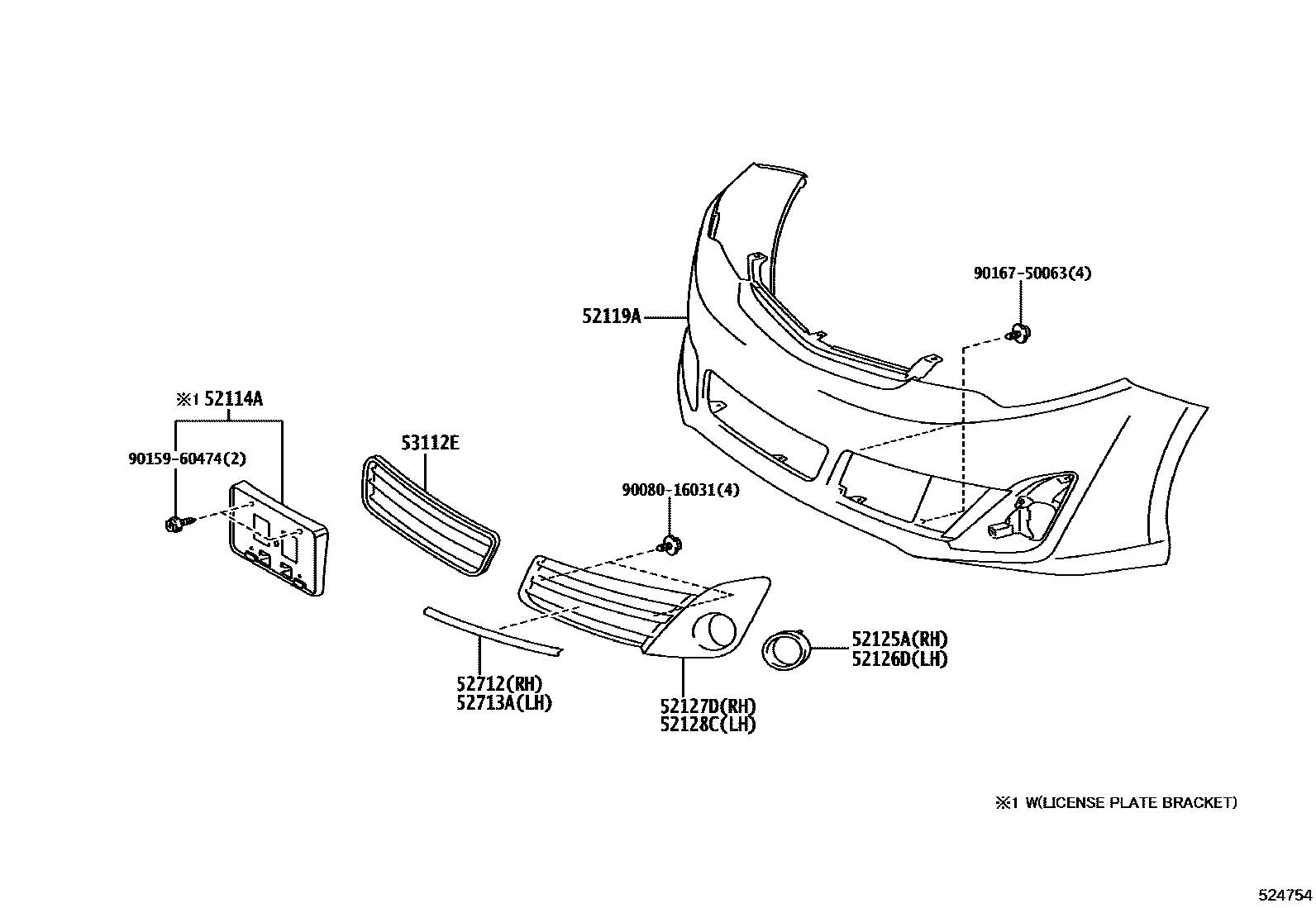

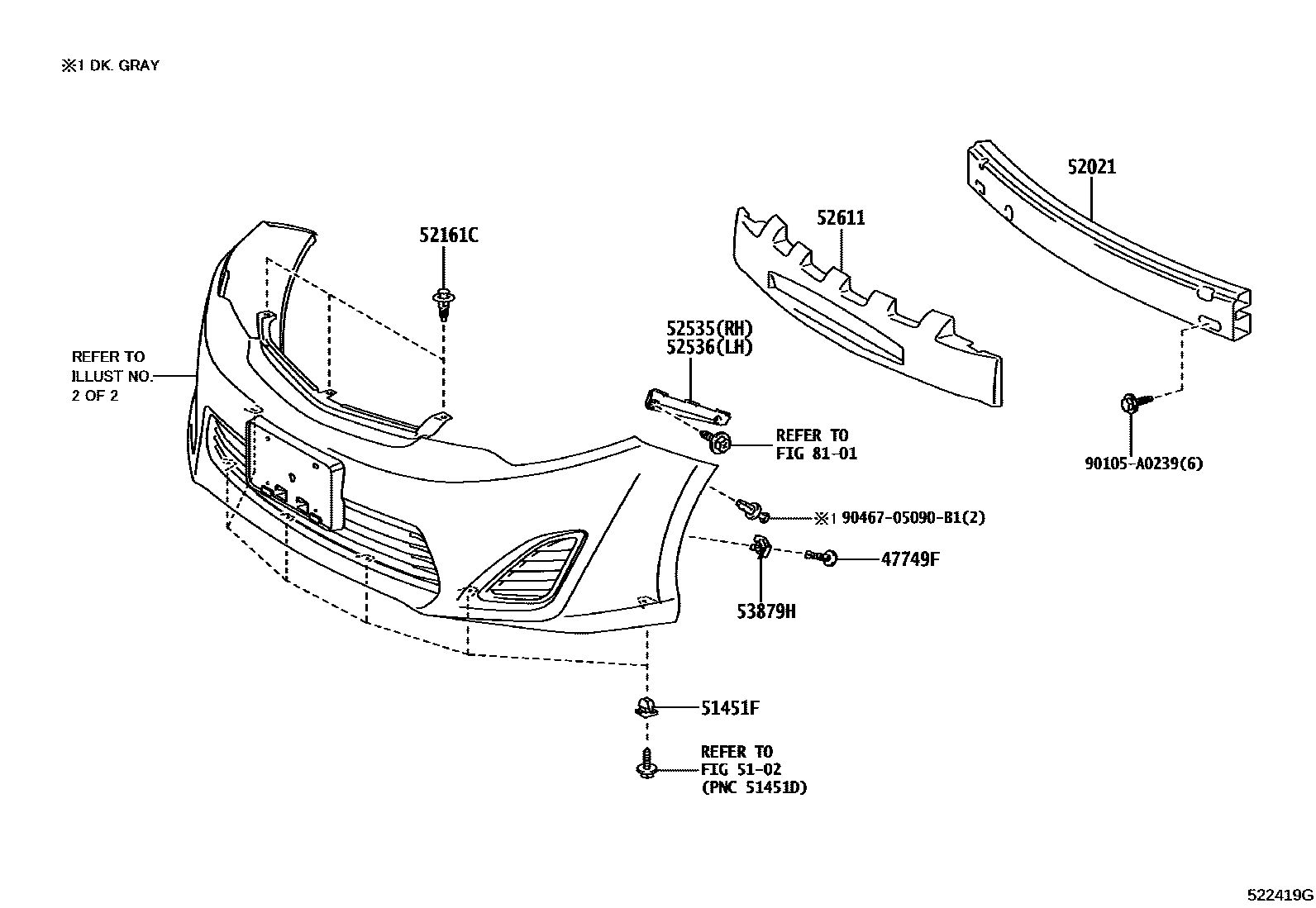

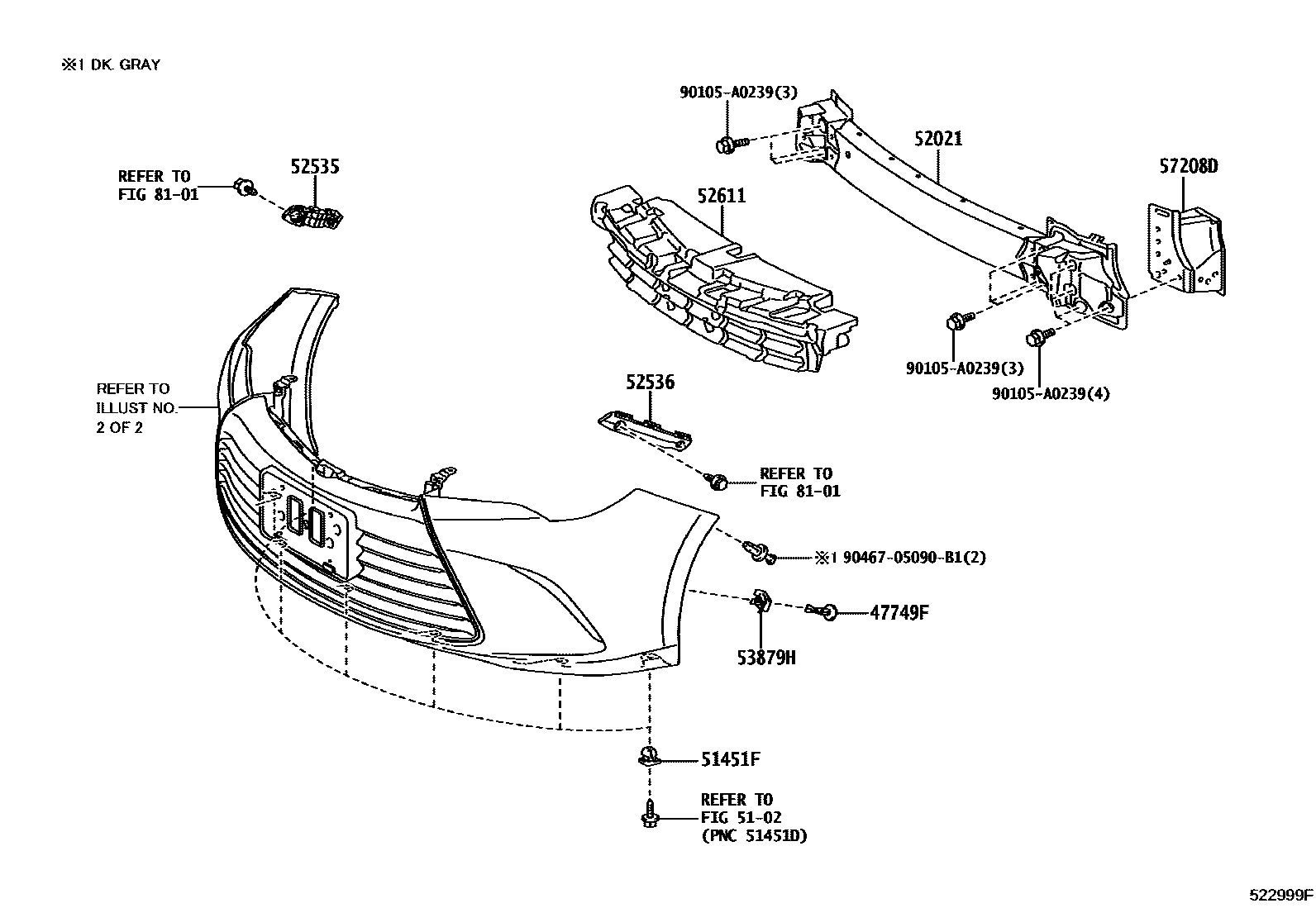

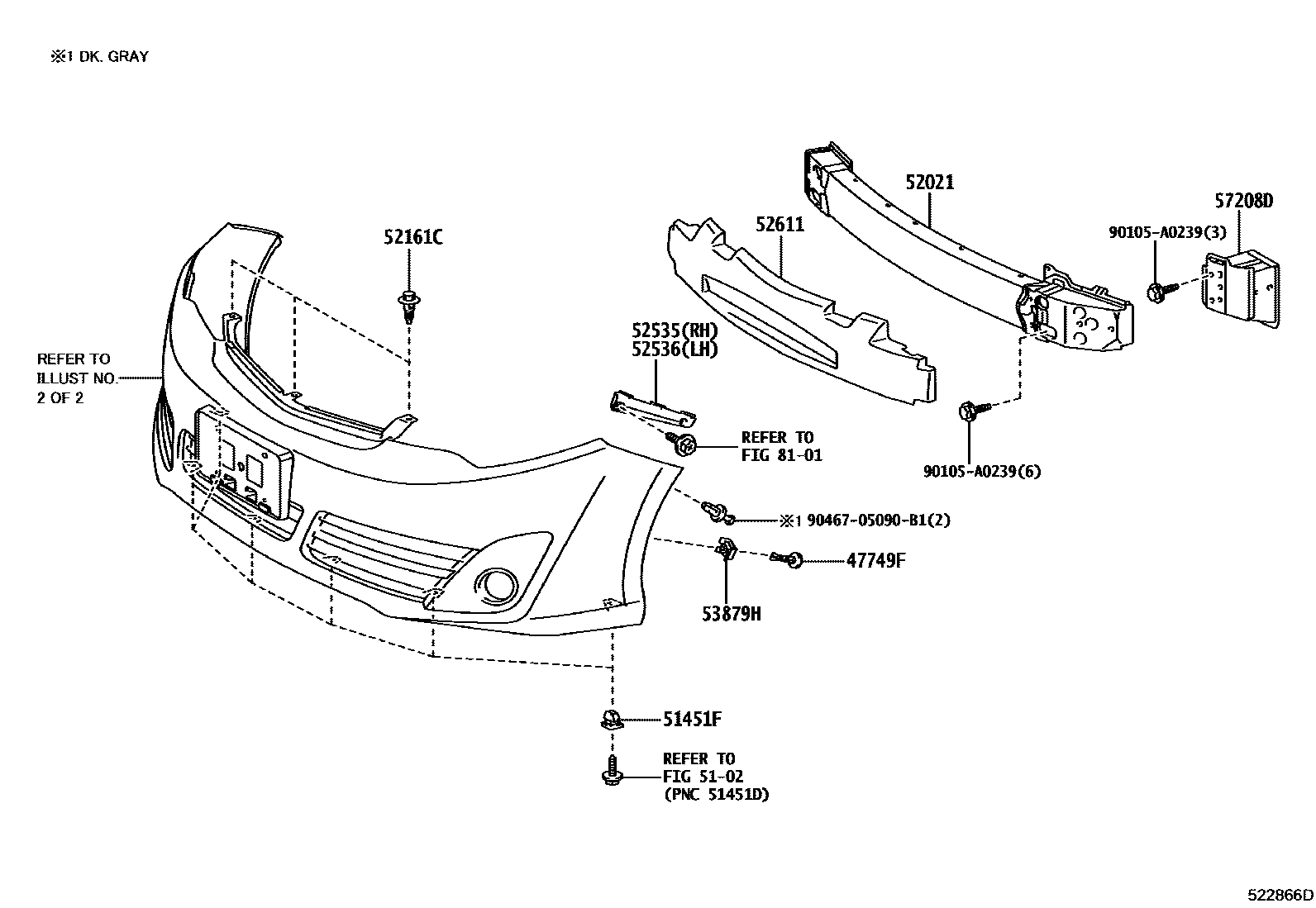

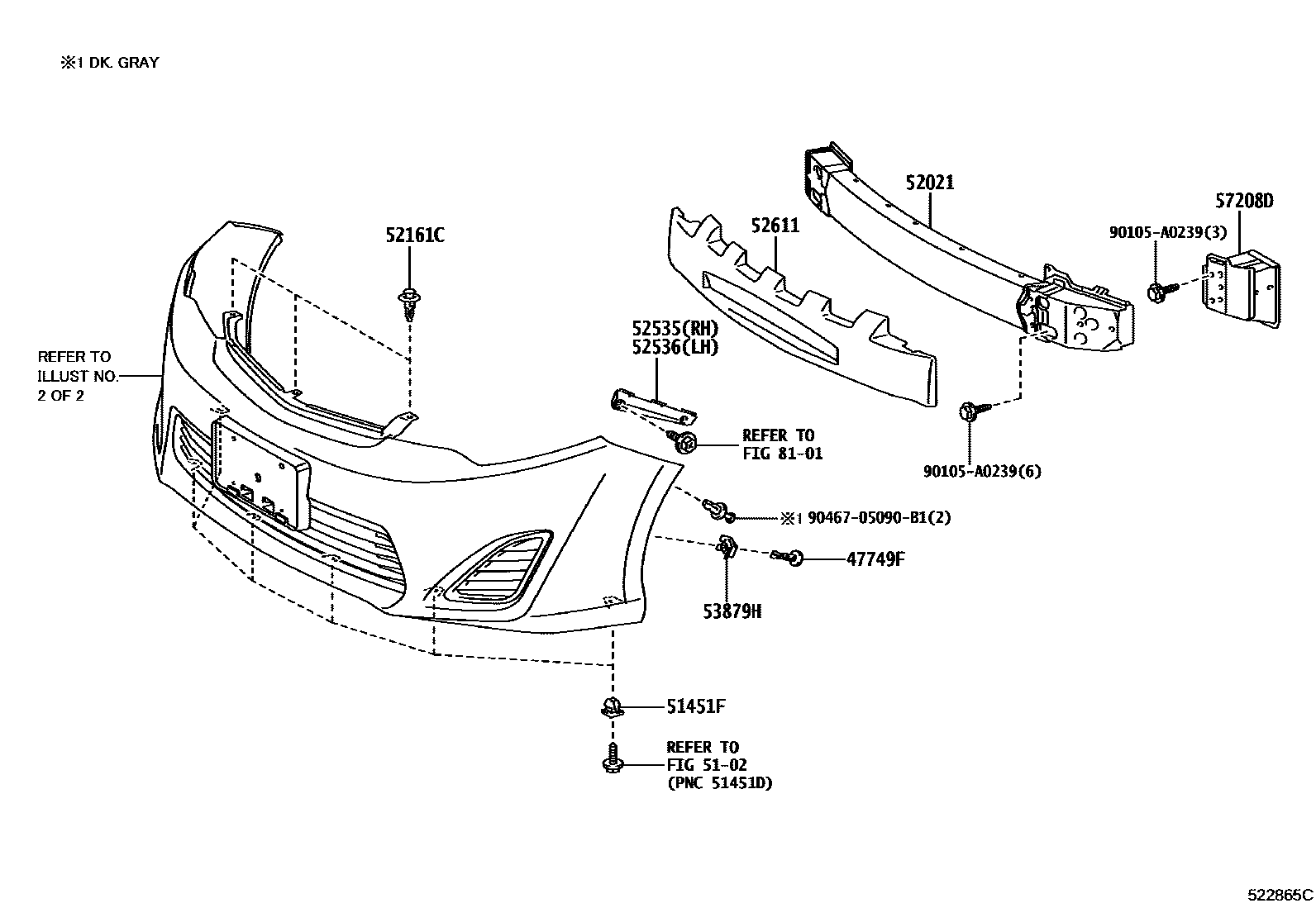

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 10 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-06010 · 47749-50090 |
| 51451F | OEILLET, NO.1 | 90189-06193 · 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06130 · 52021-06140 · 52131-06101 |
| 52114A | Front bumper extension mounting bracket | 52114-06160 · 52114-06170 · 52114-06250 · 75101-06030 · 75101-06040 · 75101-06050 |
| 52119A | front bumper cover | 52119-06974 · 52119-06975 · 52119-06976 · 52119-07912 · 52119-07913 |
| 52125A | Right fog light mounting bracket | 52125-06200 · 52125-06320 |
| 52126D | Left fog light mounting bracket | 52126-06200 · 52126-06320 |
| 52127D | Front bumper right hole cover | 52127-06260 · 52127-06290 · 52127-06310 |
| 52128C | Front bumper left hole cover | 52128-06260 · 52128-06290 · 52128-06310 |
| 52161C | front bumper insert | 52161-02020 |
| 52535 | Front bumper right side fixing bracket | 52535-06130 · 52535-06190 |
| 52536 | Front bumper left fixed bracket | 52536-06120 · 52536-06190 |
| 52611 | front bumper energy absorber | 52611-06120 · 52611-06121 · 52611-06230 · 52611-06231 · 52611-06232 · 52611-06380 |
| 52712 | Front bumper right side protective strip | 52712-06040 |
| 52713A | Front bumper left protective strip | 52713-06040 |
| 53112E | No. 1 radiator lower grille | 53112-06200 · 53112-06210 · 53112-06260 · 53112-06280 |
| 53879H | Front fender lining fixing parts | 53879-06100 · 53879-30040 |
| 57208D | SOUS-ENSEMBLE ENTRETOISE, SUPPORT PARE-CHOCS AVANT, NO.2 | 57208-06010 · 57208-06011 · 57208-06020 |
