Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

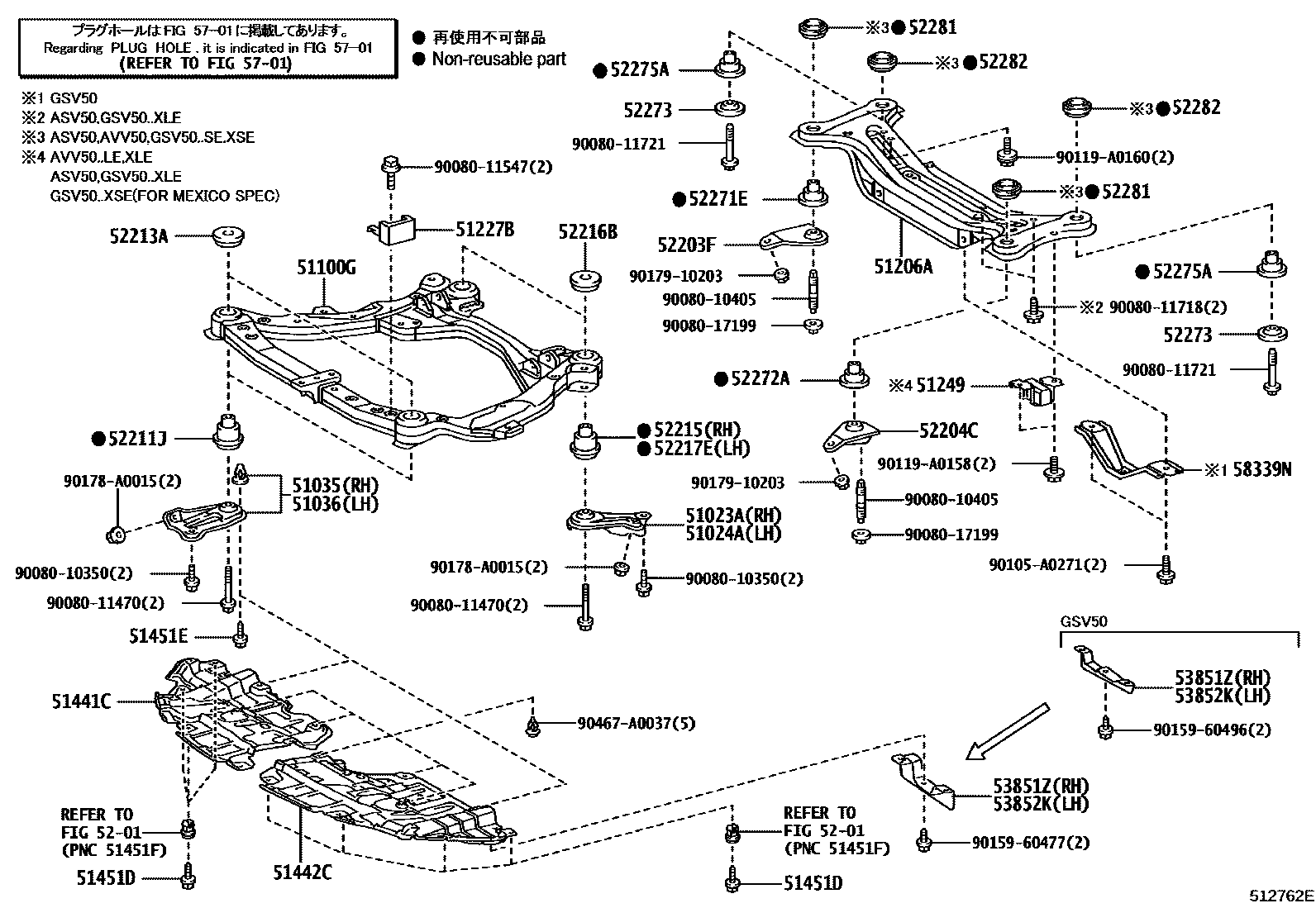

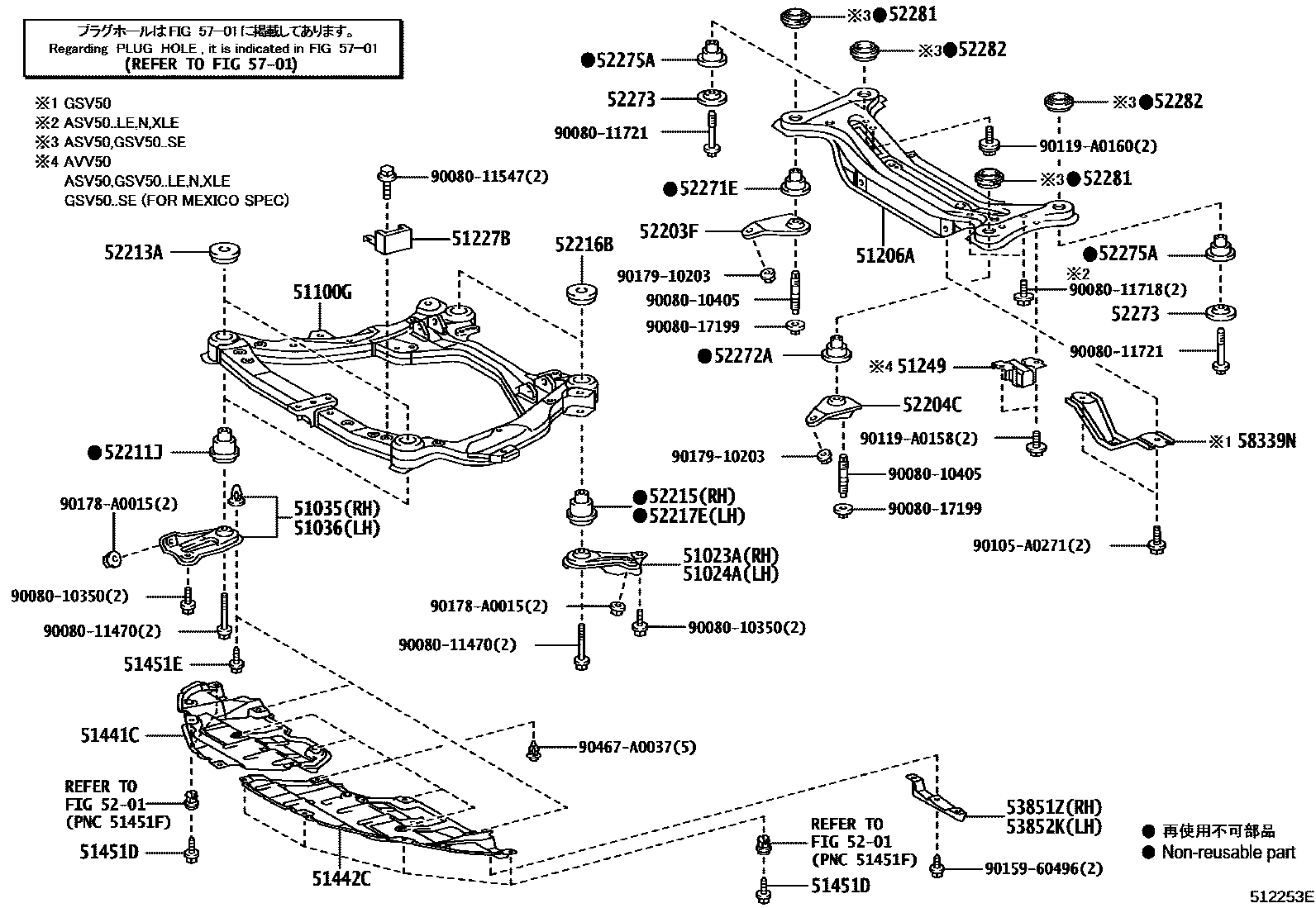

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-07010 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-07010 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-07010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-07010 |
| 51100G | Front frame assembly | 51100-06190 · 51100-06191 · 51100-07030 · 51100-07031 · 51100-07033 · 51100-07034 · 51100-07035 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06090 · 51206-06091 |
| 51227B | Front suspension beam dynamic damper | 51227-08010 |
| 51249 | Rear suspension cross member shock absorber | 51249-06060 |
| 51441C | Engine right bottom cover | 51441-06150 · 51441-06220 |
| 51442C | Engine left bottom cover | 51442-06140 · 51442-06210 |
| 51451D | VIS, NO.1 | 90159-60477 |
| 51451E | VIS, NO.2 | 90159-60477 |
| 52203F | Rear suspension cross member right lower block sub-assembly | 52203-06041 |
| 52204C | Rear suspension cross member left lower block sub-assembly | 52204-06041 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06070 · 52211-06080 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06070 · 52213-06080 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06060 · 52215-06120 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06060 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06040 · 52217-06100 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-06110 · 52271-06120 · 52271-07020 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52272-06100 · 52272-06110 · 52272-07020 |
| 52273 | Rear suspension cross member lower block | 52273-06010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06120 · 52275-06130 |
| 52281 | Differential support beam cushion | 52281-06030 |
| 52282 | Differential support beam upper stop | 52282-06060 |
| 53851Z | Right front fender outer panel pad | 53851-06040 · 53851-06100 |
| 53852K | Left front fender exterior panel pad | 53852-06040 · 53852-06100 |
| 58339N | Lift the bracket | 58339-06030 |
