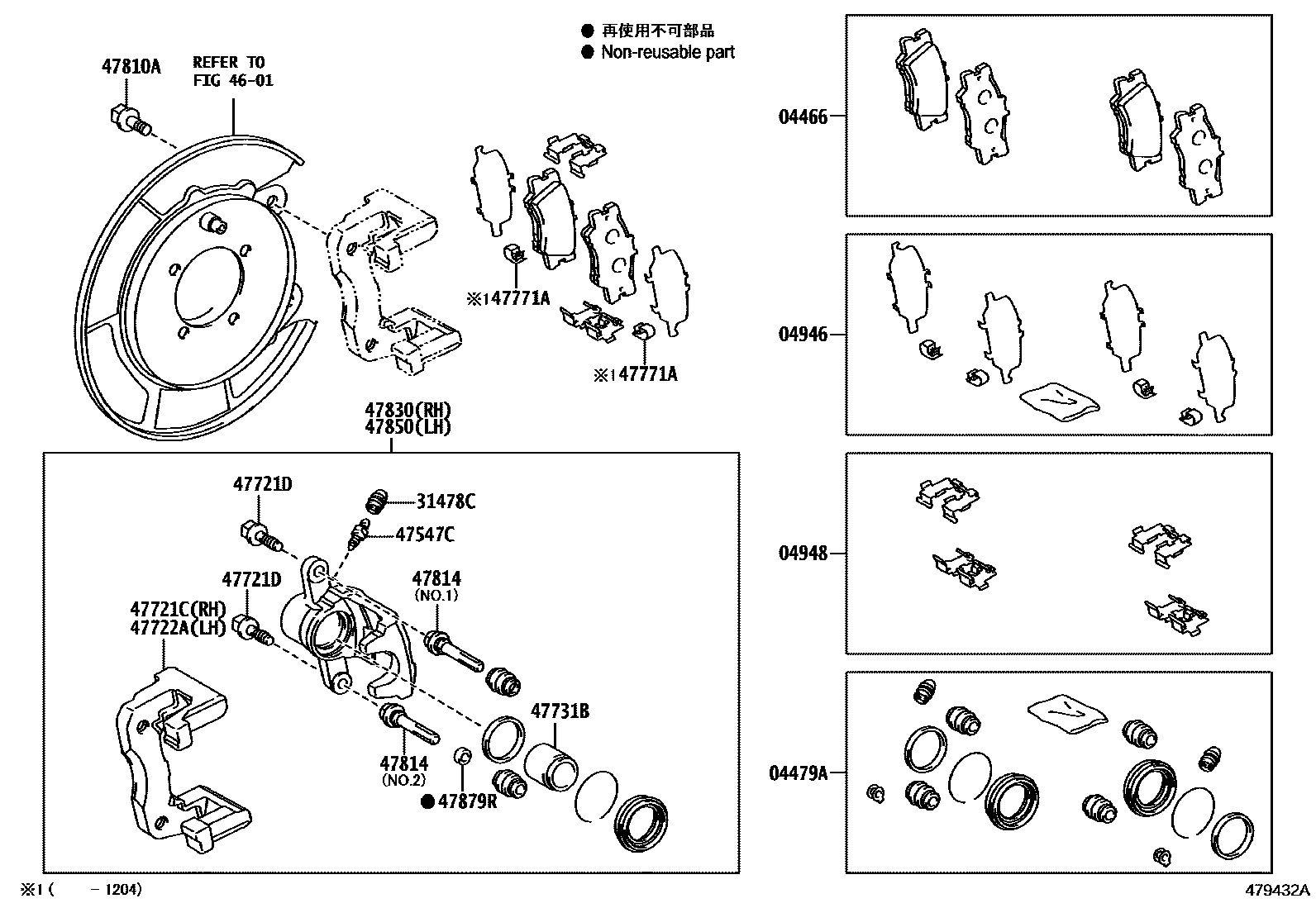

Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-06200 |
| 04479A | Rear disc brake cylinder assembly | 04479-06280 · 04479-06285 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-06070 · 04946-06130 |
| 04948 | Rear disc brake mounting assembly | 04948-06031 · 04948-06035 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0R010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12130 |
| 47721C | Right rear disc brake cylinder retainer | 47821-06120 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA604 |
| 47722A | Left rear disc brake cylinder retainer | 47822-06110 |
| 47731B | rear disc brake piston | 47831-06050 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47871-06050 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90080-10395 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06120 · 47815-06120 |
| 47830 | Right rear disc brake cylinder assembly | 47830-06120 |
| 47850 | Left rear disc brake cylinder assembly | 47850-06110 |
| 47879R | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47879-06120 |
