Toyota CAMRY 制动总泵 — Figure 4702

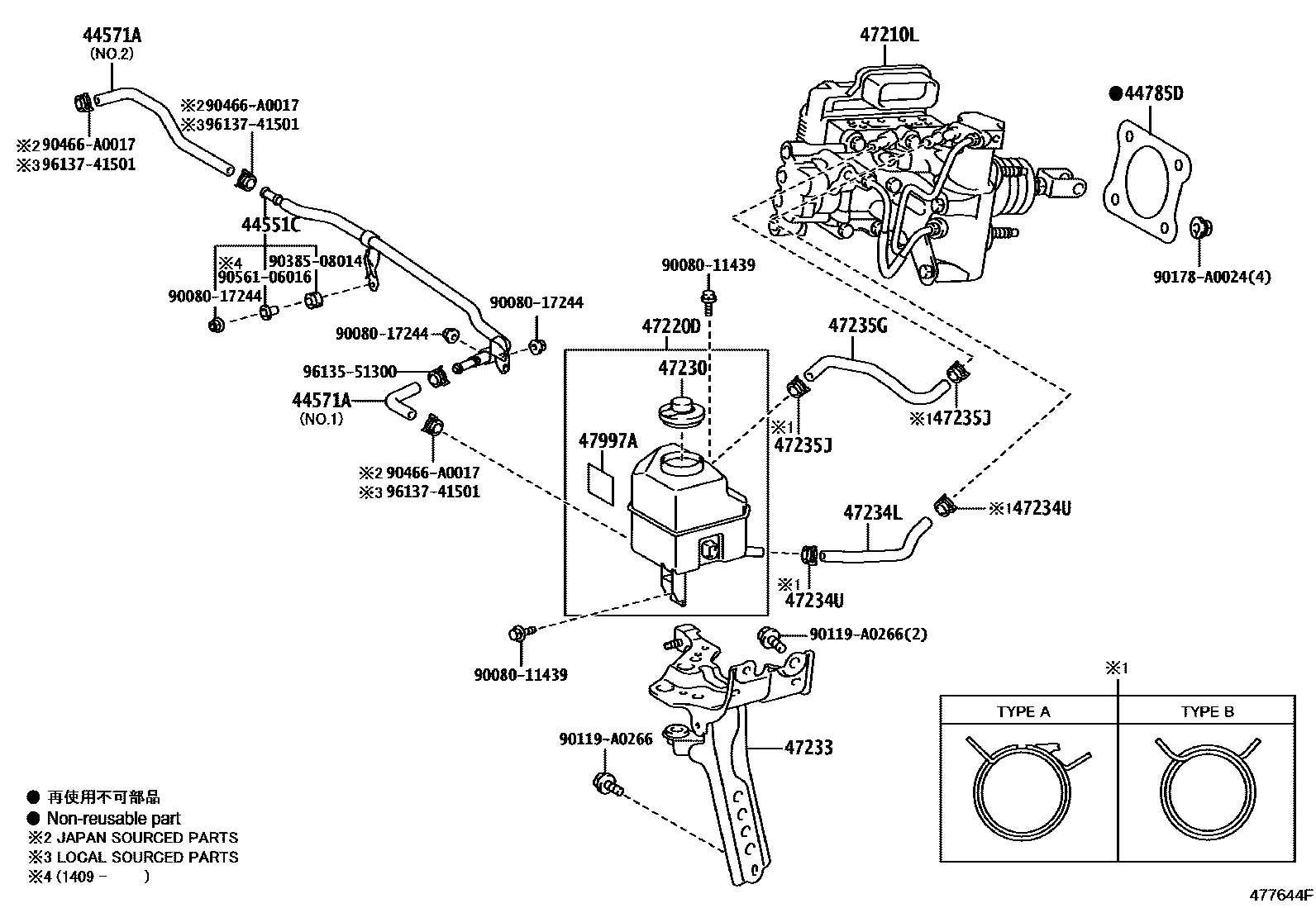

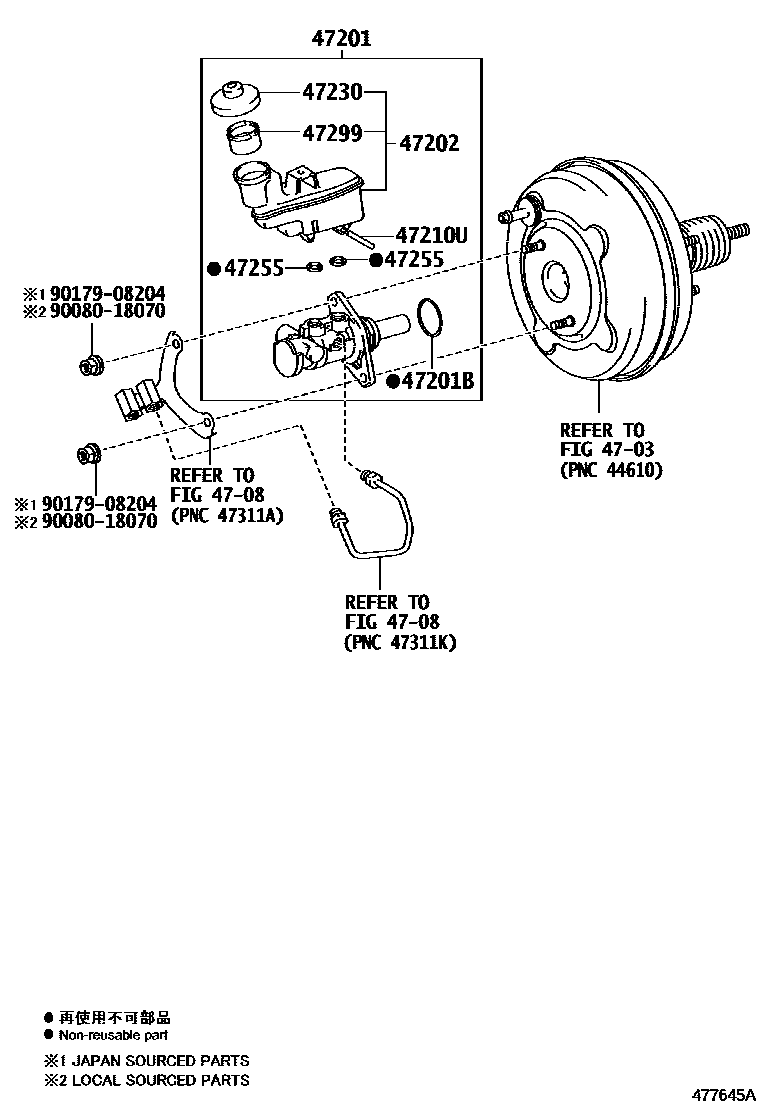

Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-06030 |
| 44571A | No. 1 brake actuator hose | 44571-06030 · 44571-06040 |
| 44785D | brake master cylinder gasket | 44785-02060 · 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-06440 · 47201-06441 · 47201-06442 · 47201-06443 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06180 |
| 47210L | Brake booster assembly with master cylinder | 47050-33050 · 47050-33110 · 47050-33111 · 47050-33112 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33120 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01030 · 47230-01031 · 47230-20140 |
| 47233 | Reservoir tank bracket | 47233-06020 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-06030 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 90466-A0017 · 96135-51300 · 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-06030 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-A0017 · 96135-51300 · 96137-41501 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47299 | Brake master cylinder reservoir filter | 47299-06180 · 47299-25010 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
