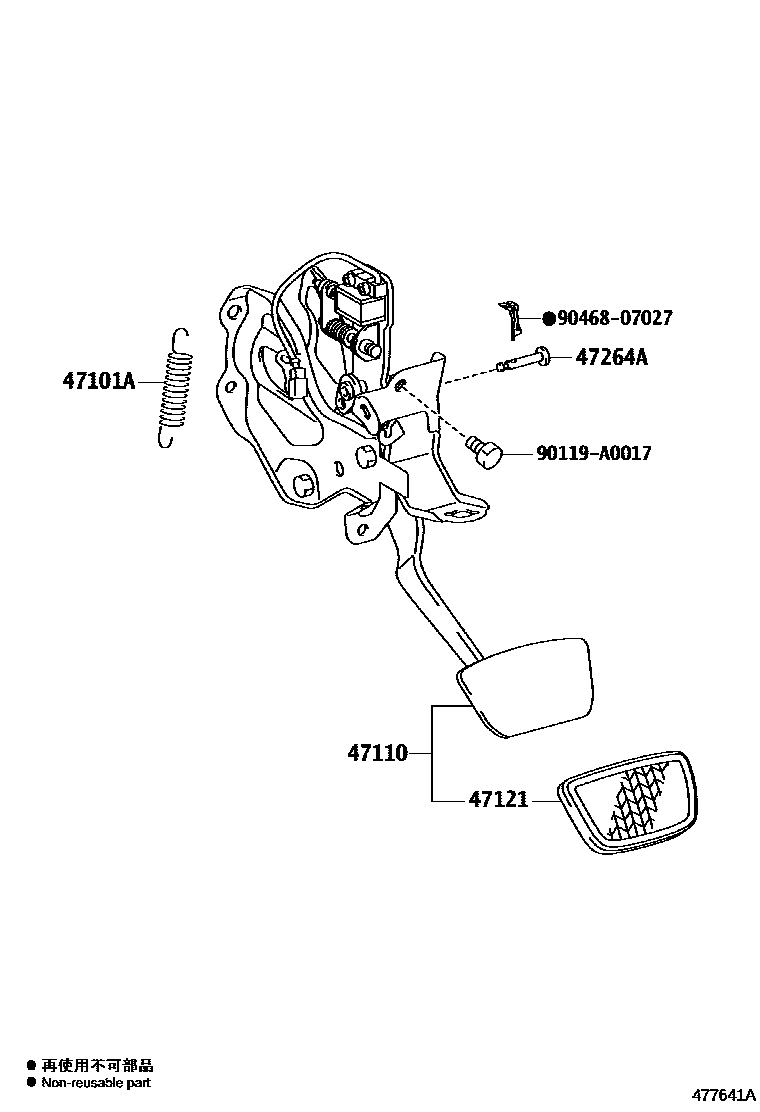

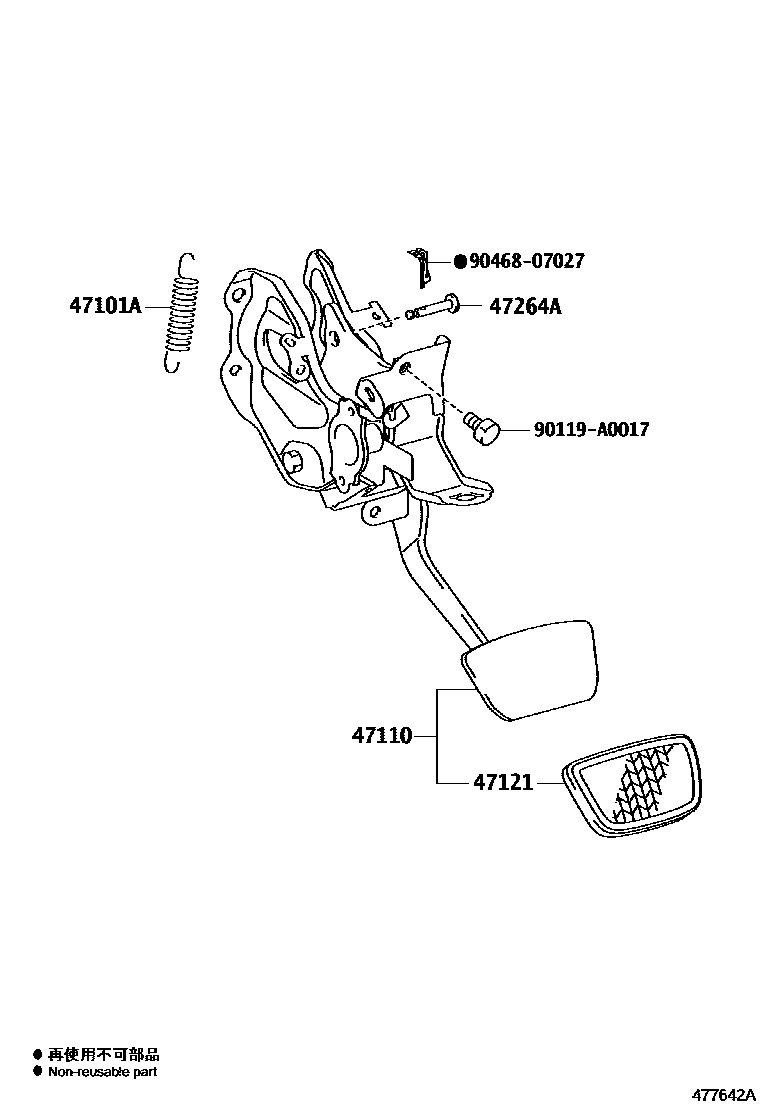

Toyota CAMRY Brake Pedal & Bracket — Figure 4701
Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-12046 |
| 47110 | Brake pedal bracket assembly | 47110-06270 · 47110-06271 · 47110-06280 · 47110-06281 |
| 47121 | brake pedal pad | 47121-0E010 |
| 47264A | Pin (for push rod) | 90240-08081 · 90249-06180 |
