Toyota CAMRY Parking Brake & Cable — Figure 4601

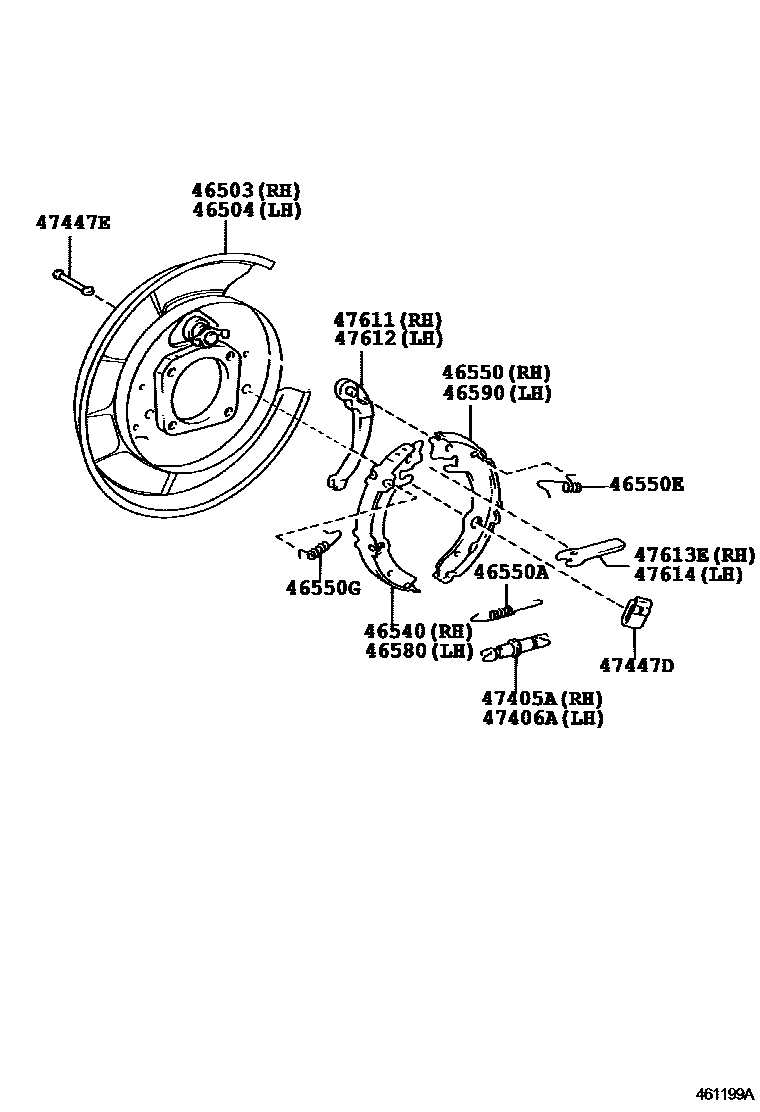

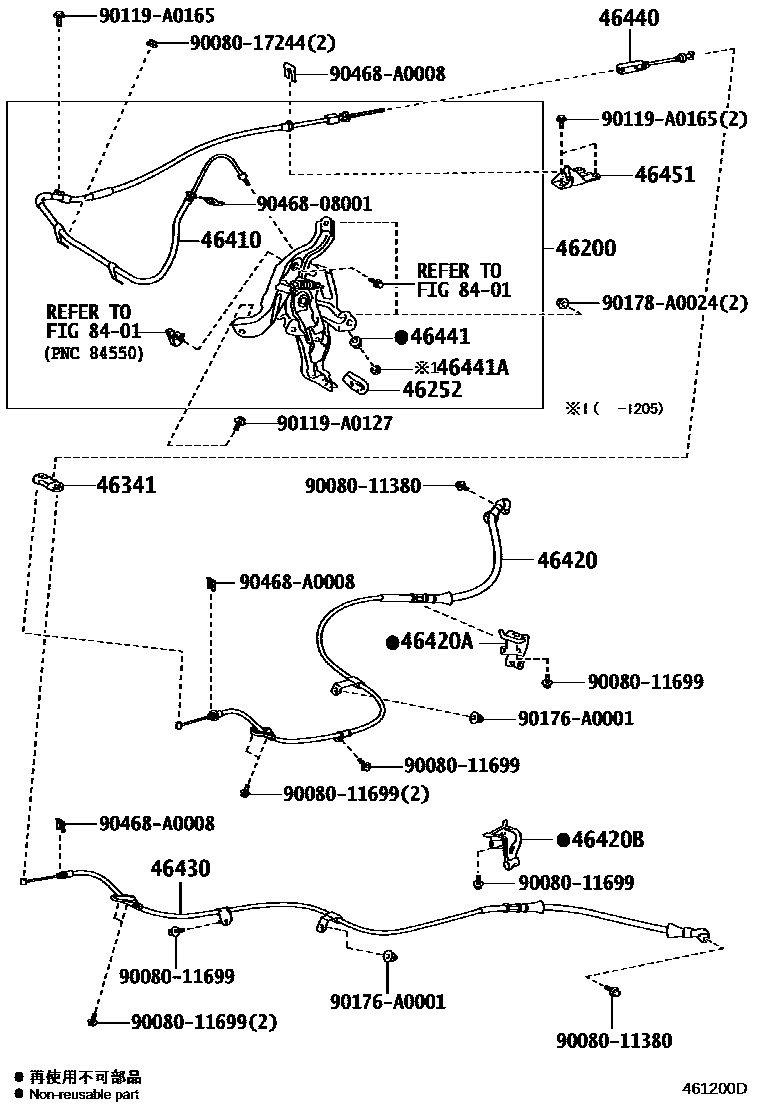

Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-06111 |
| 46252 | Parking brake pedal pad | 46252-06020 |
| 46341 | Parking brake balancer | 46341-33030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-06140 |
| 46420 | Parking brake No. 2 cable assembly | 46420-06170 · 46420-06172 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46421-06010 · 46421-06011 · 46421-06020 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46431-06010 · 46431-06011 · 46431-06020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-06170 · 46430-06172 |
| 46440 | Parking brake No. 4 cable assembly | 46440-06080 |
| 46441 | No. 1 cable adjustment nut | 90182-06008 · 90182-A0030 |
| 46441A | No. 2 cable adjustment nut | 90179-06299 |
| 46451 | cable bracket | 46451-06020 |
| 46503 | Right parking brake pad sub-assembly | 46503-06080 |
| 46504 | Left parking brake pad sub-assembly | 46504-06080 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-06030 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-06030 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90016-DY003 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90016-DY022 · 90016-DY023 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90016-DY021 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-06030 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-06030 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-06080 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-06080 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-02090 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-11010 |
| 47611 | Right parking brake shoe lever | 46601-06080 |
| 47612 | Left parking brake shoe lever | 46602-06080 |
| 47613E | Right parking brake shoe push rod | 46612-06080 |
| 47614 | Left parking brake shoe push rod | 46622-06080 |
