Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 3 images and 4 PNC and OE references.

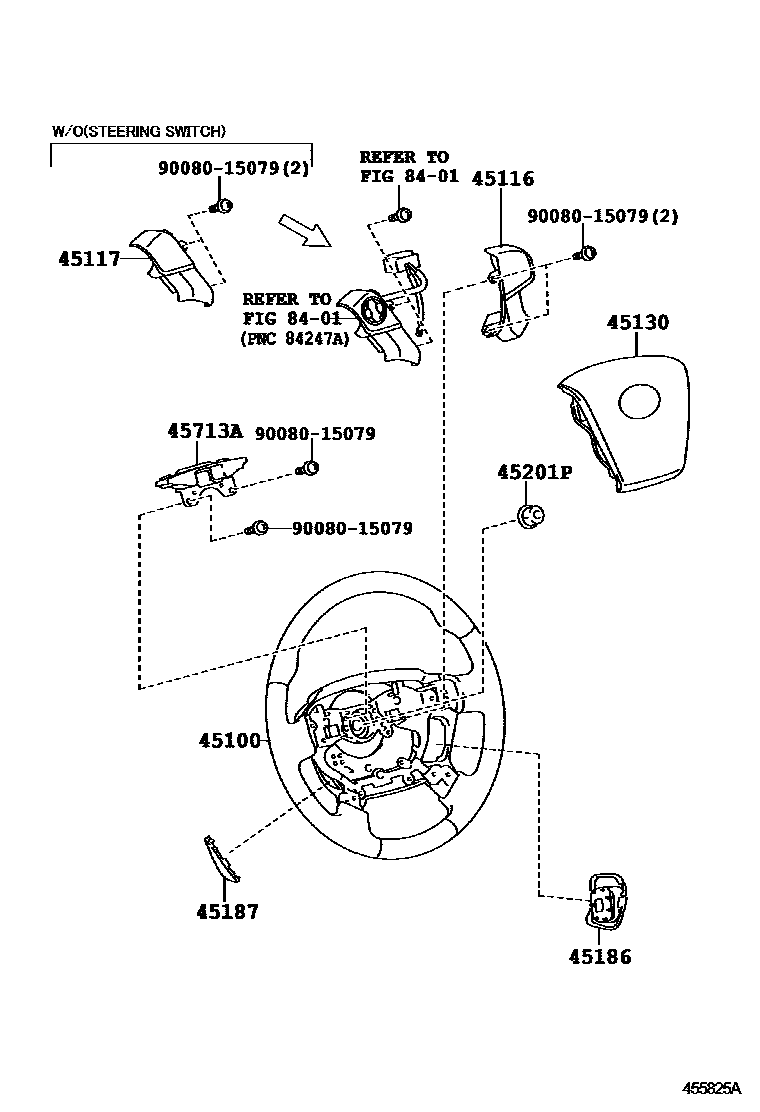

Toyota CAMRY Steering Wheel EPC diagram — 455825A
Steering Wheel — 455825A (201109 – 201409)

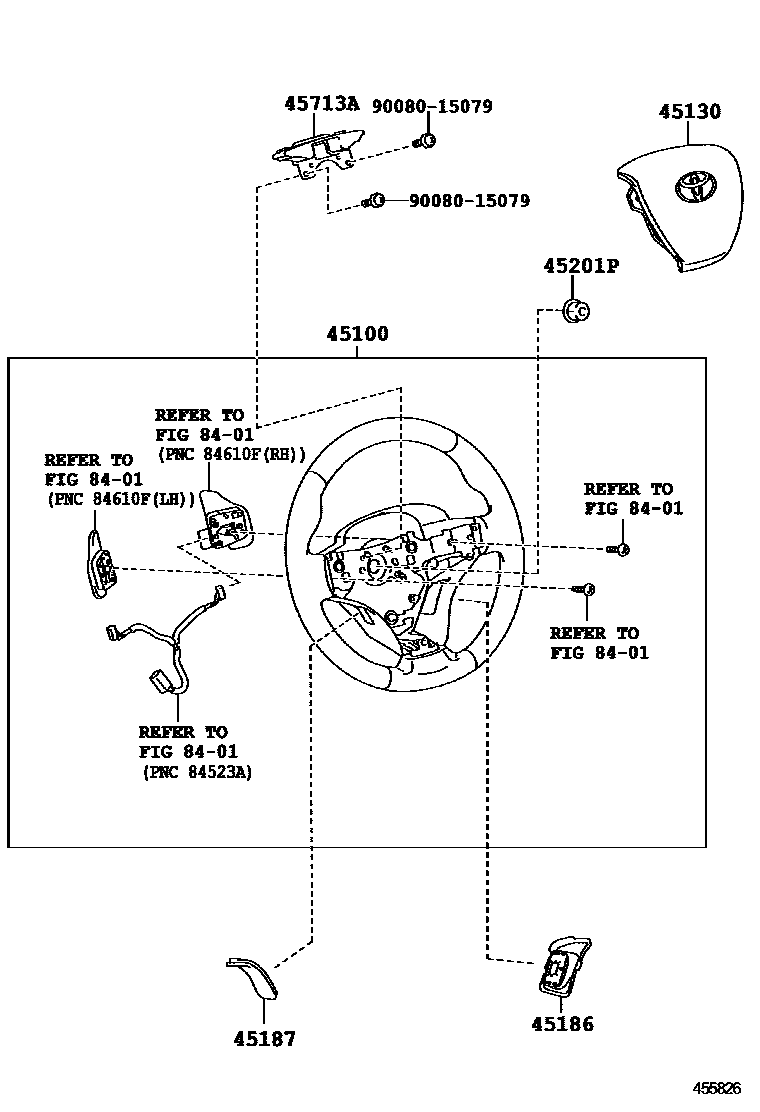

Toyota CAMRY Steering Wheel EPC diagram — 455826
Steering Wheel — 455826 (201109 – 201409)

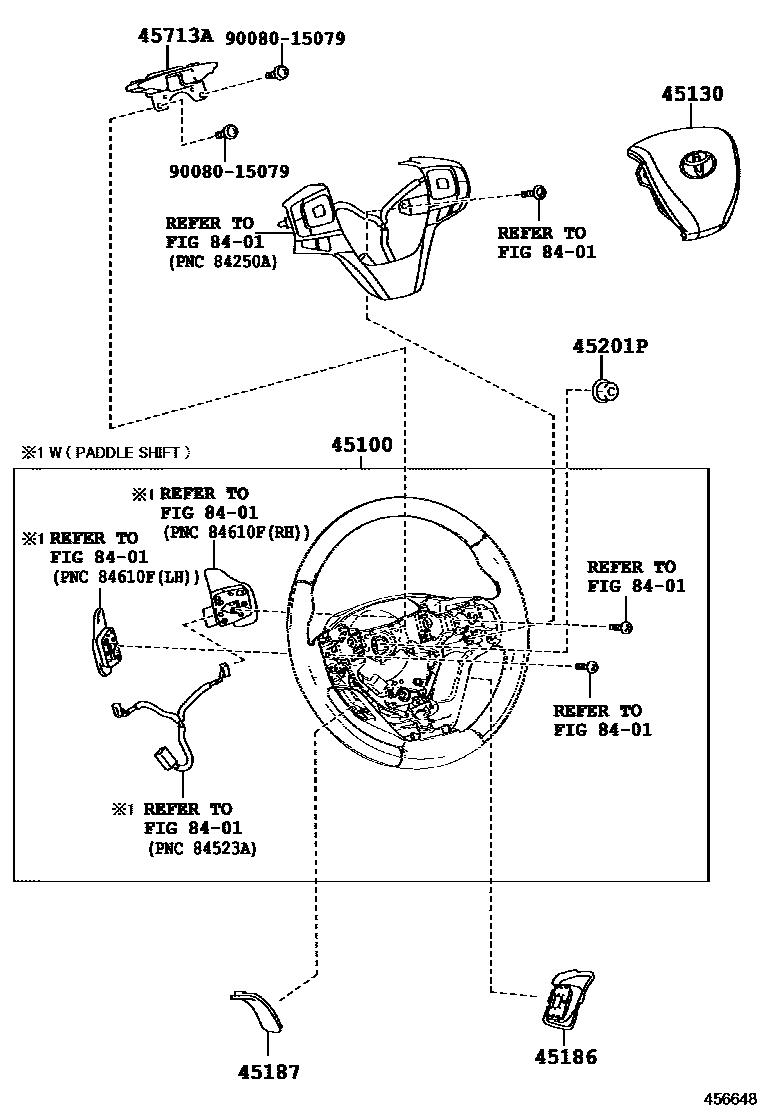

Toyota CAMRY Steering Wheel EPC diagram — 456648
Steering Wheel — 456648 (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
45116No. 1 steering wheel decorative parts45116-06070
45117No. 2 steering wheel decorative parts45117-06040
45201PSteering wheel fixing nut90080-17234
45713Asteering damper45713-33140 · 45713-33210
