Toyota CAMRY Front Drive Shaft — Figure 4302

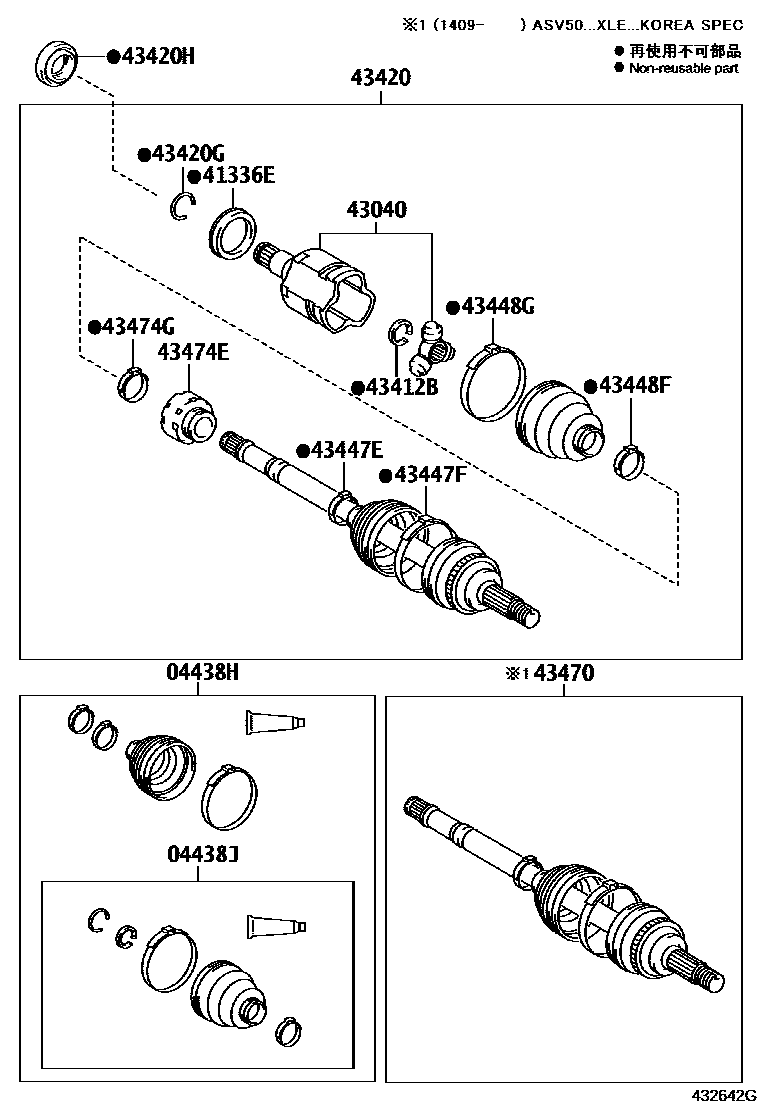

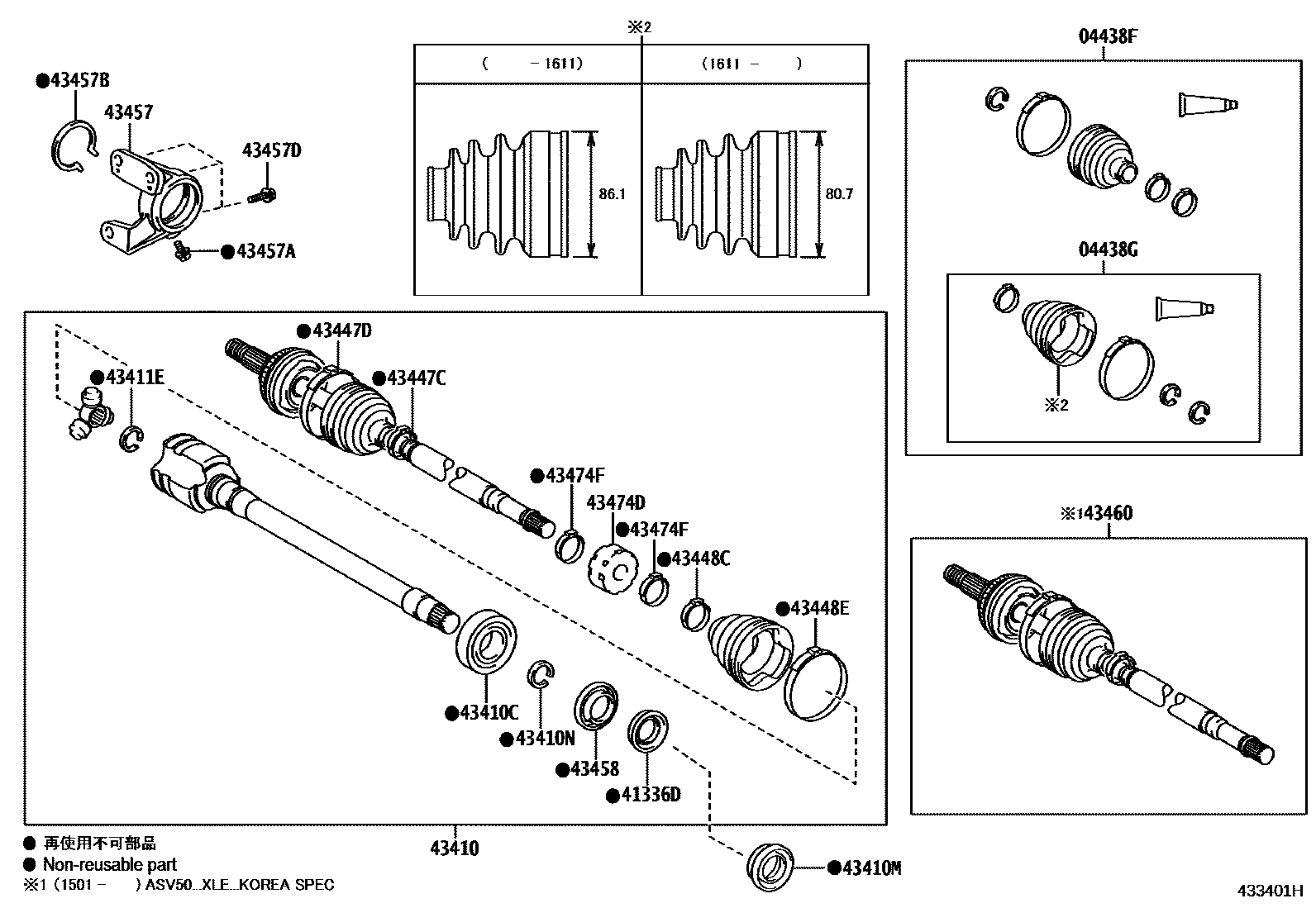

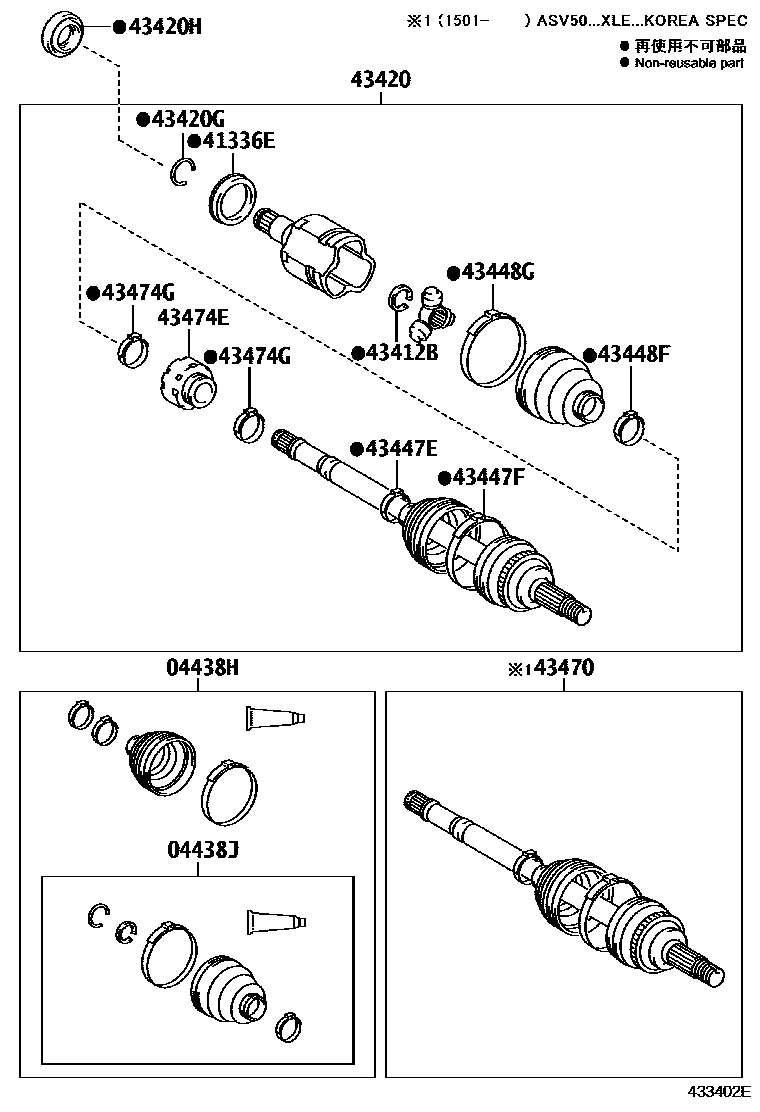

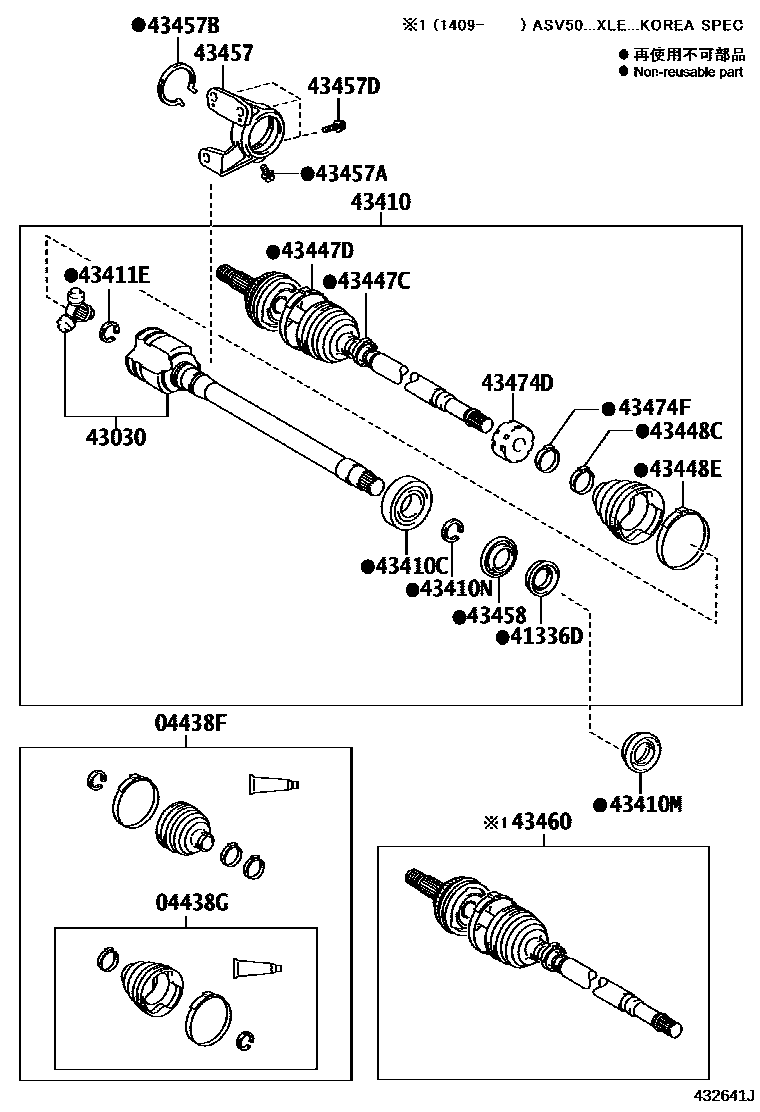

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06500 · 04427-06540 · 04427-06550 · 04427-08220 · 04427-0R090 · 04427-0R102 · 04427-0R104 · 04428-0W070 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06270 · 04437-08050 · 04437-08090 · 04437-0R020 · 04438-08130 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-06510 · 04427-06570 · 04427-08230 · 04428-06570 · 04428-06580 · 04428-06610 · 04428-0R050 · 04428-0W070 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-06280 · 04437-08100 · 04438-08130 · 04438-0R010 |
| 41336D | Right front driveshaft dust cover | 41336-06020 · 41336-07020 |
| 41336E | Left front driveshaft dust cover | 41336-06060 · 41336-07040 · 41336-08010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-0W040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0W030 |
| 43410 | Right front driveshaft assembly | 43410-06730 · 43410-06731 · 43410-06732 · 43410-06740 · 43410-06750 · 43410-06760 · 43410-06761 · 43410-06770 · 43410-06A20 · 43410-06A30 · 43410-06A40 · 43410-06A50 · 43410-06B51 · 43410-06B61 · 43410-06B70 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 · 90363-A0004 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40029 · 90311-40038 · 90311-40039 · 90311-A0012 · 90311-A0029 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-07010 · 90080-52013 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-08040 · 43425-0R010 · 43425-0R030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-08040 · 43425-0R030 |
| 43420 | Left front drive shaft assembly | 43420-06810 · 43420-06811 · 43420-06812 · 43420-06830 · 43420-06840 · 43420-06841 · 43420-06842 · 43420-06850 · 43420-06A70 · 43420-06A80 · 43420-06A90 · 43420-06B00 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-07040 · 90080-52017 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50031 · 90311-50045 · 90311-50053 · 90311-A0011 · 90311-A0021 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-04030 · 42345-0R040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06250 · 42345-0R030 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-04030 · 42345-0R040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06250 · 42345-0R030 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-08070 · 42345-0R060 · 42345-0R080 · 42345-0T060 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06240 · 42345-06A00 · 42345-06A10 · 42345-0R050 · 42345-0T050 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-08070 · 42345-0R060 · 42345-0R080 · 42345-0T060 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06240 · 42345-06A10 · 42345-0R050 · 42345-0T050 |
| 43457 | drive shaft bearing bracket | 43457-06100 · 43457-07010 · 43457-0T010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10087 |
| 43458 | Front drive shaft dust cover | 43458-06020 · 43458-07010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-06690 · 43470-06691 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-06700 · 43470-06701 |
| 43474D | Right front driveshaft shock absorber | 43474-06270 · 43474-06300 · 43474-07010 · 43474-0W030 |
| 43474E | Left front driveshaft shock absorber | 43474-06090 · 43474-06310 · 43474-06320 · 43474-06400 · 43474-07030 · 43474-0E010 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06100 · 42345-06790 · 42345-07090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06100 · 42345-06790 · 42345-07090 |
