Toyota CAMRY 超速档齿轮(ATM) — Figure 3506

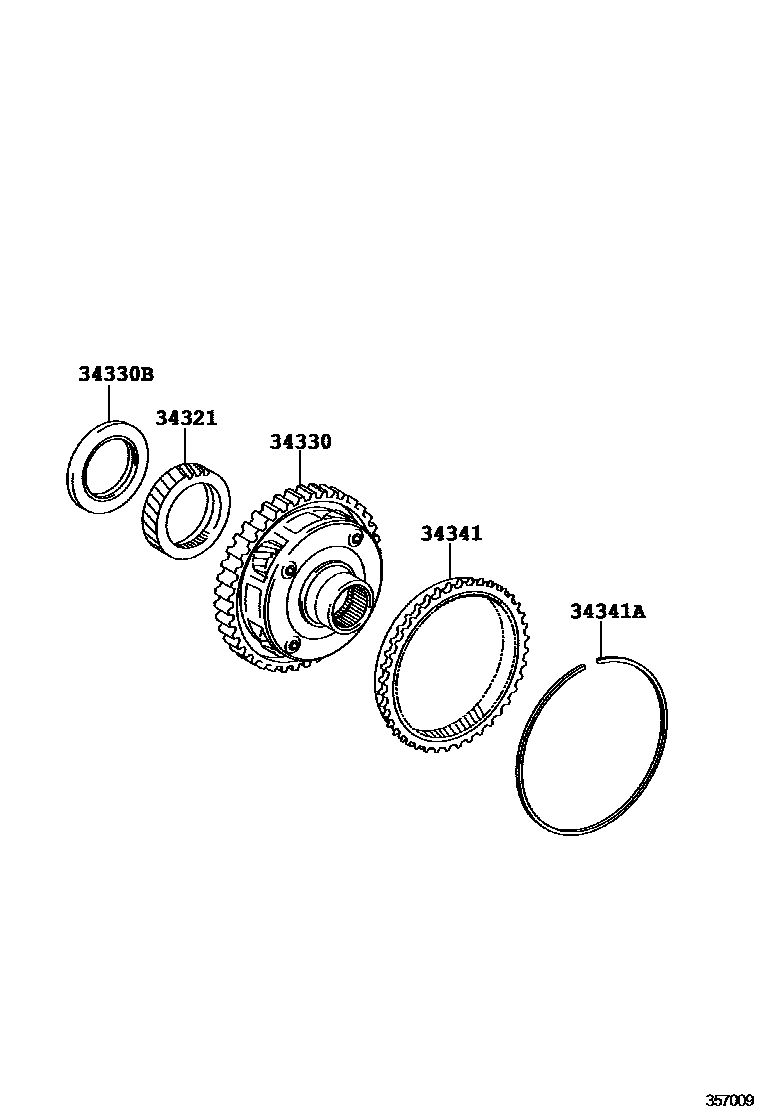

Toyota CAMRY EPC diagram 3506, 超速档齿轮(ATM), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34321 | Low speed planetary gear system sun gear | 34321-33010 · 34321-73010 |
| 34330 | Low speed planetary gear assembly | 34330-07020 · 34330-33040 · 34330-33050 · 34330-73010 |
| 34330B | Thrust needle roller bearing | 90374-57003 · 90374-57006 · 90374-A0024 · 90374-A0039 |
| 34341 | Low speed planetary ring gear | 34341-0R010 · 34341-33030 · 34341-33040 · 34341-33050 |
| 34341A | Hole snap ring (for low speed planetary ring gear) | 90520-99104 · 90520-A0010 |
