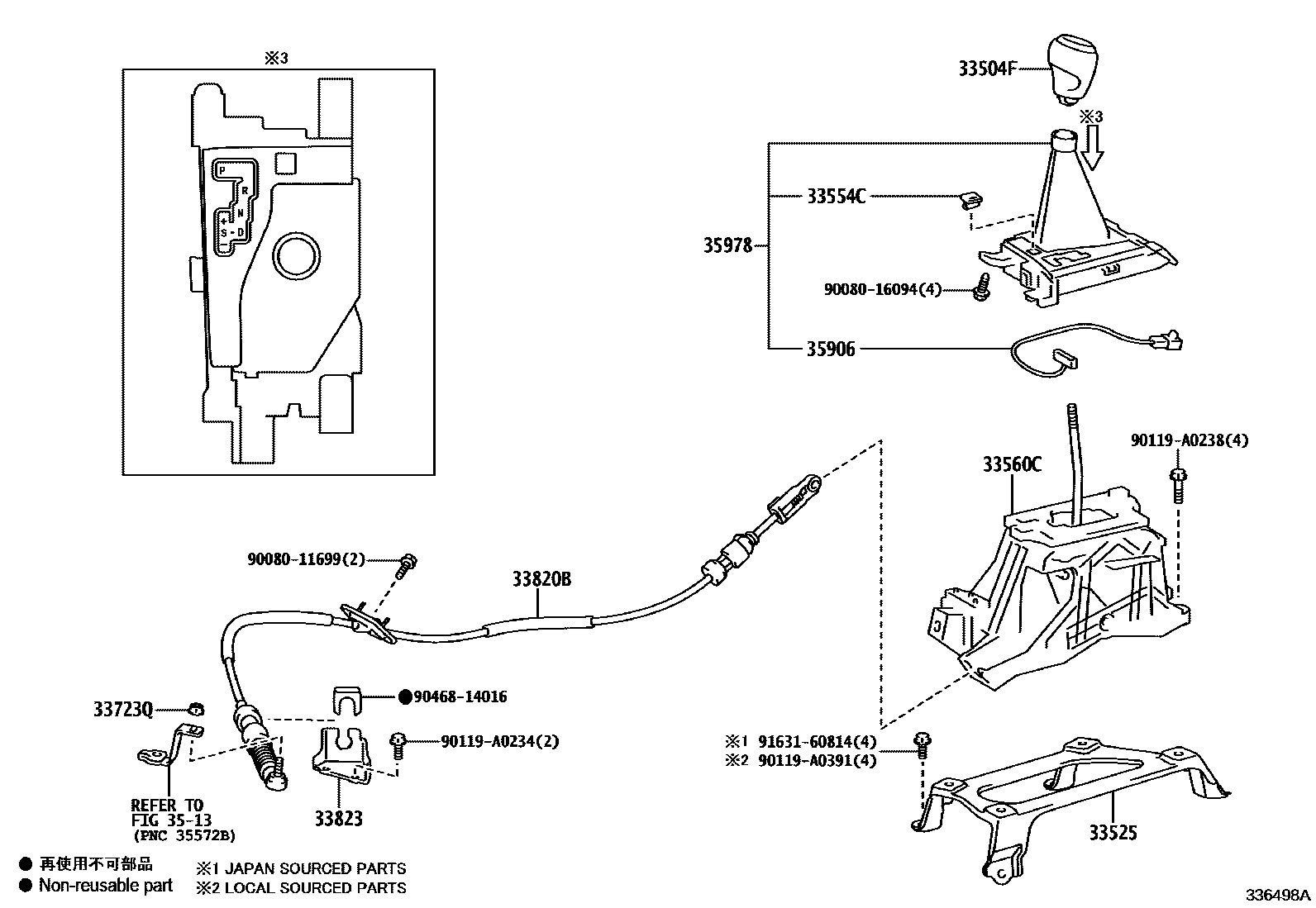

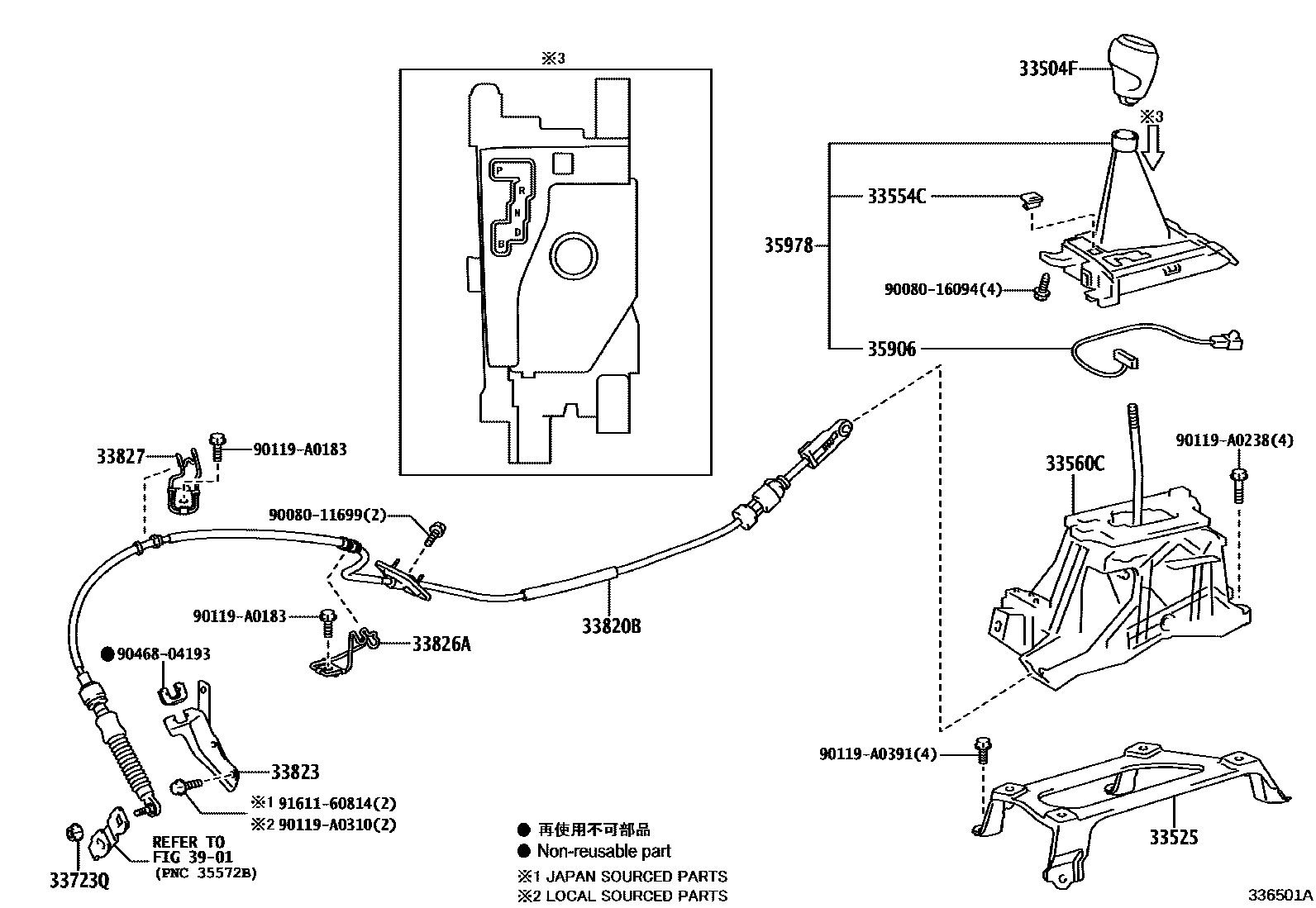

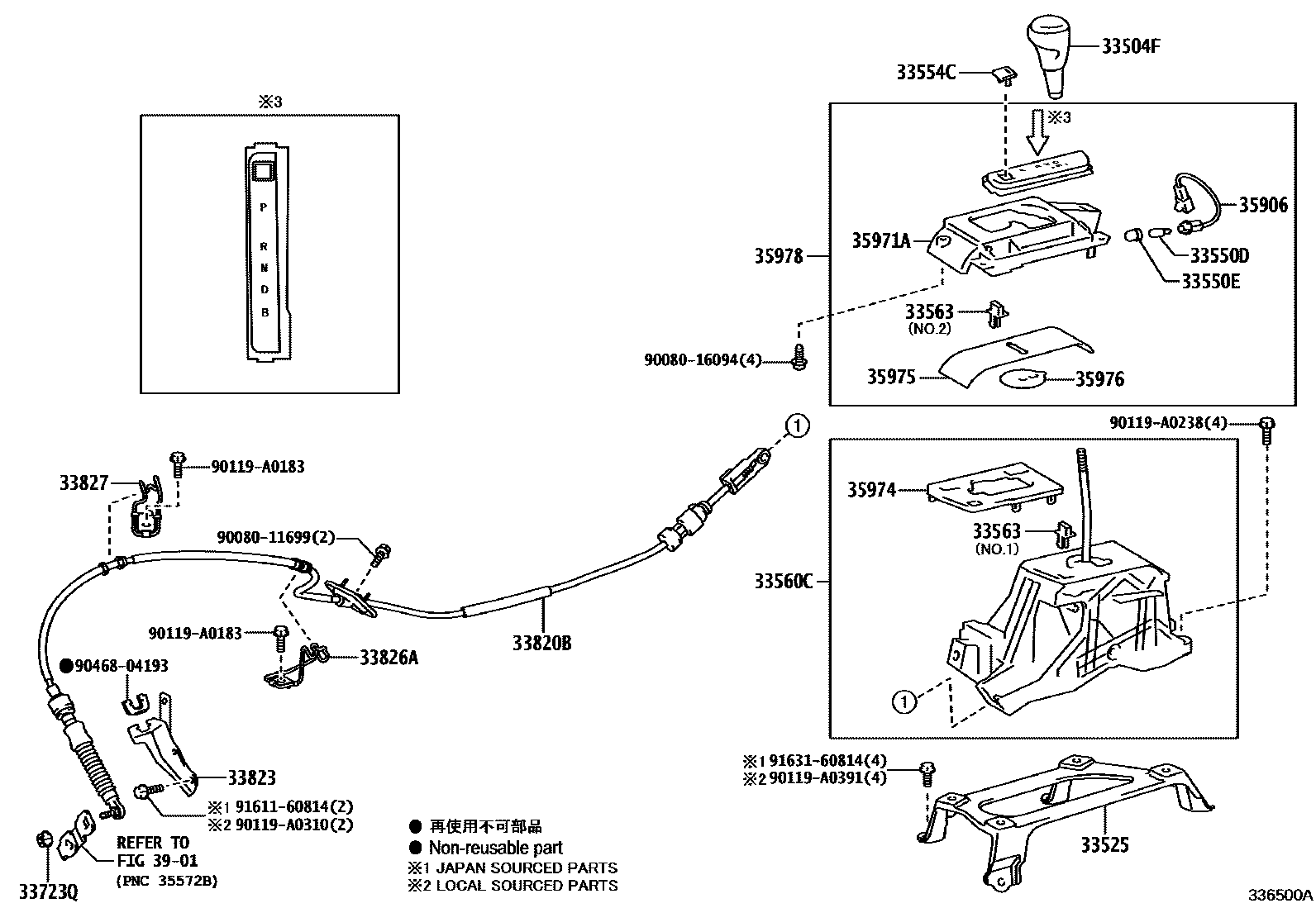

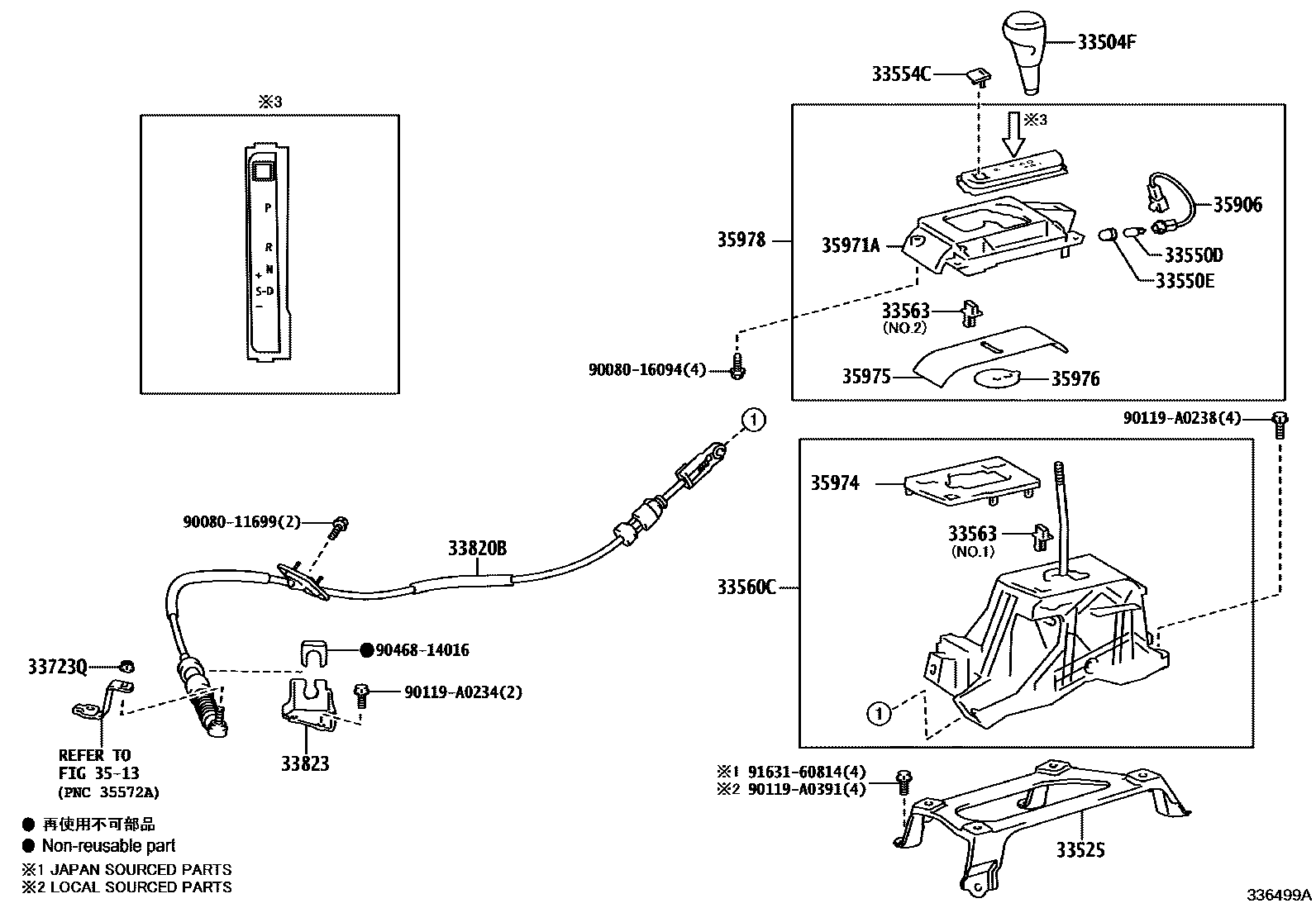

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33542-06260 · 33542-06280 |
| 33525 | shift lever bracket | 58123-06010 |
| 33550D | position indicator light bulb | 90981-11040 |
| 33550E | position indicator cover | 90339-04053 |
| 33554C | Shift lock release button cover | 33554-06060 · 33554-06070 |
| 33560C | Lower shift lever assembly | 33560-06230 · 33560-06240 · 33560-06250 · 33560-06310 · 33560-06311 · 33560-06320 · 33560-06321 · 33560-06370 · 33560-06371 |
| 33563 | Shift lock release button | 33563-06190 · 33563-06200 |
| 33723Q | Nut (for connecting rod swivel joint) | 90080-17229 |
| 33820B | Transmission control cable assembly | 33820-06400 · 33820-06410 · 33820-06490 |
| 33823 | No. 1 transmission control cable bracket | 33823-06010 · 33823-33060 |
| 33826A | No. 2 transmission control cable bracket | 33826-33060 |
| 33827 | No. 3 transmission control cable bracket | 33827-33050 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06190 · 35906-06230 · 35906-06240 |
| 35971A | Position indicator light upper shell | 35971-06040 · 35971-06041 |
| 35974 | Position indicator light lower shell | 35974-06080 |
| 35975 | Slide cover (for position indicator light) | 35975-06100 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06110 |
| 35978 | Shift lever position indicator light | 35978-06010 · 35978-06011 · 35978-06020 · 35978-06021 |
