Toyota CAMRY 燃油喷射系统 — Figure 2211

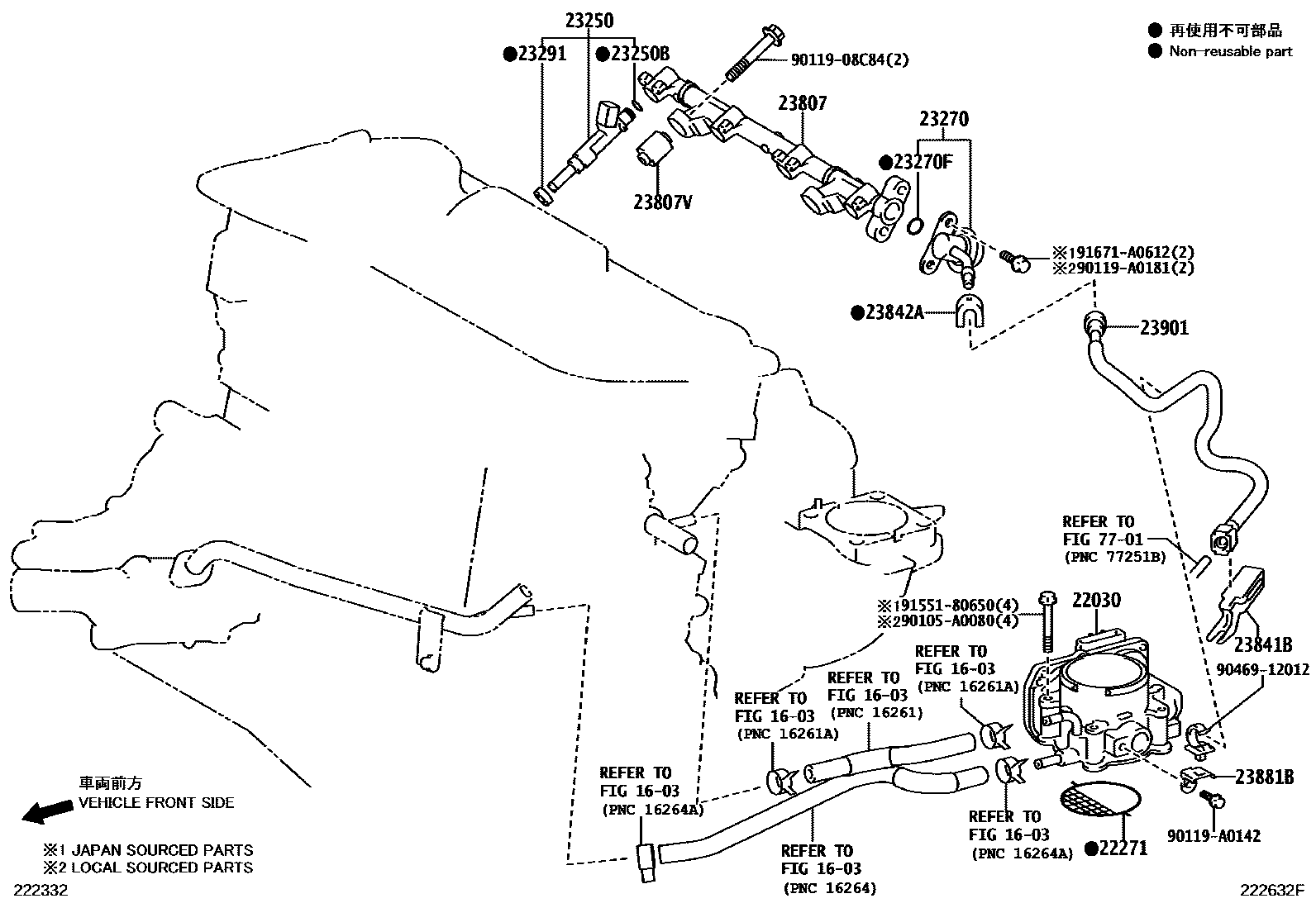

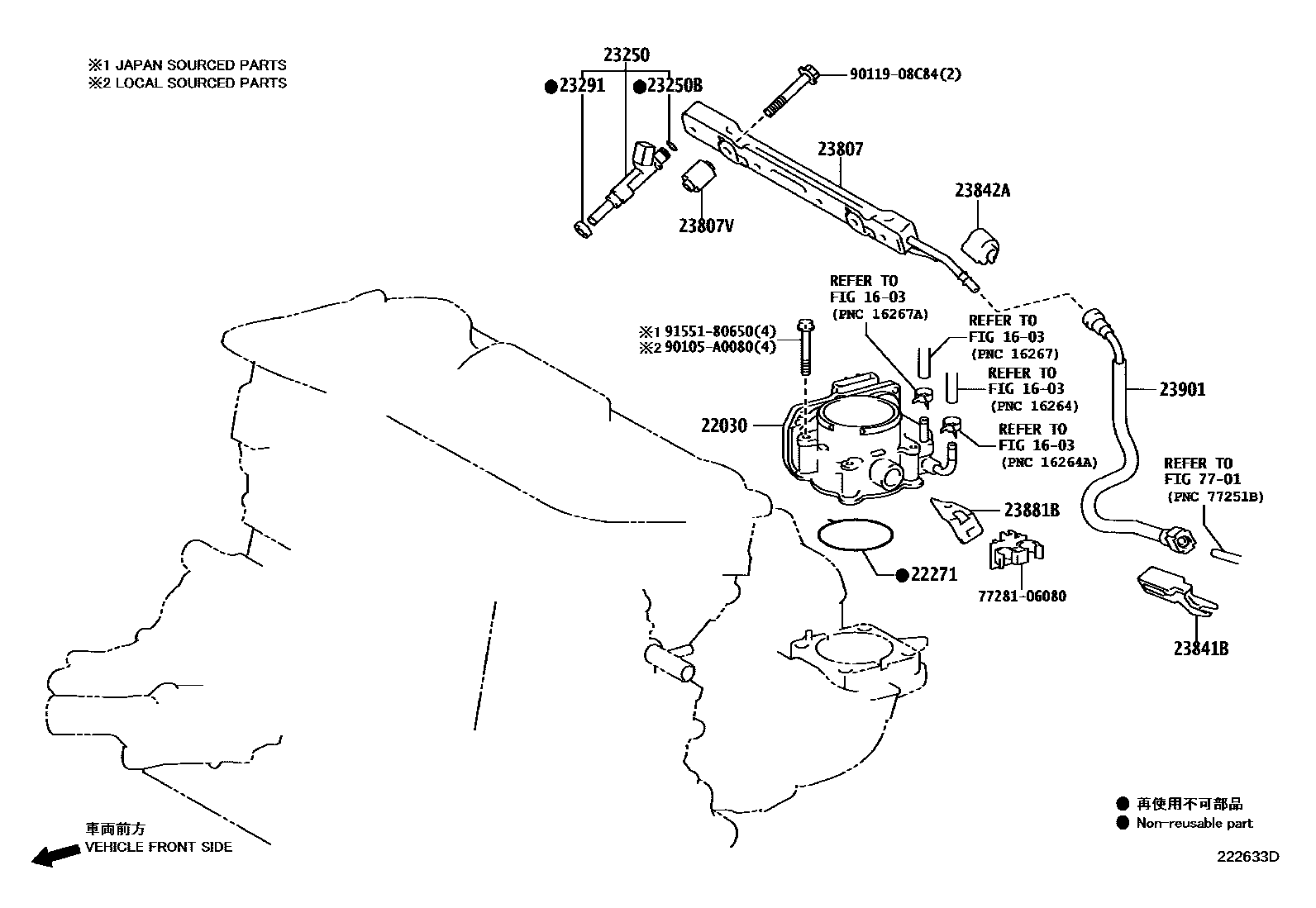

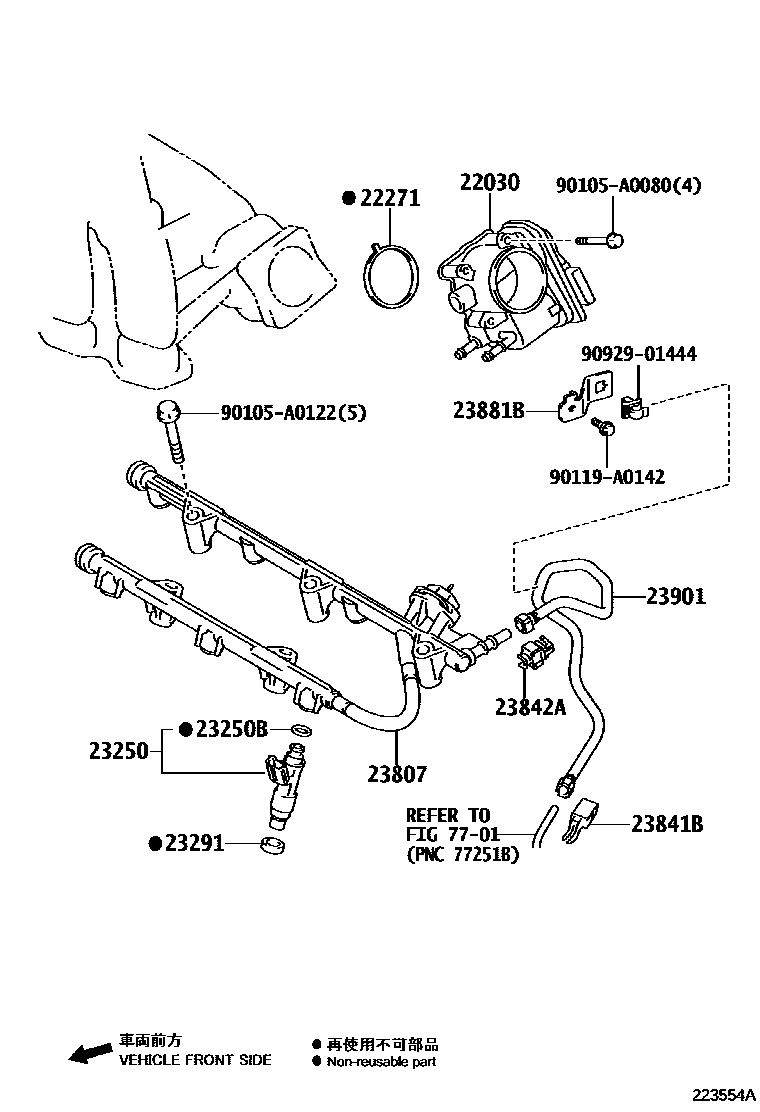

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0P050 · 22030-0V010 · 22030-0V050 · 22030-36010 · 22030-36020 |
| 22271 | Throttle body gasket | 22271-0P020 · 22271-0V010 · 22271-36010 · 22271-36020 |
| 23250 | Fuel injector assembly | 23209-09175 · 23209-0P010 · 23209-31090 · 23209-39175 |
| 23250B | O-ring (for fuel injector) | 90301-07033 · 90301-07037 · 90301-A0036 · 90301-A0037 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-36031 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0V020 · 23291-23010 · 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23814-36030 · 23814-36040 · 23814-36050 · 23870-0P011 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-36010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0P070 · 23841-31070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0P060 · 23842-0T030 · 23842-28010 · 23842-31040 |
| 23881B | fuel hose bracket | 23881-0V010 · 23881-36030 · 23881-AD010 |
| 23901 | Fuel pipe sub-assembly | 23901-0P120 · 23901-0V060 · 23901-0V070 |
