Toyota CAMRY Alternator — Figure 1903

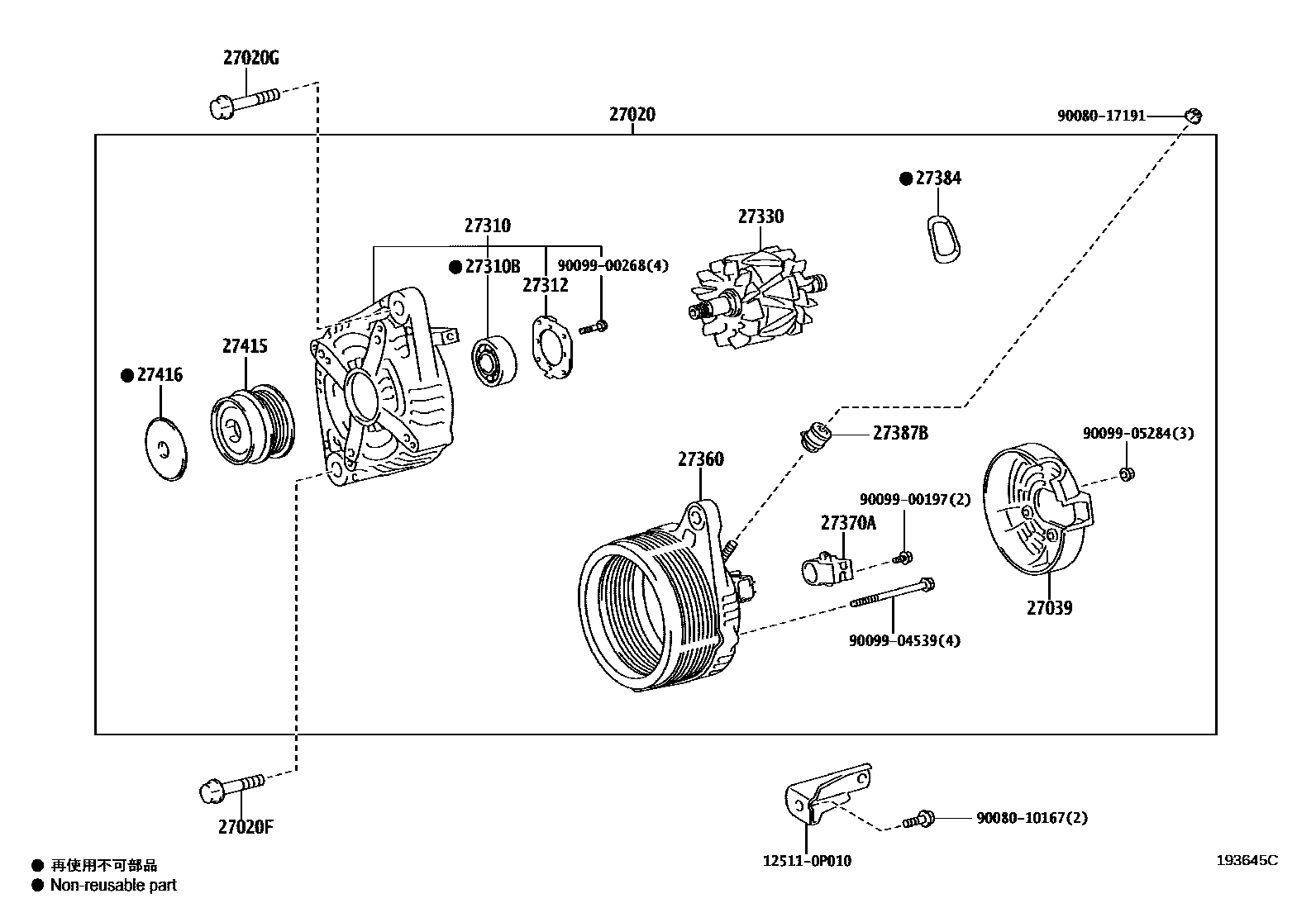

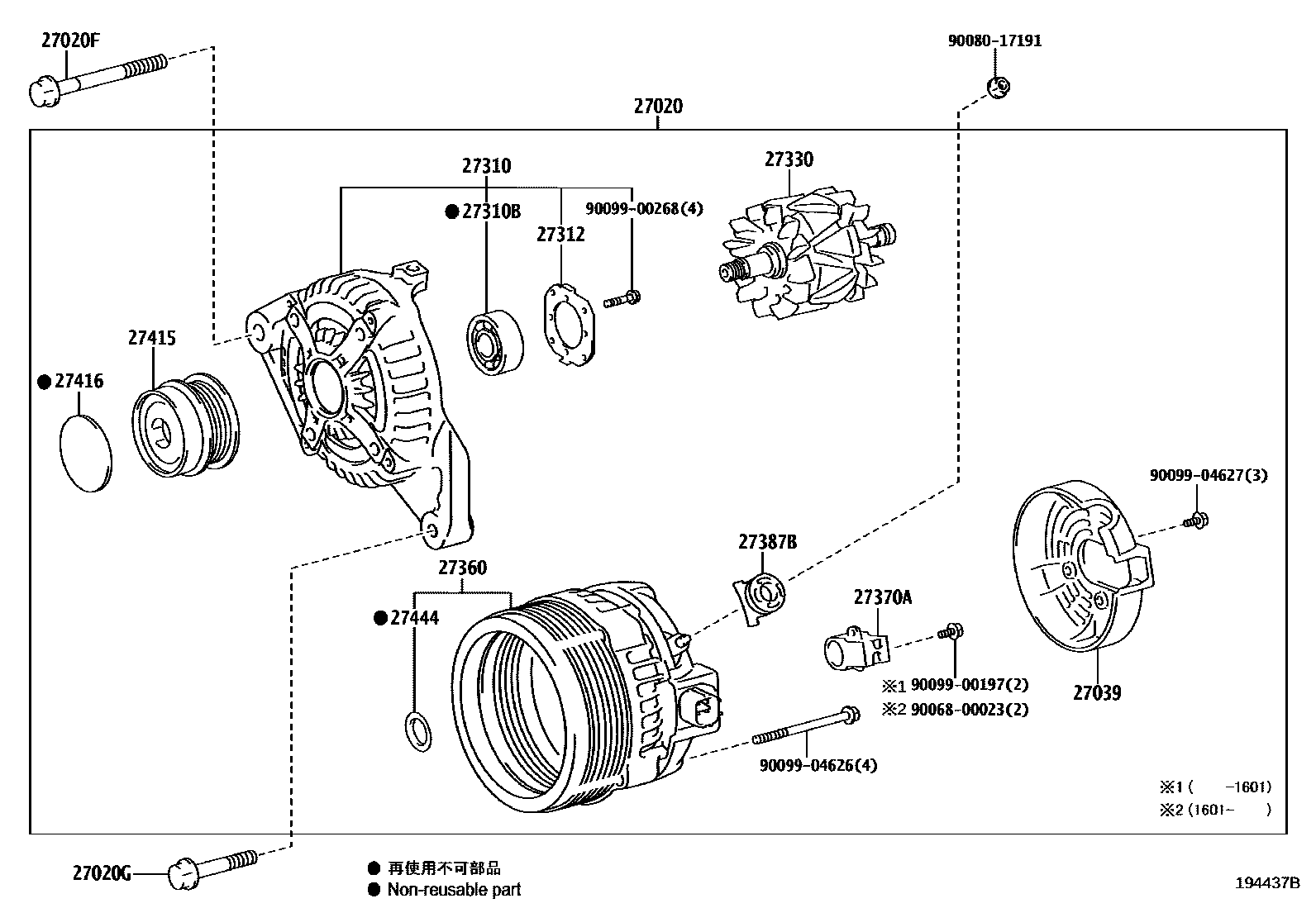

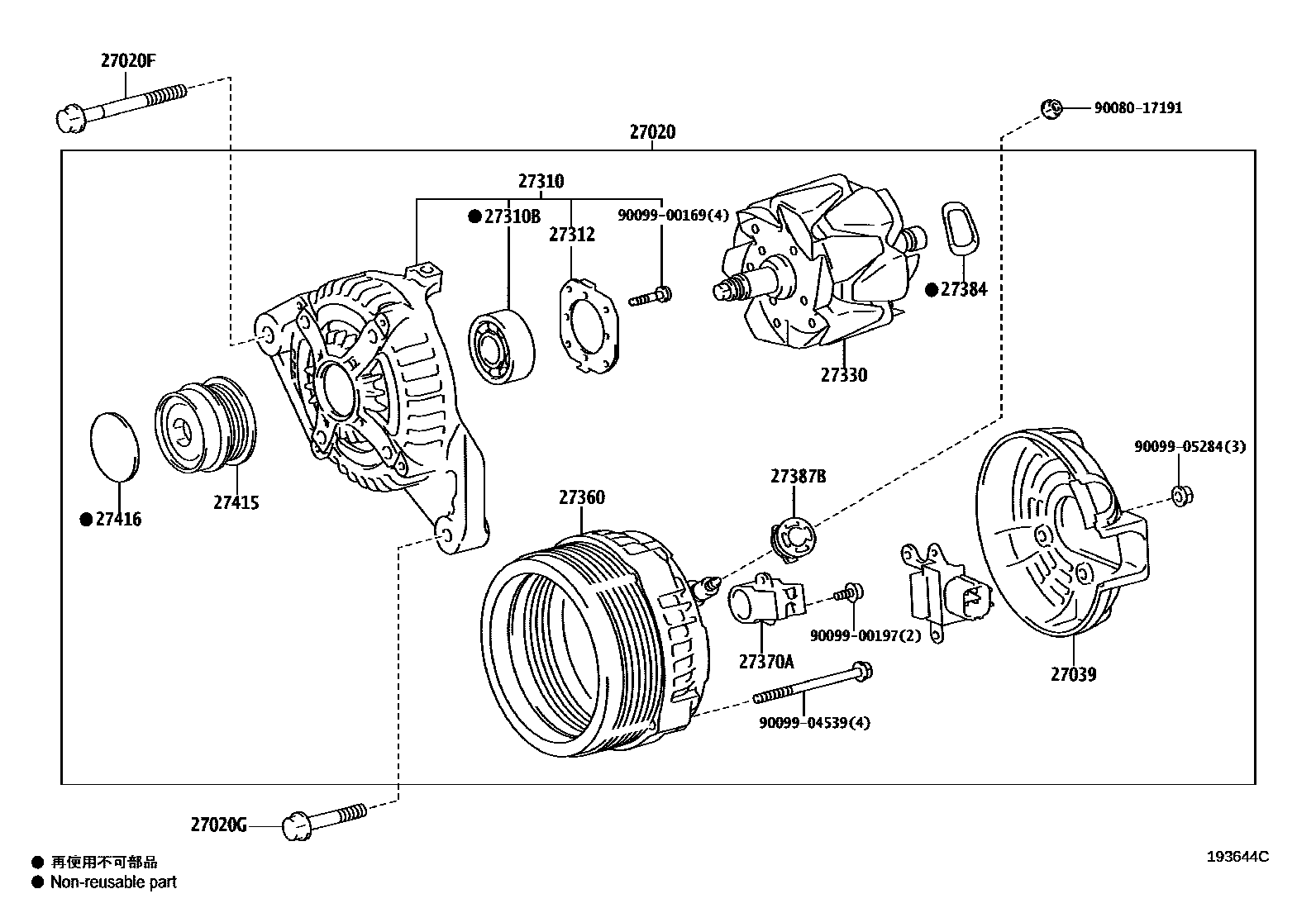

Toyota CAMRY EPC diagram 1903, Alternator, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0P141 · 27060-0V010 · 27060-0V170 |
| 27020F | Bolt No. 1 (for generator) | 90105-A0107 · 90105-A0230 |
| 27020G | Bolt No. 2 (for generator) | 90105-A0129 · 90105-A0166 |
| 27039 | Alternator Rear End Cover | 27039-0C170 · 27039-0T040 · 27039-47330 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0P140 · 27310-0V010 · 27310-0V160 · 27310-36160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0C170 · 27330-0F060 · 27330-47330 |
| 27360 | Alternator Stator Coil Assembly | 27360-0P140 · 27360-0V010 · 27360-0V200 · 27360-36161 |
| 27370A | Alternator Brush Holder Assembly | 27370-0P020 · 27370-0V160 · 27370-31220 |
| 27384 | Washer | 27384-0A020 |
| 27387B | Generator terminal insulation pad | 27387-0V060 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W020 · 27415-0W021 · 27415-0W130 · 27415-0W131 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0C170 · 27444-21190 |
