Toyota CAMRY 点火线圈和火花塞 — Figure 1901

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.

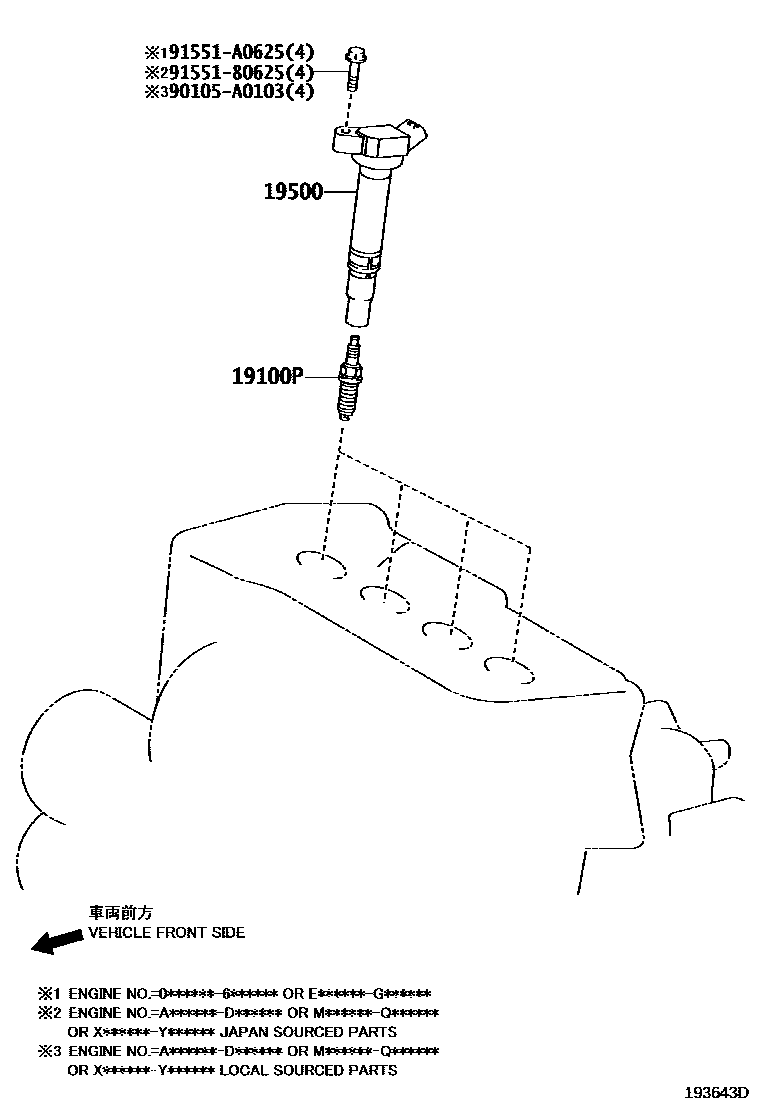

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 193643D
点火线圈和火花塞 — 193643D (201109 – 999999)

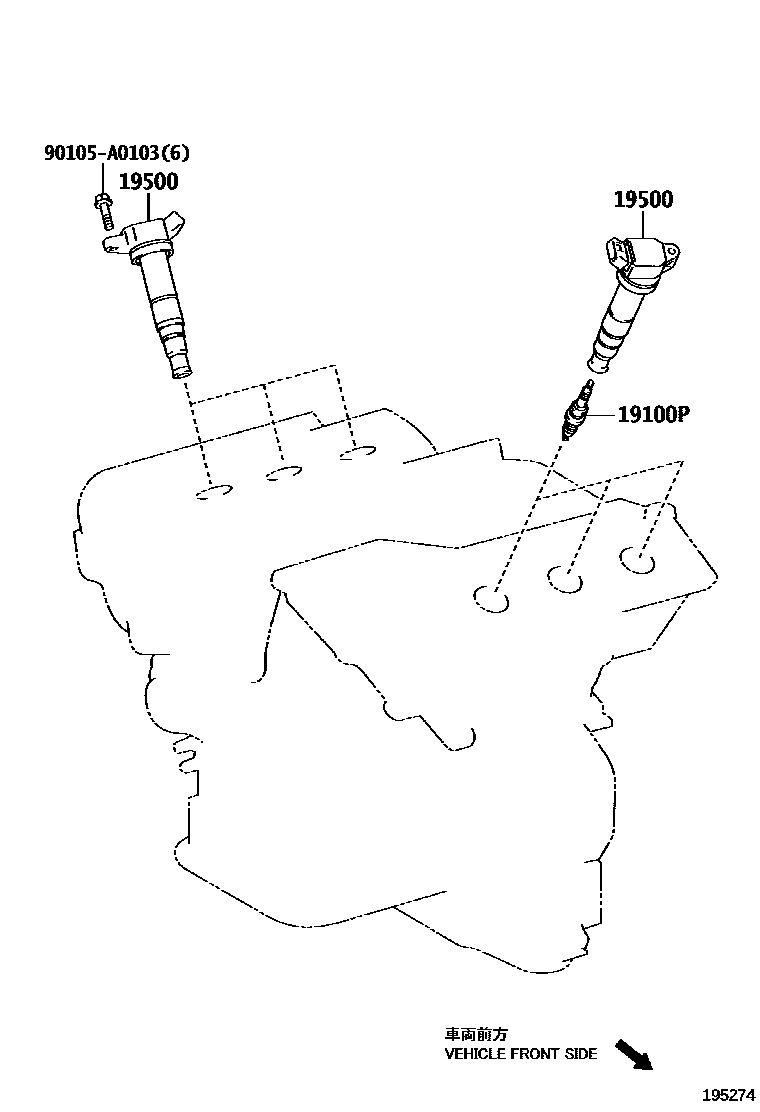

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 195274
点火线圈和火花塞 — 195274 (201109 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01233 · 90919-01247 · 90919-01259 · 90919-A1003
19500Ignition coil assembly90919-02256 · 90919-A2005 · 90919-A2007
