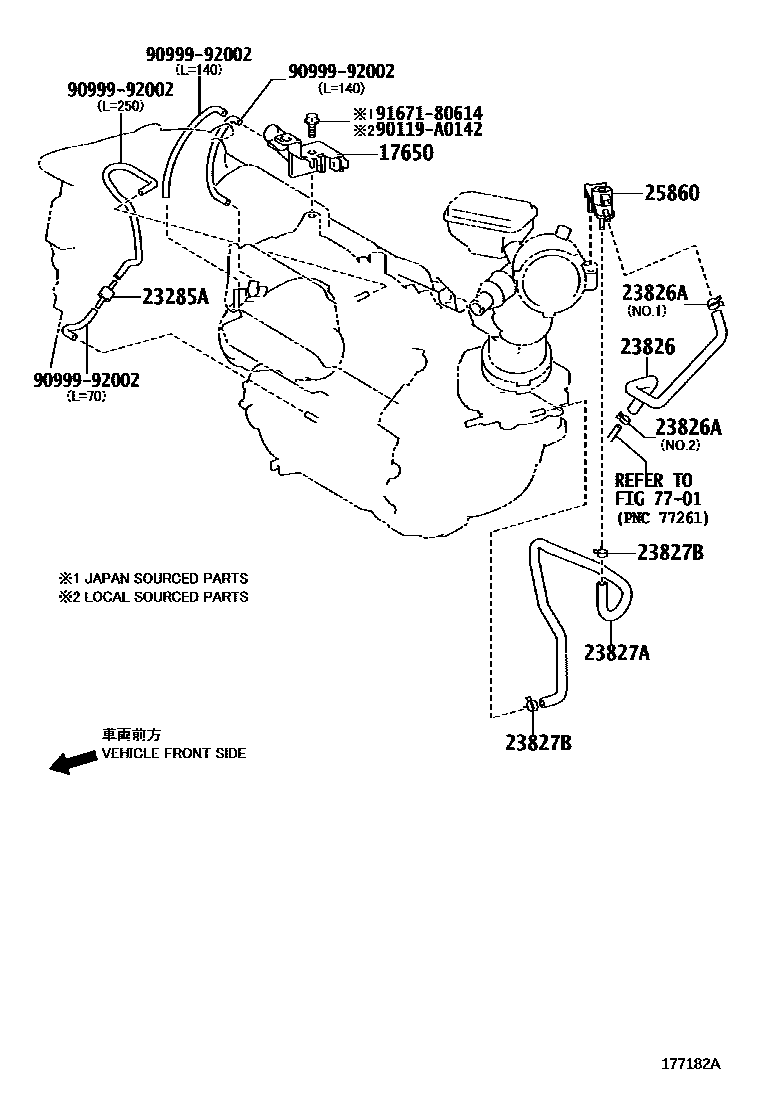

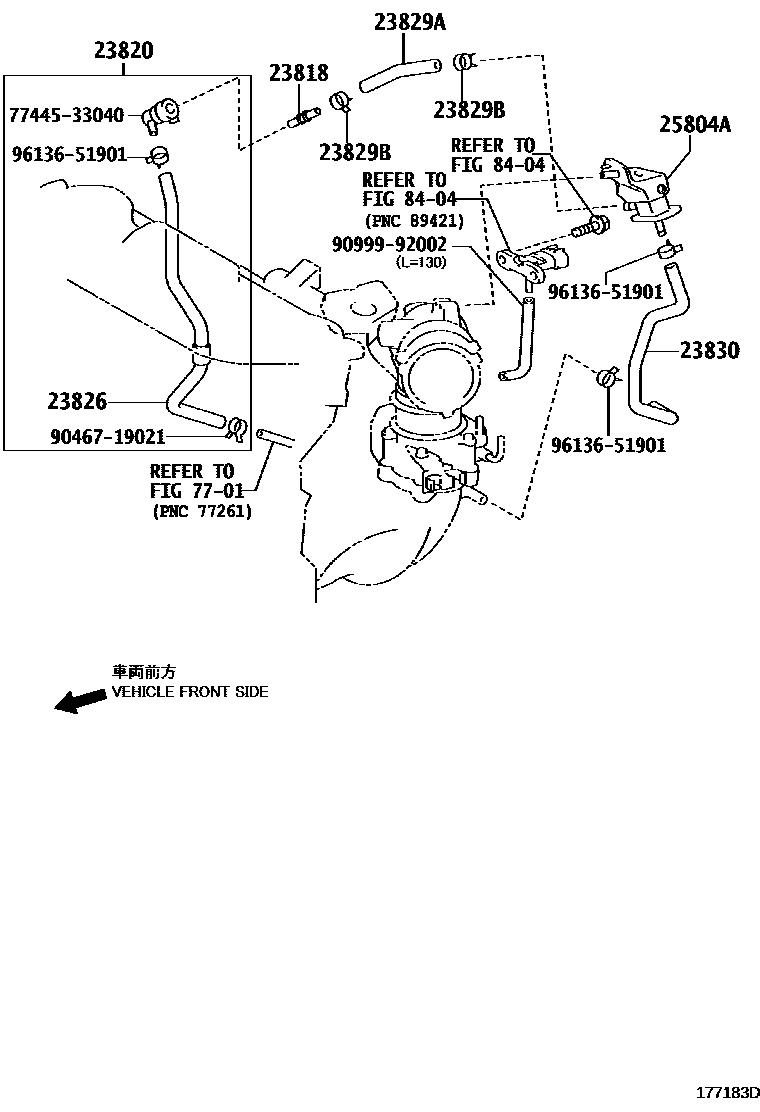

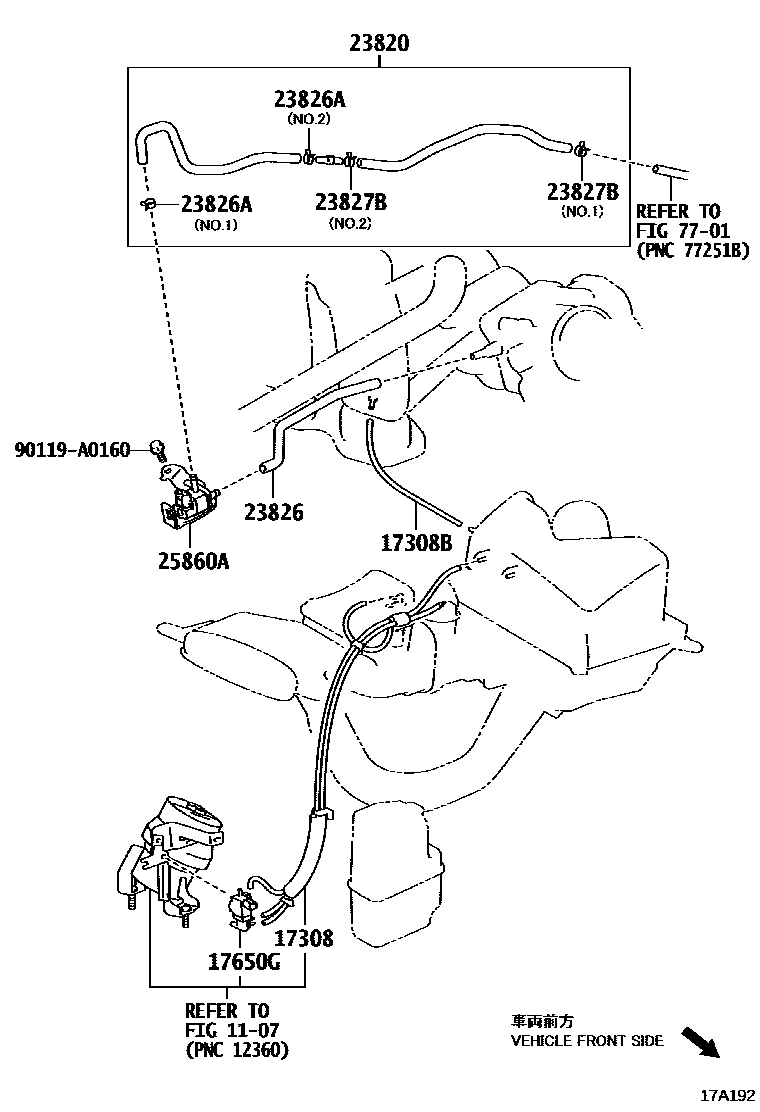

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-0P110 · 17308-0P111 |
| 17308B | Vacuum hose sub-assembly | 90999-92003 |
| 17650 | Vacuum switch valve assembly | 25860-0V050 · 25860-36010 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12204 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23818 | Fuel vapor supply pipe | 23818-36010 |
| 23820 | Fuel vapor supply hose assembly | 23820-0P200 · 23820-0V090 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0P040 · 23826-0V100 · 23826-0V110 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90466-13004 · 90466-13005 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0V050 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-13004 · 90466-13005 · 96132-51100 |
| 23829A | Fuel vapor supply hose | 23829-36010 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-51901 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0V050 |
| 25804A | Vacuum switch valve sub-assembly | 25805-36020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V040 |
| 25860A | No. 1 vacuum switch valve | 25860-31070 |
