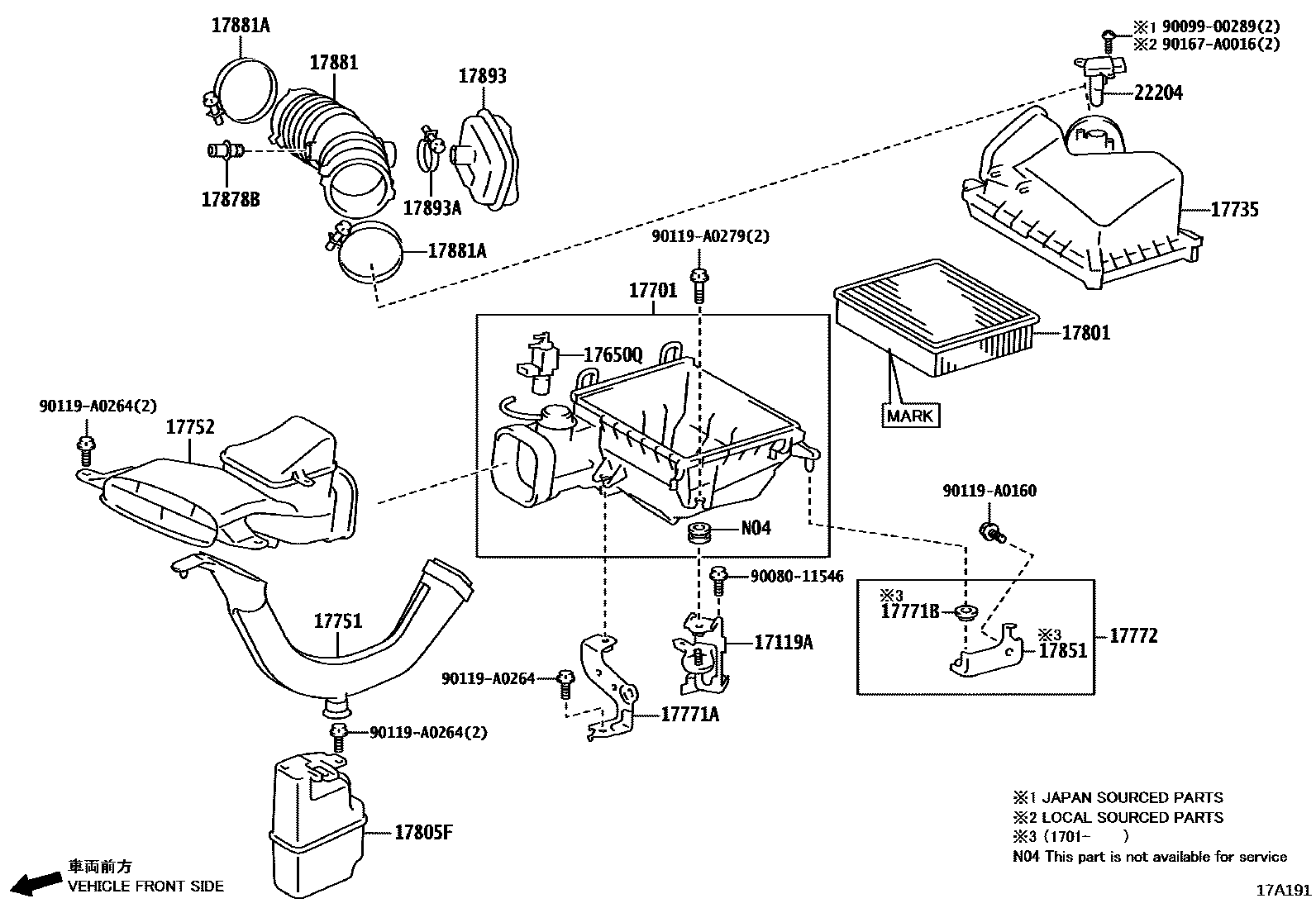

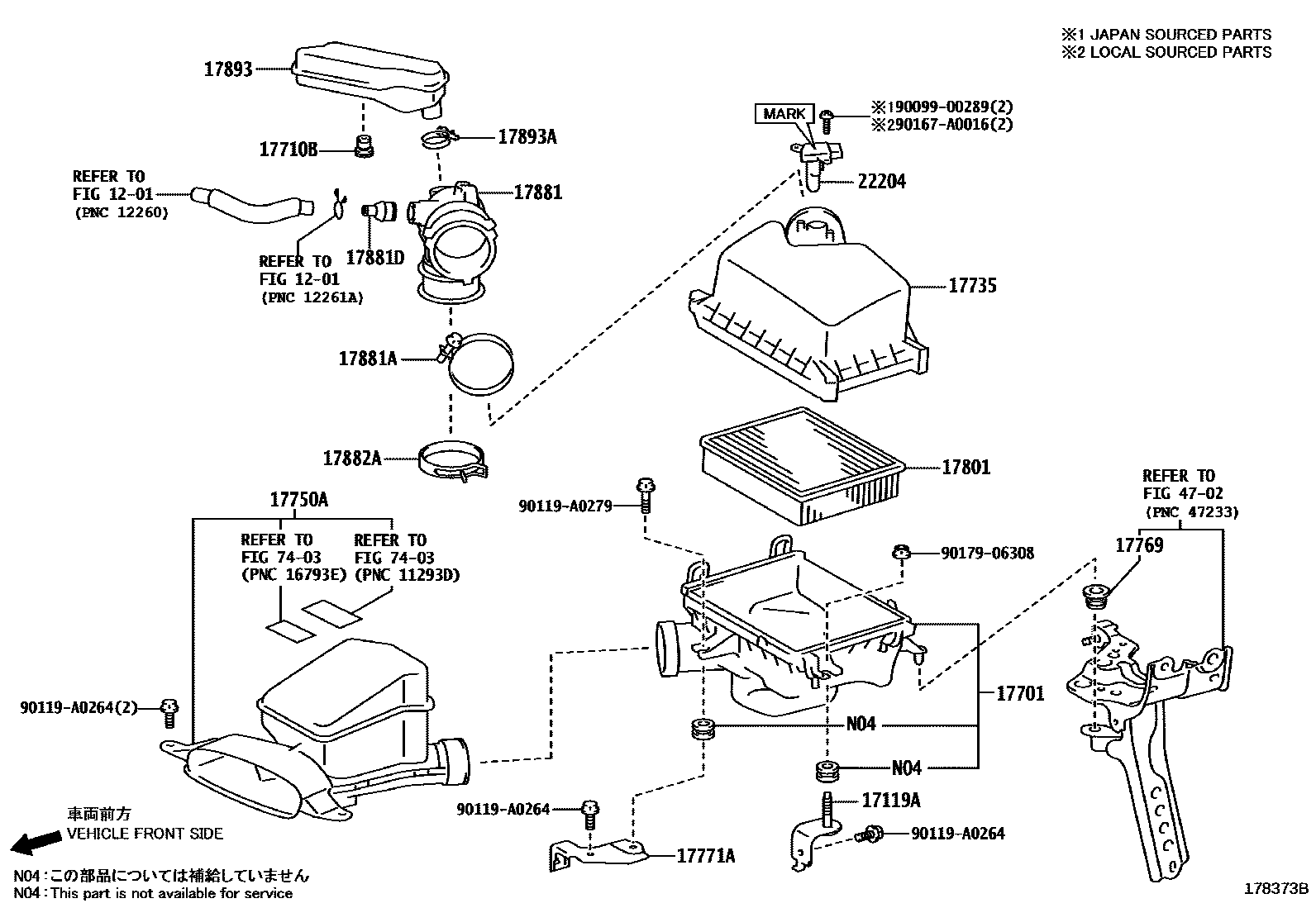

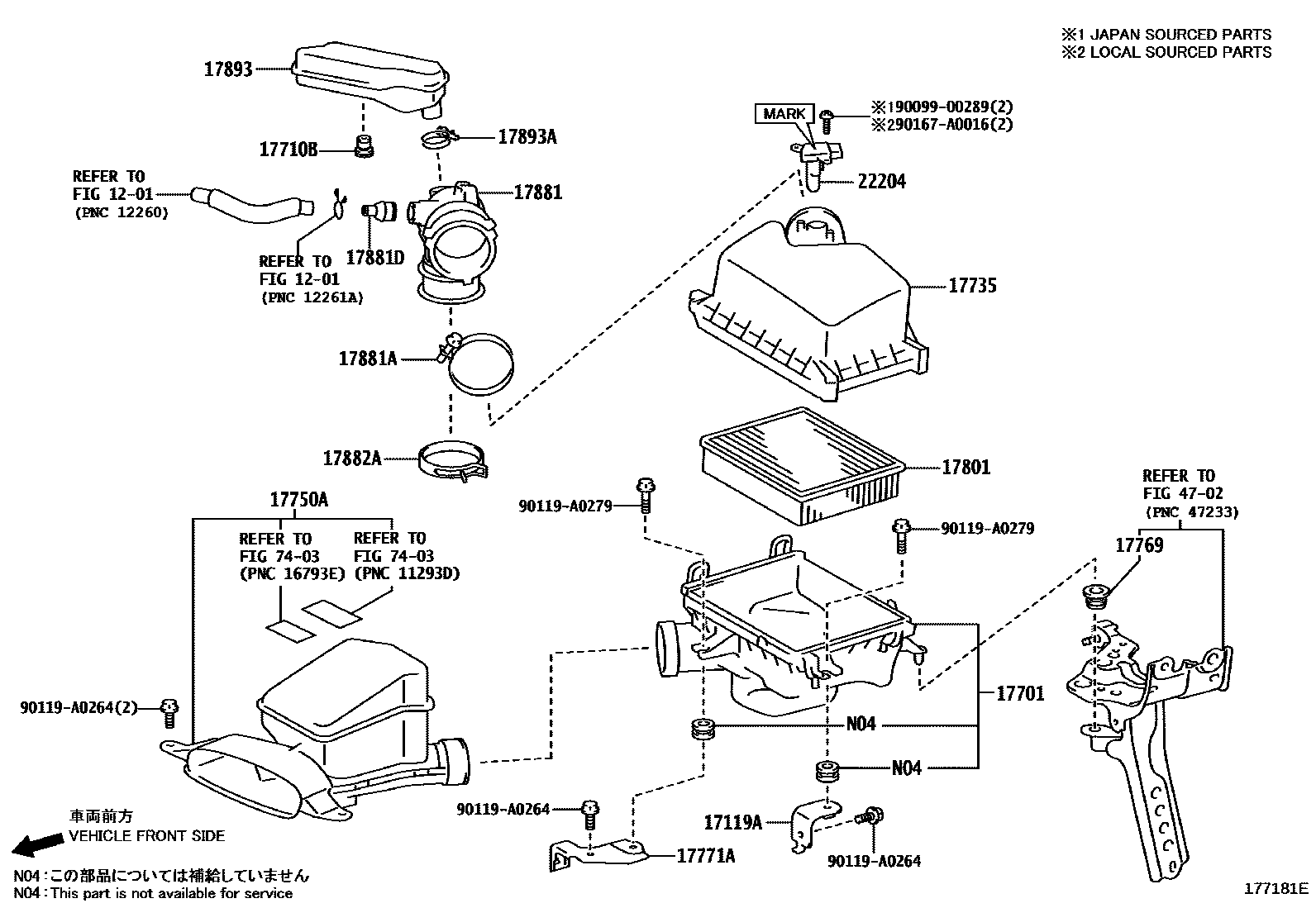

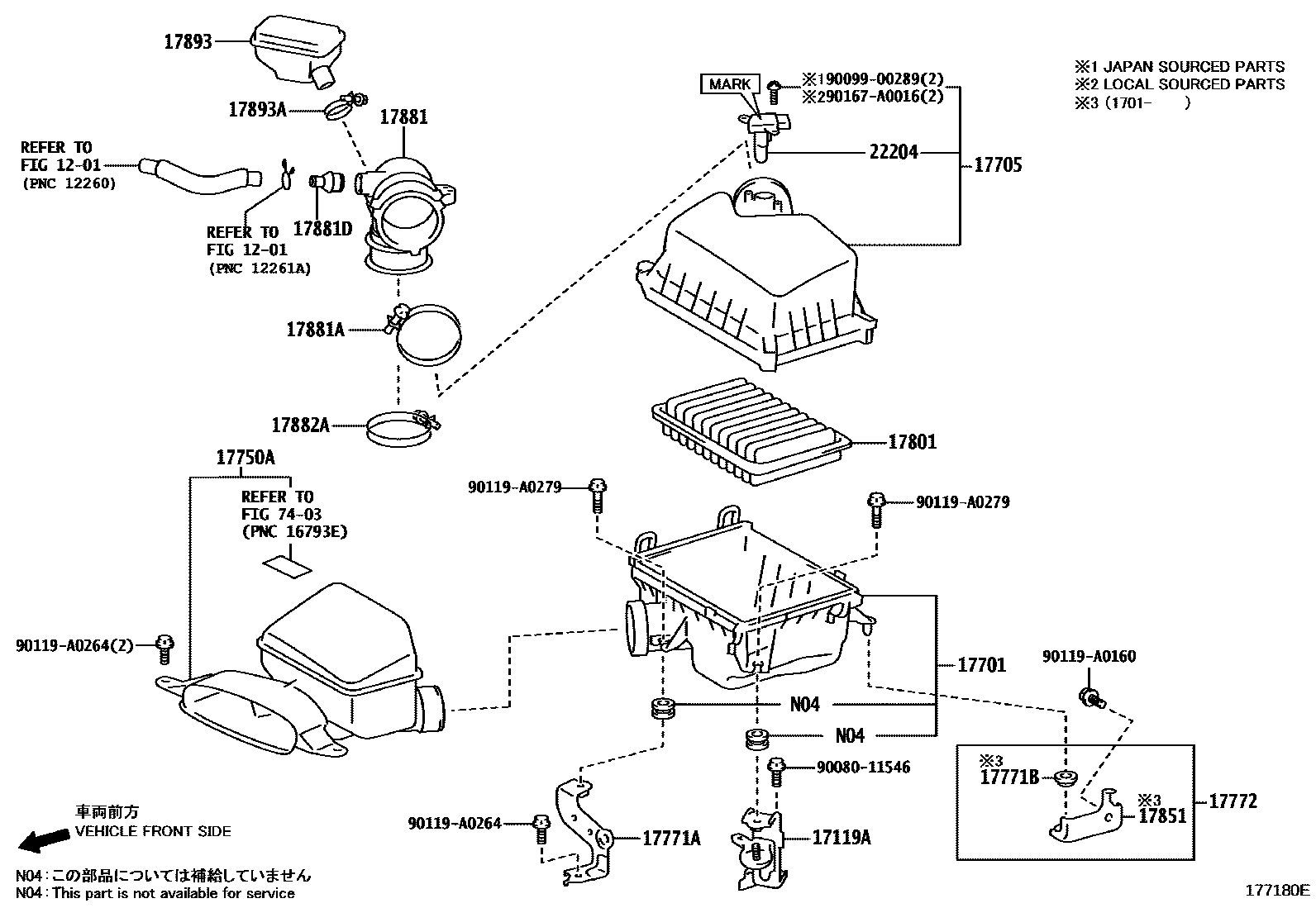

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0V020 · 17119-0V030 · 17119-0V031 |
| 17650Q | Vacuum switch valve | 90910-AC002 |
| 17701 | Air filter housing sub-assembly | 17701-0P070 · 17701-0V020 · 17701-0V030 |
| 17705 | Air filter cover sub-assembly | 17705-0V020 |
| 17710B | gasket | 90480-16049 |
| 17735 | air filter cover | 17735-0P100 · 17735-0V030 |
| 17750A | Air filter air inlet assembly | 17750-0V030 · 17750-0V031 · 17750-0V040 · 17750-0V041 |
| 17751 | No. 1 air filter air inlet | 17751-0P160 |
| 17752 | No. 2 air filter air inlet | 17752-0P100 · 17752-0P101 |
| 17769 | air filter bracket | 17769-0V010 |
| 17771A | air filter bracket | 17771-0V010 · 17771-0V020 · 17771-36030 · 17771-36040 |
| 17771B | Gasket (for air cleaner holder) | 90480-18006 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0V010 |
| 17801 | Air filter element sub-assembly | 17801-0H050 · 17801-0P051 · 17801-0V020 · 17801-28030 · 17801-31131 · 17801-38011 |
| 17805F | Intake resonator sub-assembly | 17805-0P030 |
| 17851 | air filter bracket | 17851-36020 |
| 17878B | ventilation duct | 17878-0P020 |
| 17881 | No. 1 air cleaner hose | 17881-0P130 · 17881-0V070 · 17881-0V090 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10850 |
| 17893 | Intake resonator | 17893-0P120 · 17893-0V060 · 17893-0V070 |
| 17893A | hose clamp | 96111-10380 · 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0V010 · 22204-0V020 · 22204-28010 |
