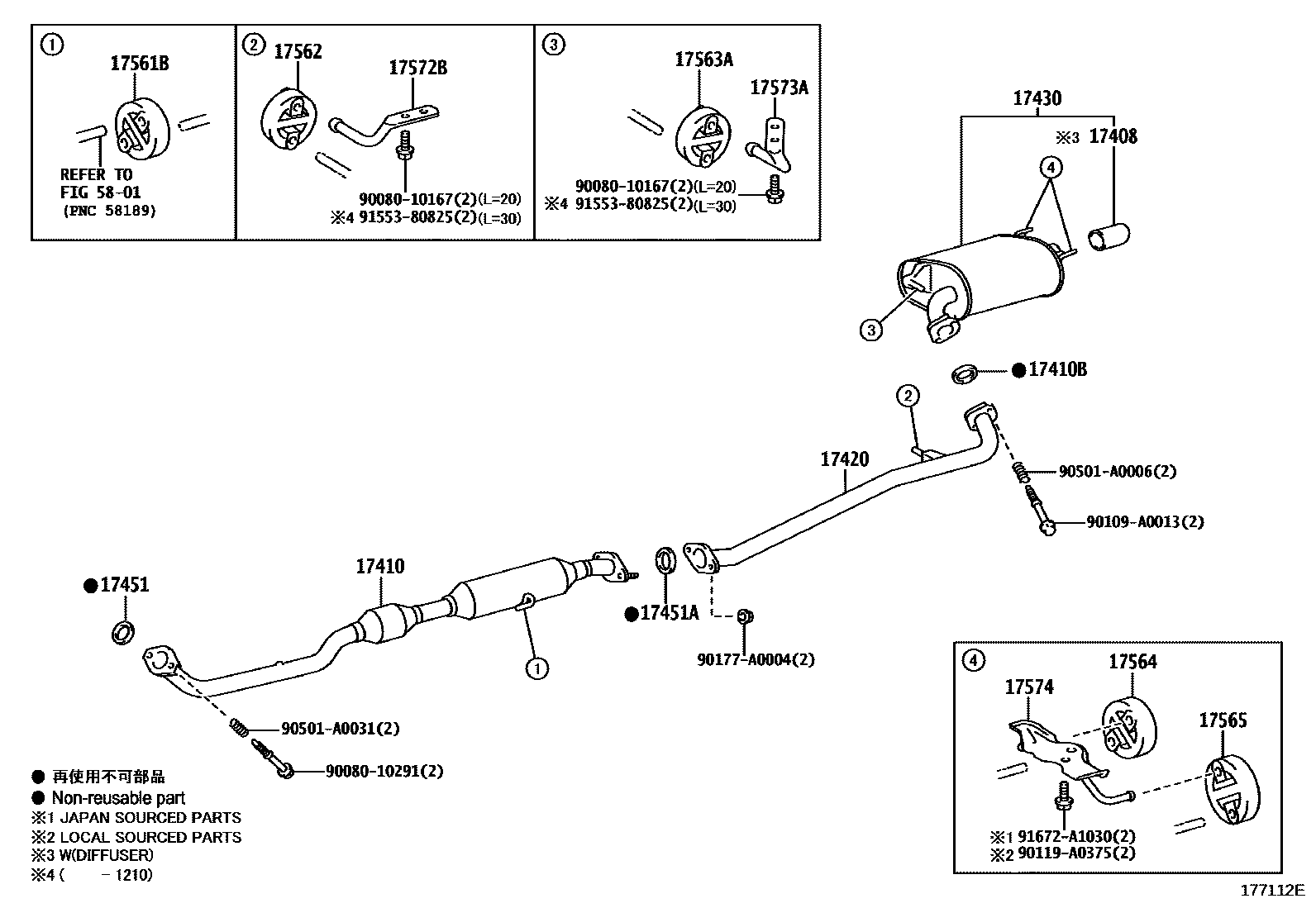

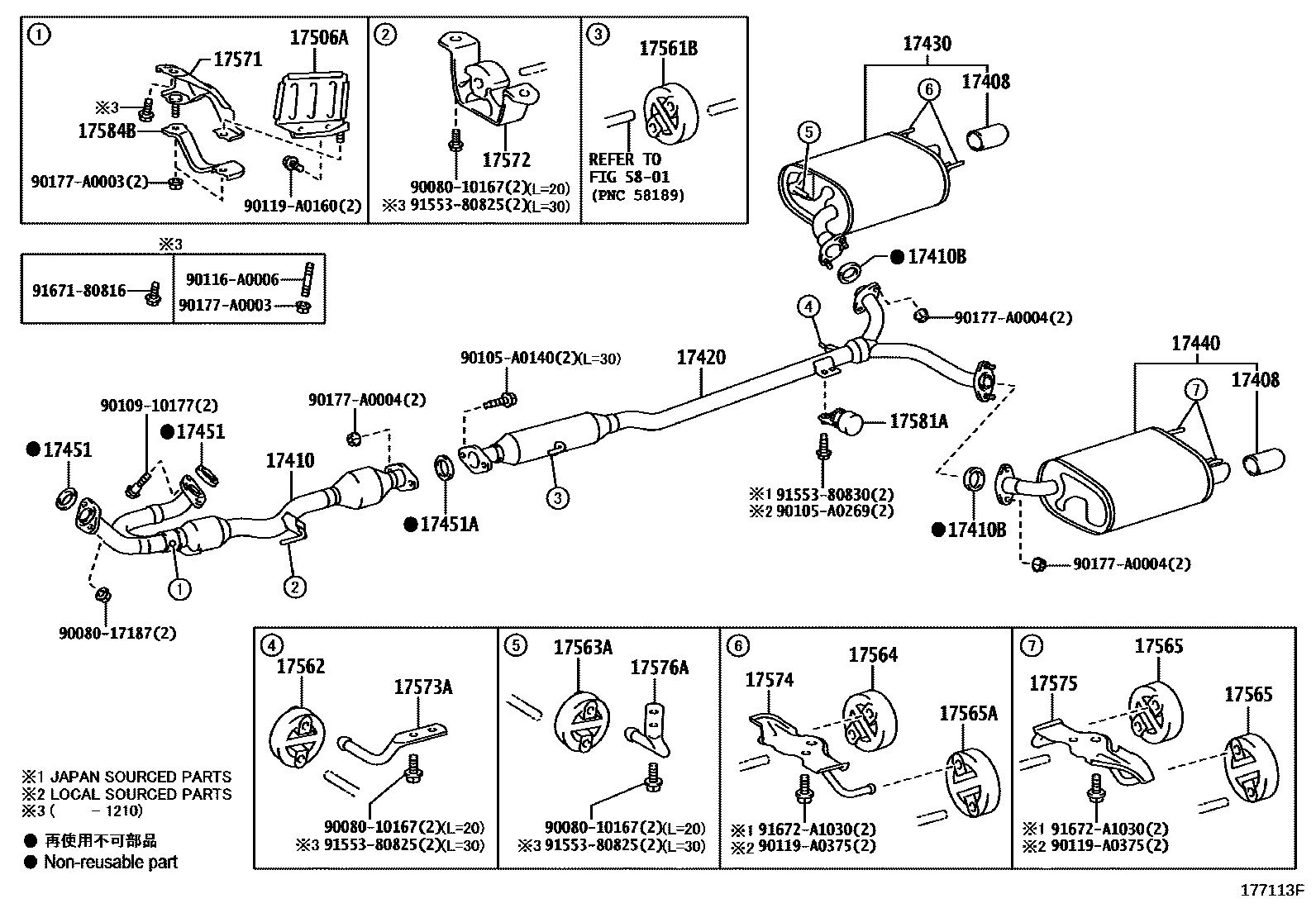

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-0V010 |
| 17410 | Front exhaust pipe assembly | 17410-0P350 · 17410-0V090 · 17410-0V100 · 17410-0V110 |
| 17410B | Exhaust pipe gasket | 17451-0V040 · 90080-43028 · 90917-06045 |
| 17420 | Central exhaust pipe assembly | 17420-0P230 · 17420-0V090 |
| 17430 | Exhaust tailpipe assembly | 17430-0P290 · 17430-0P291 · 17430-0V030 · 17430-0V031 · 17430-0V040 · 17430-0V041 |
| 17440 | Left exhaust tailpipe | 17440-0P040 · 17440-0P041 |
| 17451 | Exhaust pipe gasket | 17451-0D150 · 17451-0V020 · 90080-43036 · 90917-06089 |
| 17451A | No. 2 exhaust pipe gasket | 90080-43033 · 90917-06076 · 90917-06078 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-0P010 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P031 · 17565-0P051 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0P031 · 17565-0P041 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0P041 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0P031 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P051 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P051 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0P020 |
| 17572 | No. 1 exhaust pipe bracket | 17572-0H020 |
| 17572B | No. 2 exhaust pipe bracket | 17573-0V010 |
| 17573A | No. 3 exhaust pipe bracket | 17573-0V010 · 17576-0V010 |
| 17574 | No. 4 exhaust pipe bracket | 17574-0V010 · 17574-0V011 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0P110 · 17575-0P111 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0V010 |
| 17581A | Exhaust pipe damper | 17581-67010 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0P020 |
