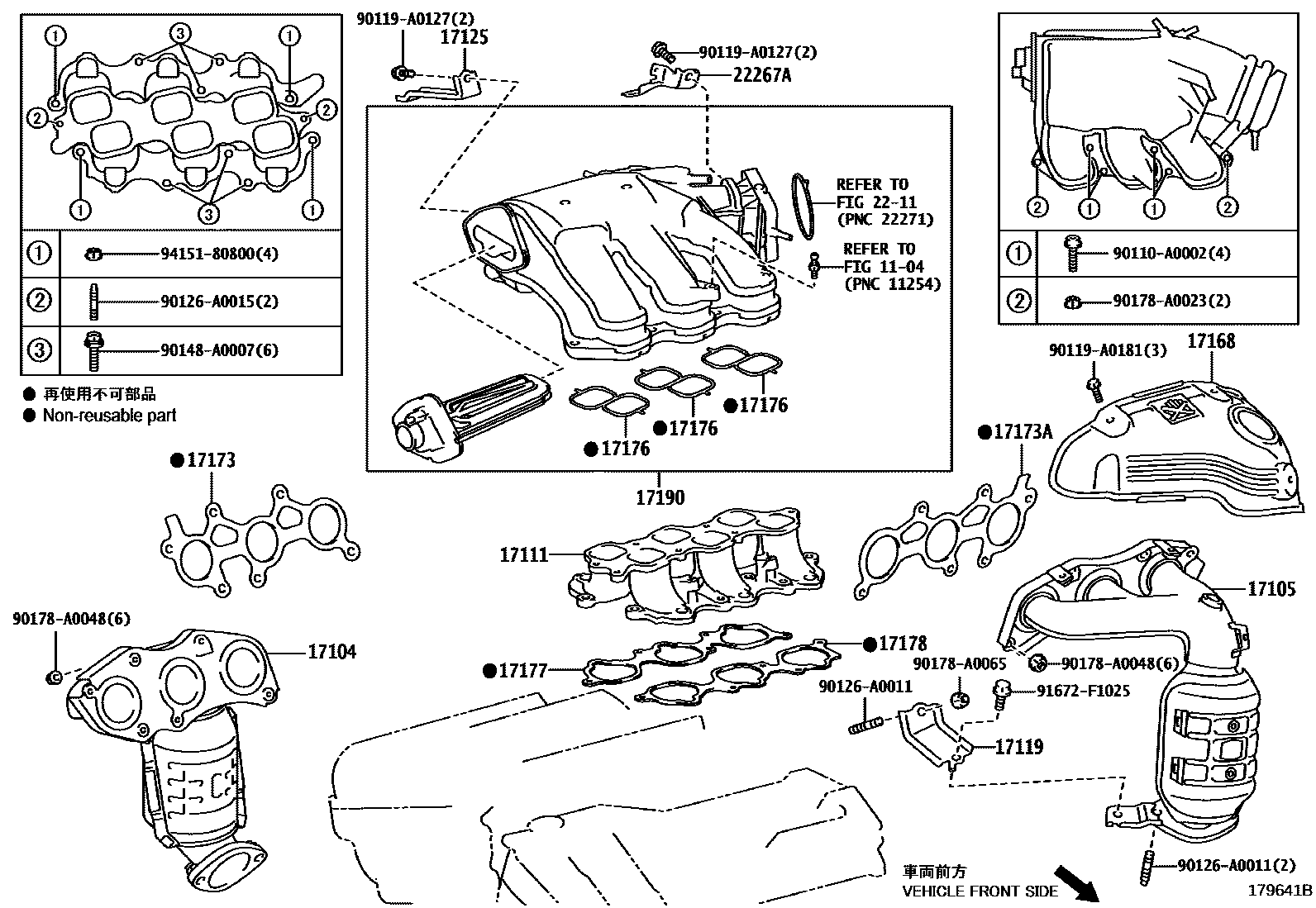

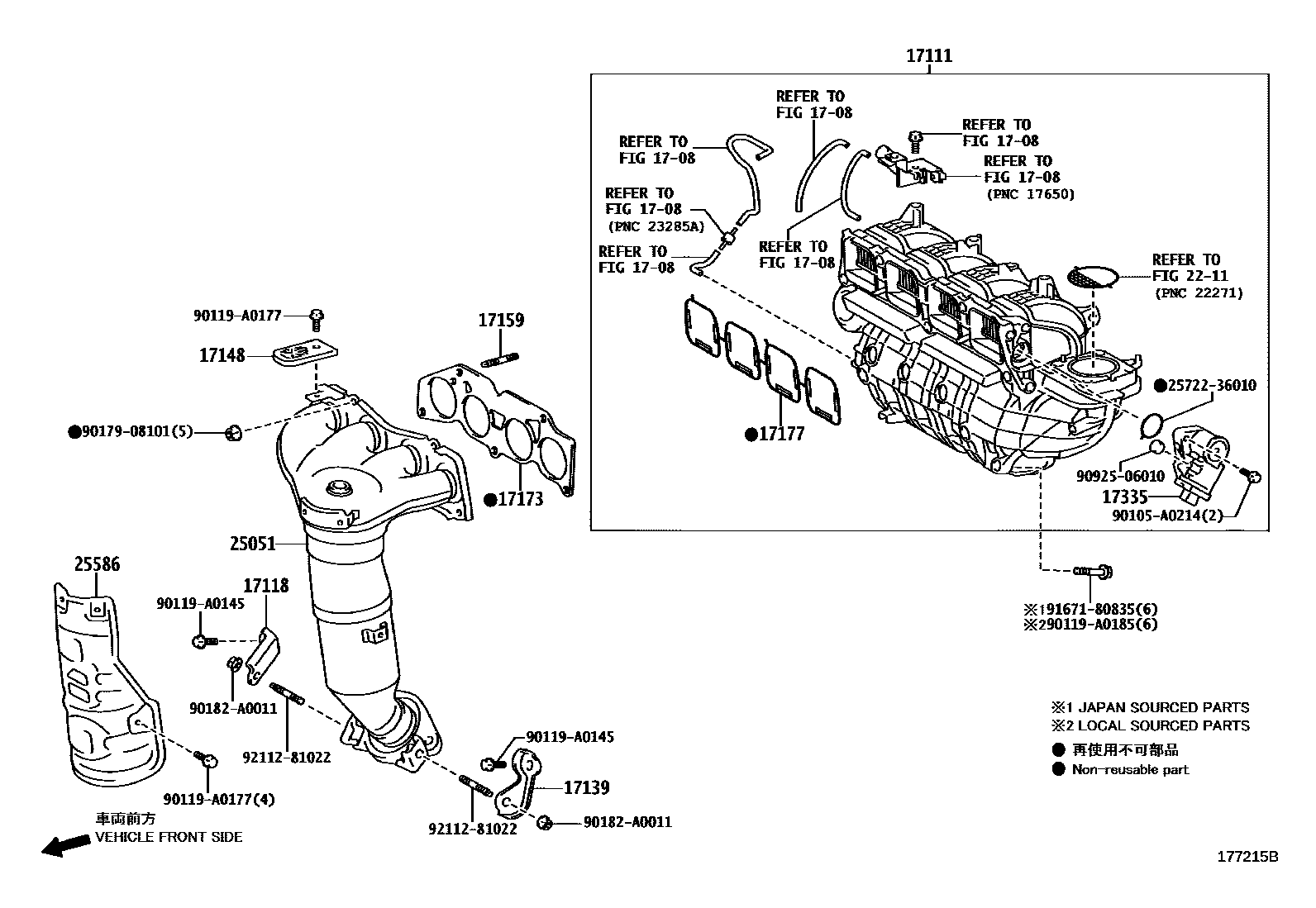

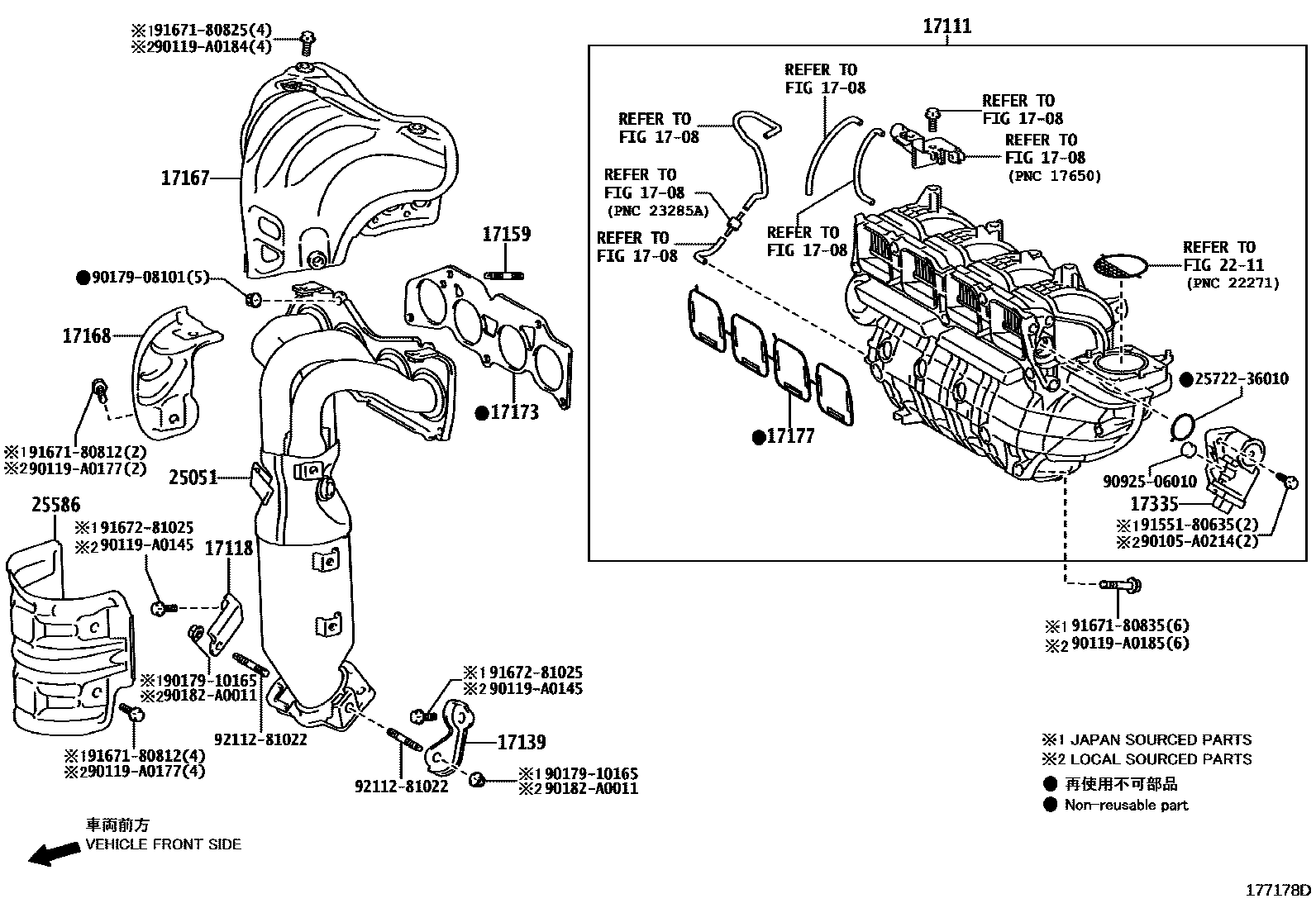

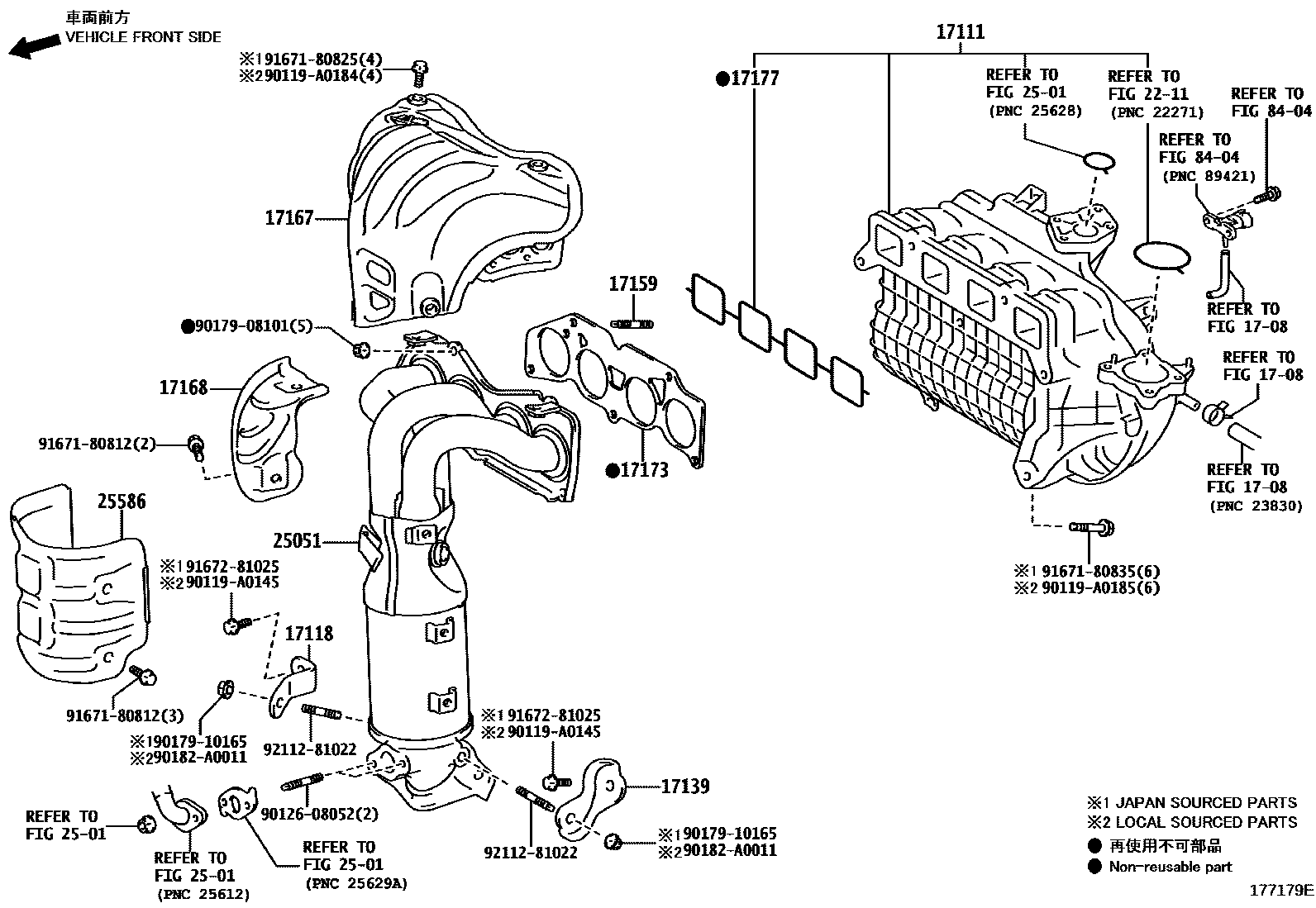

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17140-0P220 |
| 17105 | Left exhaust manifold sub-assembly | 17150-0P220 · 17150-0P300 |
| 17111 | Intake Manifold | 17111-0P030 · 17111-31141 · 17120-0V010 · 17120-0V020 · 17120-36010 · 17120-36050 |
| 17118 | Manifold stays | 17118-0V010 · 17118-36010 · 17118-36020 |
| 17119 | No. 2 manifold stay | 17119-0P030 |
| 17125 | No. 1 pressure tank stay | 17125-0P020 |
| 17139 | No. 2 manifold stay | 17139-0V050 · 17139-36020 · 17139-36040 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-36010 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08037 · 90126-A0007 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0V030 · 17167-36011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0P011 · 17168-0P020 · 17168-0V010 · 17168-36010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0P020 · 17173-0V010 · 17173-36020 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-0P020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-0P020 · 17176-0P021 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0V010 · 17171-36010 · 17171-36020 · 17177-0P020 · 17177-0P021 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-0P020 · 17178-0P021 |
| 17190 | Intake pressure regulator tank assembly | 17190-0P031 · 17190-0P032 |
| 17335 | Intake control valve actuator | 17335-0V010 · 17335-36010 |
| 22267A | Throttle body bracket | 22267-0P020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0V030 · 25051-0V040 · 25051-0V230 · 25051-36080 · 25051-36090 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0V010 · 25586-0V020 · 25586-36010 · 25586-36020 |
