Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

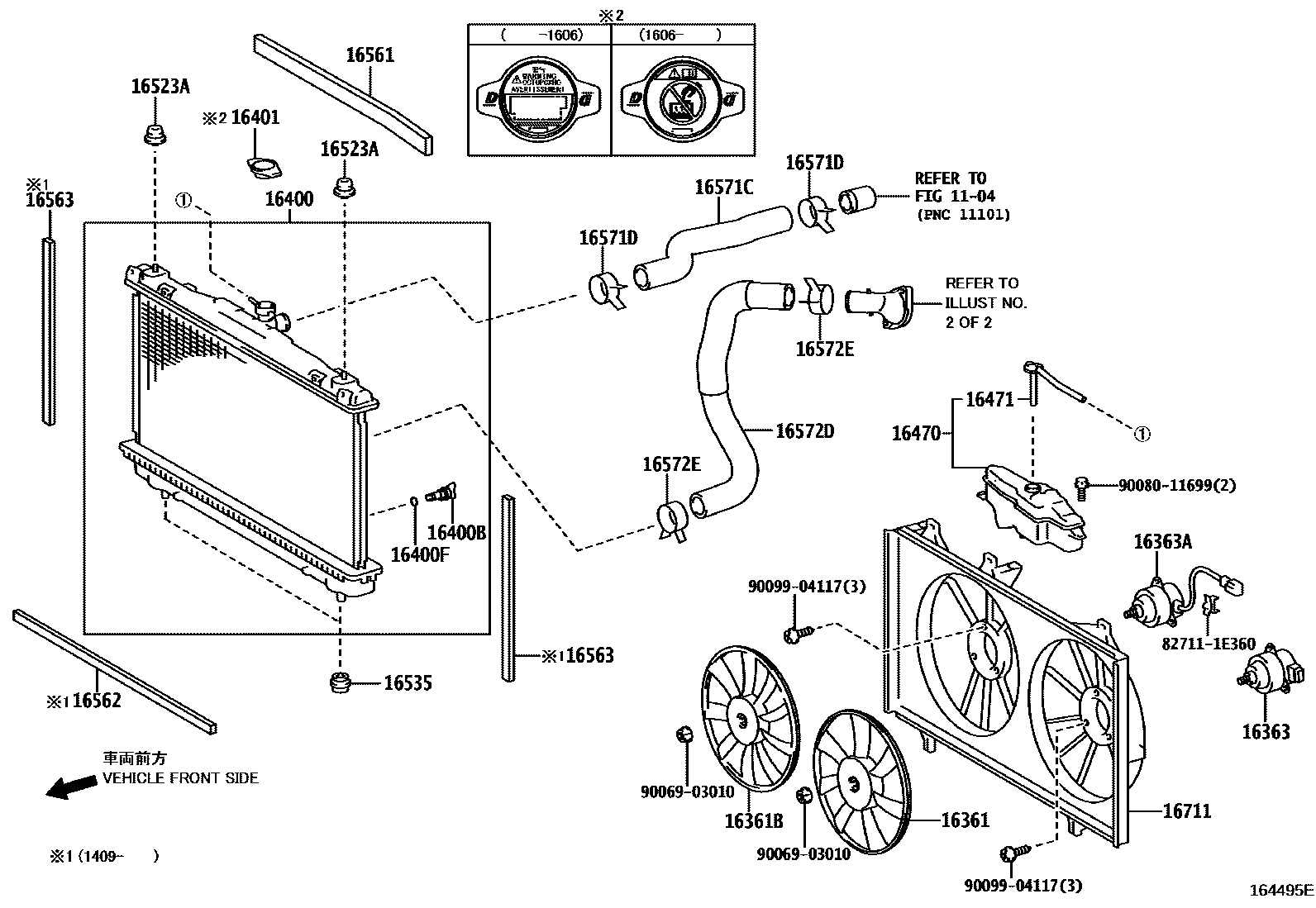

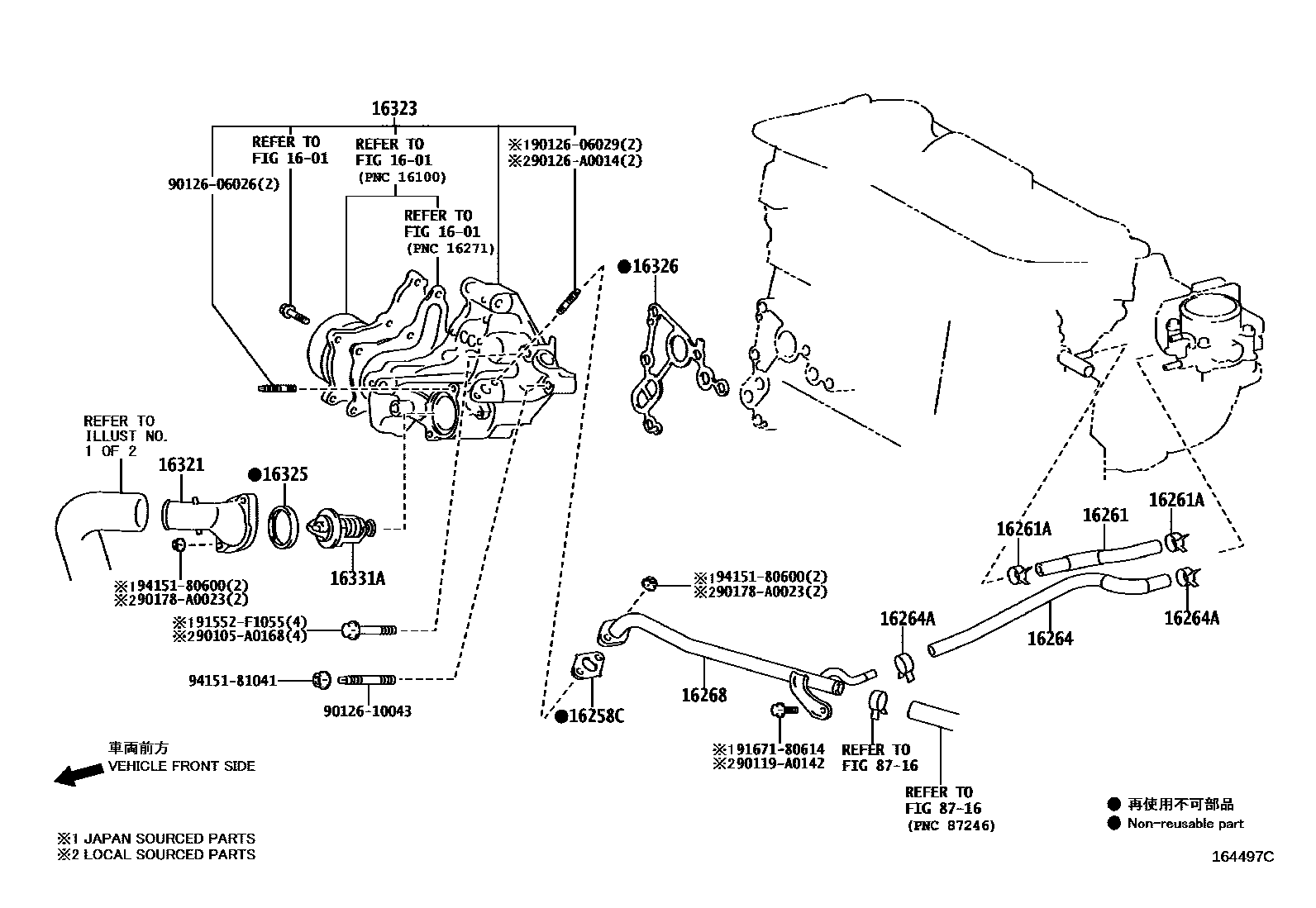

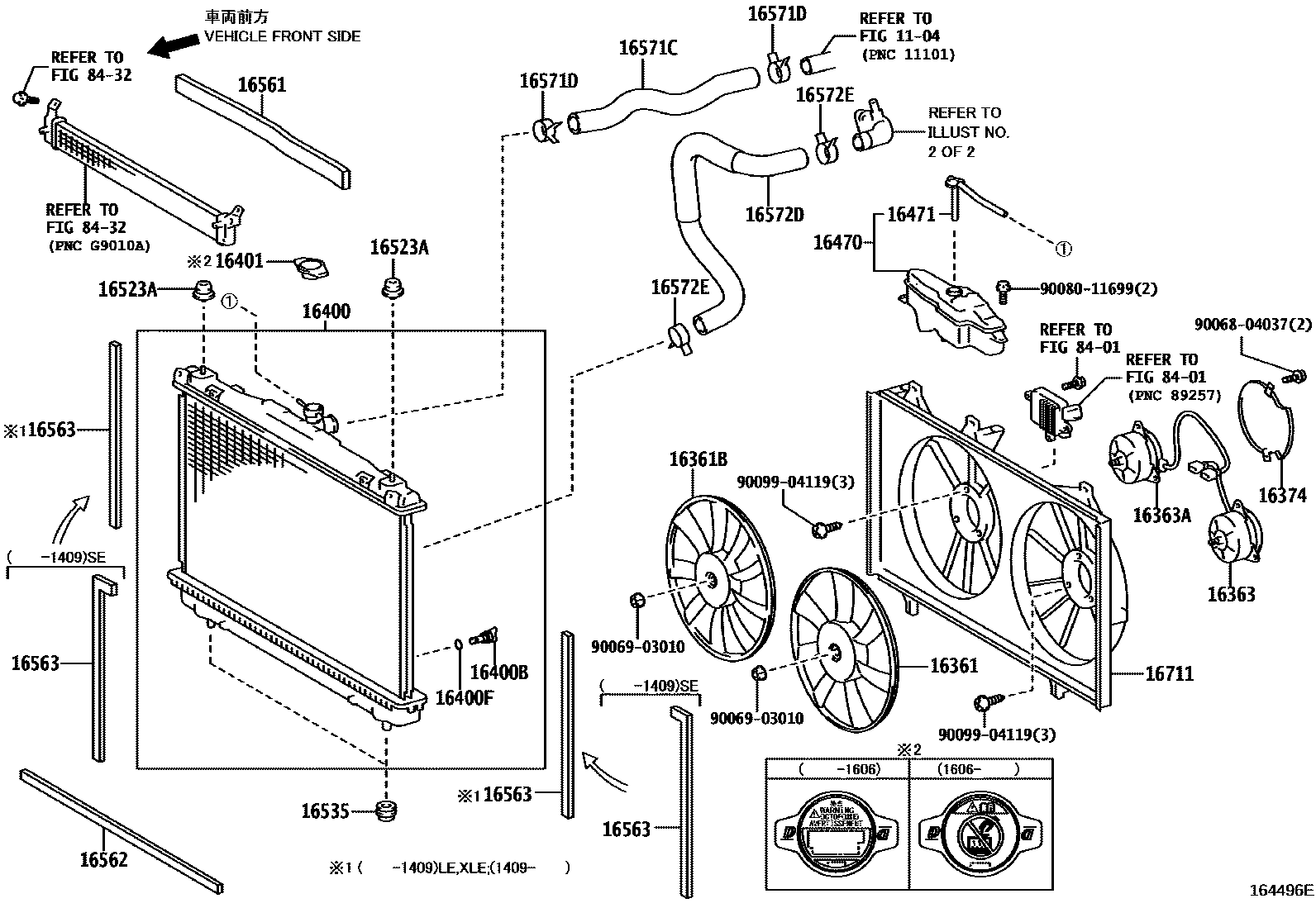

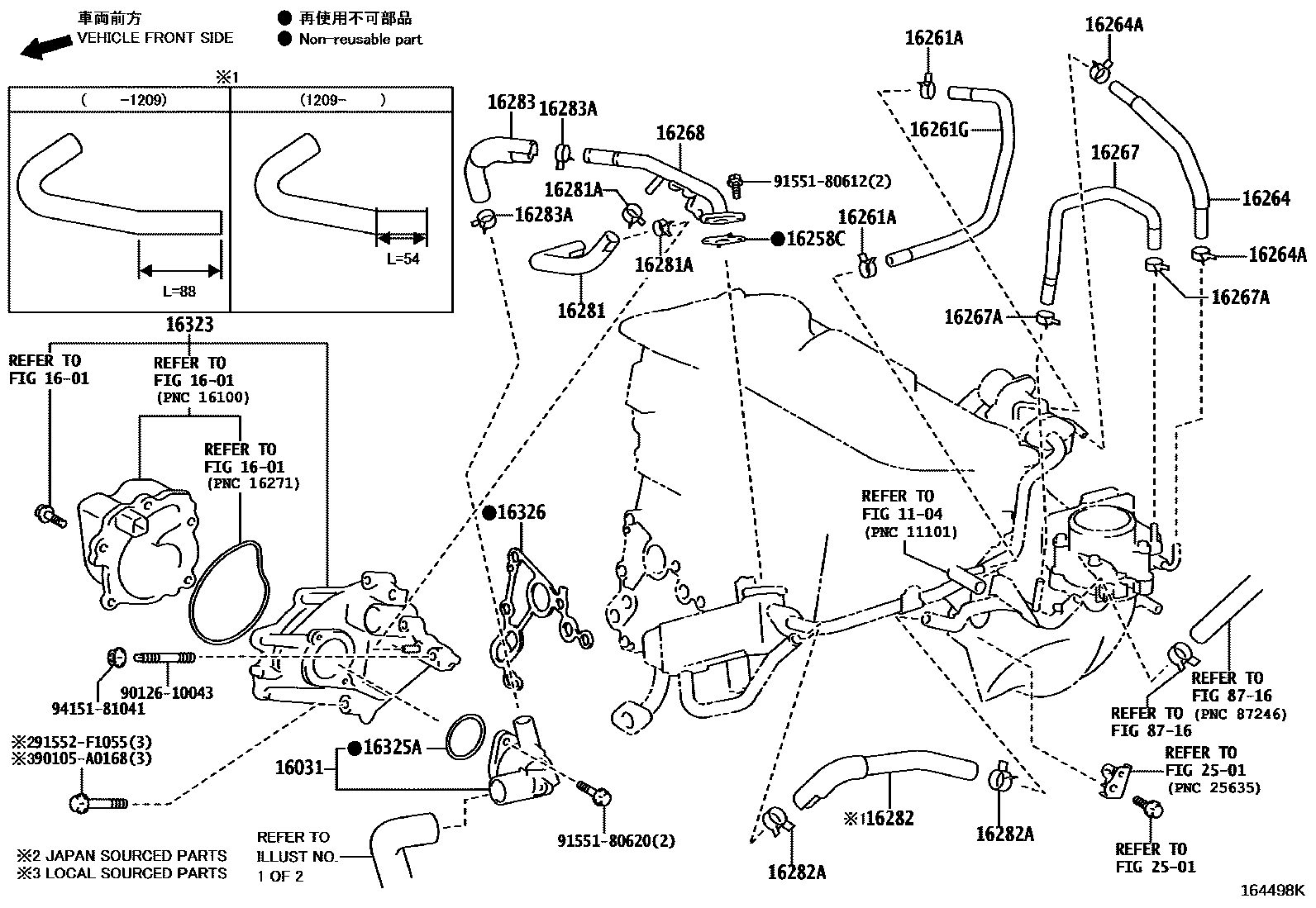

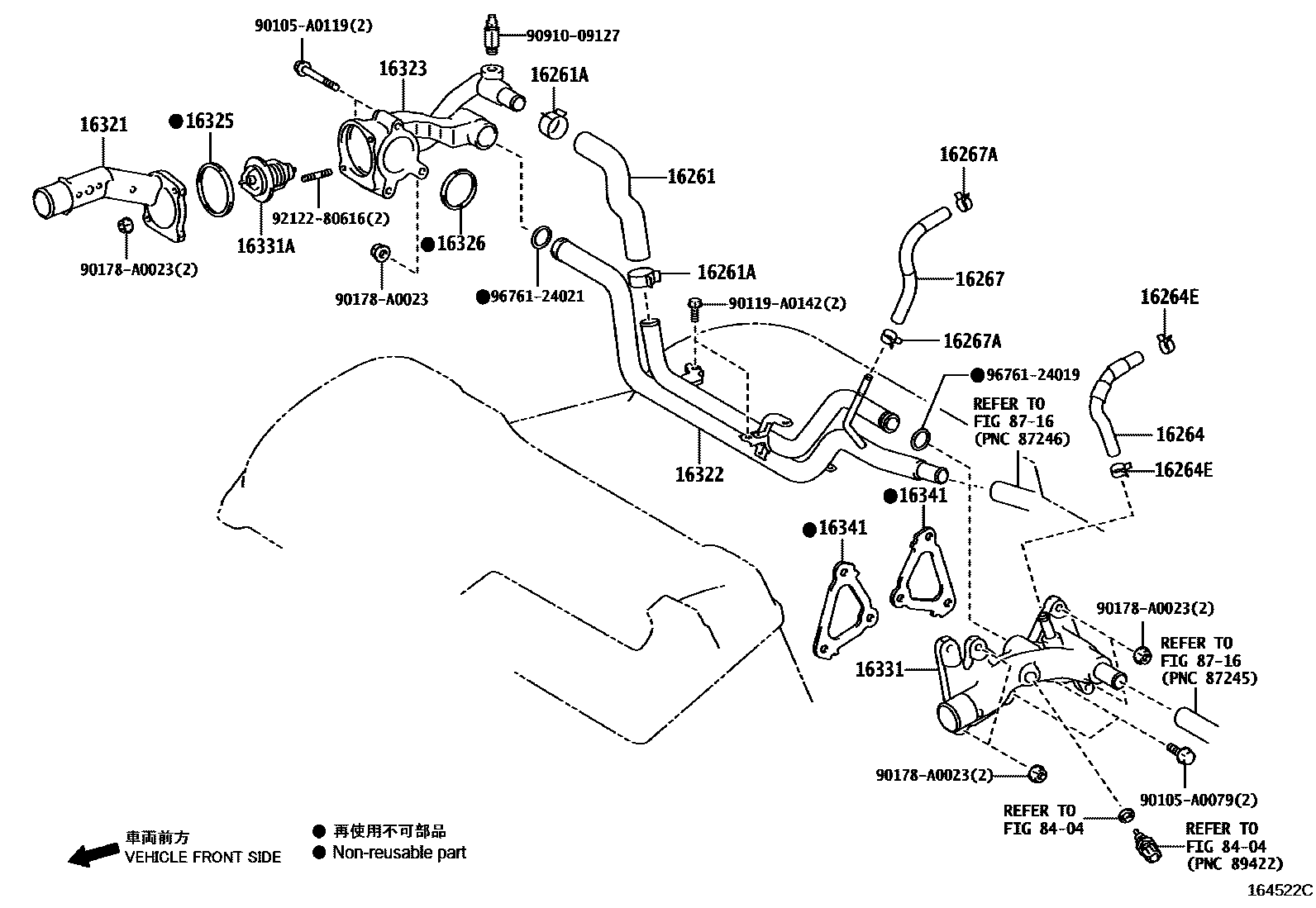

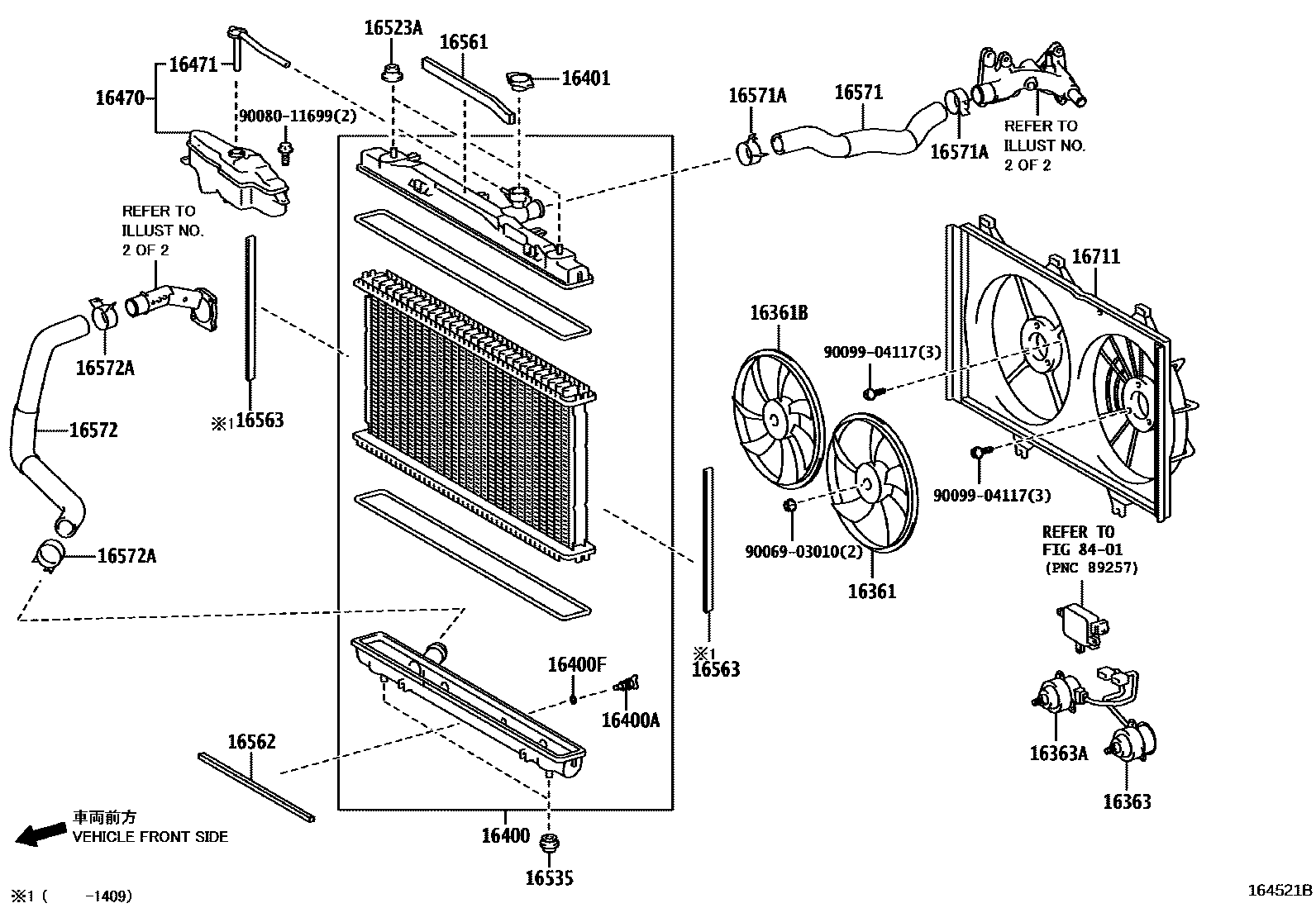

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-36010 |
| 16258C | Gasket (for water bypass pipe) | 16258-0H010 · 16258-36010 · 16258-36020 · 16258-36100 |
| 16261 | HOSE, WATER BY-PASS | 16261-0P030 · 16261-0V020 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0015 · 90466-A0017 · 96136-42701 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-36040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0P031 · 16264-0V020 · 16264-36010 · 16264-36030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0P020 · 16267-36040 · 16267-36080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0017 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V070 · 16268-36050 · 16268-36080 · 16268-36081 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-36020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-A0017 · 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36020 · 16282-36021 · 16282-36022 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-36030 · 16283-36031 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-21001 |
| 16321 | water inlet | 16321-0P010 · 16321-0V010 · 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-0P020 · 16322-31030 |
| 16323 | HOUSING, WATER INLET | 16032-0V011 · 16032-36011 · 16032-36050 · 16323-0P030 · 16323-31040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16325A | Water inlet shell gasket | 16325-36010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-0P020 · 16326-36010 |
| 16331 | Water outlet | 16331-31140 |
| 16331A | thermostat | 90916-03129 · 90916-03140 · 90916-A3002 · 90916-A3003 |
| 16341 | GASKET, WATER OUTLET | 16341-AD010 |
| 16361 | Fan | 16361-0P250 · 16361-0V090 · 16361-0V310 · 16361-0V420 |
| 16361B | Fan No. 2 | 16361-0P260 · 16361-0V100 · 16361-0V320 · 16361-0V430 |
| 16363 | cooling fan motor | 16363-0A120 · 16363-0A150 · 16363-0H010 |
| 16363A | Cooling fan motor No. 2 | 16363-0P030 · 16363-0V130 · 16363-0V150 · 16363-0V370 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0V140 |
| 16400 | Radiator assembly | 16400-0P350 · 16400-0V110 · 16400-0V120 |
| 16400A | Radiator drain switch sub-assembly | 16417-0C180 · 16417-21280 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 · 16401-31520 · 16401-36020 |
| 16470 | Radiator reservoir assembly | 16470-0V020 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0V060 |
| 16523A | Radiator bracket cushion | 16523-AD010 |
| 16535 | Radiator lower support | 16535-0A050 · 16535-0V010 · 16535-36010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H010 · 16561-0V080 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0V040 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-0V070 · 16563-0V100 |
| 16571 | Radiator water inlet hose | 16571-0P250 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-A0020 |
| 16571C | Radiator hose No. 1 | 16571-0V070 · 16571-0V080 |
| 16571D | No. 1 radiator hose clip | 90466-A0020 |
| 16572 | Radiator outlet hose | 16572-0P150 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-A0020 |
| 16572D | Radiator hose No. 2 | 16572-0V060 · 16572-0V070 |
| 16572E | No. 2 radiator hose clip | 90466-A0020 |
| 16711 | fan cover | 16711-0P200 · 16711-0V100 · 16711-0V110 |
