Toyota CAMRY Engine Oil Cooler — Figure 1503

Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 1 images and 5 PNC and OE references.

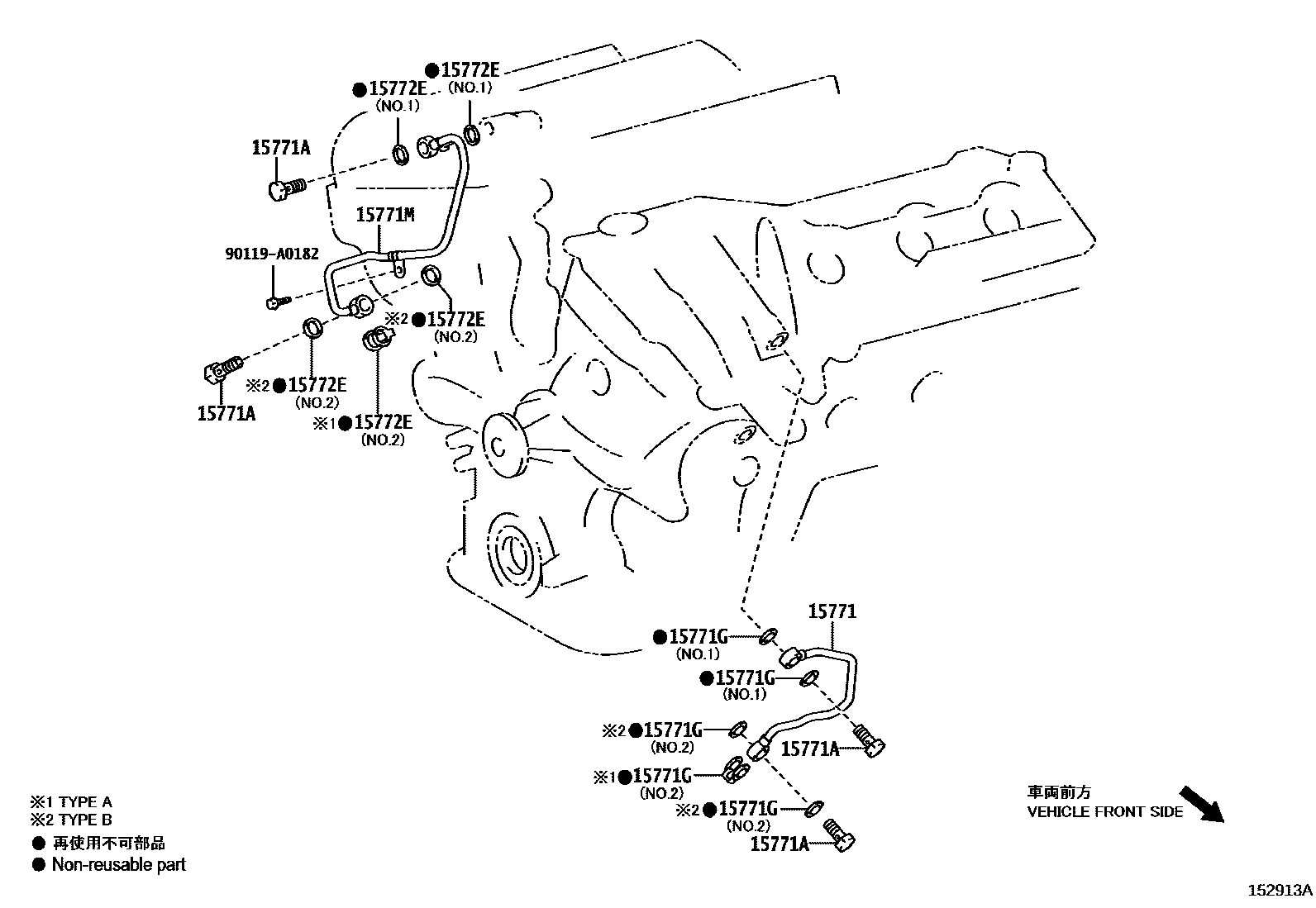

Toyota CAMRY Engine Oil Cooler EPC diagram — 152913A
Engine Oil Cooler — 152913A (201109 – 999999)

PNC and OE references

PNCPart nameOE numbers
15771No. 1 oil pipe15771-31010
15771AConnector (for oil pipe)90401-16043
15771Gpadding90430-16016 · 90430-16017
15771MOil pipe15772-31030
15772EGasket (for oil pipe)90430-16016 · 90430-16017
