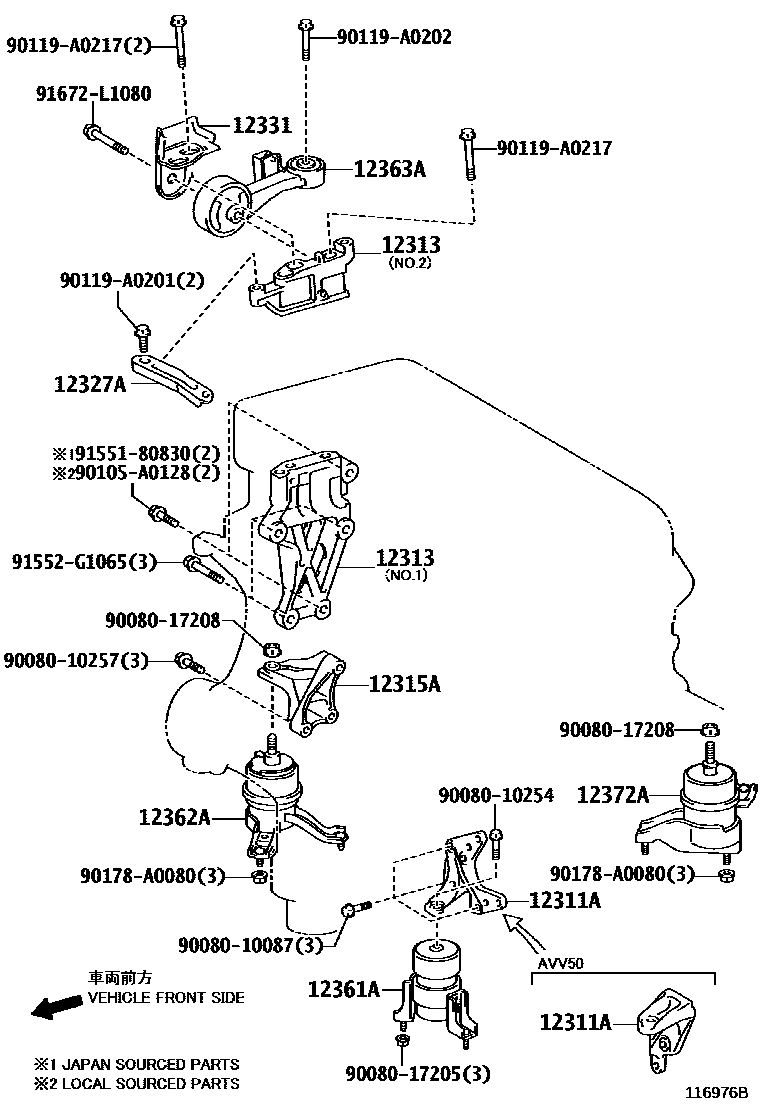

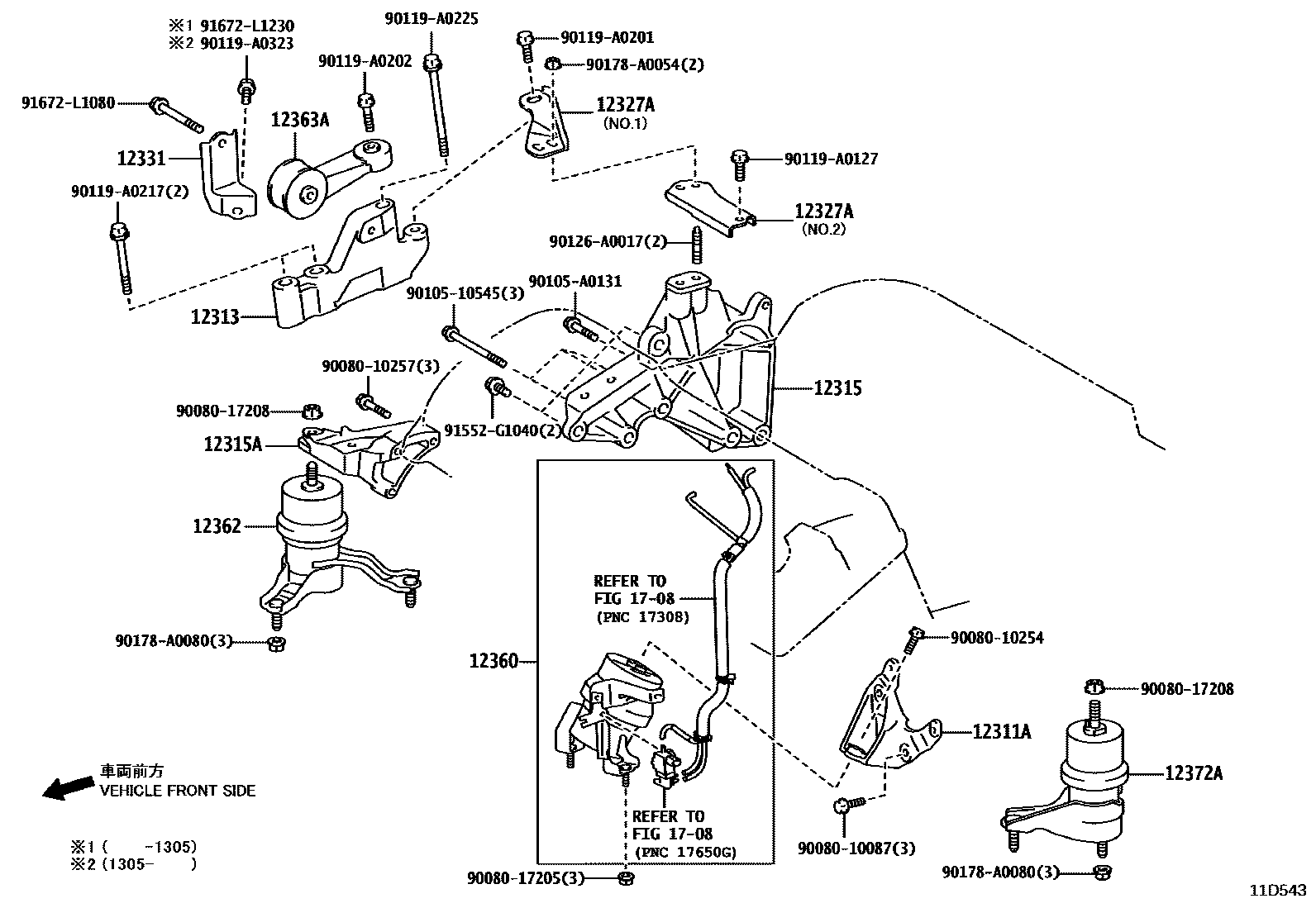

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0P090 · 12311-0V130 · 12311-0V160 · 12311-36030 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0P060 · 12313-0V040 · 12313-0V110 · 12313-36010 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0P031 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0P020 · 12315-31100 · 12319-0V020 · 12319-0V040 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0P020 · 12327-0P030 · 12327-0P080 · 12327-0V050 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-0P020 · 12331-0V030 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-0P130 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0V060 · 12361-0V070 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-0P090 |
| 12362A | Engine left front mounting vibration isolation pad | 12362-0V060 |
| 12363A | Engine movement control lever | 12363-0P011 · 12363-0P012 · 12363-0V070 · 12363-0V080 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0H130 · 12372-0P010 · 12372-0V020 |
