Toyota CAMRY Cylinder Head — Figure 1104

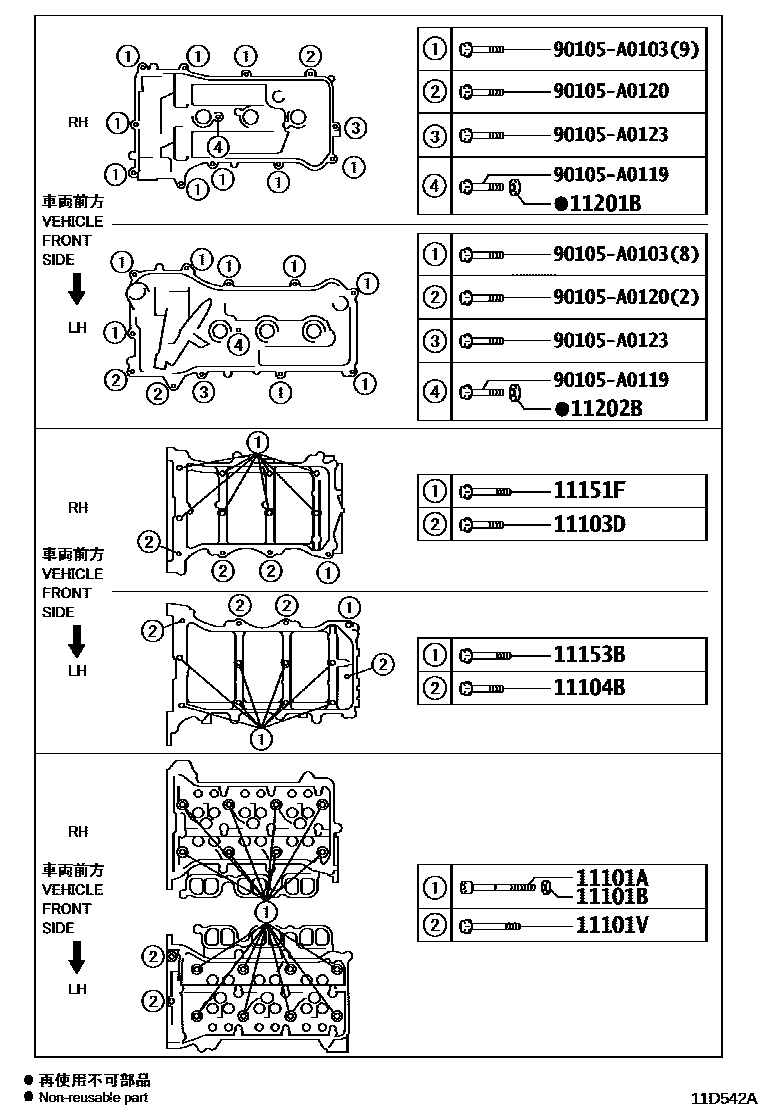

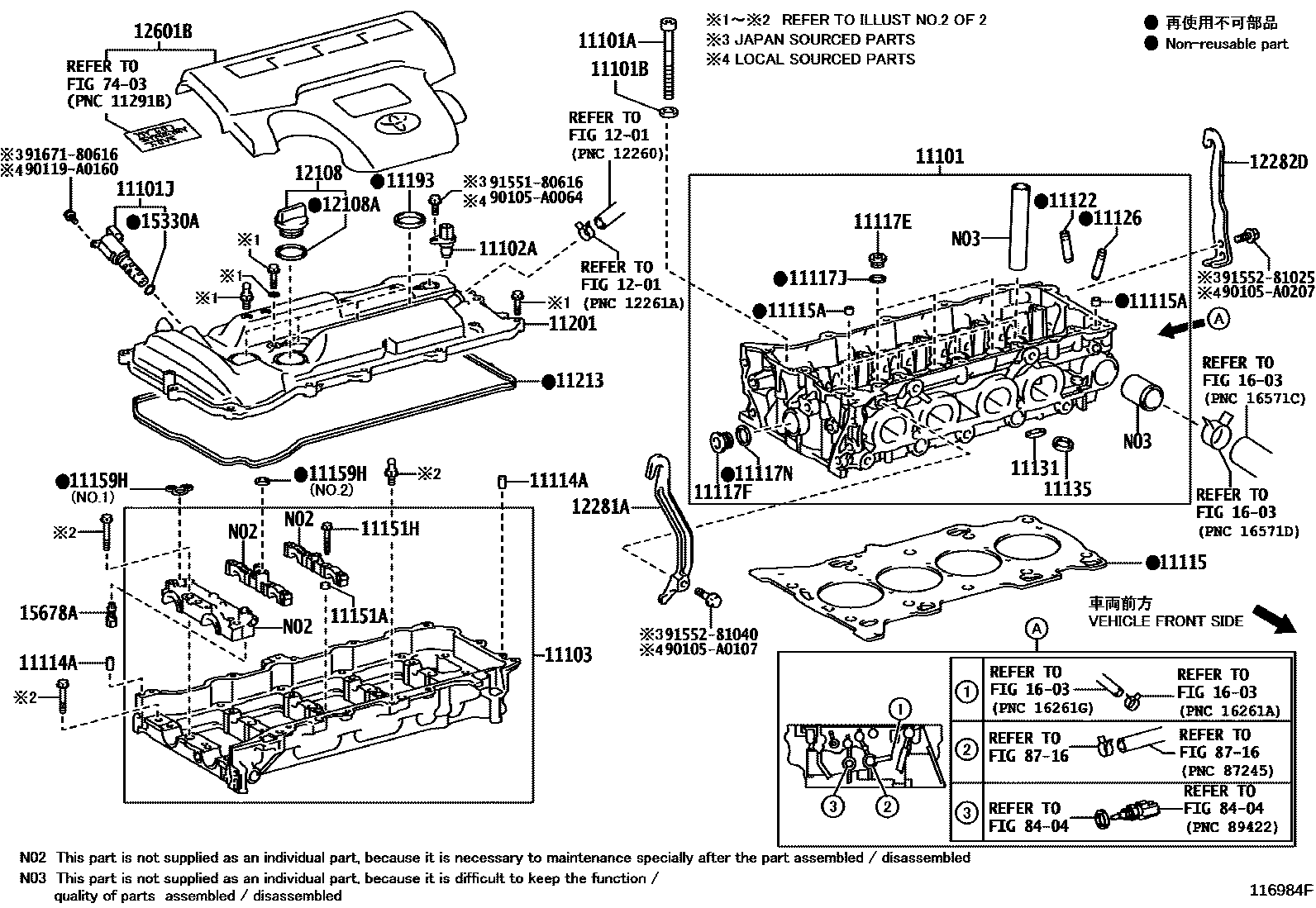

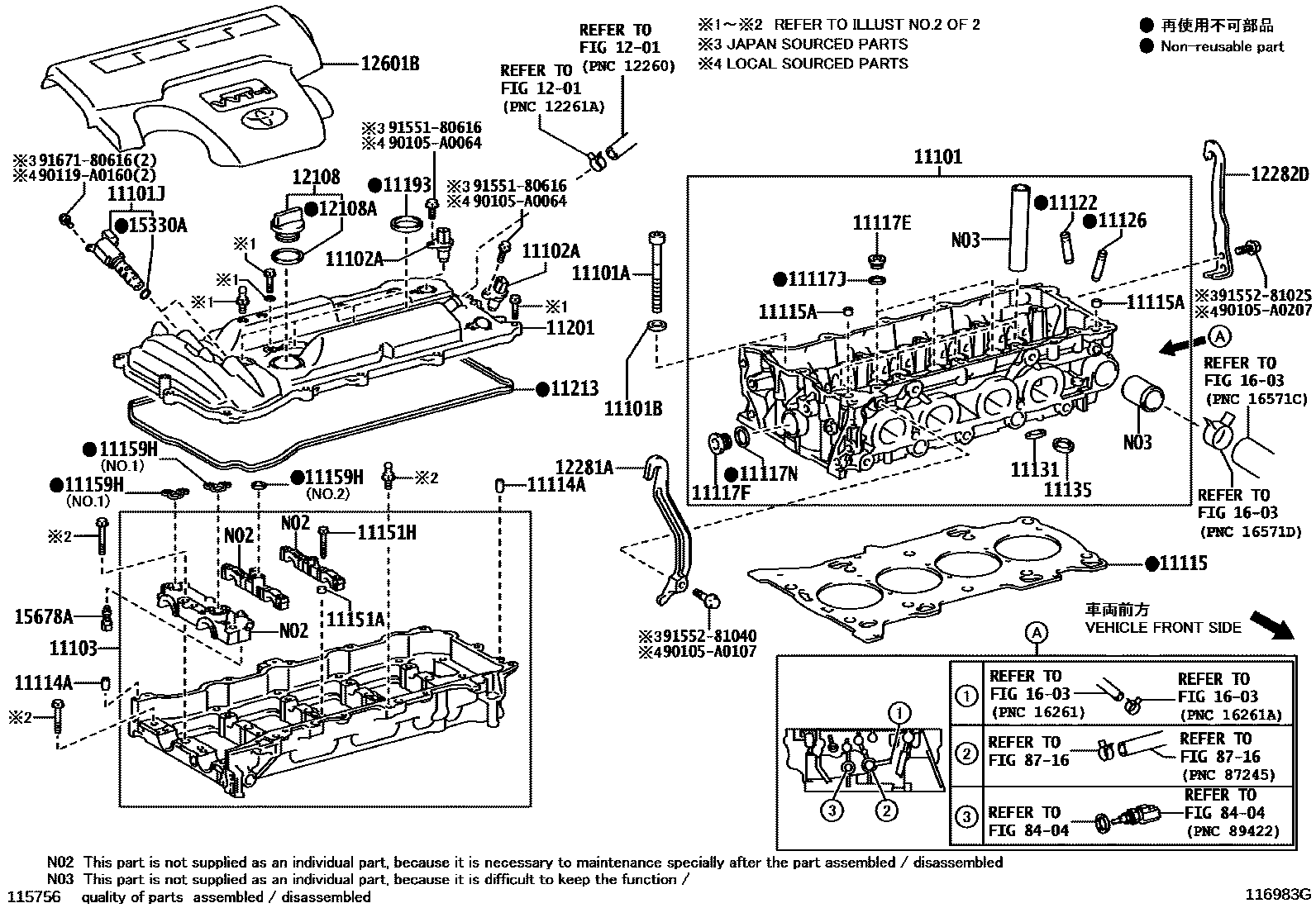

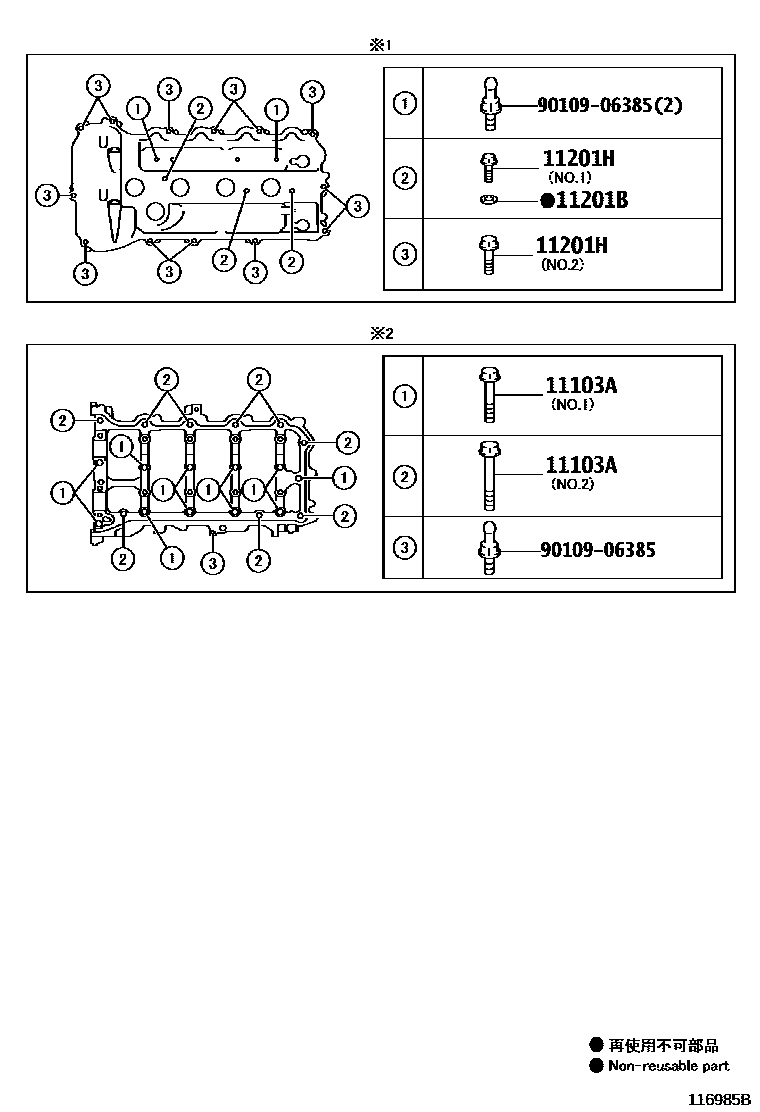

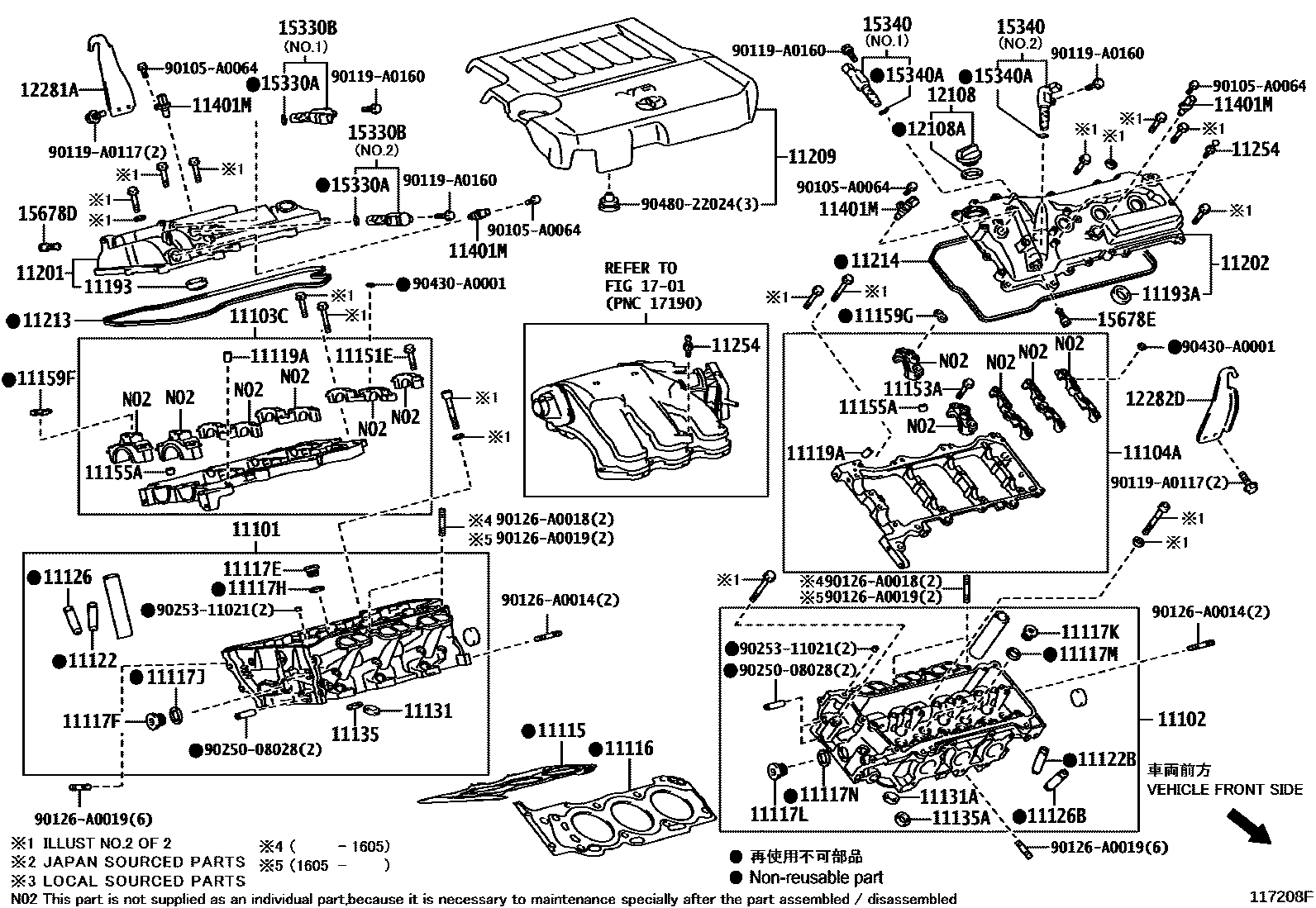

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 5 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09260 · 11101-09261 · 11101-09262 · 11101-09263 · 11101-09345 · 11101-09346 · 11101-39536 · 11101-39537 · 11101-39776 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02164 · 90910-A2006 · 90910-A2009 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90201-A0008 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T010 · 15330-37010 |
| 11101V | Auxiliary bolts (for cylinder head assembly) | 90105-10521 · 90105-A0279 |
| 11102 | left cylinder head | 11102-09140 · 11102-09141 · 11102-09142 · 11102-09143 · 11102-39056 · 11102-39057 |
| 11102A | Camshaft position sensor | 90919-05060 |
| 11103 | Camshaft housing sub-assembly | 11103-0V010 · 11103-0V011 · 11103-36010 · 11103-36011 · 11103-36020 · 11103-36021 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-A0149 · 90105-A0165 · 91551-G0845 |
| 11103C | Right camshaft housing sub-assembly | 11103-0P014 |
| 11103D | Bolt (for mounting camshaft housing to right cylinder head) | 90119-A0207 |
| 11104A | Left camshaft housing sub-assembly | 11104-0P011 |
| 11104B | Bolt (for mounting camshaft housing to left cylinder head) | 90119-A0207 |
| 11114A | direct selling | 90250-06003 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0P020 · 11115-0V010 · 11115-0V011 · 11115-36030 · 11115-36031 · 11115-36040 · 11115-36041 |
| 11115A | PIN, RING | 90253-12002 |
| 11116 | No. 2 cylinder head gasket | 11116-0P020 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 · 90341-20012 |
| 11117F | No. 2 headed straight thread plug | 90341-24011 · 90341-27006 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-20004 · 90430-27005 |
| 11117K | No. 1 left side headed straight thread plug | 90341-20012 |
| 11117L | No. 2 left side headed straight thread plug | 90341-27006 |
| 11117M | Gasket (for coolant hole No. 2) | 90430-20004 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-24246 · 90430-27005 |
| 11119A | No. 1 direct sales | 90250-05021 · 90250-A0025 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-31070 · 11122-31090 · 11123-31050 · 11123-31070 · 11123-31090 |
| 11122B | No. 2 intake valve guide bushing | 11122-31050 · 11122-31070 · 11123-31050 · 11123-31070 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-31030 · 11126-31040 · 11127-31030 · 11127-31040 |
| 11126B | No. 2 exhaust valve guide bushing | 11126-31030 · 11127-31030 |
| 11131 | intake valve seat | 11131-0P020 · 11131-0V010 · 11131-31050 · 11131-36030 · 11132-0P020 · 11132-0V010 · 11132-31050 · 11132-36030 |
| 11131A | No. 2 intake valve seat | 11131-0P020 · 11131-31050 · 11132-0P020 · 11132-31050 |
| 11135 | Exhaust valve seat | 11135-0P020 · 11135-0V010 · 11135-31080 · 11135-36010 · 11136-0P020 · 11136-0V010 · 11136-31080 · 11136-36010 |
| 11135A | No. 2 exhaust valve seat | 11135-0P020 · 11135-31080 · 11136-0P020 · 11136-31080 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151E | Bolts (for installing the camshaft bearing cap to the No. 1 right camshaft housing) | 90119-A0302 |
| 11151F | Bolts (for installing the camshaft bearing cap to the No. 2 right camshaft housing) | 90119-A0208 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-A0302 |
| 11153A | Bolts (for mounting the camshaft bearing cap to the No. 1 left camshaft housing) | 90119-A0302 |
| 11153B | Bolts (for installing the camshaft bearing cap to the No. 2 left camshaft housing) | 90119-A0208 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159F | Right camshaft bearing cap oil hole gasket | 11159-0P010 |
| 11159G | Left camshaft bearing cap oil hole gasket | 11159-0P010 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0V011 · 11159-36011 · 90430-10024 · 90430-A0001 |
| 11193 | spark plug bushing gasket | 11193-0A010 · 11193-0V010 · 11193-36010 · 11193-70010 |
| 11193A | Left spark plug bushing gasket | 11193-0A010 · 11193-70010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0P020 · 11201-0V010 · 11201-31250 · 11201-36010 · 11201-36020 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-A0103 · 90105-A0214 · 91551-80625 · 91551-80635 · 91551-A0625 |
| 11202 | Left cylinder head cover sub-assembly | 11202-0P020 · 11202-31030 |
| 11202B | Gasket (for left cylinder head cover) | 90210-06013 |
| 11209 | V-shaped cylinder head sub-assembly | 11209-0P010 · 11209-0P011 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0P010 · 11213-31050 · 11213-36020 |
| 11214 | No. 2 cylinder head cover gasket | 11214-0P040 · 11214-31020 |
| 11254 | V-shaped cylinder block cover No. 1 bracket | 11254-31020 |
| 11401M | No. 2 crankshaft position sensor | 90919-05060 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0P021 · 12180-28010 · 12180-31010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43025 · 90430-35001 · 90430-37004 |
| 12281A | Engine No. 1 hanger | 12281-31120 · 12281-31121 · 12281-36020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-31100 · 12282-36021 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0V050 · 12601-0V060 · 12601-36050 · 12601-36060 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14030 · 90099-14137 |
| 15330B | Right camshaft timing oil control valve assembly | 15330-0P020 · 15330-0P030 |
| 15340 | Left camshaft timing oil control valve assembly | 15330-0P020 · 15340-0P020 |
| 15340A | O-ring (for camshaft timing oil control valve) | 90068-14030 |
| 15678A | Oil control valve filter | 15678-0V010 · 15678-37010 |
| 15678D | Right oil control valve filter | 15678-46020 |
| 15678E | Left oil control valve filter | 15678-46020 |
