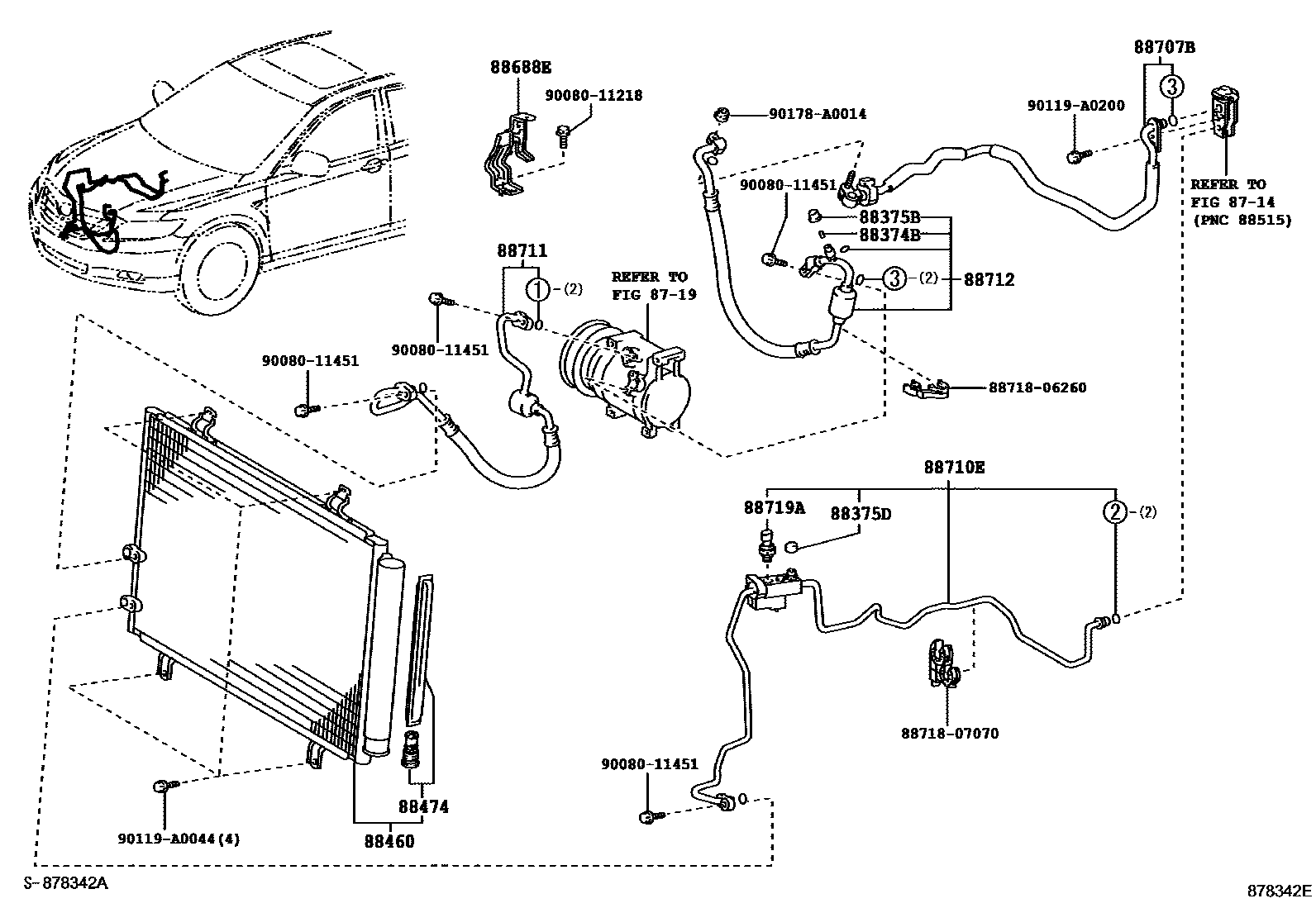

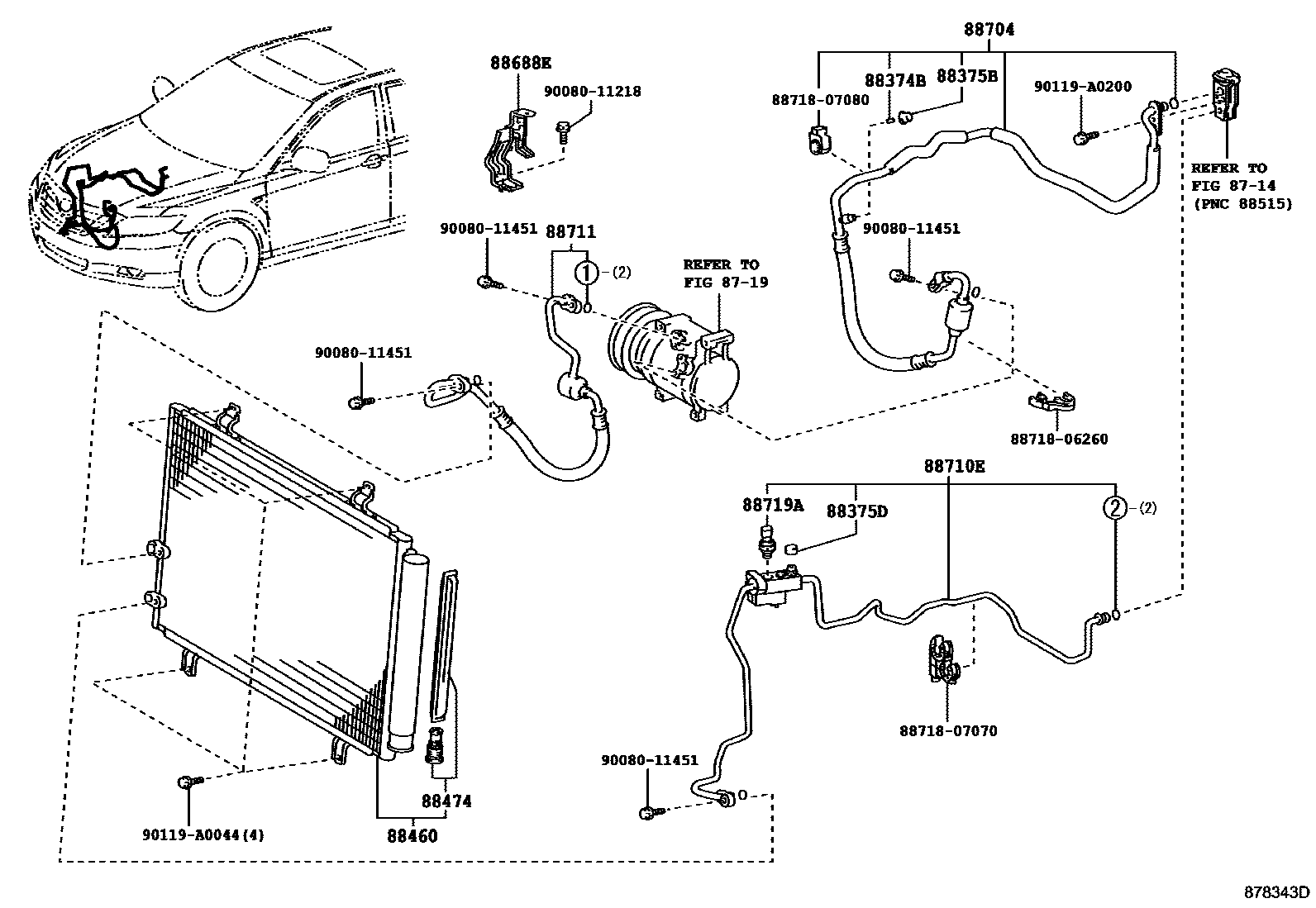

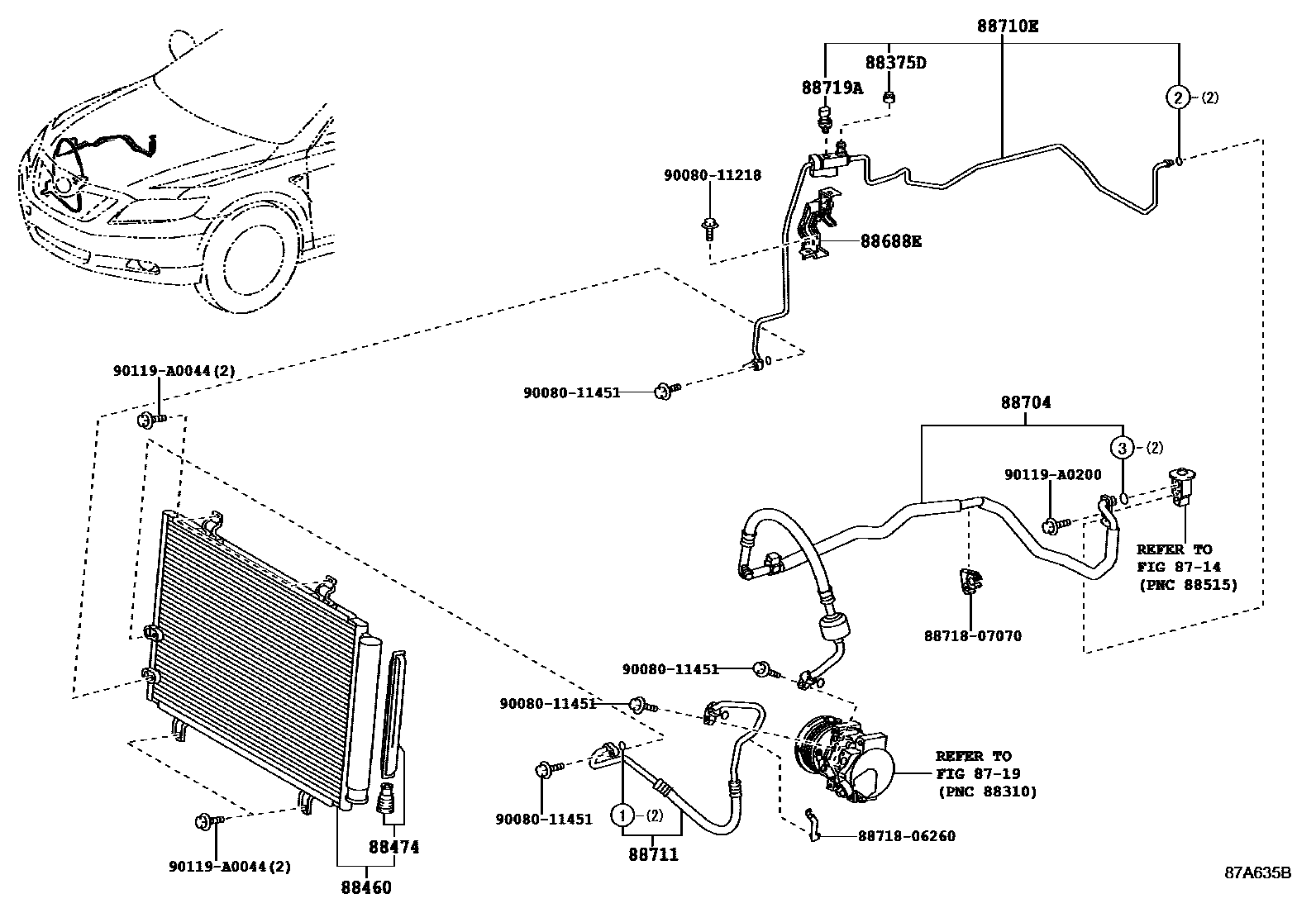

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02070 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02060 |
| 88460 | Air conditioning condenser assembly | 88460-06210 |
| 88474 | cooler dryer | 88474-17010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-07060 |
| 88704 | Oil suction hose sub-assembly | 88704-06290 · 88704-06410 |
| 88707B | Suction pipe B sub-assembly | 88707-06010 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06200 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06230 · 88711-06240 · 88711-06360 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06150 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
